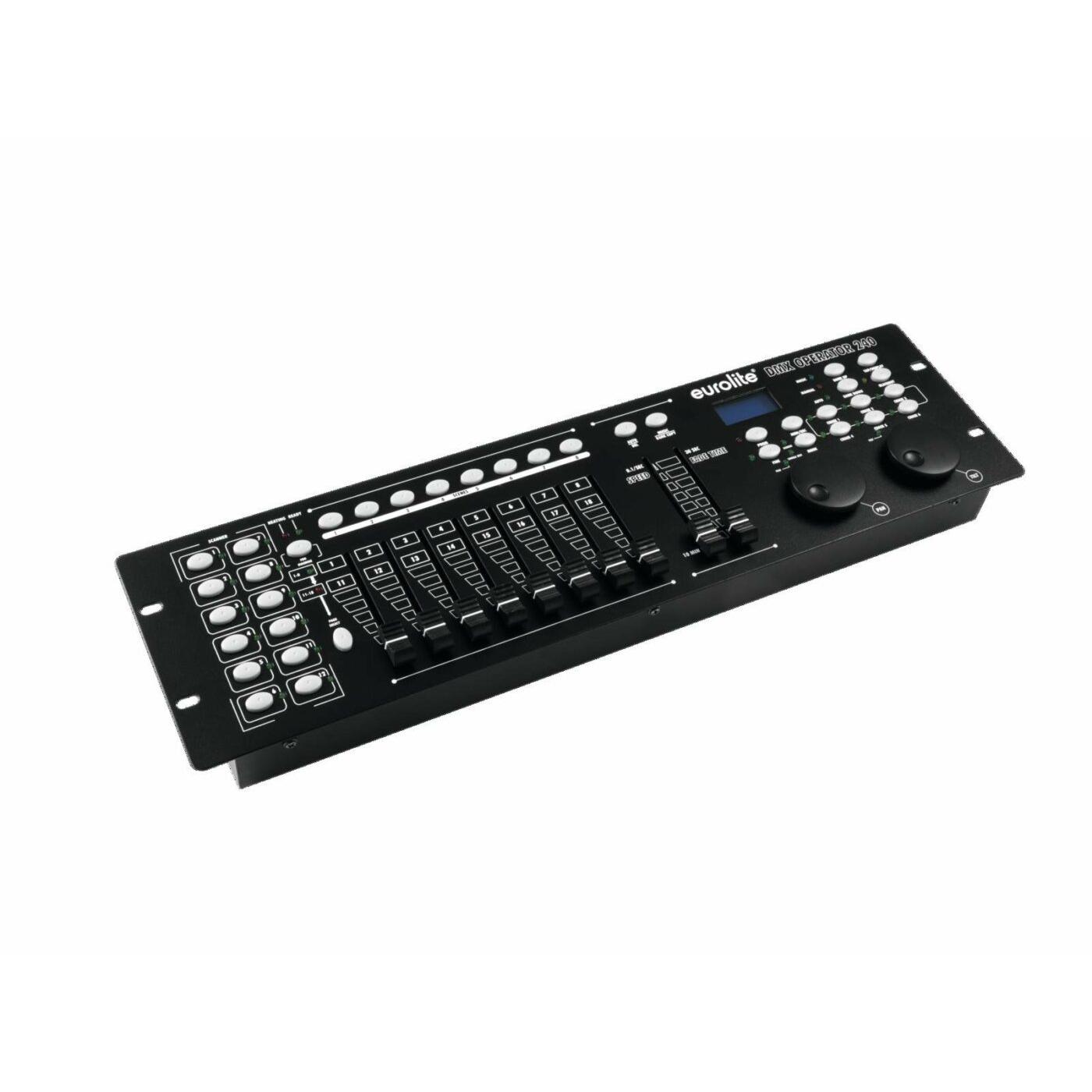

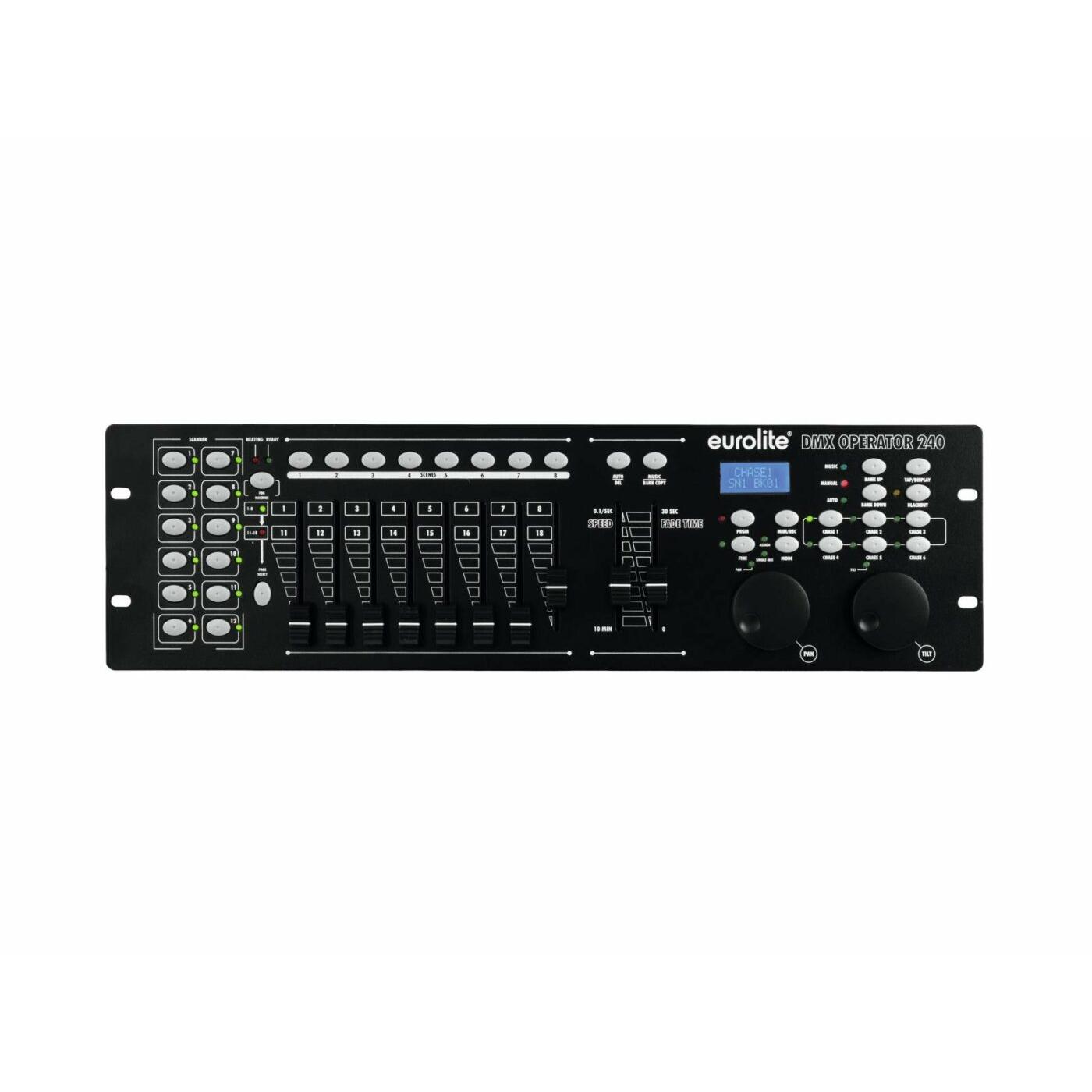

EUROLITE DMX Operator 240 Controller
Original price was: €201,11.€151,31Current price is: €151,31.
Description
Console for 12 light effect units (max.20 DMX channels), 2 jog wheels
- DMX controller for 12 light effect units such as moving heads, scanners and LED spot lights
- 12 fixtures with up to 20 channels each can be controlled
- 240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch)
- USB port for storing program data
- 240 programmable scenes (30 banks x 8 scenes)
- 6 programmable chases with 240 scenes each can be stored
- Manual, time-controlled or sound-controlled chase running mode
- Fade between scenes adjustable between 0-30 s
- Copy function for scenes and banks
- 2 DMX fixture levels can be controlled, each with up to 10 channels
- 8 DMX channel faders
- 2 jog wheels for pan/tilt
- Blackout function
- Sound control via built-in microphone or line input with adjustable sensitivity
- Backlit LCD (2 x 8 characters)
- RDM support (DMX address setup and identify)
- Fog machine control possible
- Supports standard MIDI
- 3-pin XLR connector with polarity selector
- Firmware update via USB
- Desktop console
- Rack installation with 3 units
| Power supply: | 100-240 V AC, 50/60 Hz |
| via power unit included in the delivery | |
| Power consumption: | 2.7 W |
| Number of control channels: | 240 |
| Storable scenes: | 240 (8 each in 30 memory banks) |
| Storable chases: | 6 with 240 steps each |
| Sound control: | via built-in microphone or via audio input |
| Audio input: | RCA |
| Input sensitivity: | 0.1-1 V |
| DMX512/RDM output: | 3-pin XLR connector with polarity selector |
| MIDI input: | 5-pin DIN |
| Fog machine connector: | 5-pin DIN |
| Available storage media: | USB devices (FAT32) |
| Dimensions (L x W x H): | 483 x 135 x 71 mm |
| Rack installation with 3 U | |
| Weight: | 2 kg |
Specifications
| Weight | 2,82 kg |
|---|---|
| Dimensions | 0,1450 × 0,5800 × 0,1850 m |
| IP classification | IP20 |
| Case color | Black |
| Color | Black |
| Control | DMX |
| Weight kg | 2 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption W | 2.70 |
| Accumulator | No |
| Controller useable for | Colour wheel, Controls DMX-effects, Controls KLS classic, Controls KLS in general, Controls Moving Lights, CW, RGB+UV, RGBW+UV, UV, WW |
| Number of DMX channels | 240 |
| Typ (DMX Controller) | 483 mm (19") |
