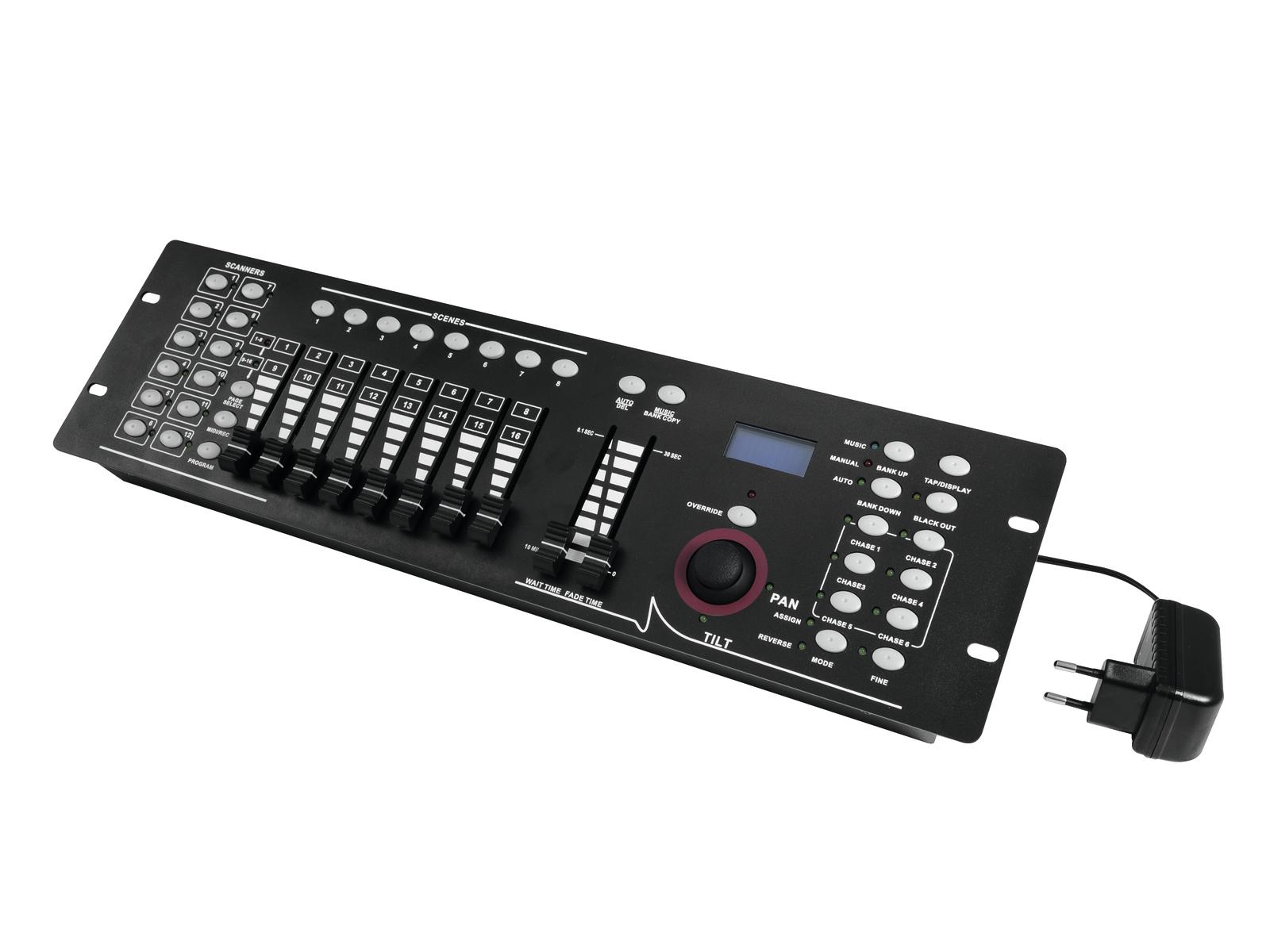

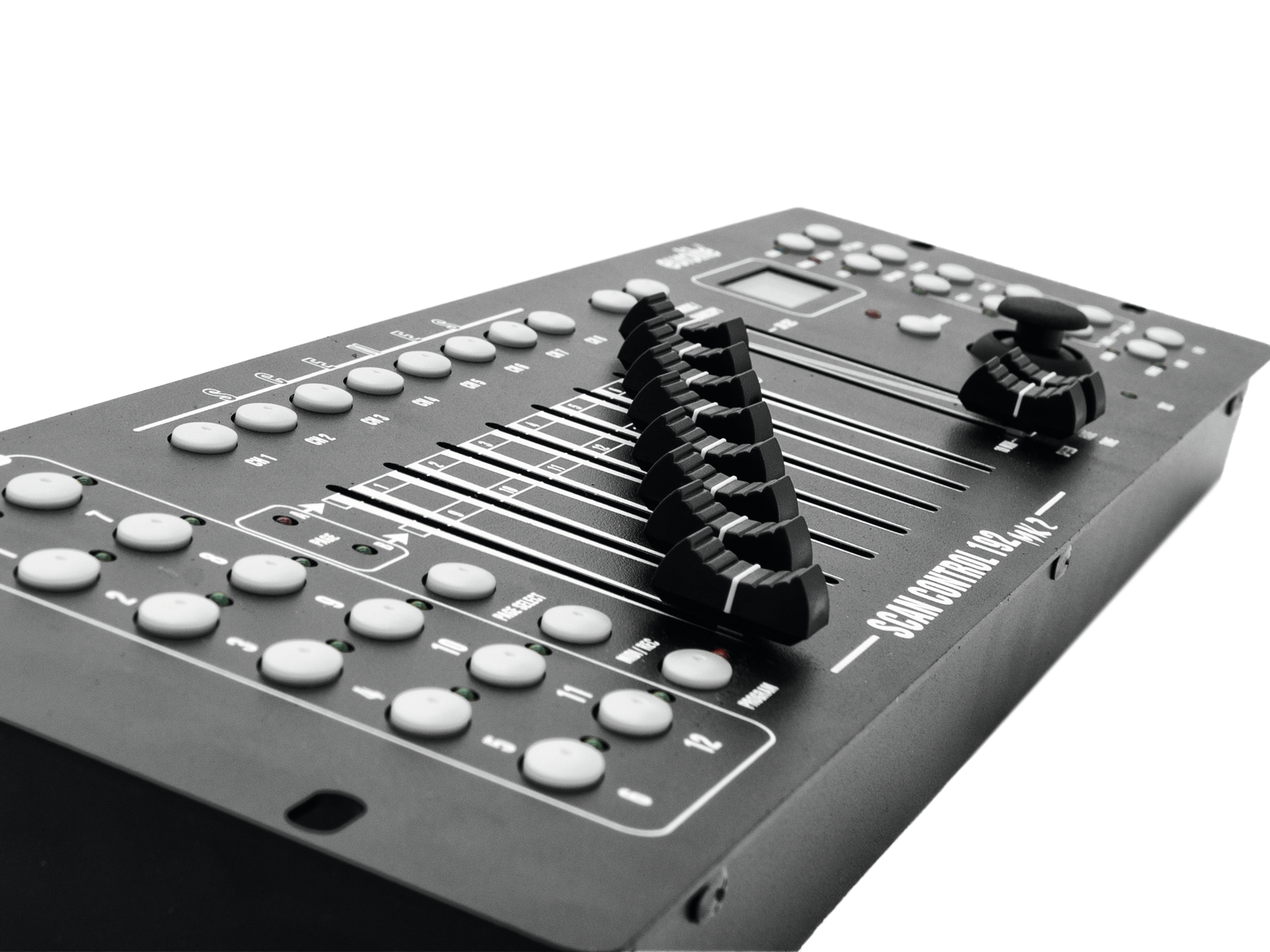

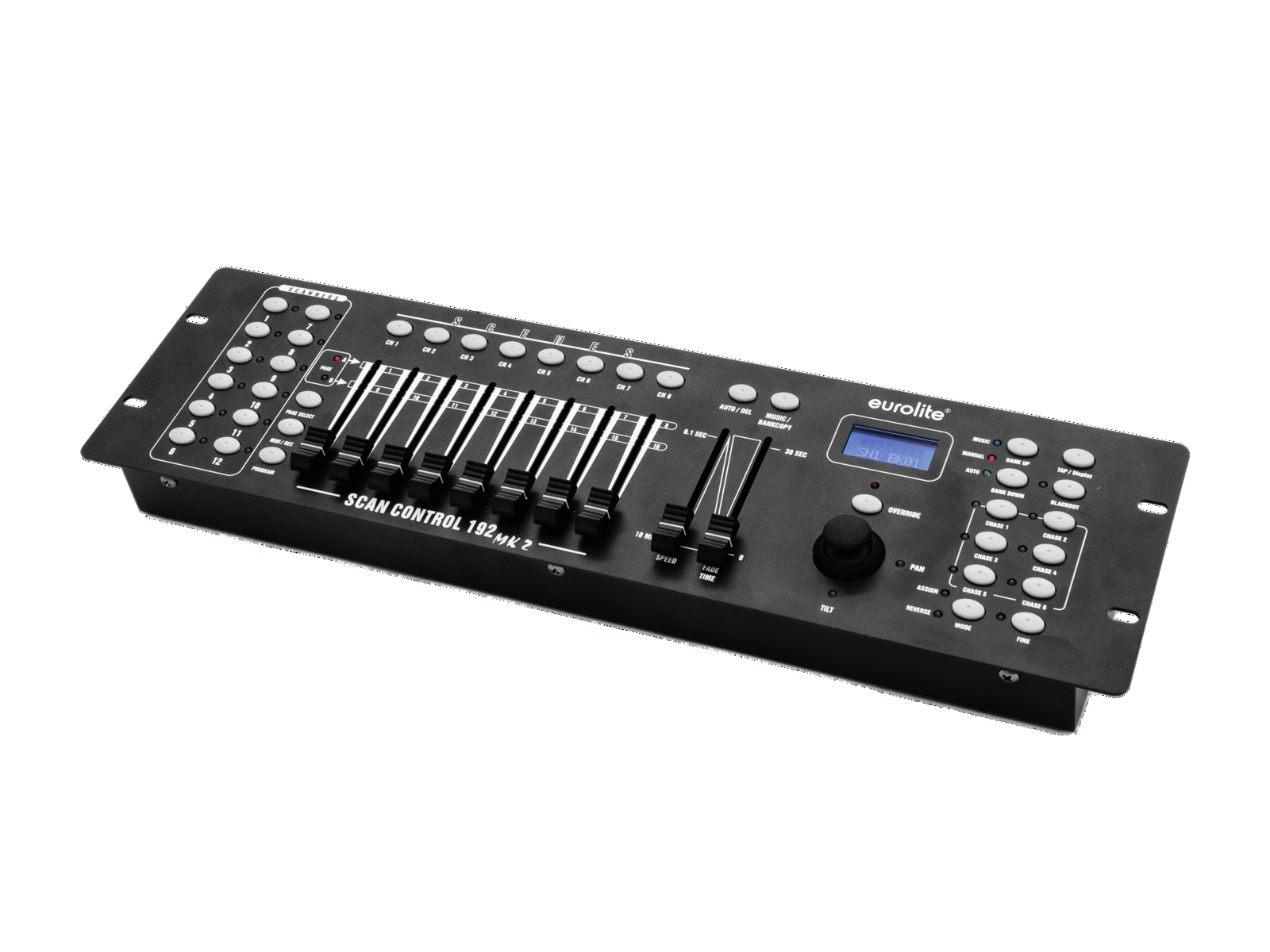

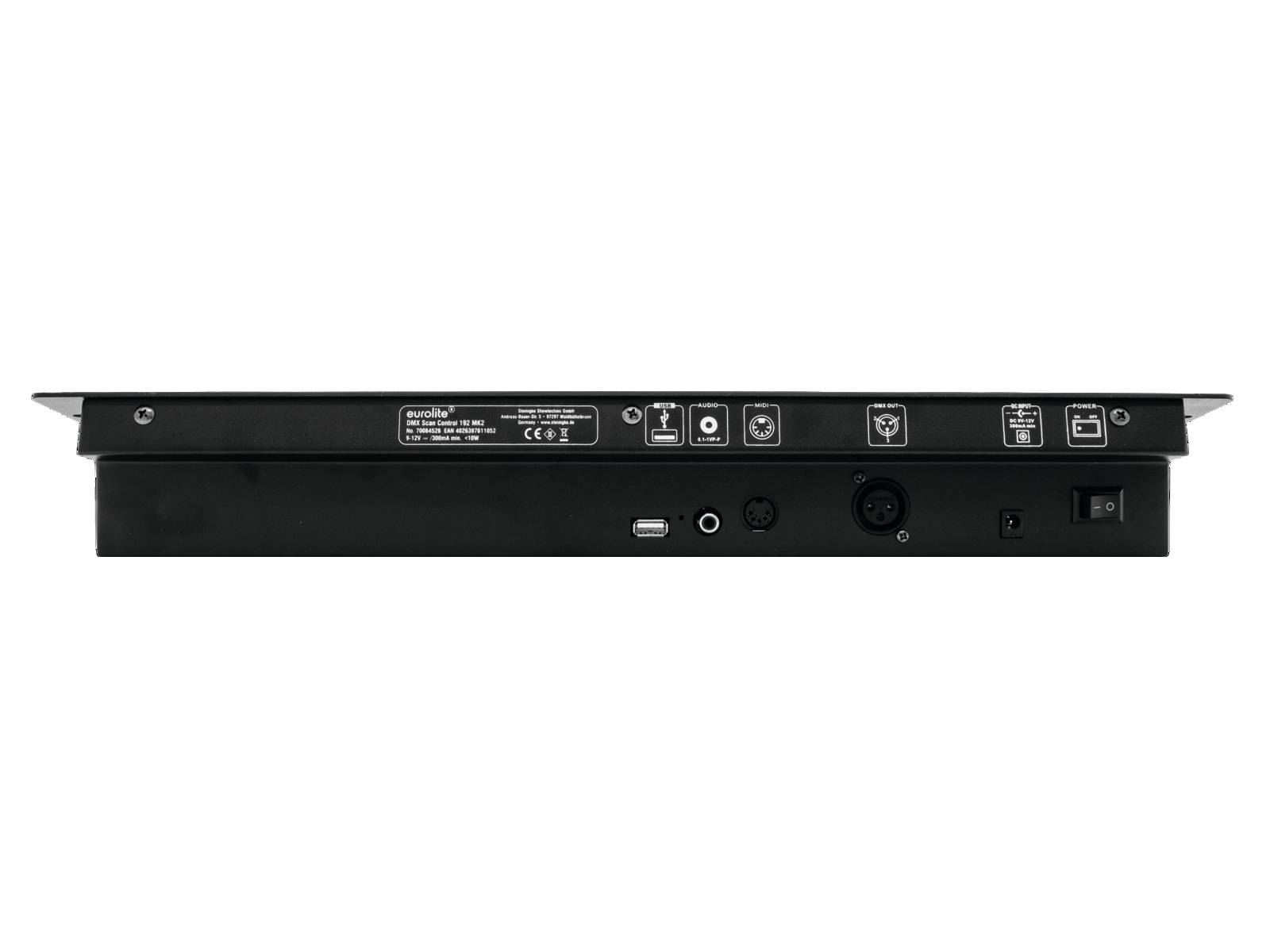

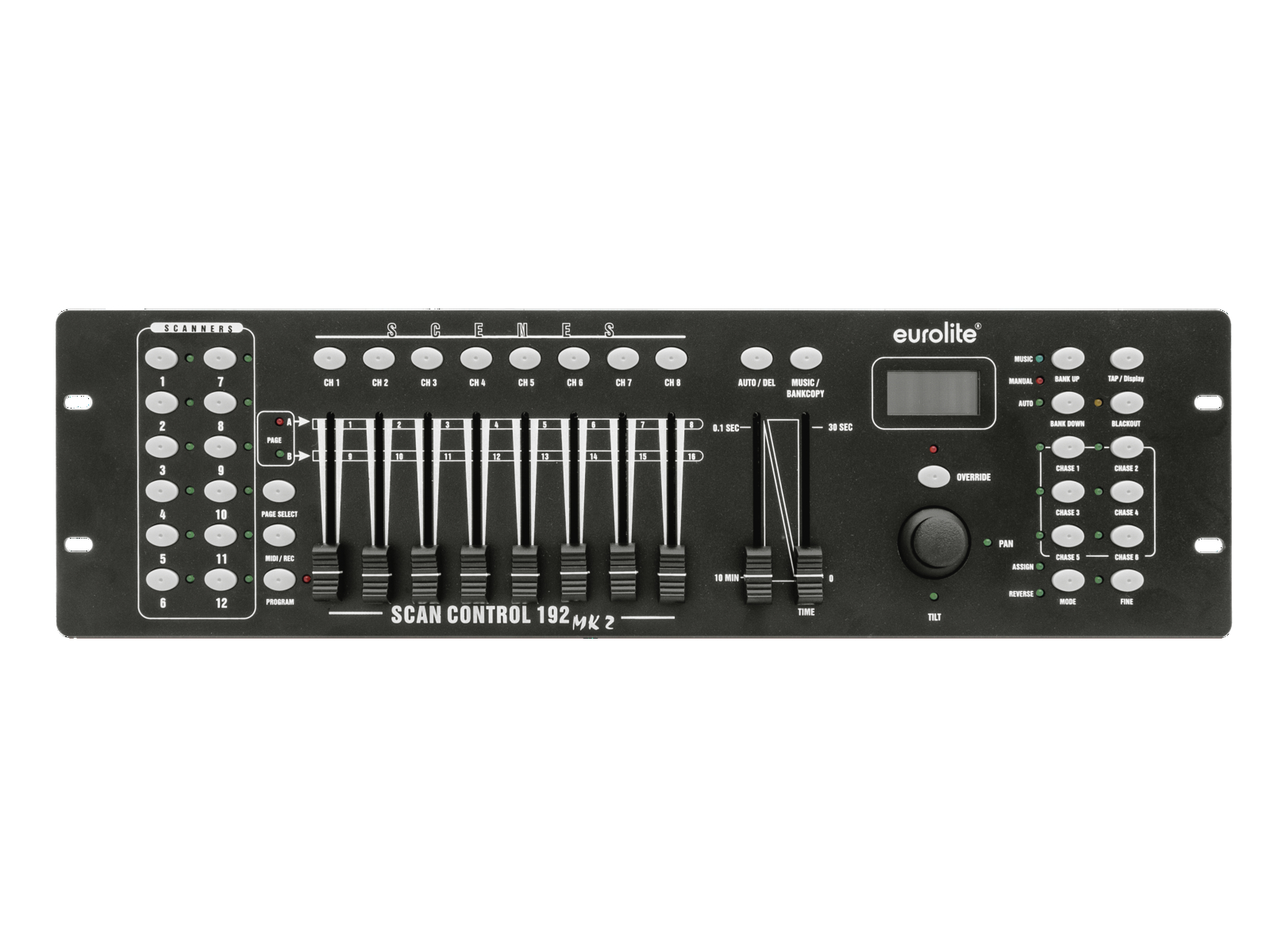

Eurolite DMX Scan Control 192 MK2 Controller
Original price was: €189,21.€142,57Current price is: €142,57.
Uitverkocht - Neem contact met ons op voor meer informatie.
Description
Console for 12 lighting effect units for up to 16 DMX channels, joystick
- DMX controller for 12 lighting effect units such as moving heads, scanners and LED spotlights
- 192 control channels for 12 fixtures with up to 16 channels
- USB port for storing program data
- 240 programmable scenes (30 banks x 8 scenes)
- 6 programmable chases with 240 scenes each can be stored
- Manual, time-controlled or sound-controlled chase running mode
- Fade between scenes adjustable between 0-30 s
- Copy function for scenes and banks
- 2 DMX fixture levels can be controlled
- 8 DMX channel faders
- 1 joystick for precise adjustment of pan/tilt
- Button for fine tuning of pan/tilt
- Blackout function
- Sound control via built-in microphone or line input with adjustable sensitivity
- Backlit LCD (2 x 8 characters)
- RDM support
- MIDI control for banks, chases and blackout
- 3-pin XLR connector
- Firmware update via USB
- Desktop console
- Rack installation with 3 units
| Power supply: | 100-240 V AC, 50/60 Hz |
| via included power adapter (9 V/800 mA) | |
| Power consumption: | <10 W |
| Control channels: | 240 |
| Storable scenes: | 240 (8 each in 30 memory banks) |
| Storable chases: | 6 with 240 steps each |
| Sound control: | via built-in microphone or via audio input |
| Audio input: | RCA |
| Input sensitivity: | 0.1-1 V |
| DMX512/RDM output: | 3-pin XLR connector |
| MIDI input: | 5-pin DIN |
| Available storage media: | USB devices (FAT32) |
| Dimensions (L x W x H): | 483 x 130 x 72 mm |
| Rack installation with 3 U | |
| Minimum mounting depth: | 170 mm |
| Weight: | 2.2 kg |
Specifications
| Weight | 2,7 kg |
|---|---|
| Dimensions | 0,1300 × 0,5800 × 0,1750 m |
| EAN | 4026397611052 |
| IP classification | IP20 |
| Case color | Black |
| Color | Black |
| Control | DMX |
| Weight kg | 2,2 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption W | 10 |
| Accumulator | No |
| Controller useable for | Controls DMX-effects, Controls KLS classic, Controls KLS in general, Controls Moving Lights |
| Number of DMX channels | 192 |
| Typ (DMX Controller) | 483 mm (19") |
