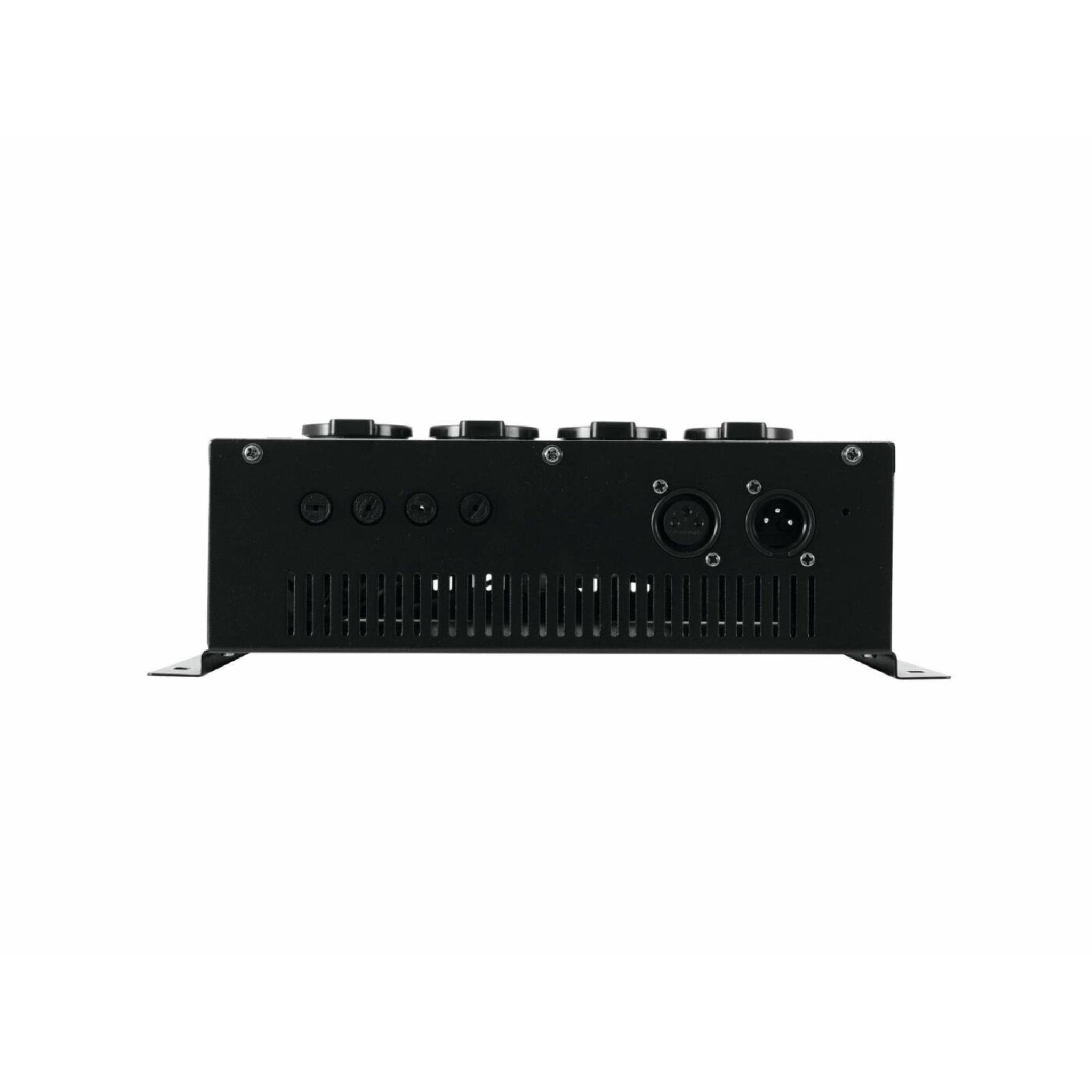

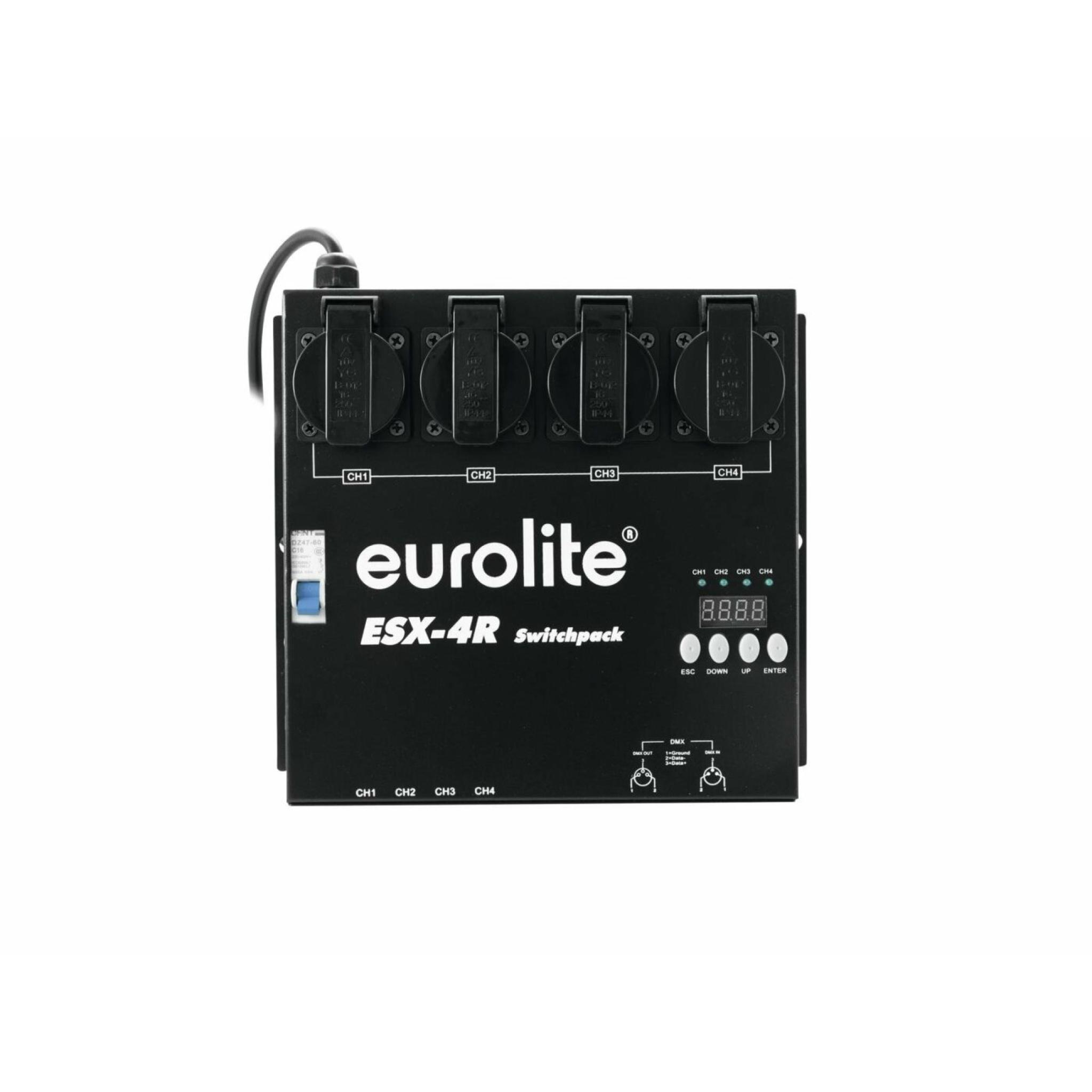

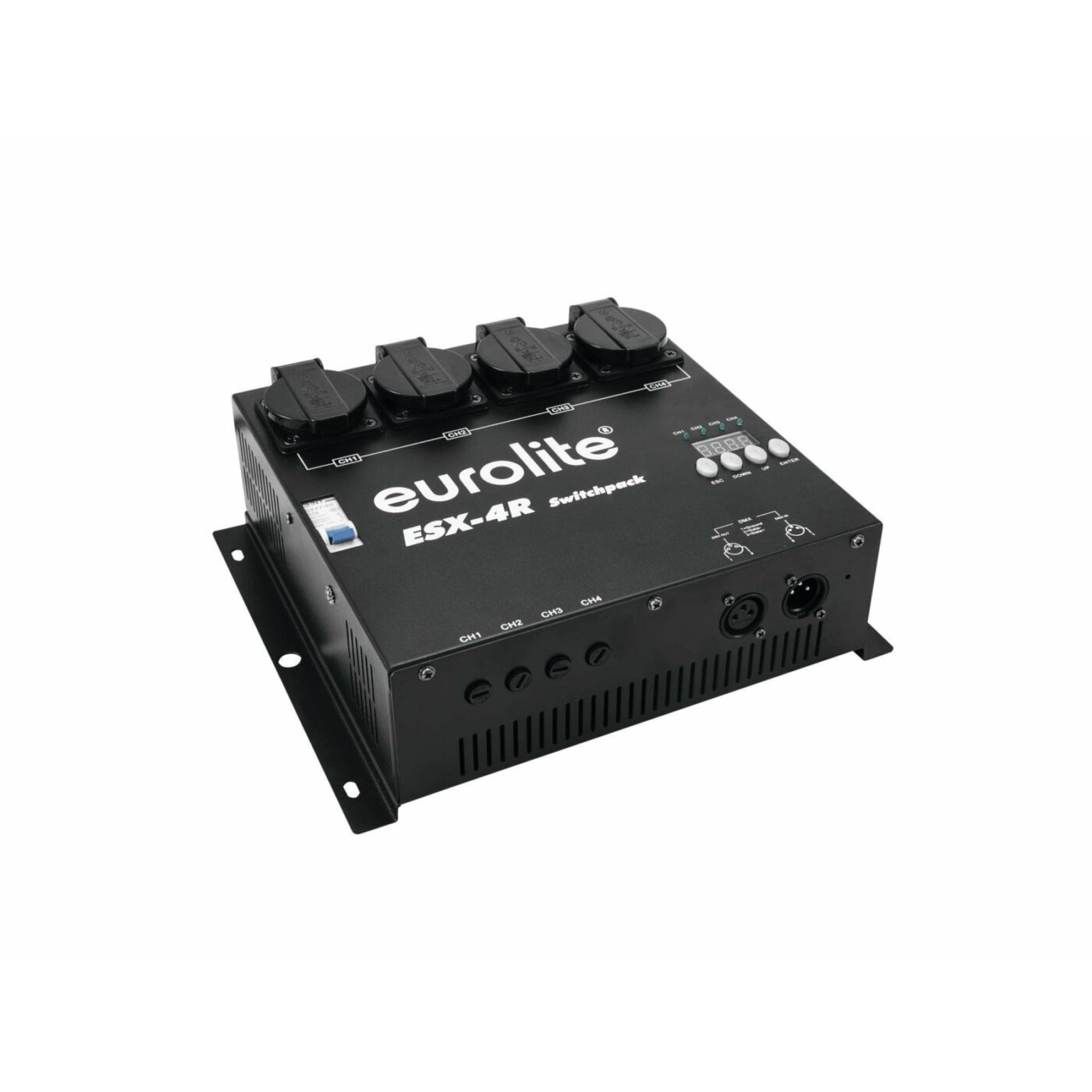

EUROLITE ESX-4R DMX RDM Switch Pack
Original price was: €148,75.€110,23Current price is: €110,23.
Description
4-channel DMX switch pack, up to 5 A load per channel, control per Triac
- 4 controllable channels
- 5 A resistive load per channel
- Maximum current 16 A
- Outputs via 4 safety sockets
- LED display of all channels
- DMX512 input and output
- Supports RDM
- With Control Board for programming scenes and chasers
- For mounting on trussing or directly to the device
| Power supply: | 230 V AC, 50 Hz |
| Max. power output: | 3680 W |
| Max. total current: | 16 A |
| Number of channels: | 4 |
| Resistive load/channel: | 1150 W |
| Max. current/channel: | 5 A |
| Output sockets: | 4 safety power outlets |
| DMX output: | 3-pin XLR mounting plug |
| DMX input: | 3-pin XLR mounting jack |
| Dimensions (W x D x H): | 270 x 260 x 95 mm |
| Weight: | 3 kg |
Specifications
| Weight | 3,1 kg |
|---|---|
| Dimensions | 0,1800 × 0,3300 × 0,3300 m |
| Color | Black |
| Control | DMX, Stand-alone |
| Weight kg | 3 |
| Power supply | 230 V AC, 50 Hz |
| Max. output per channel W | 1150 |
| Accumulator | No |
| Number of DMX channels | 4 |
| Max. power output W | 3680 |
| Control Channels | 4 |
| Dimmer/Switcher | Switcher |
| Current type | Alternating current |
