EUROLITE LED KLS Scan Next FX Compact Light Set

Description

Compact, versatile lighting in a single bar

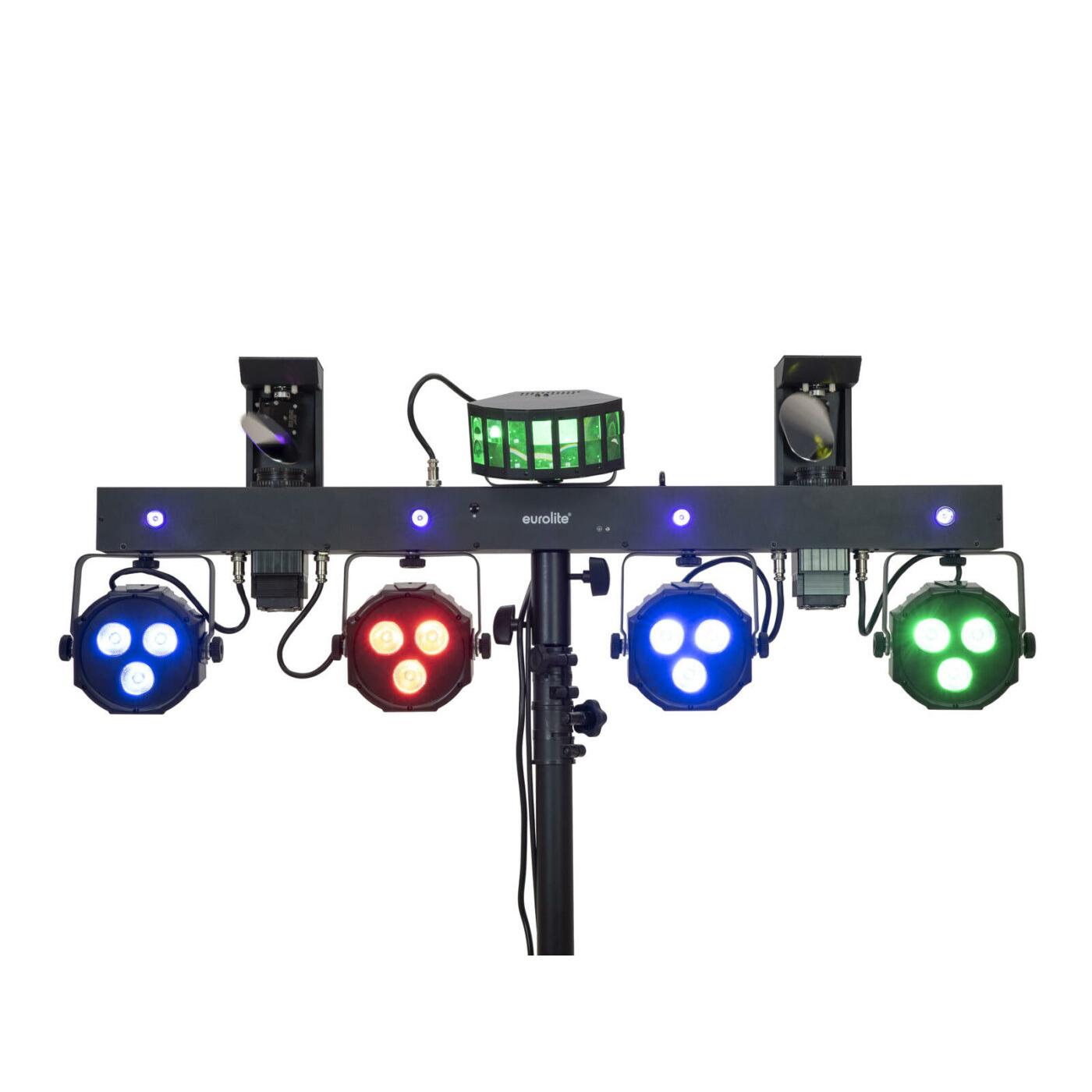

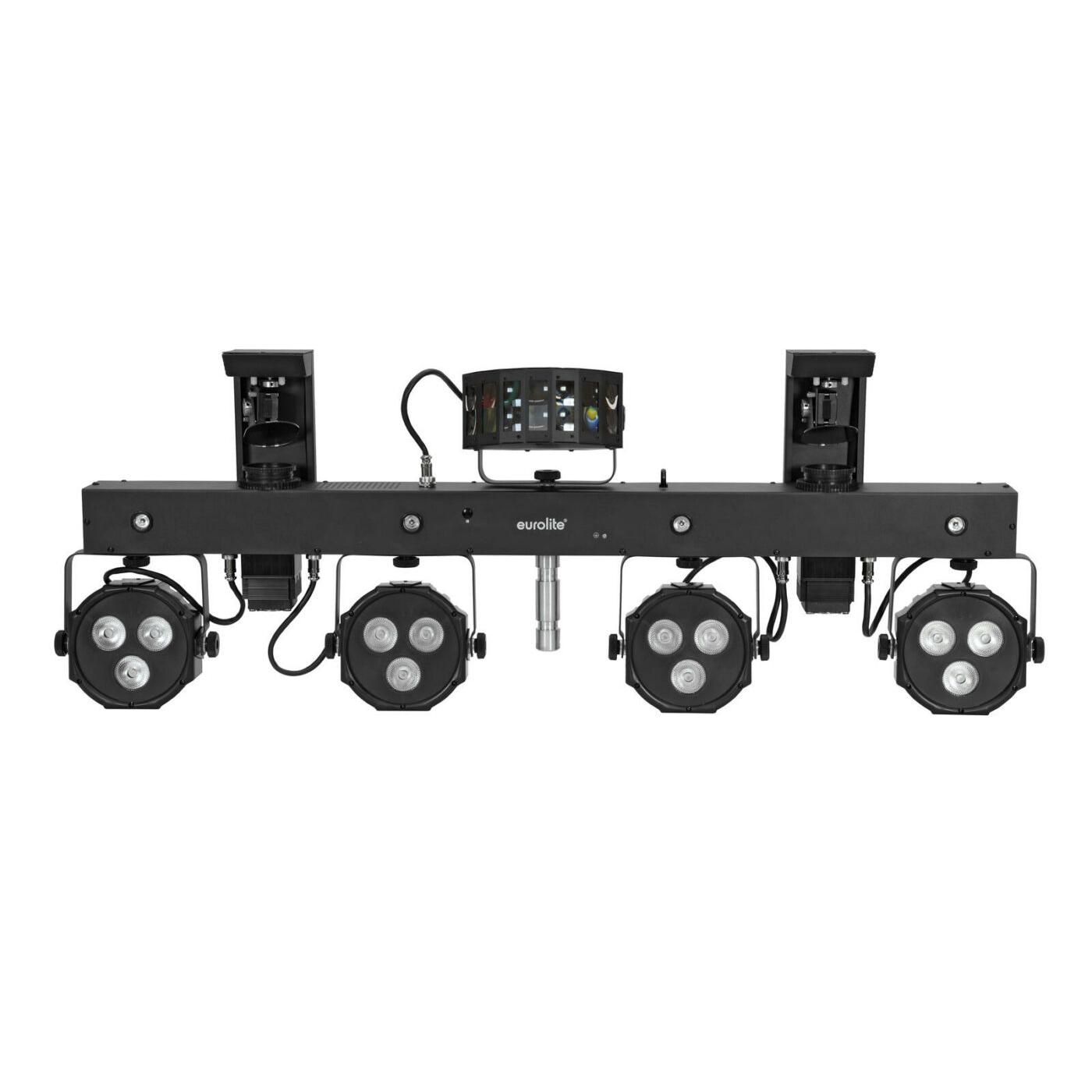

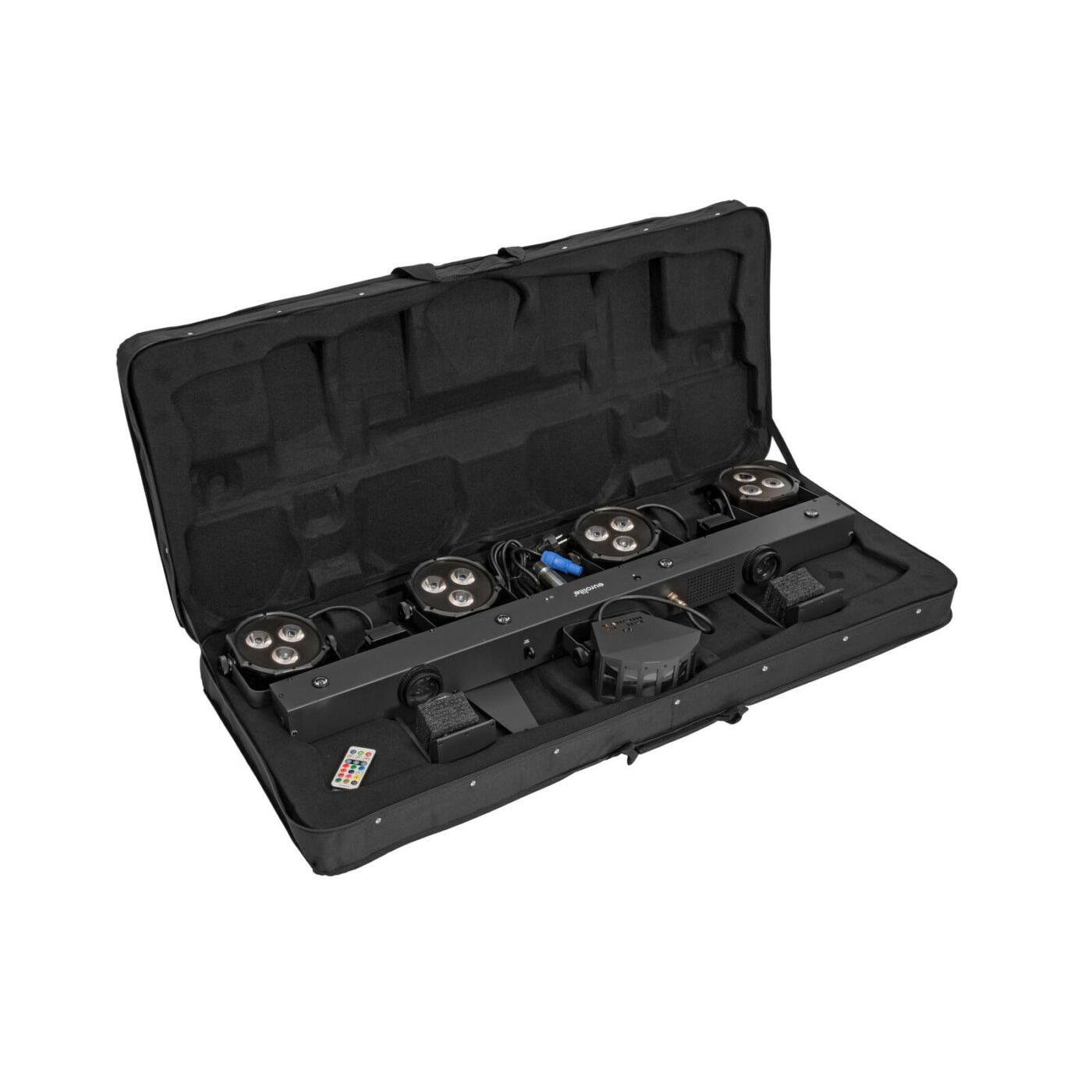

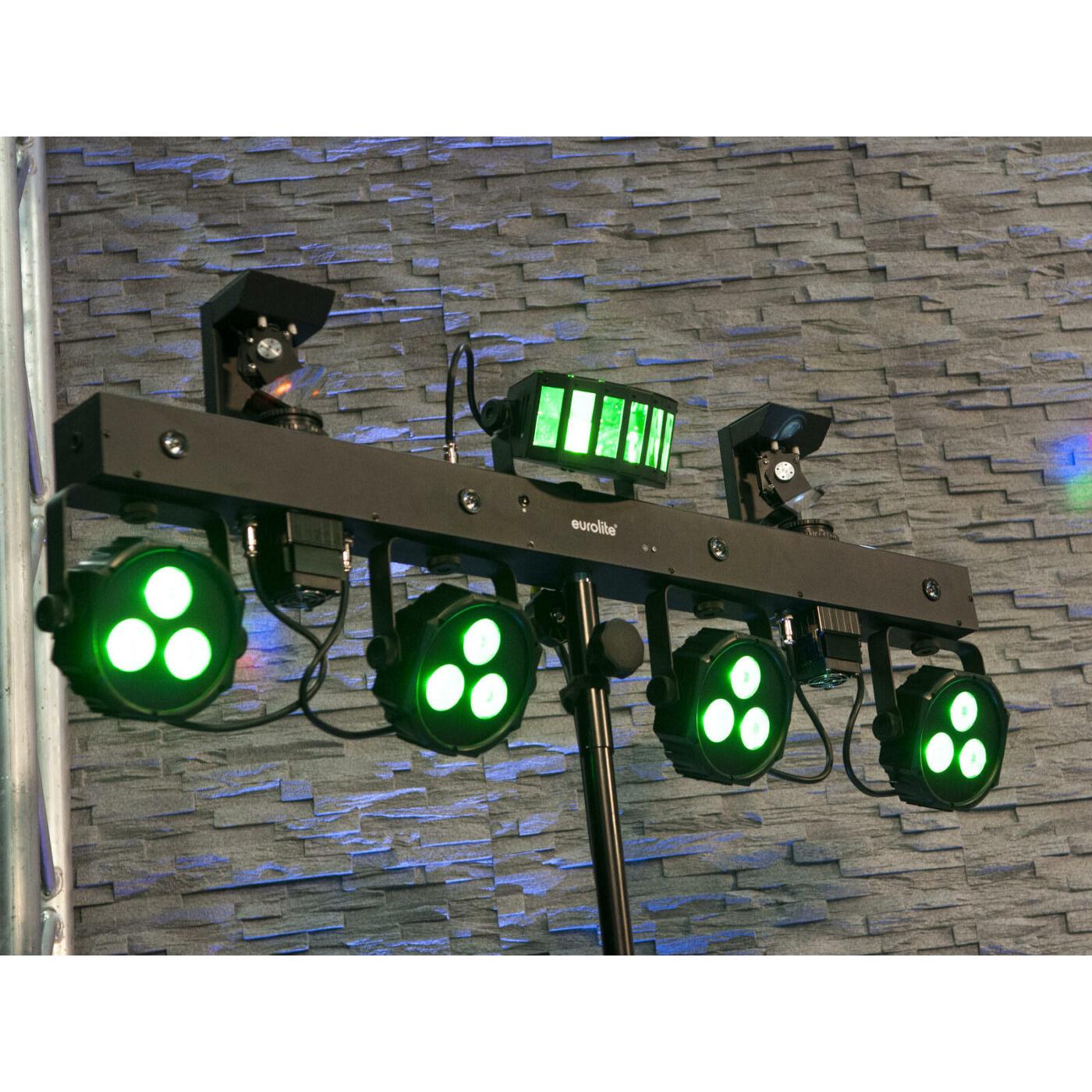

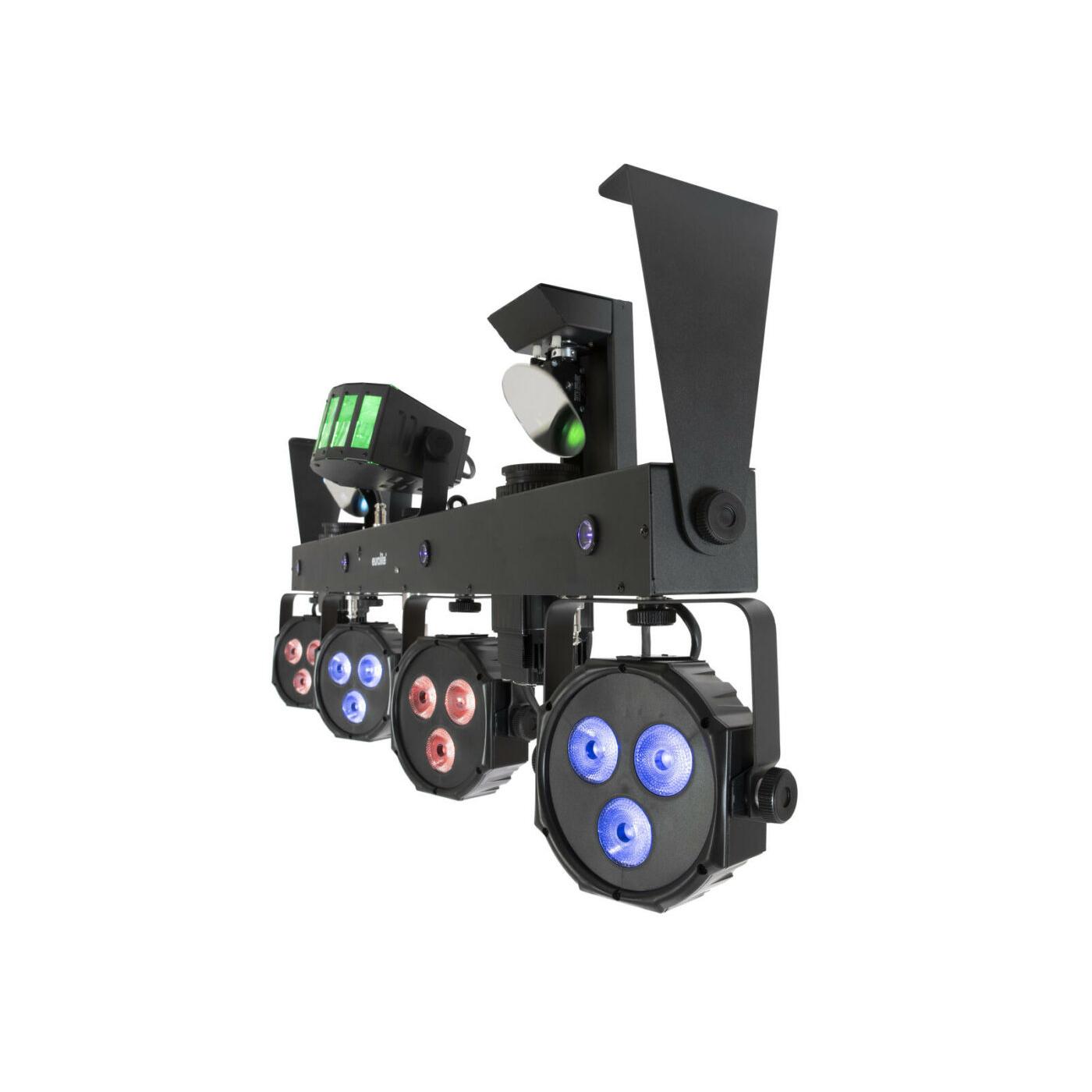

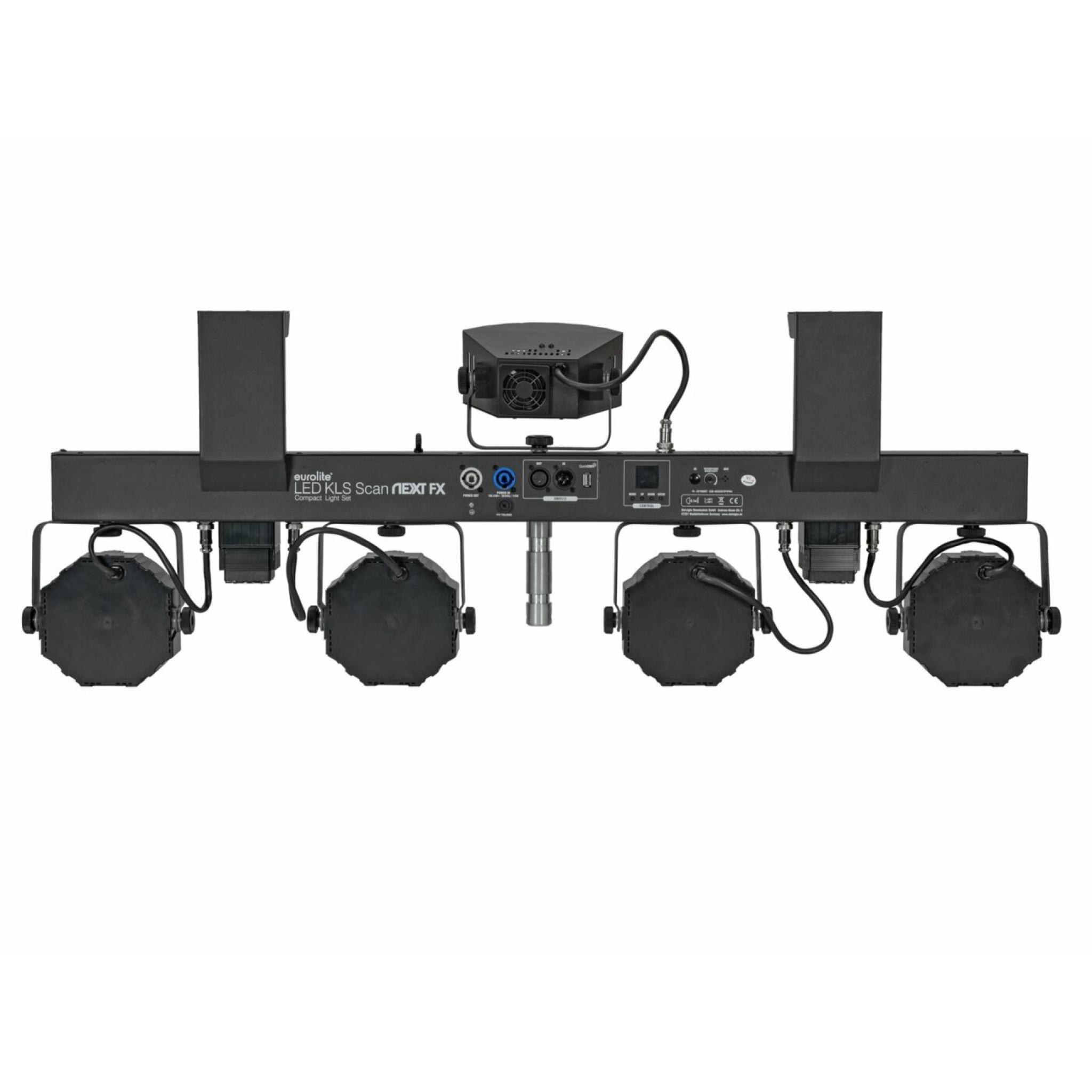

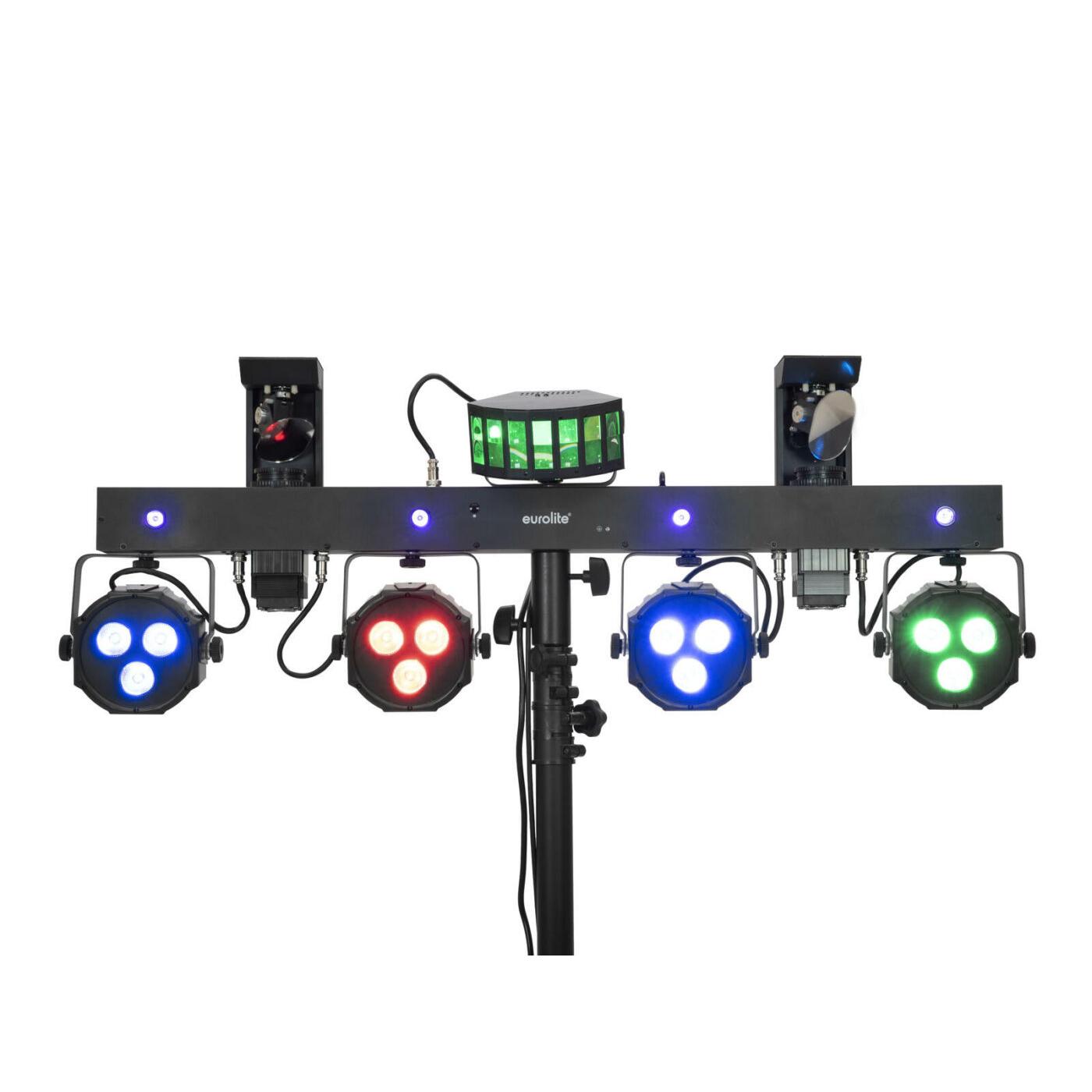

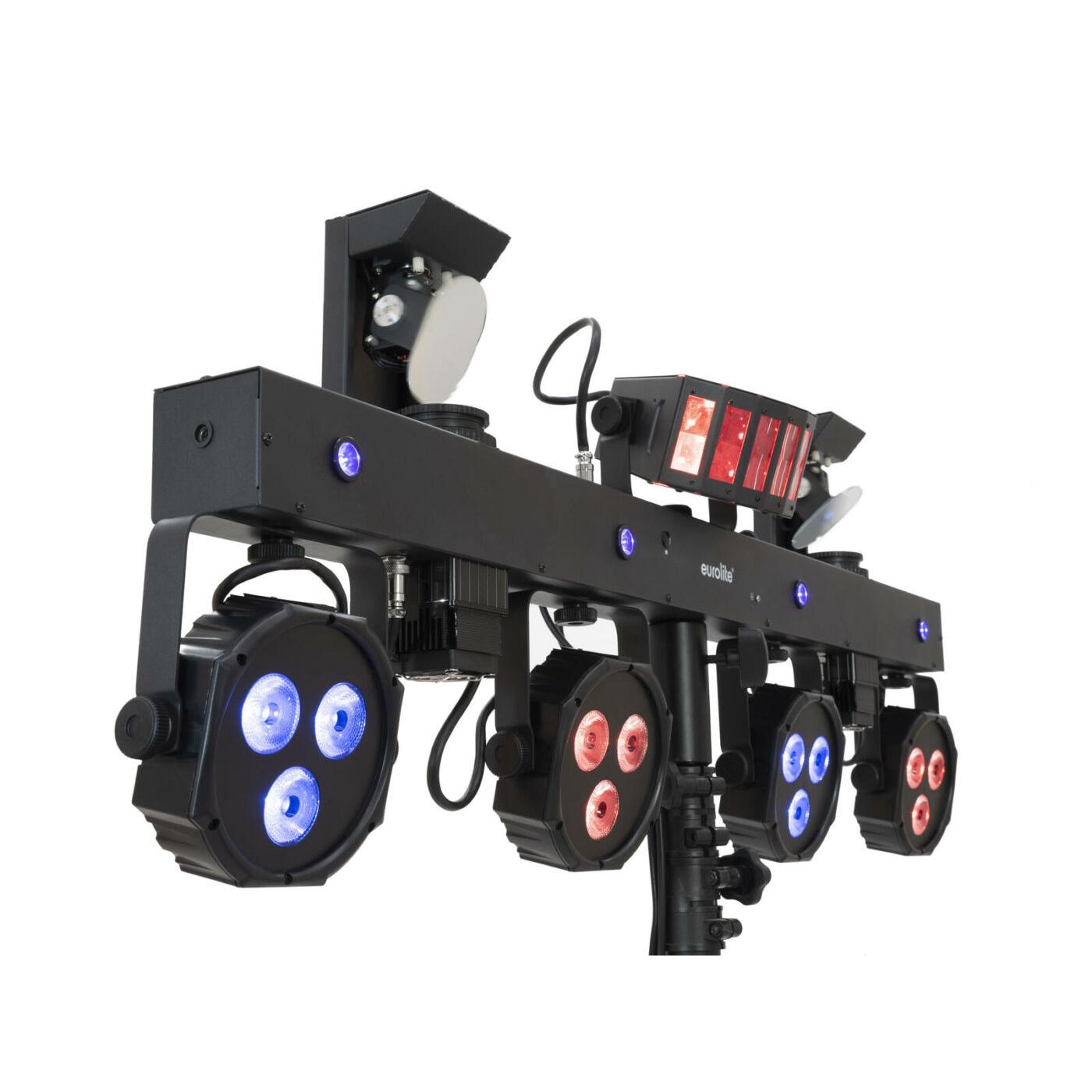

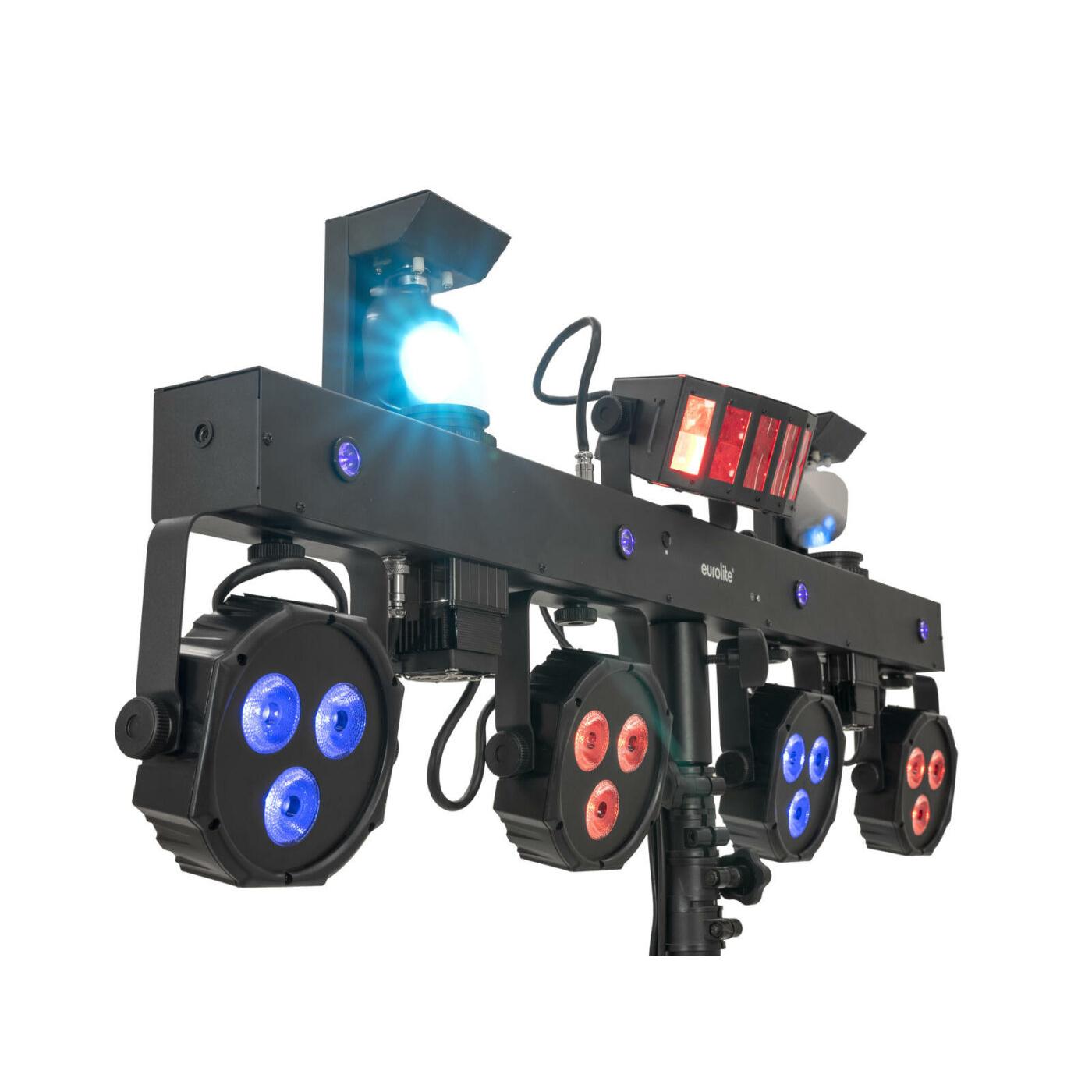

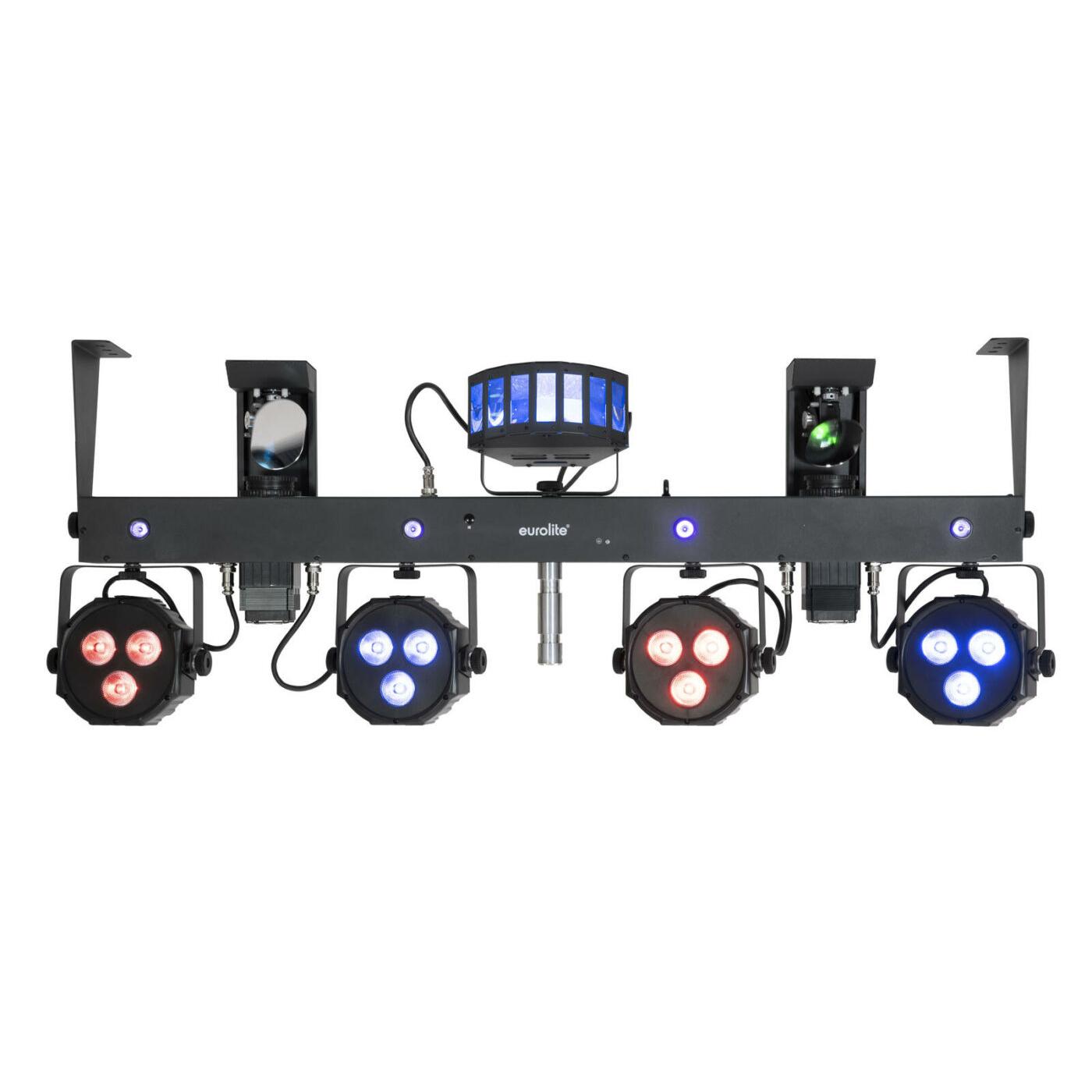

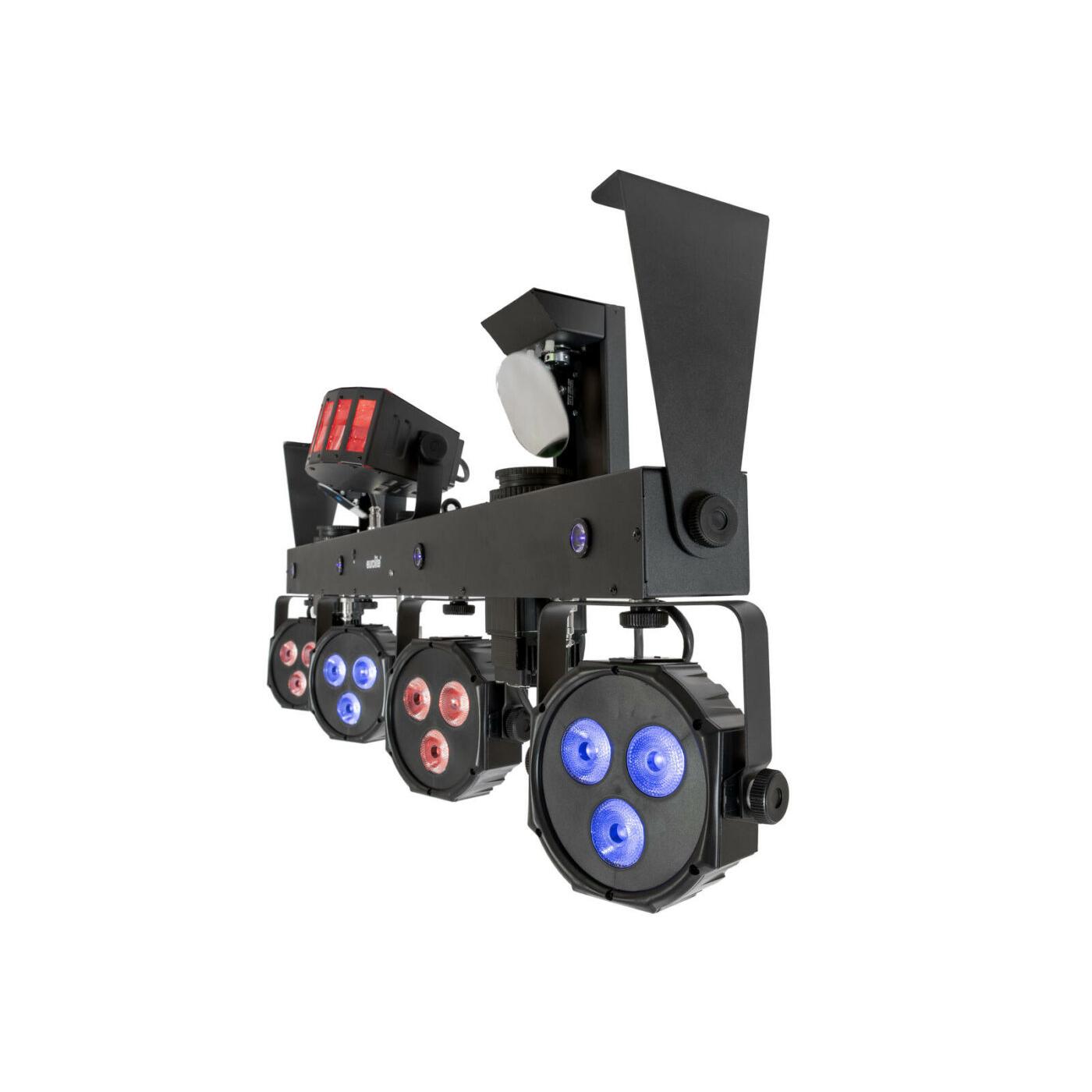

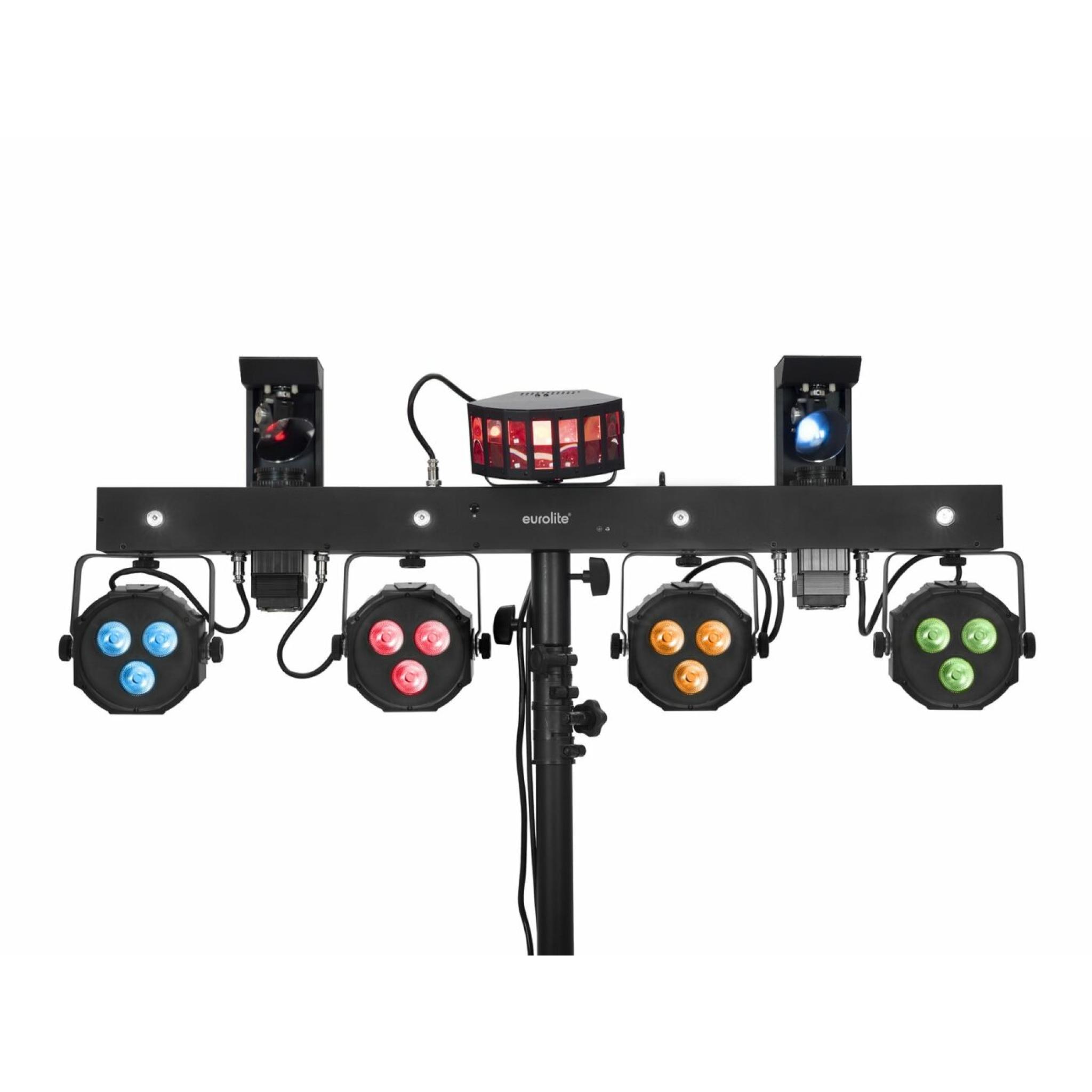

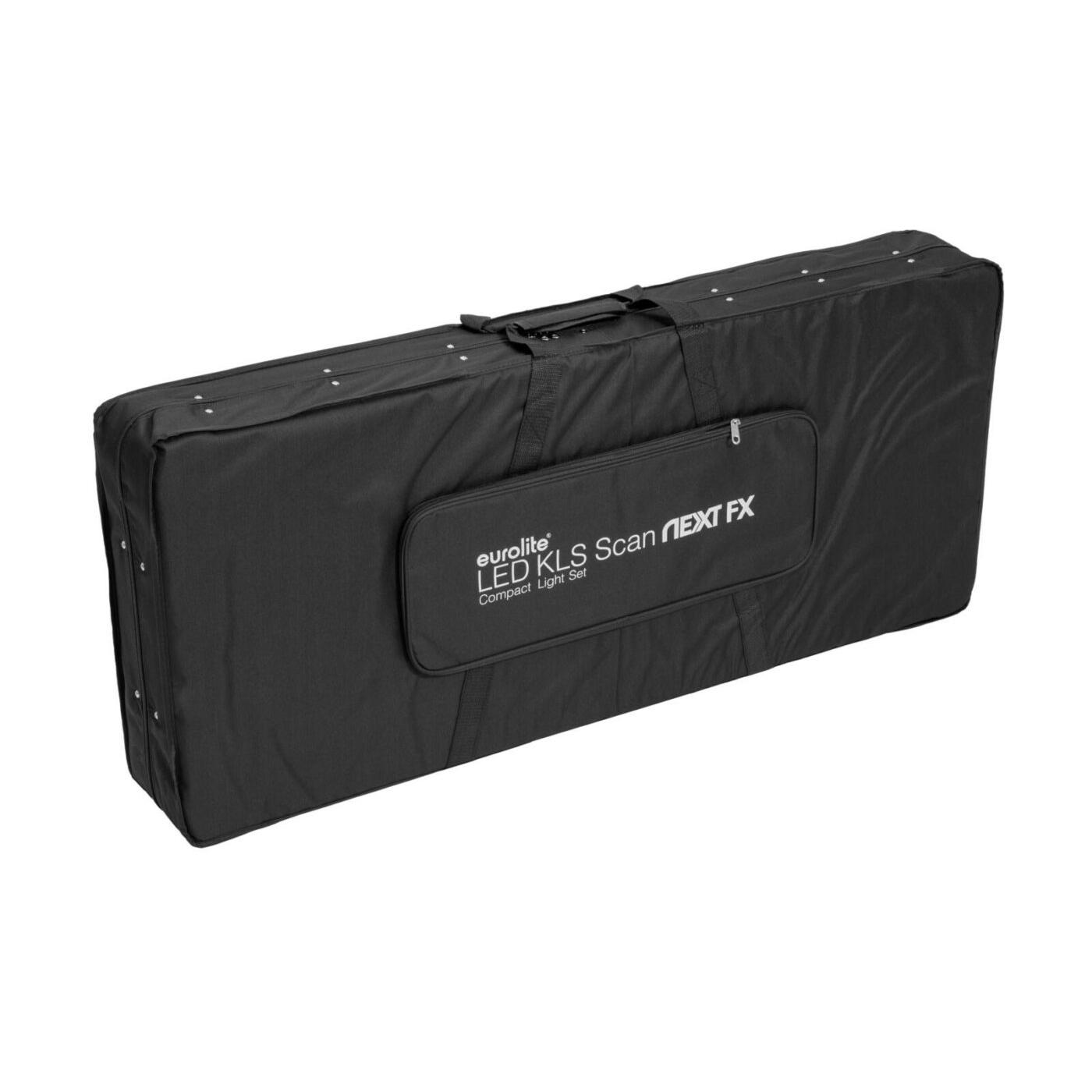

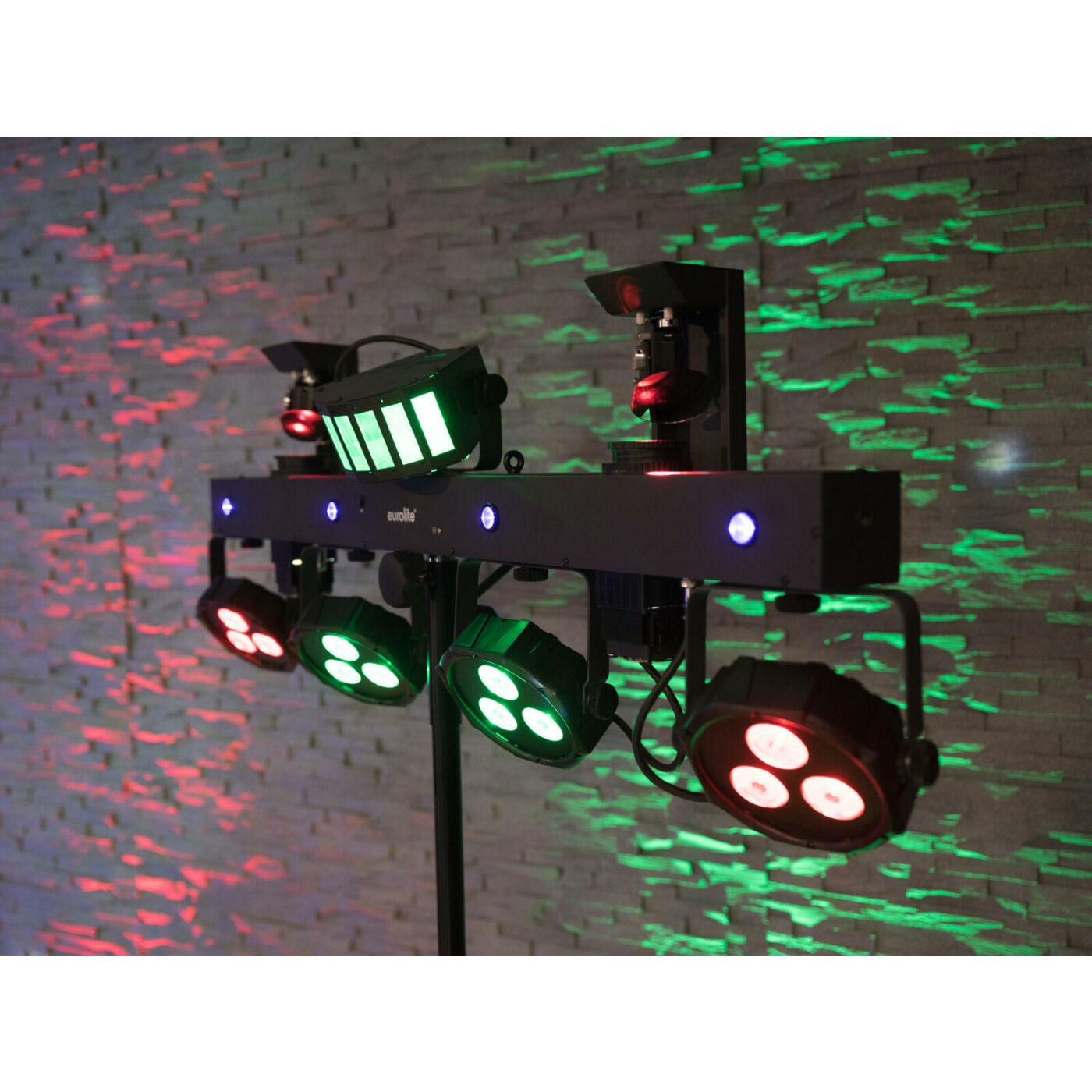

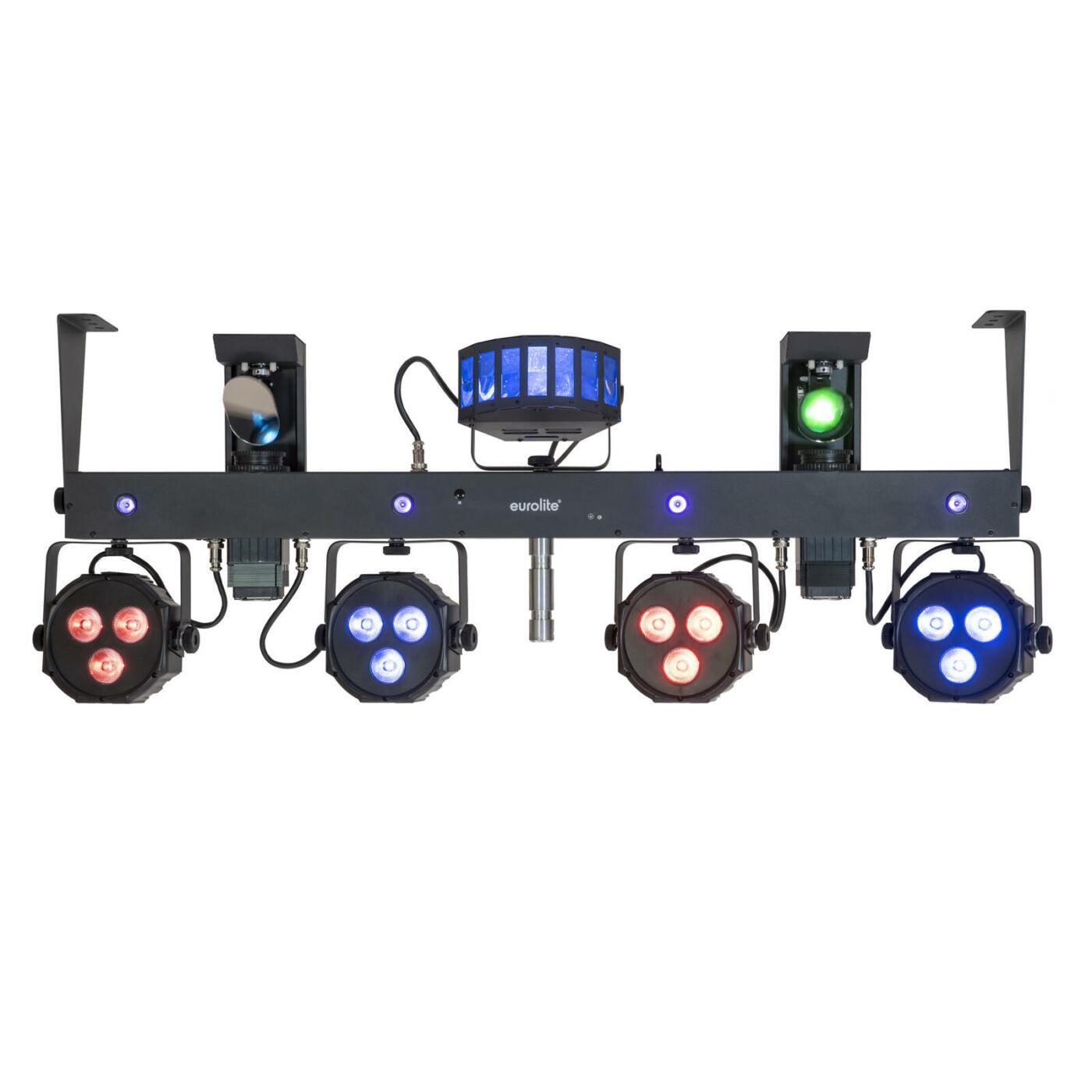

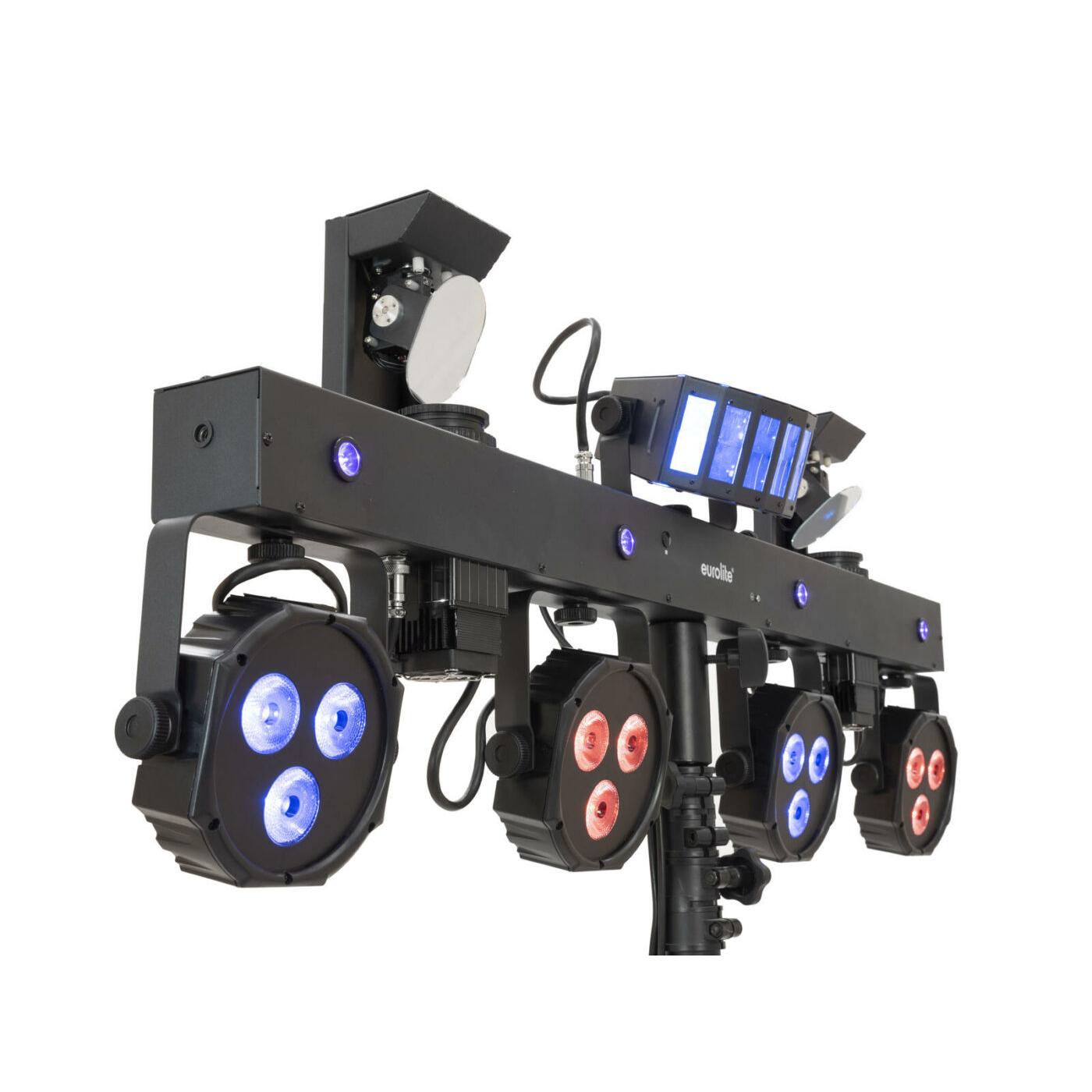

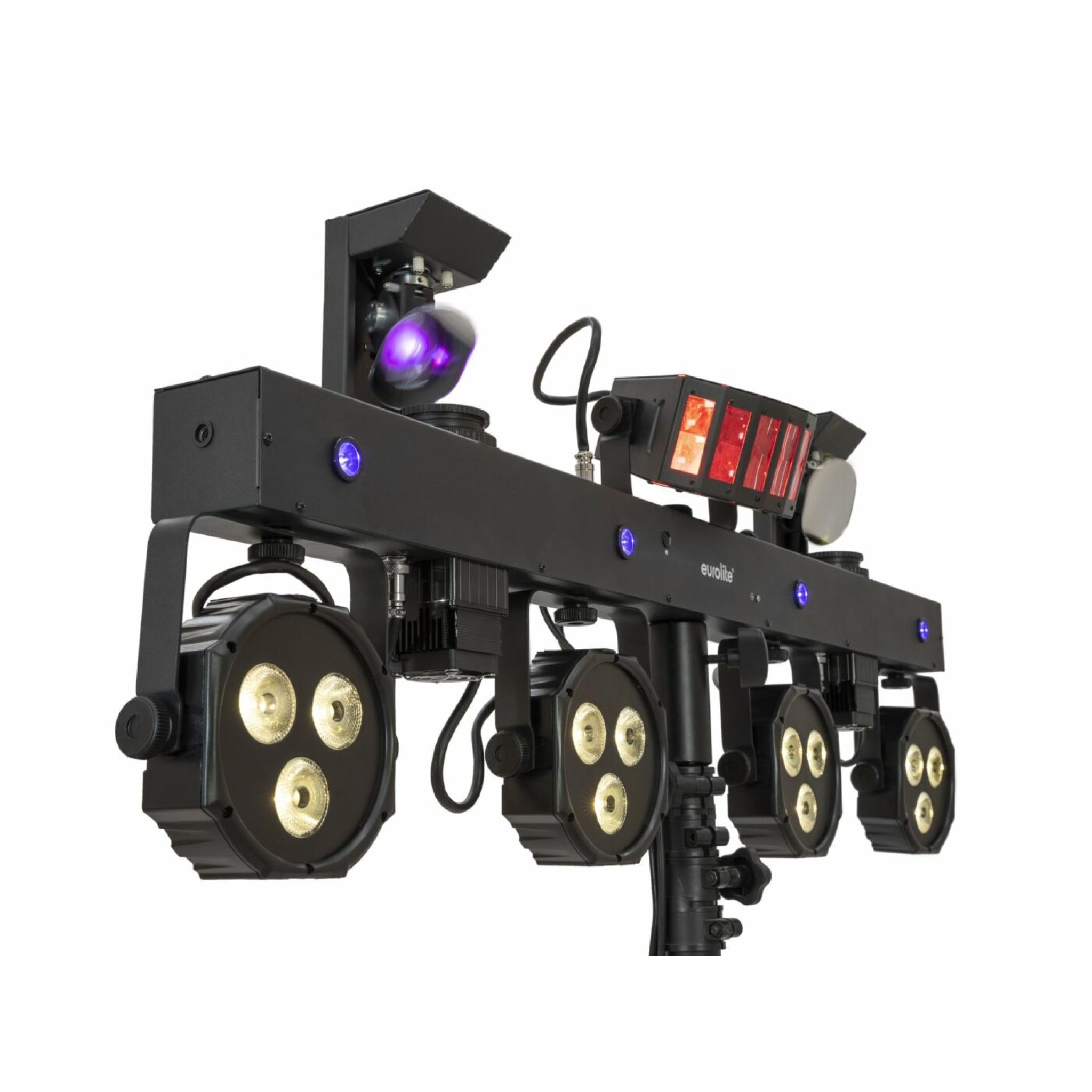

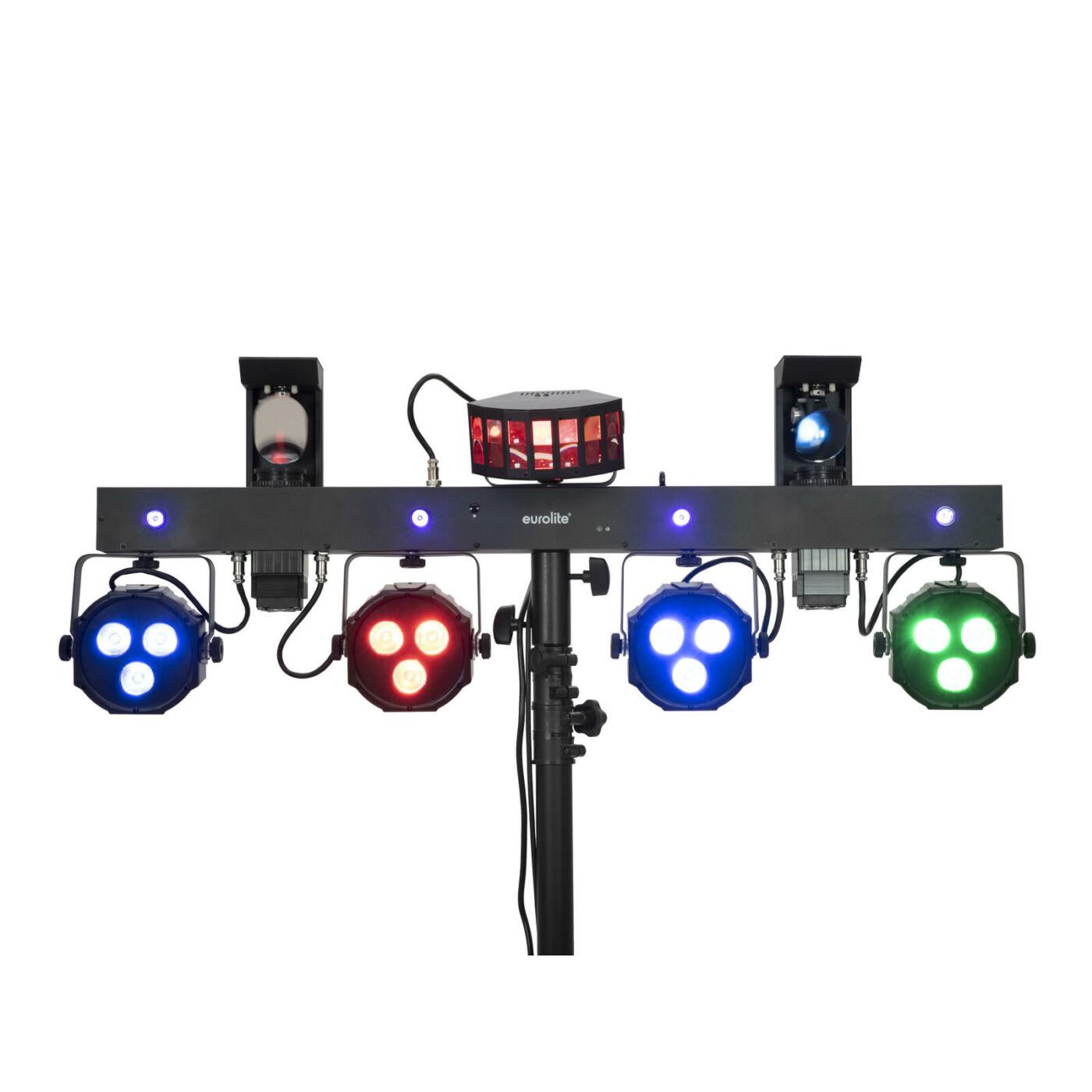

The EUROLITE LED KLS Scan Next FX combines multiple lighting effects into a lightweight unit. It includes a colorful derby, four RGB/WW spotlights, two high-speed scanners, and UV LEDs—supported by DMX control, IR remote, sound activation, and QuickDMX compatibility. Preassembled and supplied with a durable carry bag, it’s perfect for mobile use and fast setups.

Features & Benefits

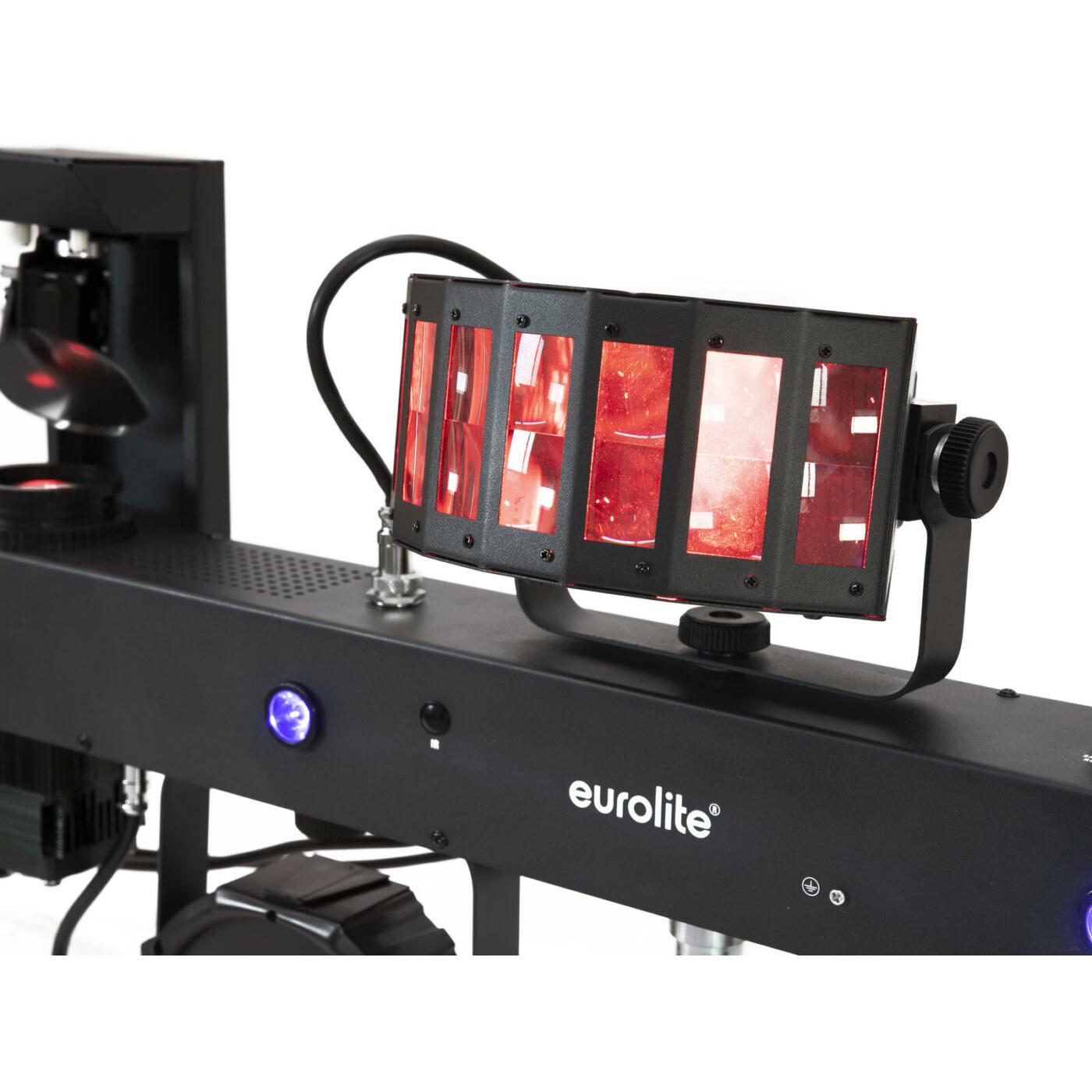

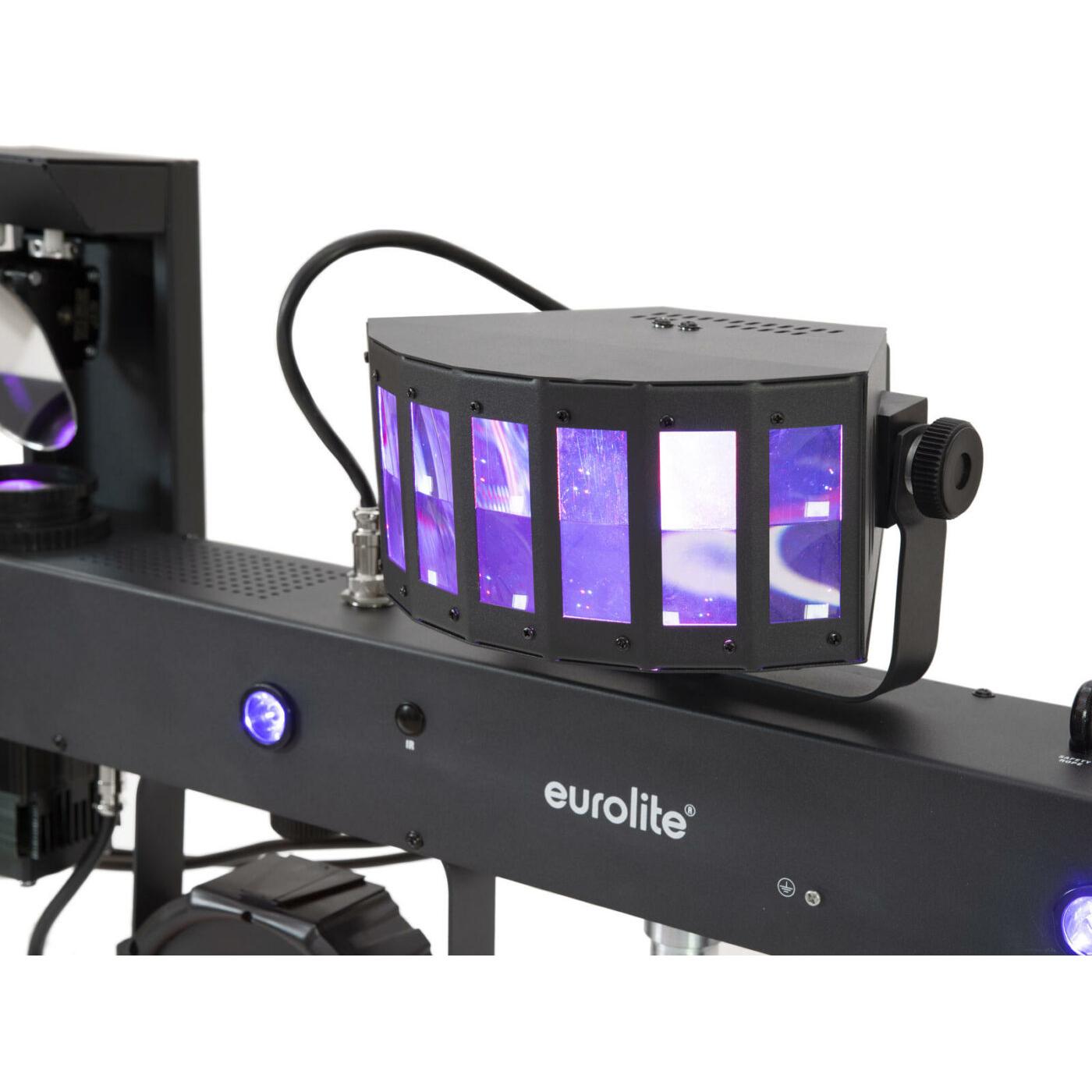

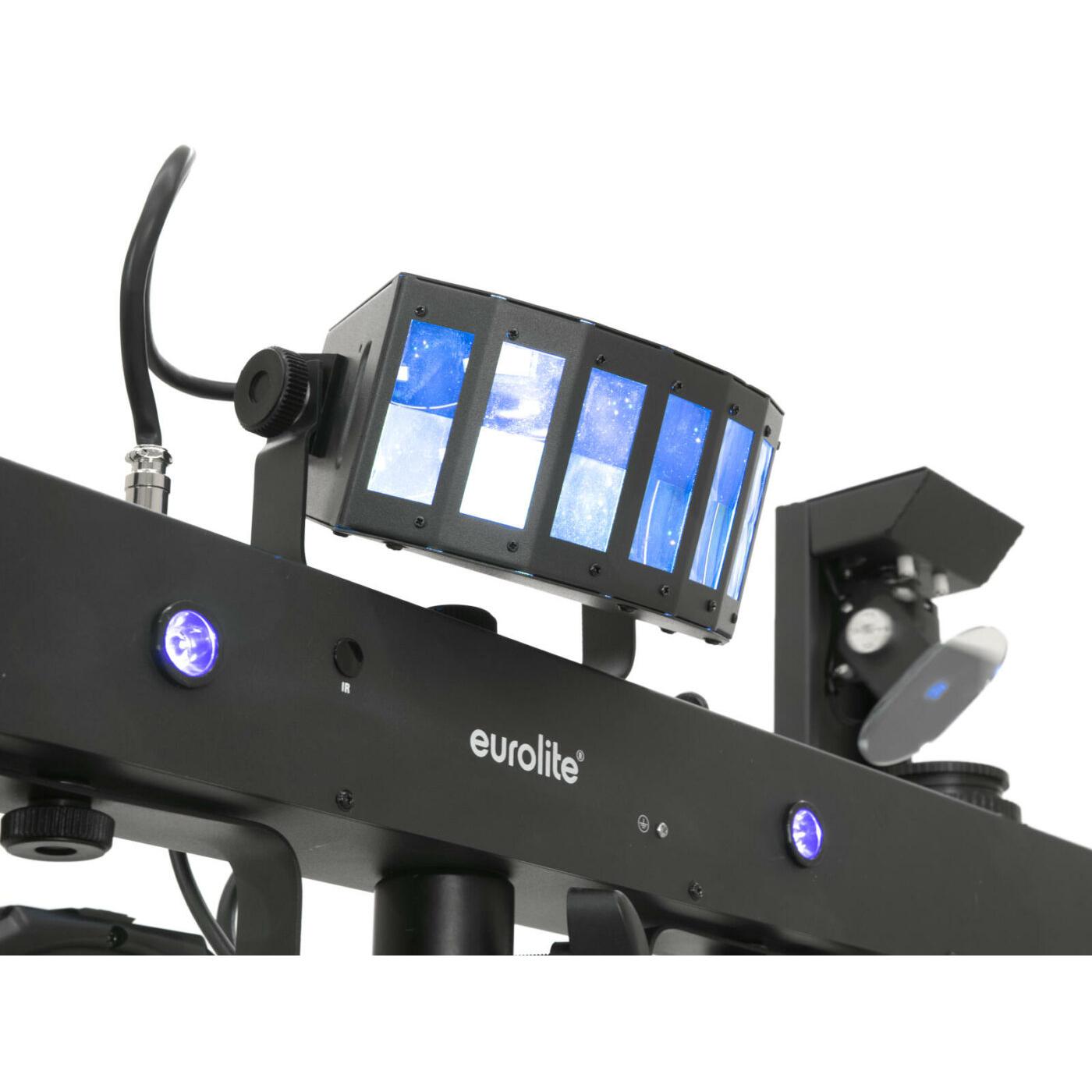

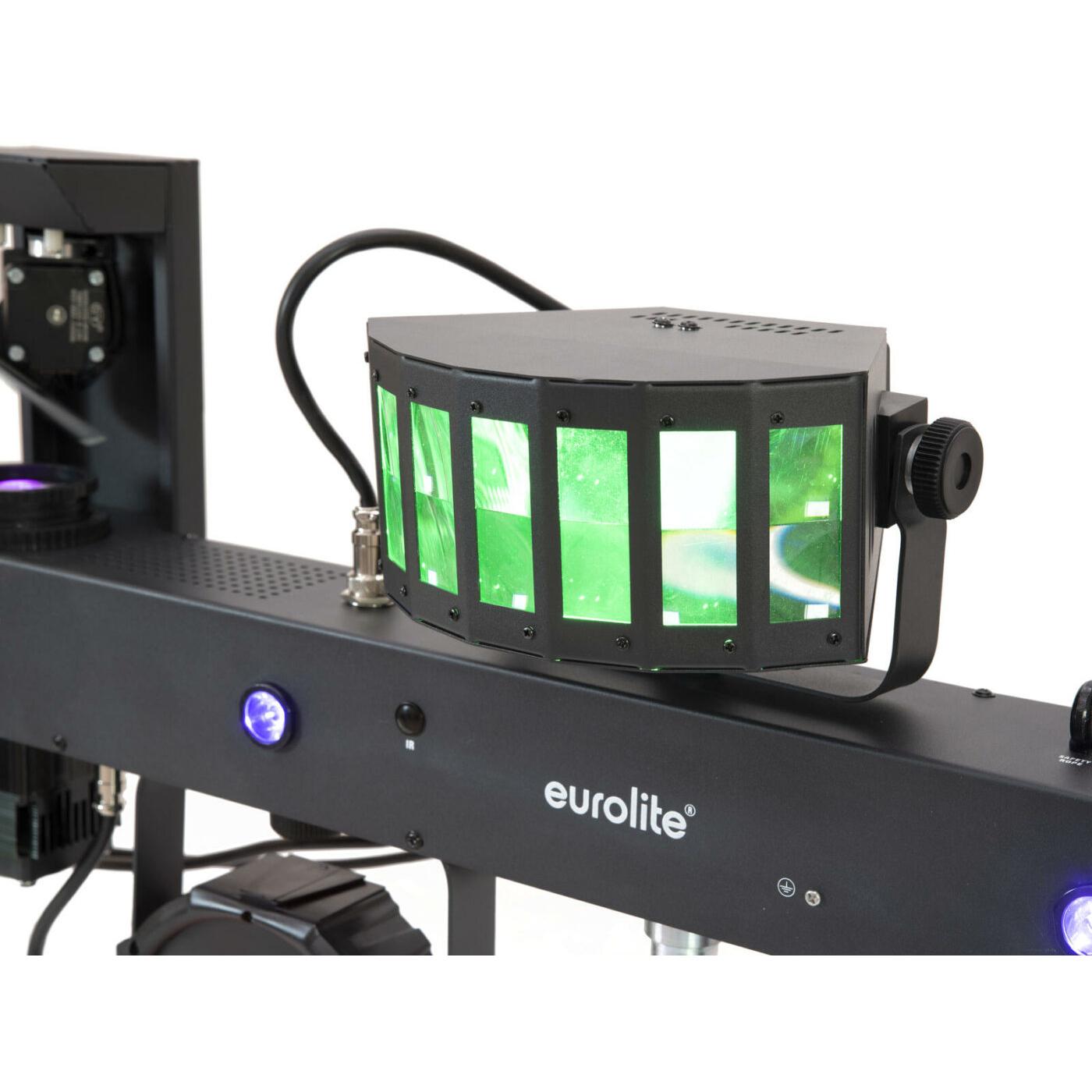

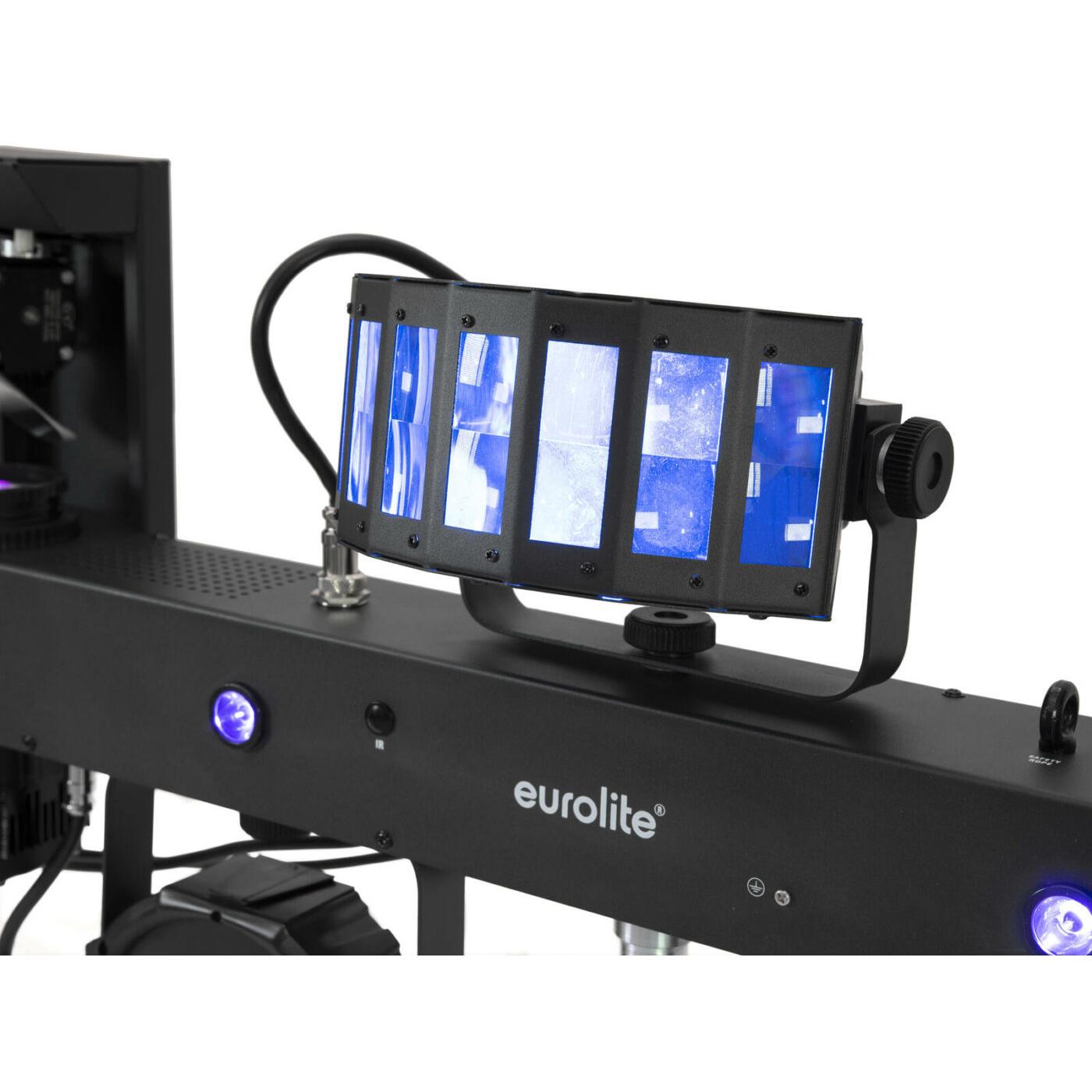

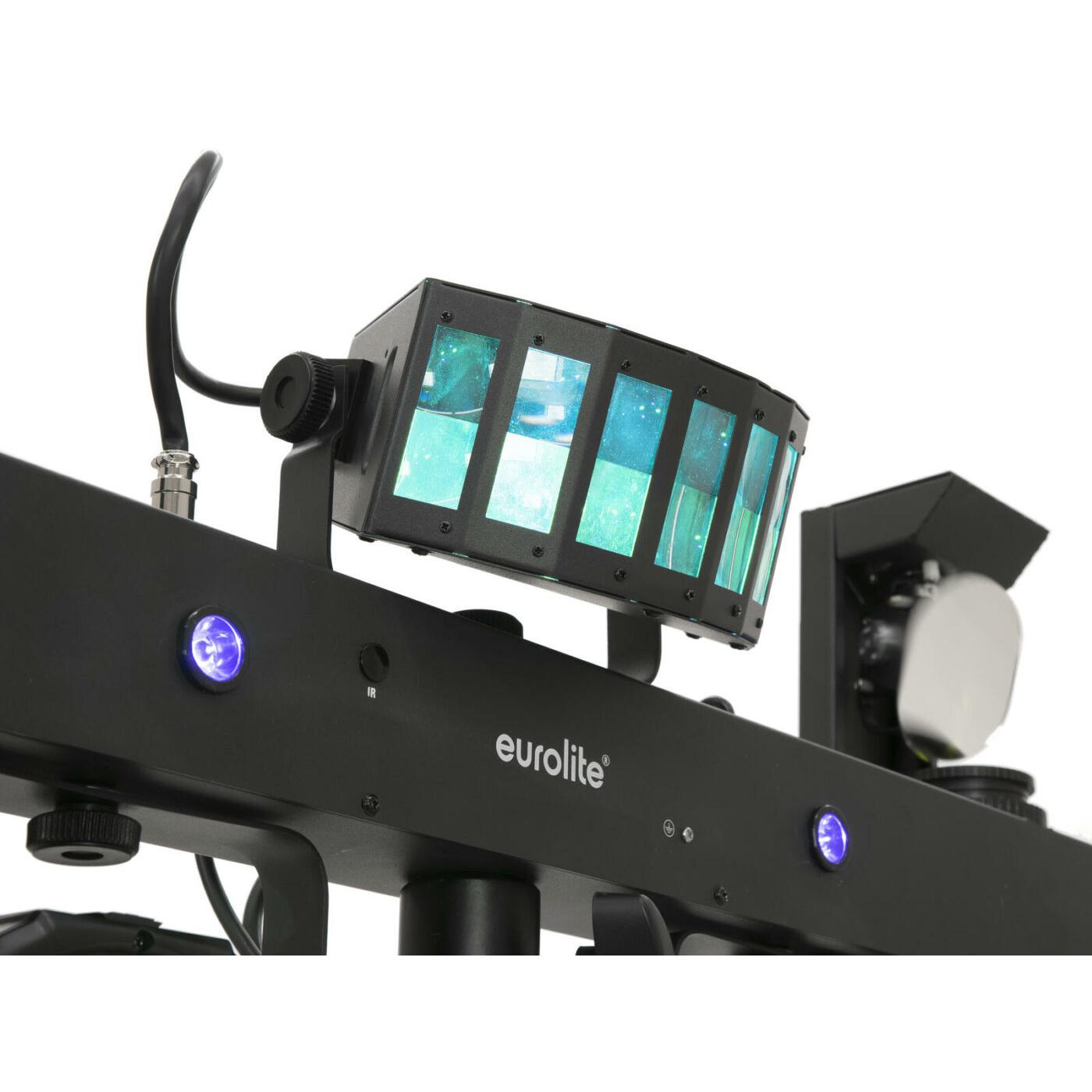

• Derby effect lighting (1 × 3 W RGB LED)

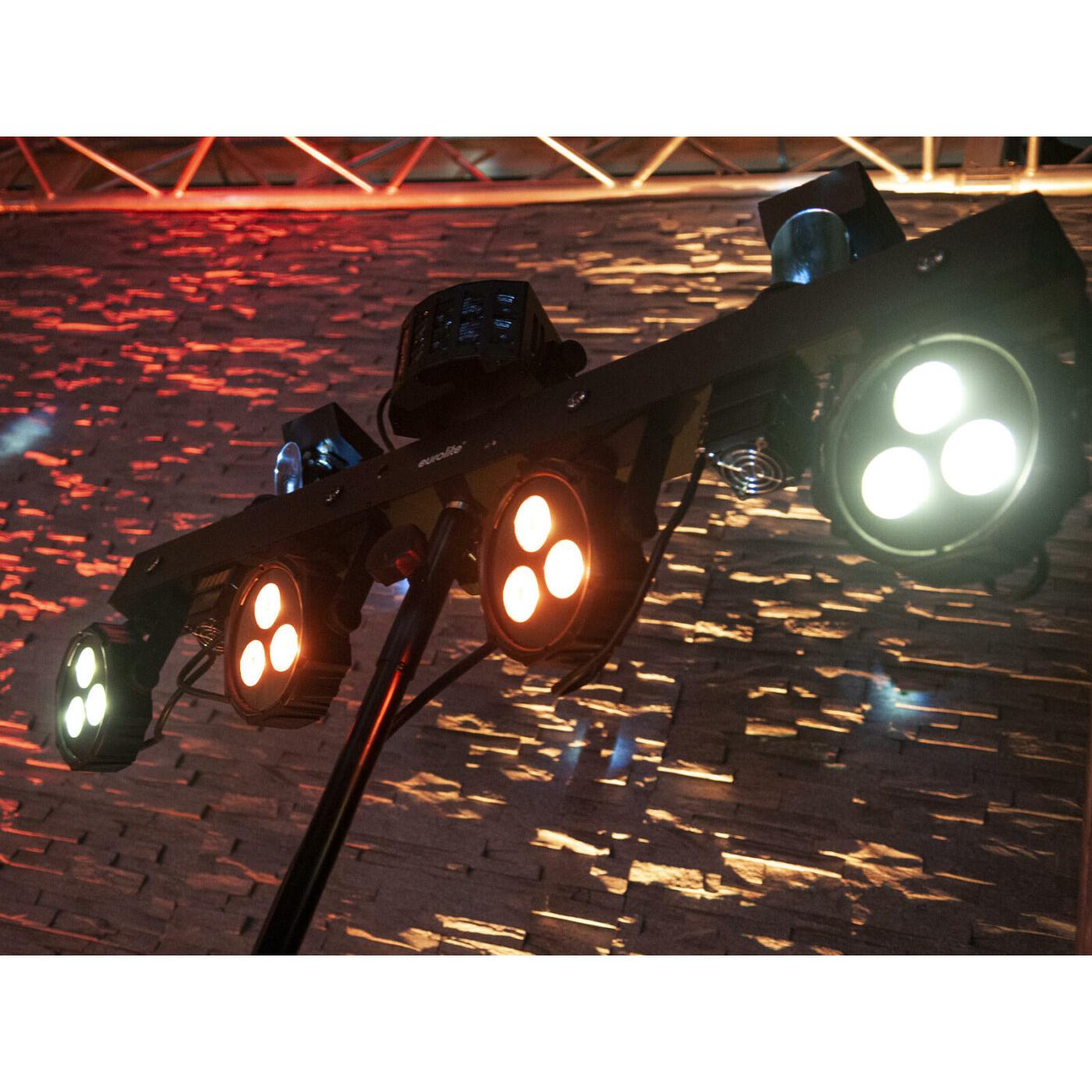

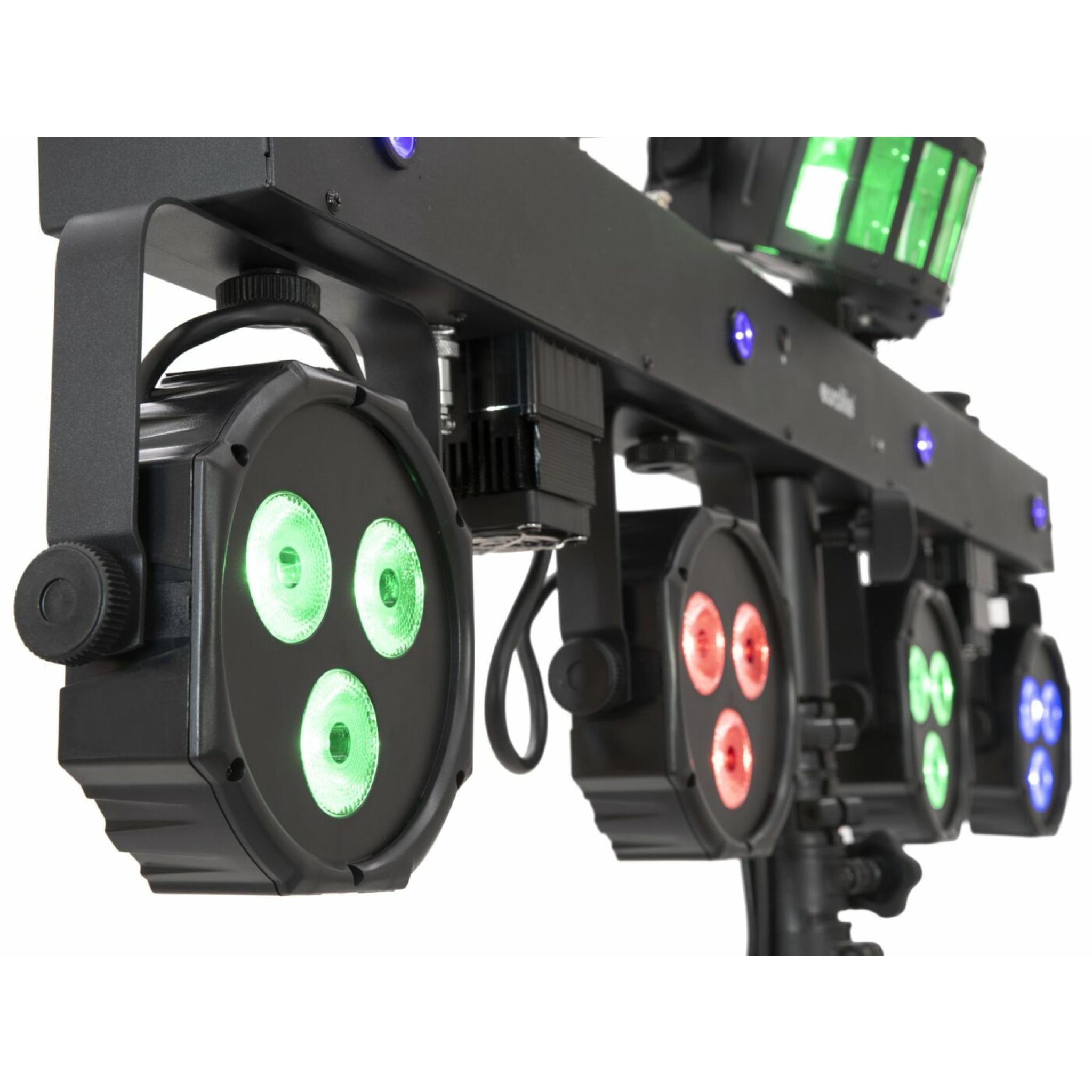

• Four spotlights (each with 3 × 7 W RGB/WW LEDs; beam angle ~15°)

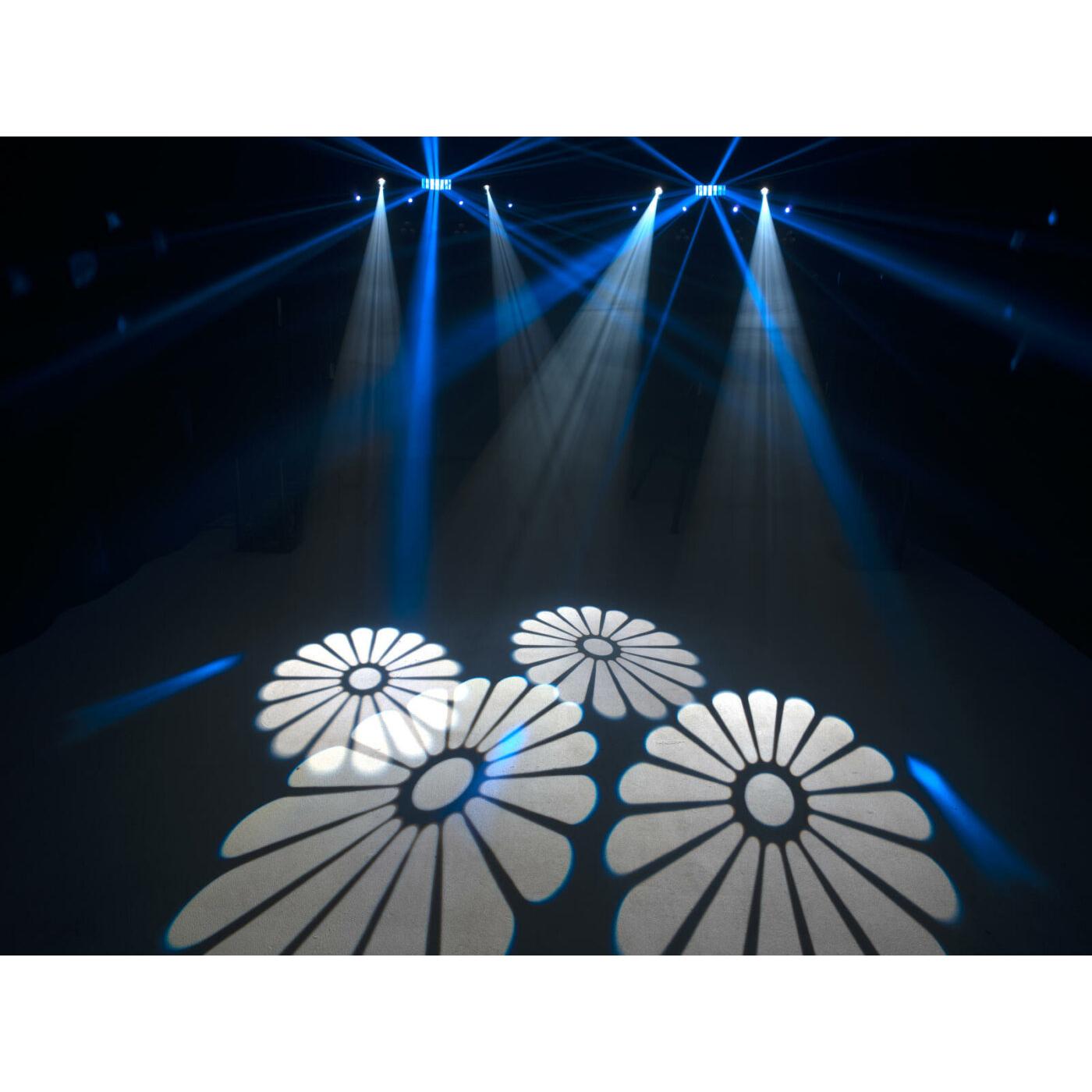

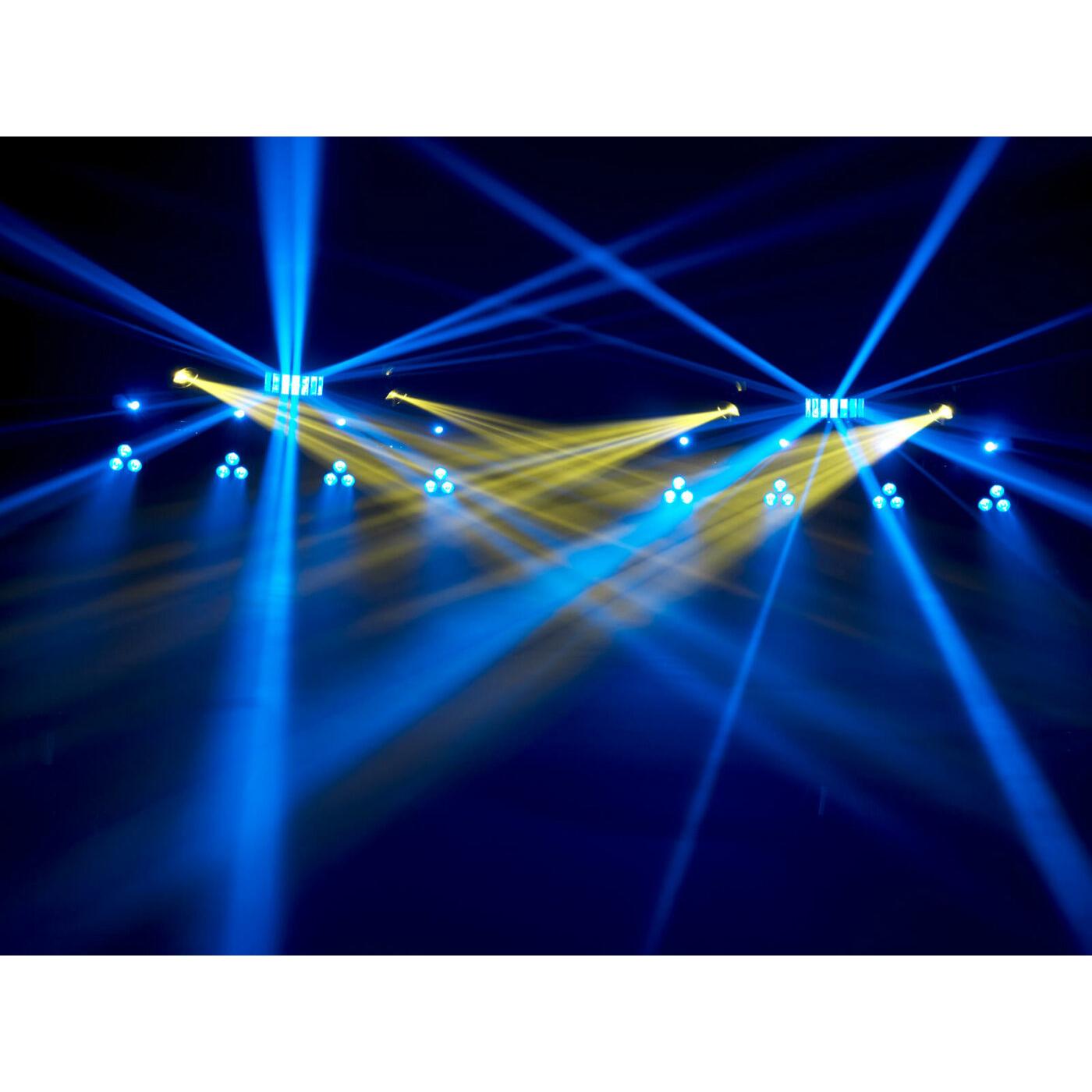

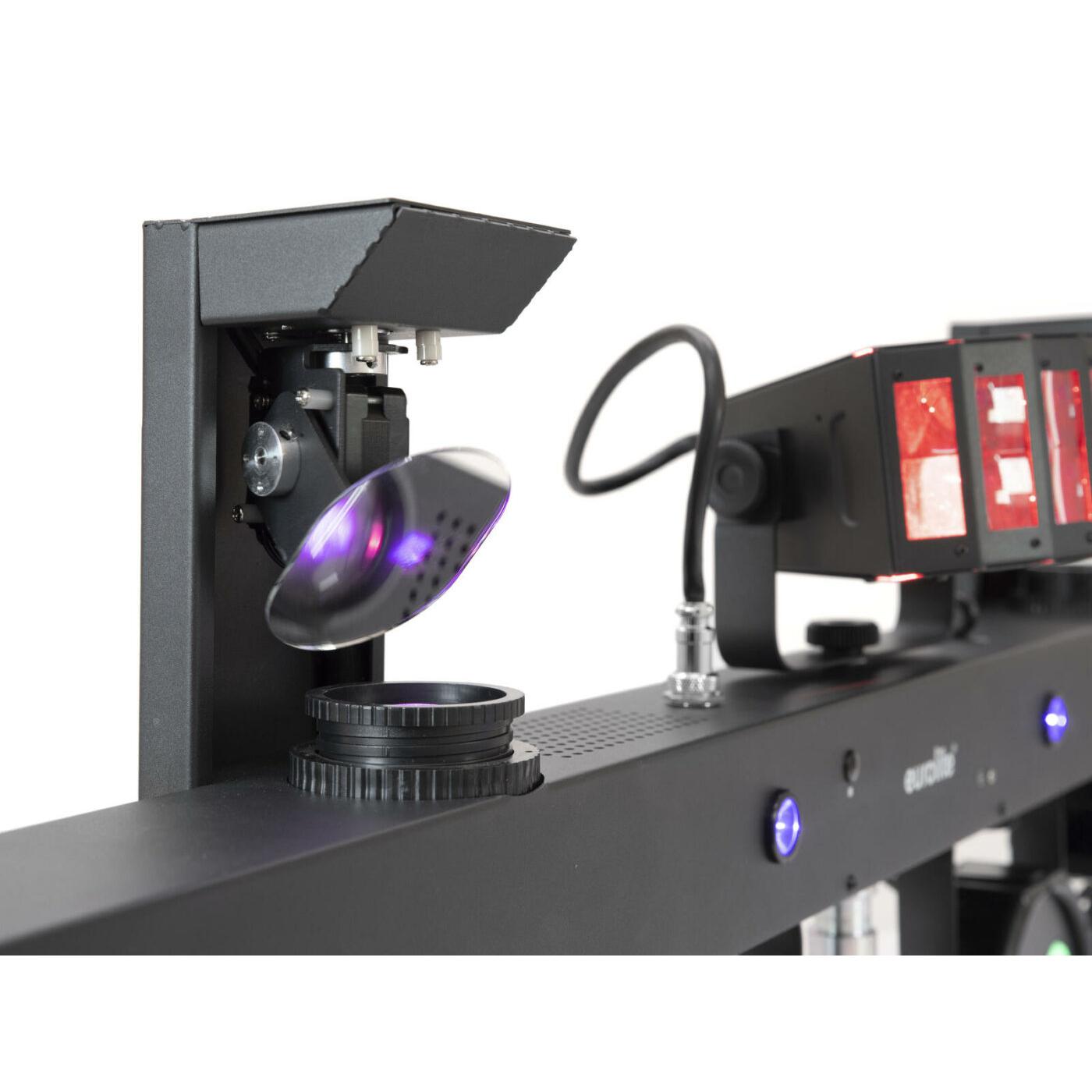

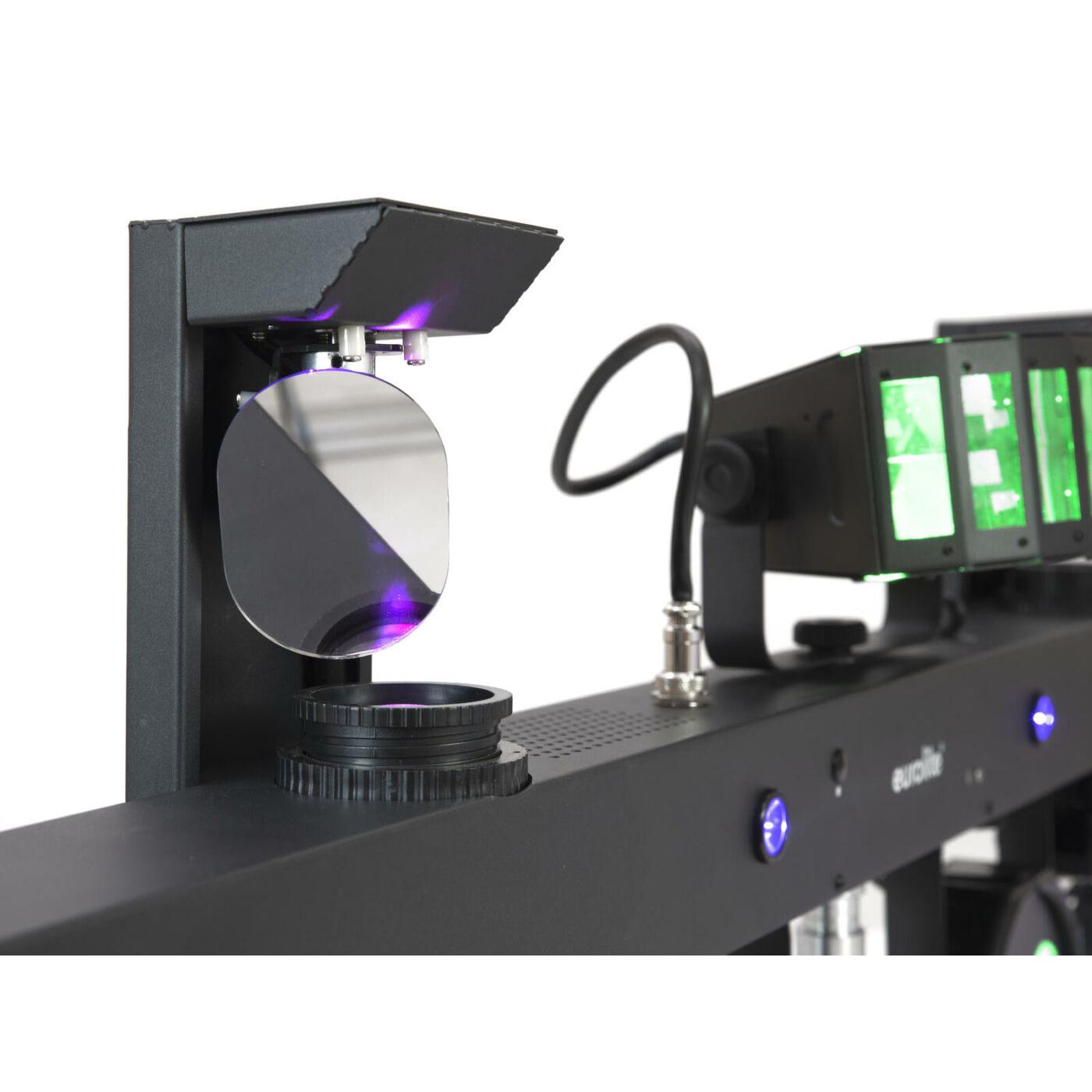

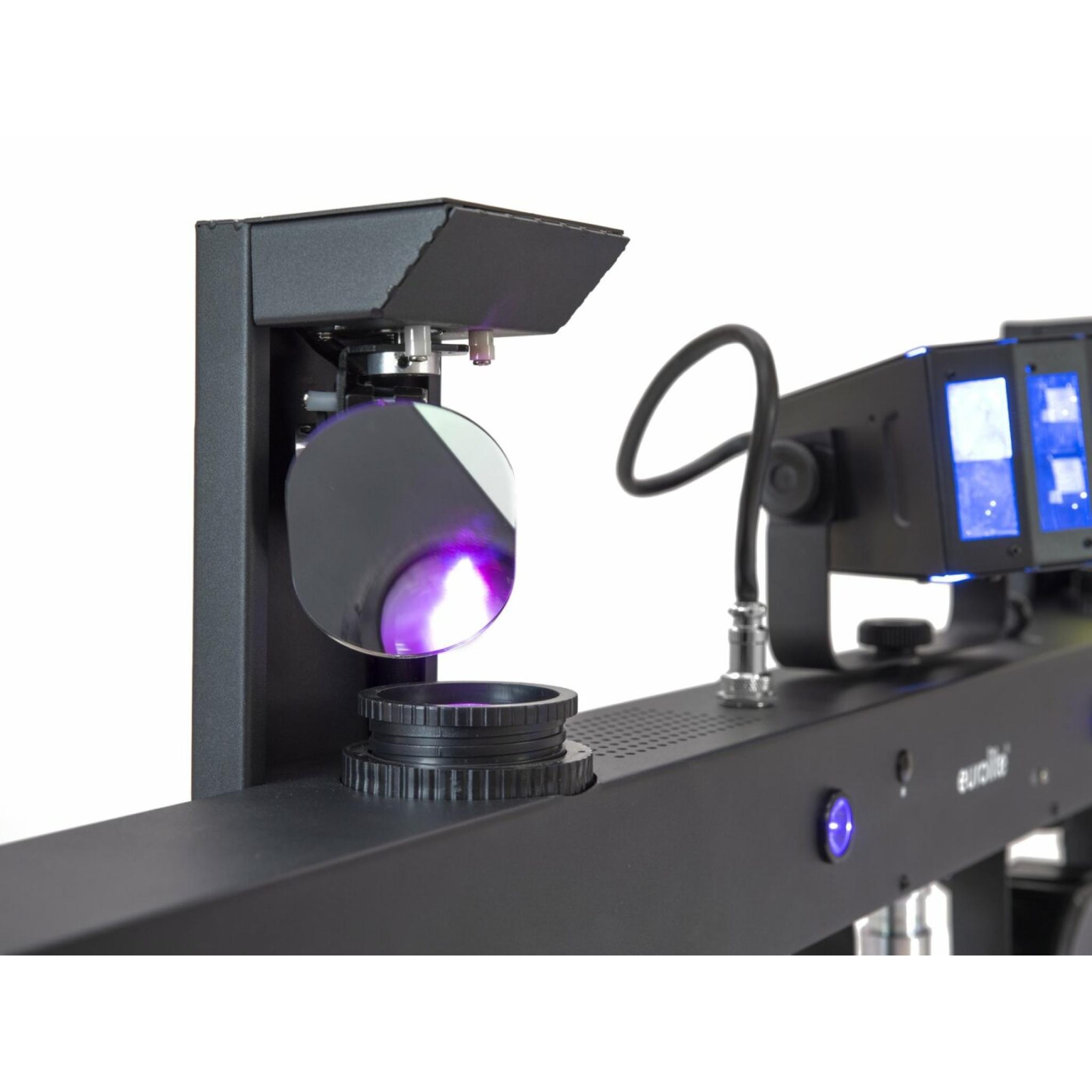

• Two scanners with 15 W CW LEDs and independent mirror movement for dynamic effects
• Four 1 W UV LEDs for blacklight effects
• QuickDMX socket for wireless DMX (USB) use

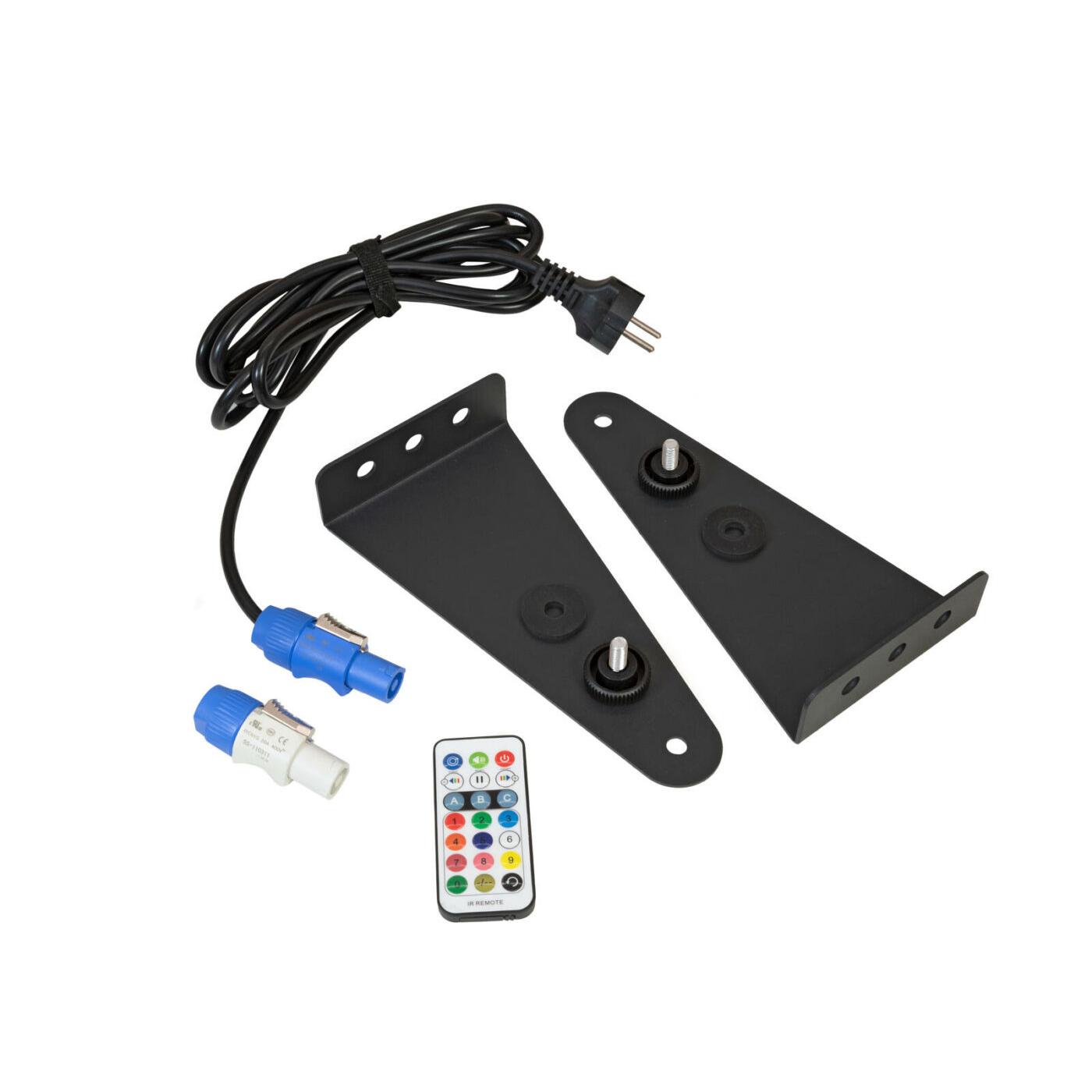

• Multiple control modes: DMX, IR remote, music-activated, standalone, Master/Slave, optional foot switch


Technical Specifications

• Power supply: 100–240 V AC, 50/60 Hz; Power consumption: ~115 W
• DMX modes: 3 / 7 / 13 / 14 / 15 / 18 / 19 / 30 / 32 / 39 channels
• Mounting: TV spigot (28 mm), Powercon in/out loops for chaining units
• Display: 4-digit OLED display for addressing and setup
• Dimensions (W × D × H): approx. 110 × 15.5 × 43 cm
• Weight: approx. 12.8 kg


Applications

• Mobile DJs & entertainers: all-in-one bar that’s easy to carry and setup
• Clubs, events & weddings: mixes colorful lighting, UV, and scanning effects
• Stage and corporate events: powerful visuals tailored with versatile control
• Quick setup environments: preassembled unit with remote and mounting-ready crossbar

Why Choose the EUROLITE LED KLS Scan Next FX?

This solid light bar delivers professional-grade effects in a compact, mobile-friendly format. With various built-in show programs, flexible control options, and multiple effect sources, it offers a complete lighting solution for anyone wanting high-impact visuals with minimal effort.
