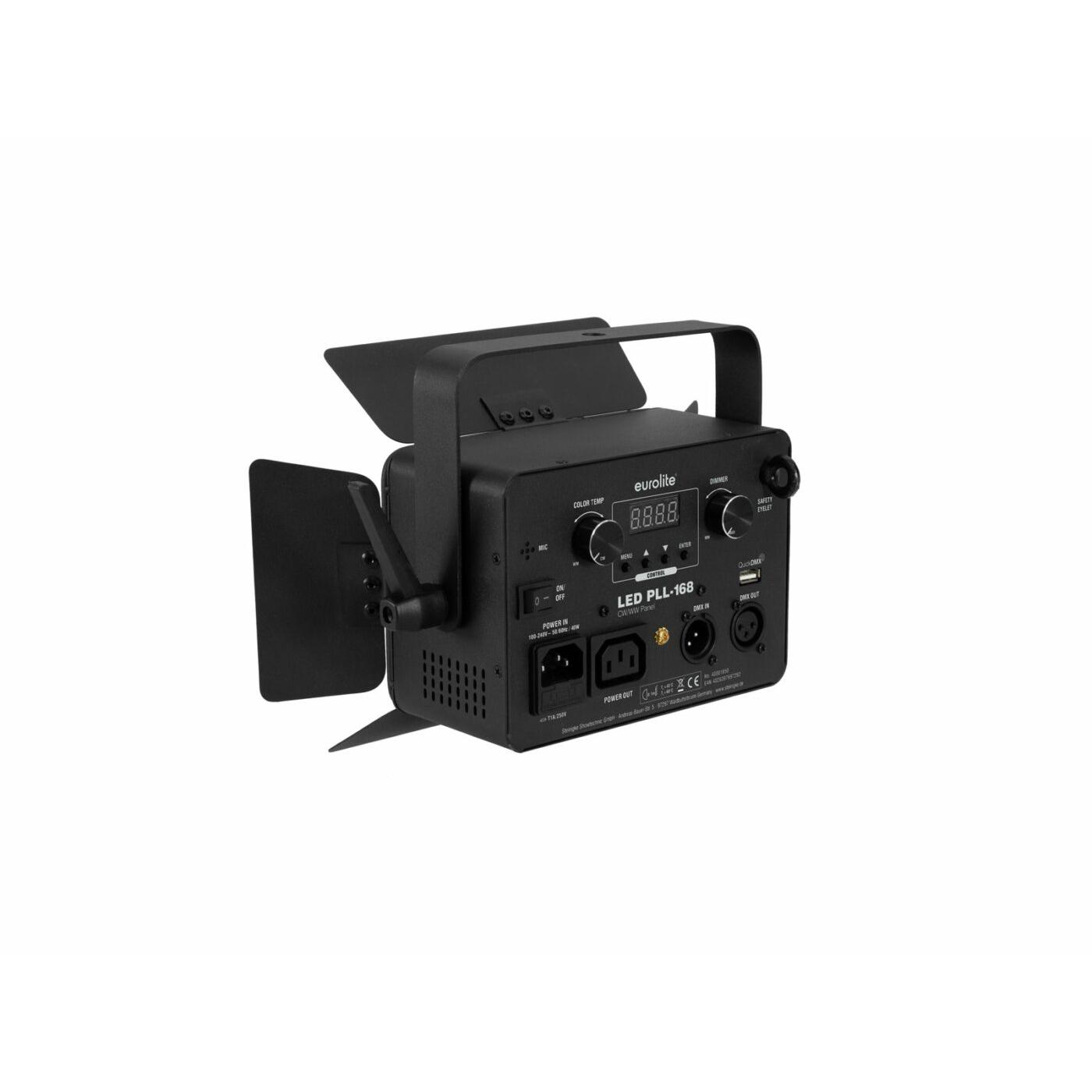

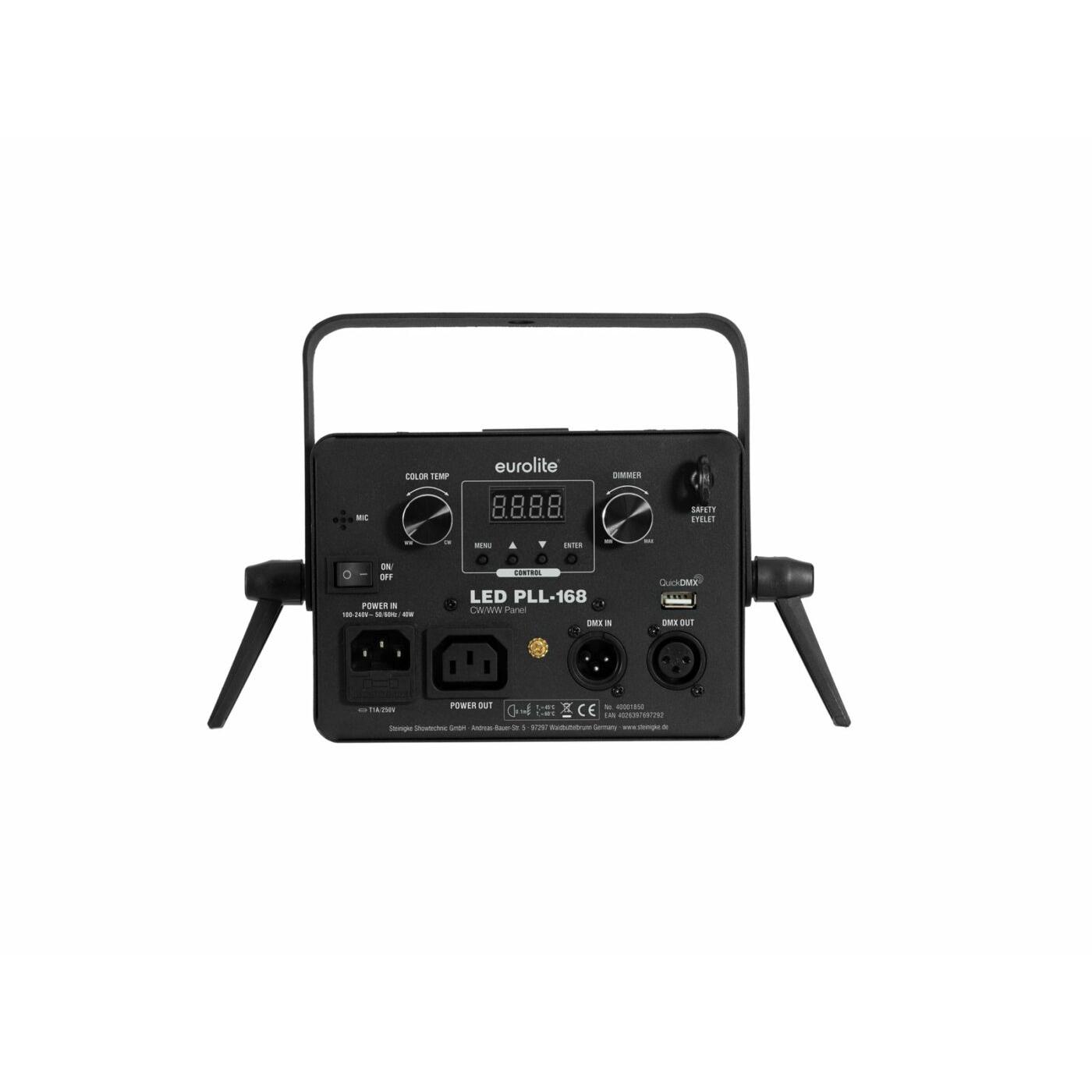

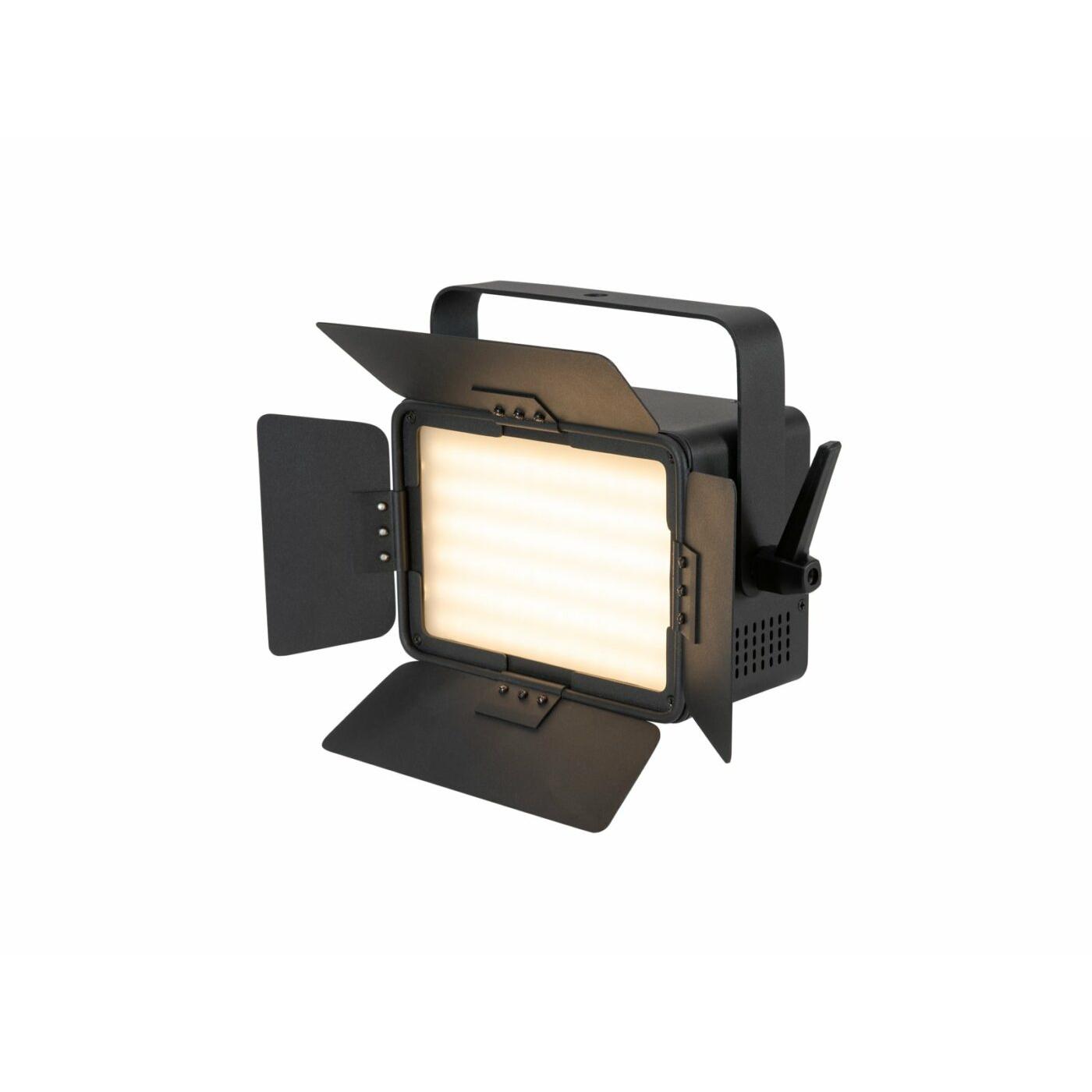

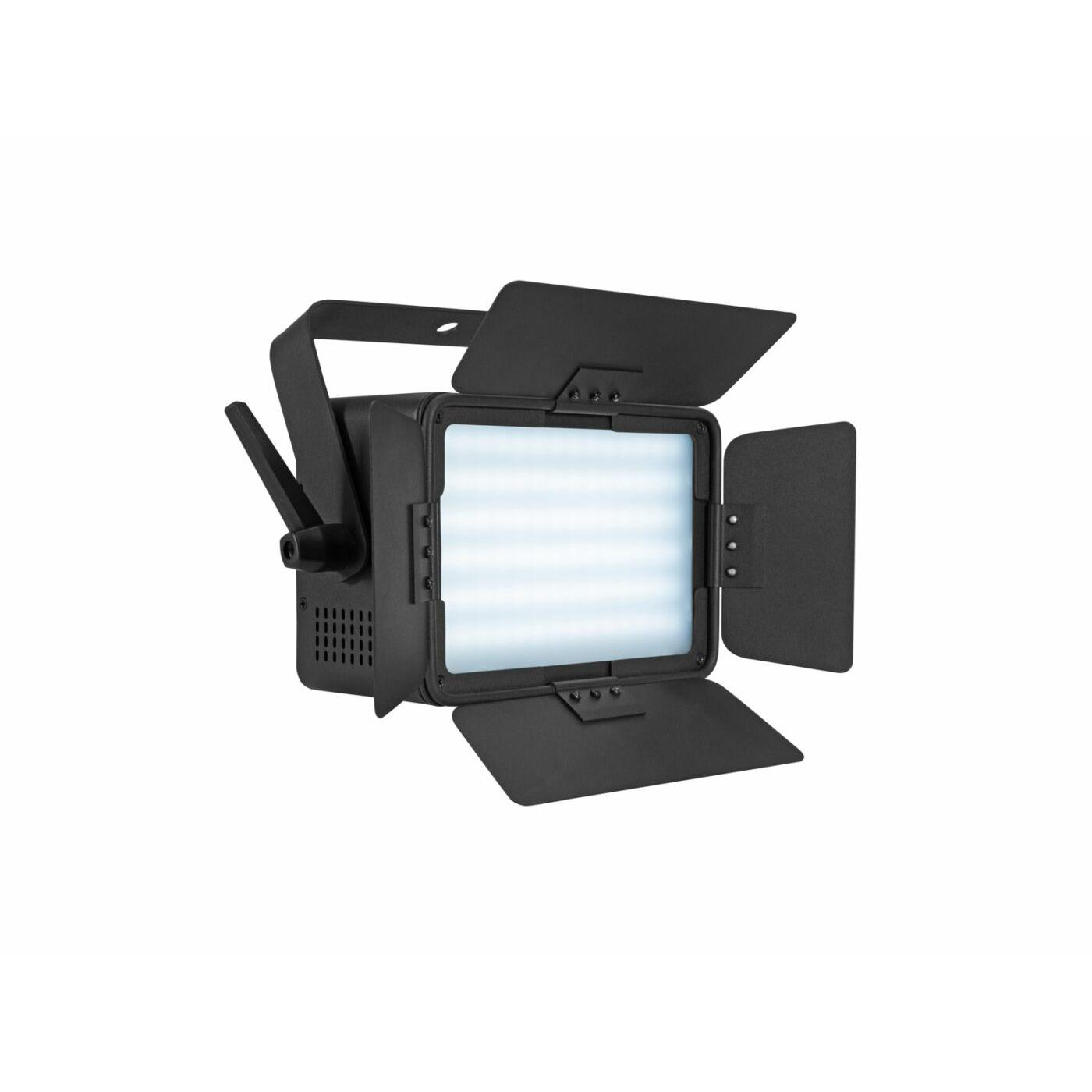

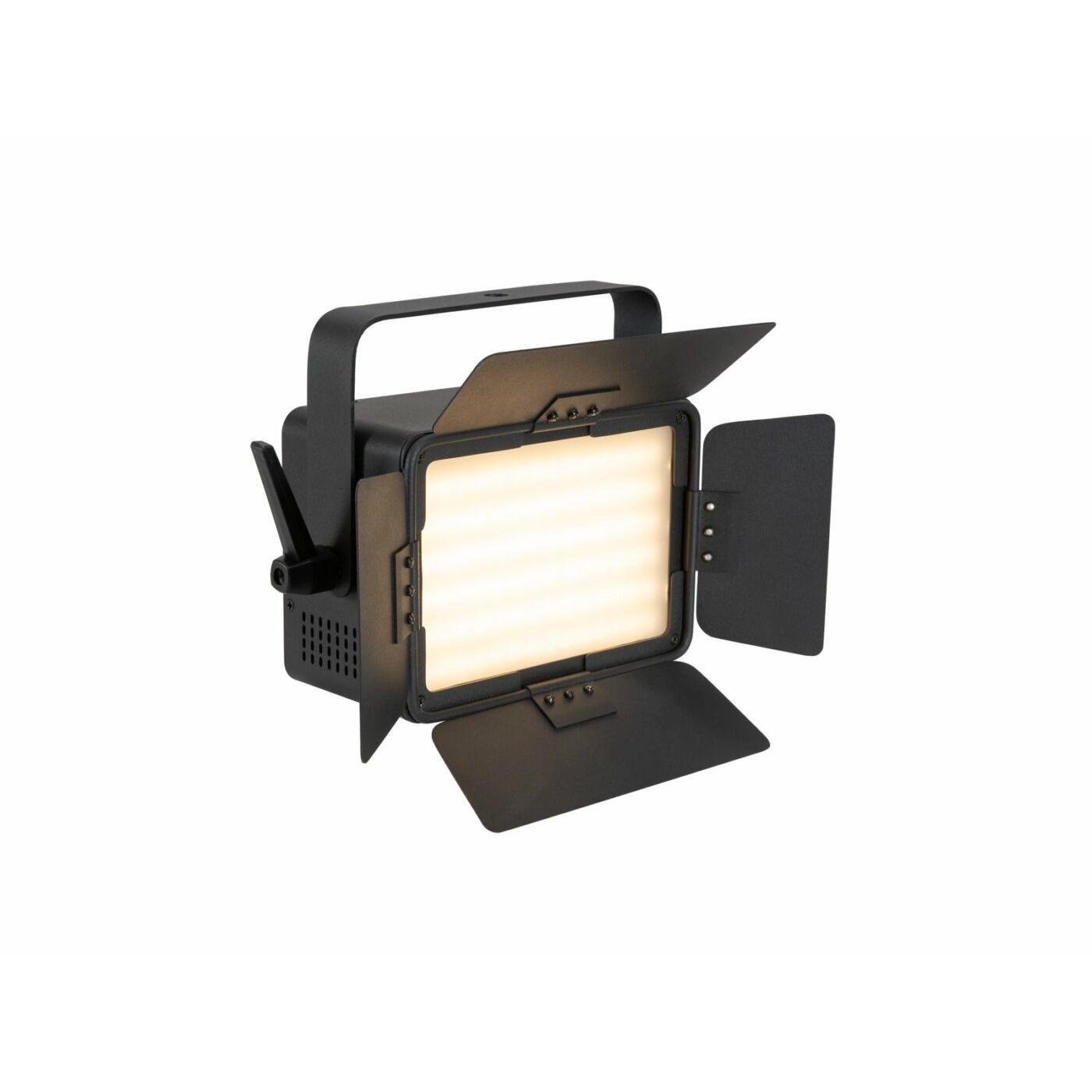

EUROLITE LED PLL-168 CW/WW Panel
Original price was: €296,31.€215,74Current price is: €215,74.
Description
DMX-controlled surface light with 168 dual white LEDs, QuickDMX port and barn doors
- High-grade surface light with 168 super bright, white LEDs
- Ideal for photography, film, stage and trade fair lighting
- 120° beam angle
- Variable color temperature 2800-6500 K
- 4 barn doors to avoid blinding the audience and for protection during transport
- Energy-saving, durable and environmental friendly
- Auto, music, master/slave and DMX mode
- Built-in auto and music show programs
- Quick color temperature and brightness setting via rotary dials
- Variable PWM frequency (pulse-width modulation)
- Strobe effect 0-20 Hz
- Control panel with LED display for easy configuration
- Supports QuickDMX – the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Slim, rugged metal housing
- Swivel mounting bracket
- Mains input and output for power linking up to 8 units
- LED: 84 x SMD 2835 0,5 W warm white (WW)
- LED: 84 x SMD 2835 0,5 W cold white (CW)
- Can be operated in 2; 4; 6 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
- Flicker-free projection
- Good color rendering index (CRI)
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 40 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Via IEC connector (M) mounting version power supply cord with safety plug |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 84 x SMD 2835 0,5 W warm white (WW) 84 x SMD 2835 0,5 W cold white (CW) |
| Color temperature: | 2800K – 6500K adjustable |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 2; 4; 6 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional) |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Color rendering index (CRI) more than: | 80 Ra |
| Housing color: | Black |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Width: 28,1 cm Depth: 11,0 cm Height: 17,3 cm |
| Weight: | 1,70 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
