Sale!

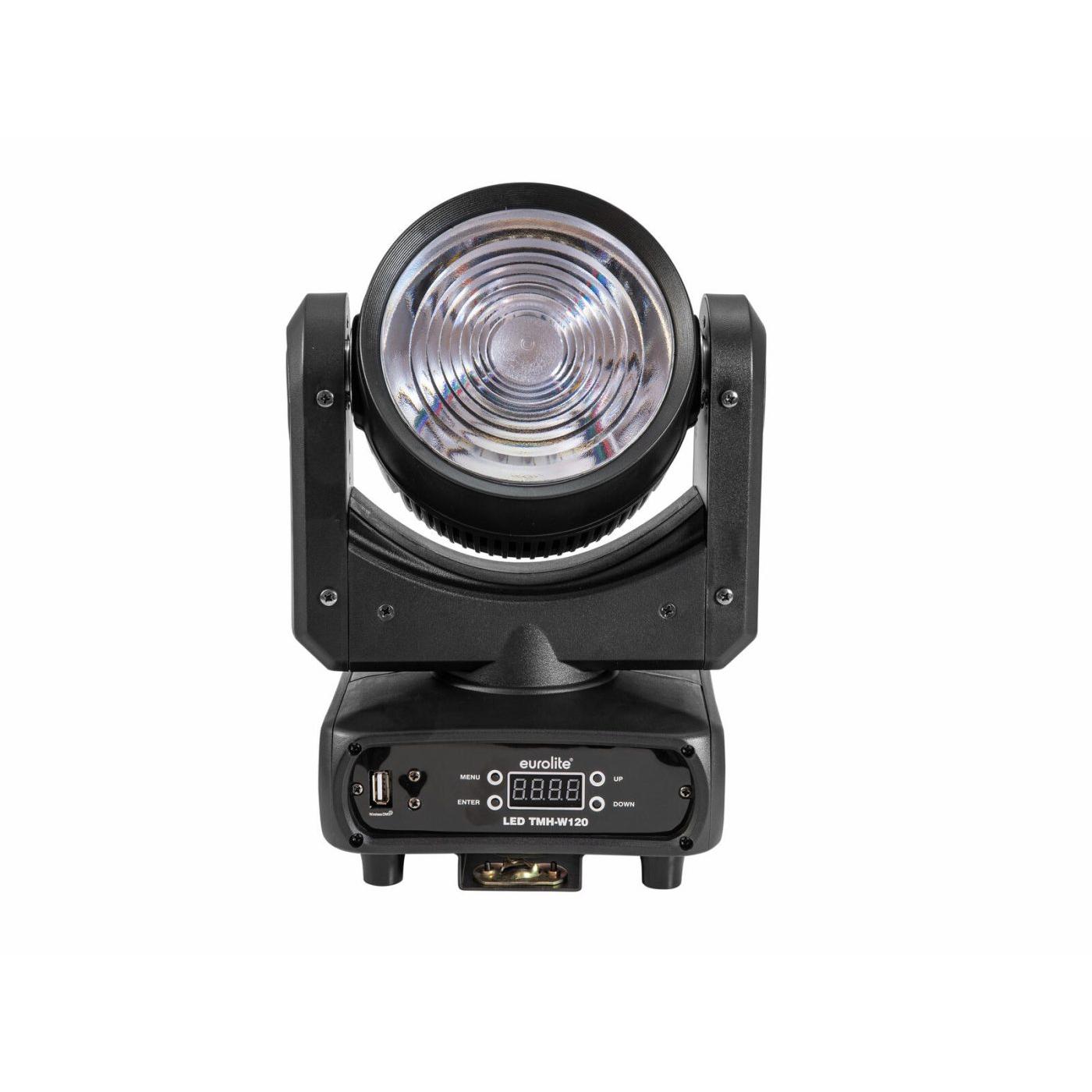

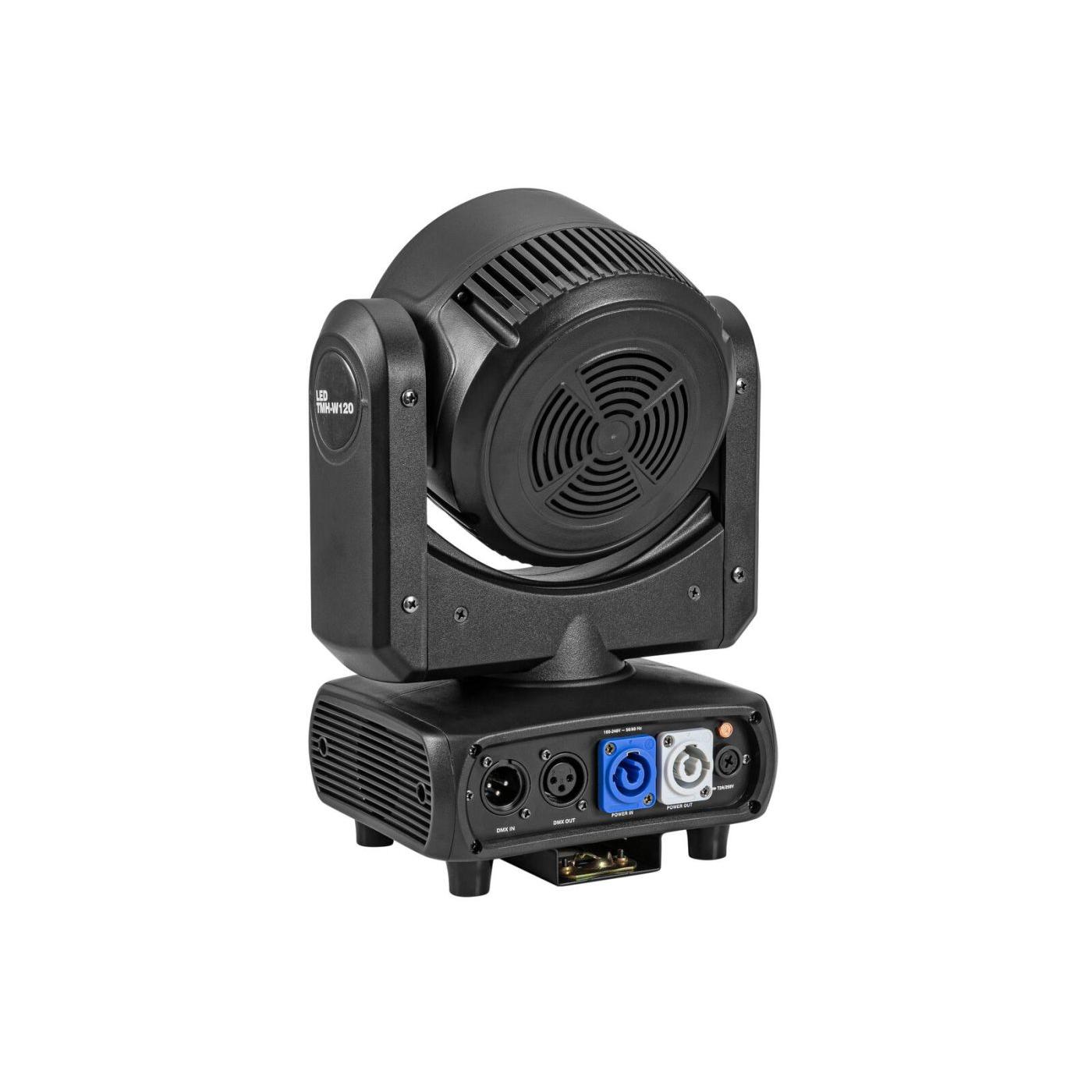

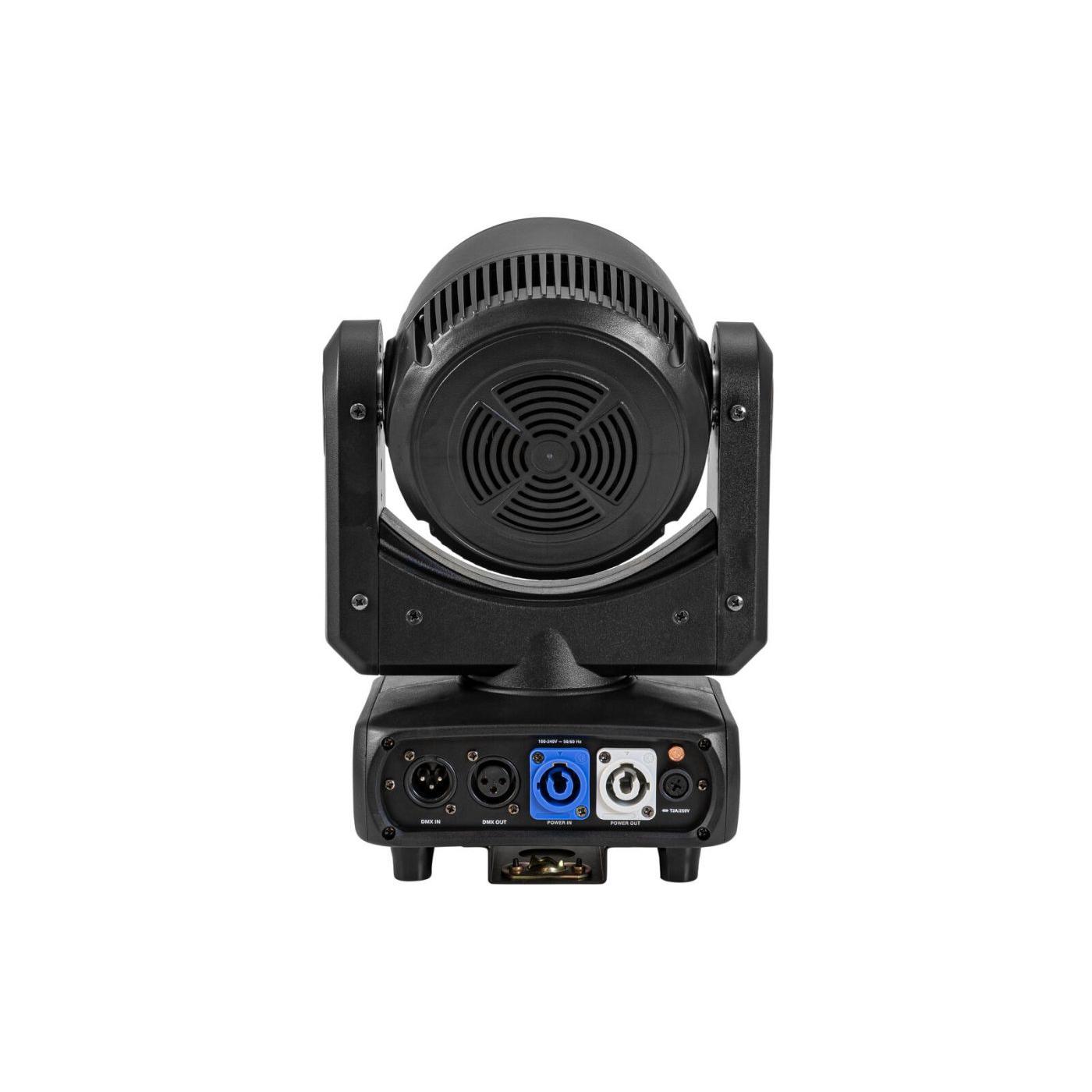

EUROLITE LED TMH-W120 Hypno Moving Head Wash
Original price was: €355,81.€299,00Current price is: €299,00.
Description
Compact LED moving head wash with 120 W RGB/WW LED and backlighting via RGB hypno LEDs
- 1 powerful LED 120 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
- 26 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
- Positioning within 540° PAN, 200° TILT
- Exact positioning (16 bit resolution)
- Dimmer; dimmer curves adjustable
- Wash effect
- The device is cooled by temperature-controlled fan at the Head; low-noise cooling fan at the base
- Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
- Flicker-free
- DMX fail mode (hold; zero values)
- With a beam angle of 11°

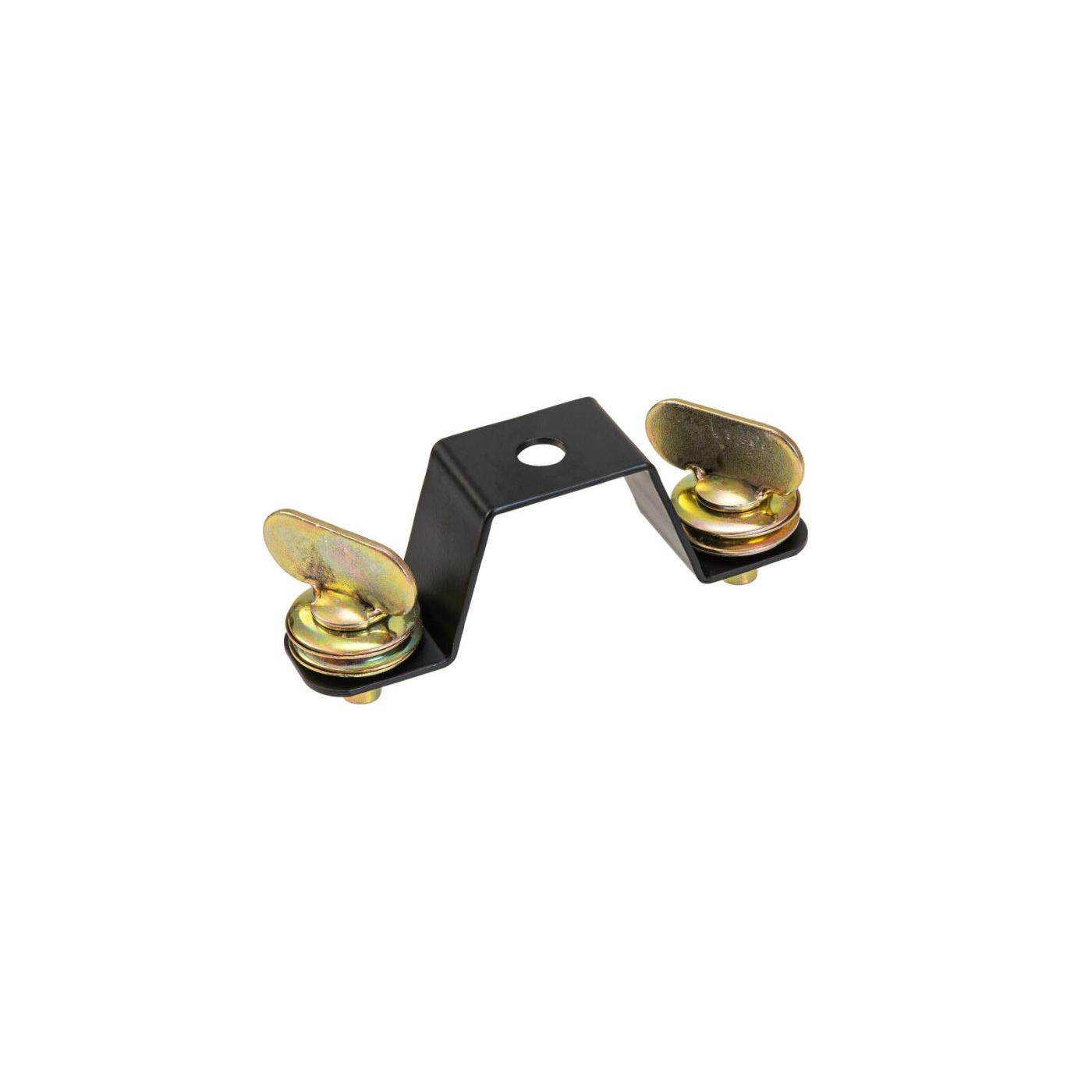

- With omega bracket
- 4 digit 7-segment LED display
- 4 x rubber feet
- Mains input and output for power linking up to 8 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 130 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 120 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix) 26 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Max. TILT movement: | 200° exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) |
| Flash rate: | 1 – 20 Hz |
| DMX channels: | 23 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 1 x temperature-controlled fan at the Head 1 x low-noise cooling fan at the base |
| Control: | Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function |
| Projection: | Flicker-free |
| PWM frequency: | 20000 Hz |
| DMX fail mode: | Hold; zero values |
| Beam angle: | 11° |
| Beam angle (1/2 peak): | 11° |
| Beam angle (1/10 peak): | 20° |
| Illuminance in Lux (lx): | Red (R) 1m: 11680 lx, 3m: 1064 lx, 6m: 257 lx Green (G) 1m: 21059 lx, 3m: 1883 lx, 6m: 429 lx Blue (B) 1m: 4476 lx, 3m: 434 lx, 6m: 102 lx Warm white (WW) 1m: 19730 lx, 3m: 1711 lx, 6m: 408 lx All 1m: 52623 lx, 3m: 4746 lx, 6m: 1108 lx |
| Housing color: | Black |
| Attachment system: | Omega bracket |
| Display type: | 4 digit 7-segment LED display |
| USB port: | Type A |
| Transport aid: | 4 x rubber feet |
| Diameter mounting holes: | 1 x Ø10mm |
| Material: | Plastic |
| Dimensions: | Width: 20 cm Depth: 14 cm Height: 29 cm |
| Weight: | 3,60 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Specifications
| Weight | 4 kg |
|---|---|
| Dimensions | 0,2250 × 0,3100 × 0,2600 m |
| EAN | 4026397740110 |
