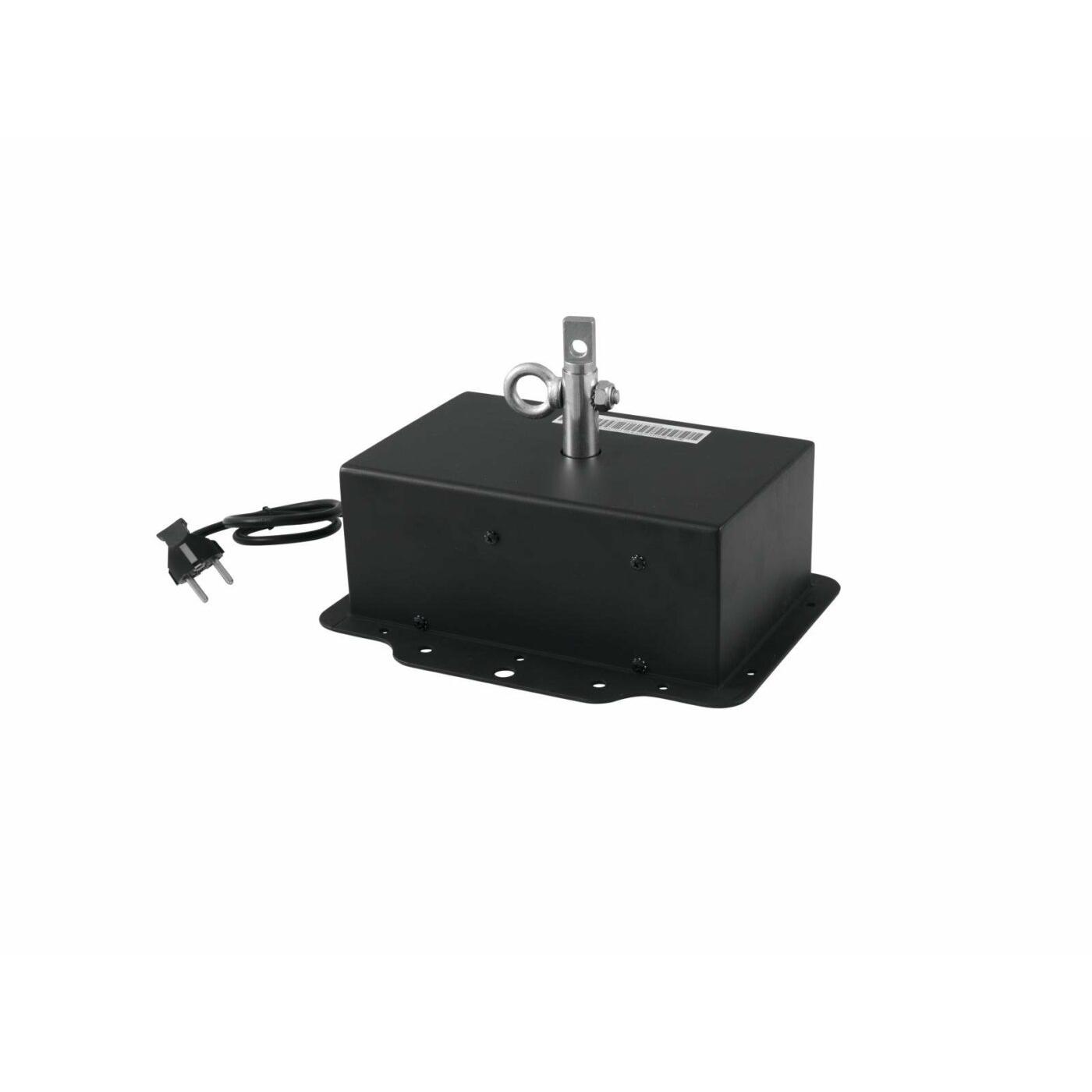

EUROLITE MD-3010 Safety Rotary Motor
Original price was: €165,41.€119,96Current price is: €119,96.
Description
Safety features
? Rugged construction with steel housing for long operation
? High stability due to massive motor axle
? Mechanic fall safety against axle loosening inside the motor
? Approved load with 12-fold testing weight
? Additional attechment eyelet for secondary attachment of the load
? EUROLITE safety rotary motors comply with the safety norm EN 292 and safety regulation BGV C1 (Germany)
? Quality management for testing every production charge
? Rugged construction with steel housing for long operation
? High stability due to massive motor axle
? Mechanic fall safety against axle loosening inside the motor
? Approved load with 12-fold testing weight
? Additional attechment eyelet for secondary attachment of the load
? EUROLITE safety rotary motors comply with the safety norm EN 292 and safety regulation BGV C1 (Germany)
? Quality management for testing every production charge
Mirror ball motor for mirror balls up to 100 cm
- Suitable for driving mirror balls up to a maximum weight of 40 kg
- This weight corresponds with a diameter of 100 cm for the EUROLITE mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
- 2 chains and 4 quick links must be ordered separately
- 1 rotation per minute
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 7 W |
| Maximum load WLL (4-fold): | 120 kg |
| Maximum load BGV C1 (8-fold): | 60 kg |
| Maximum load BGV C1 (10-fold): | 50 kg |
| Maximum load BGV C1 (12-fold): | 40 kg |
| Max. diameter of mirror ball: | 100 cm (EUROLITE) |
| Rotation-speed: | approx. 1 RPM |
| Dimensions (L x W x H): | 280 x 240 x 110 mm |
| Weight: | 5 kg |
Specifications
| Weight | 5,9 kg |
|---|---|
| Dimensions | 0,2200 × 0,2900 × 0,2600 m |
| Maximum load kg | 40 |
| Weight kg | 5 |
| Power supply | 230 V AC, 50 Hz |
| Power consumption W | 7.00 |
