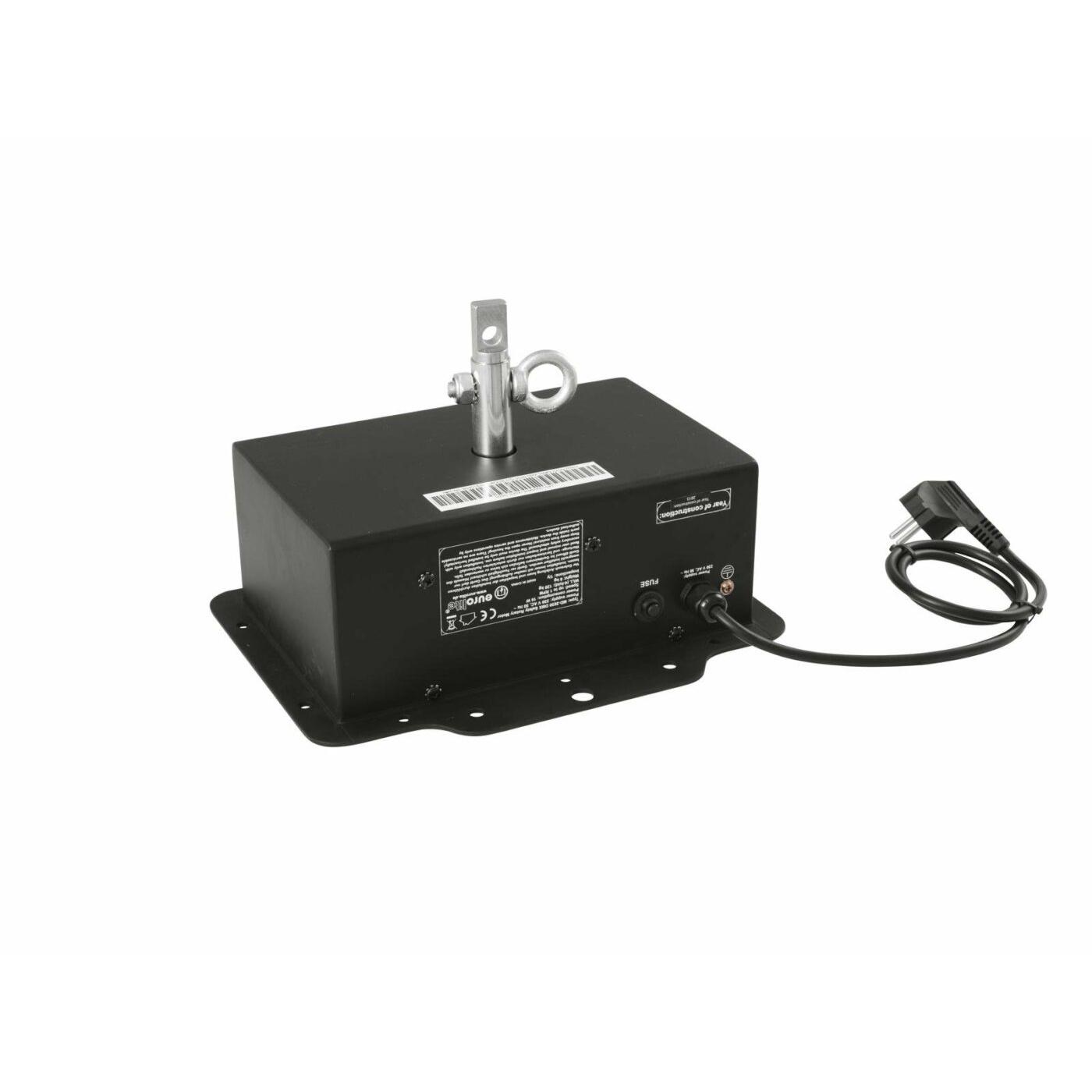

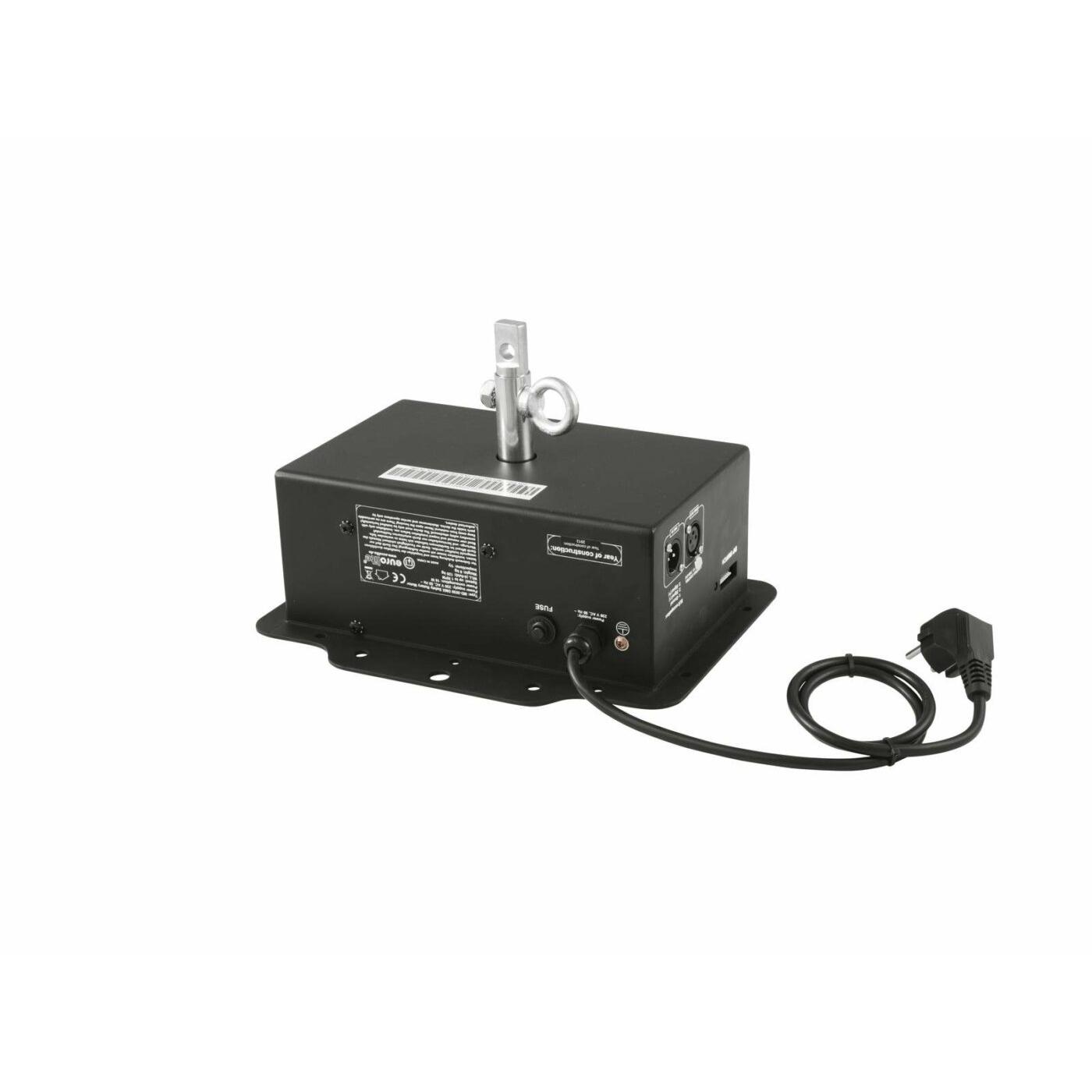

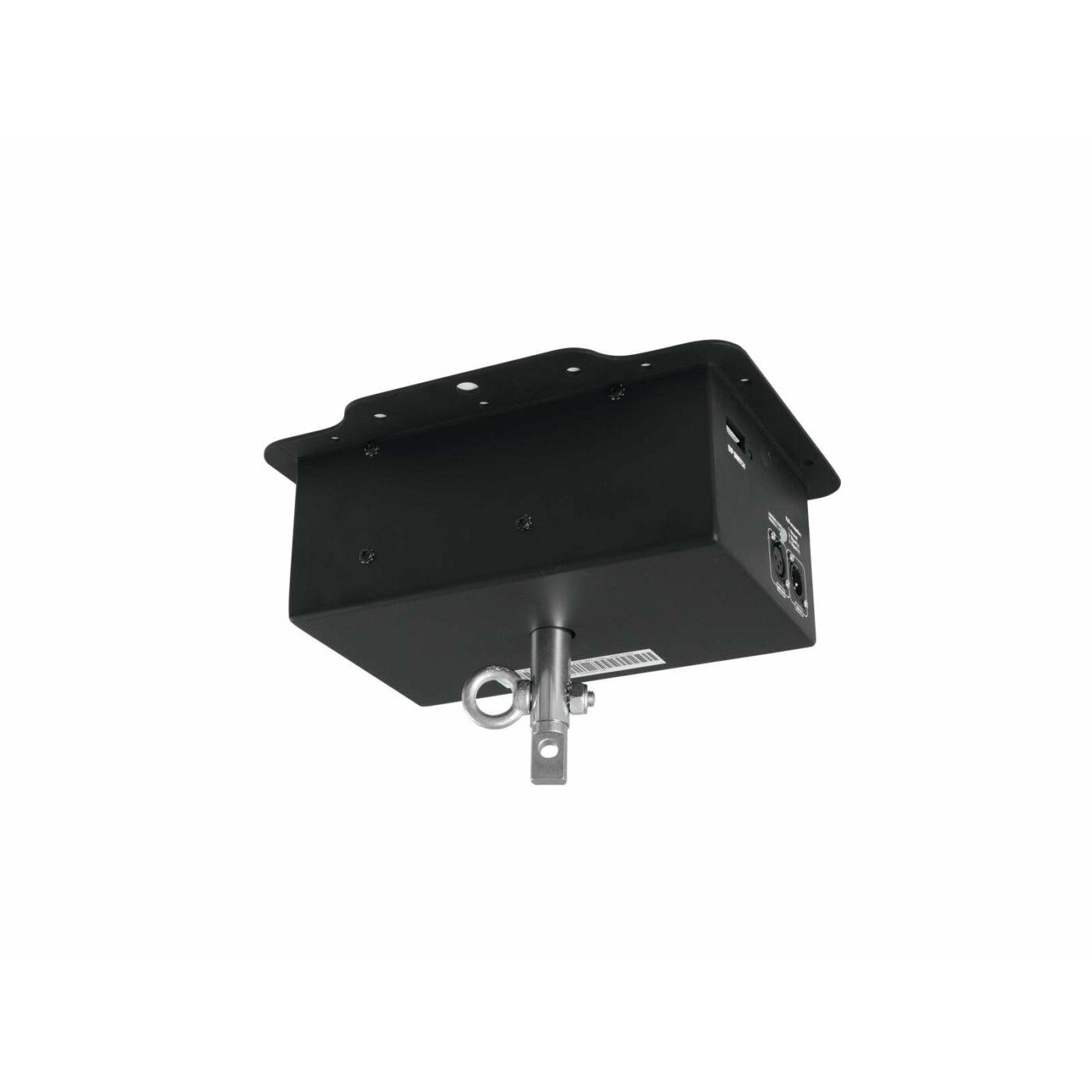

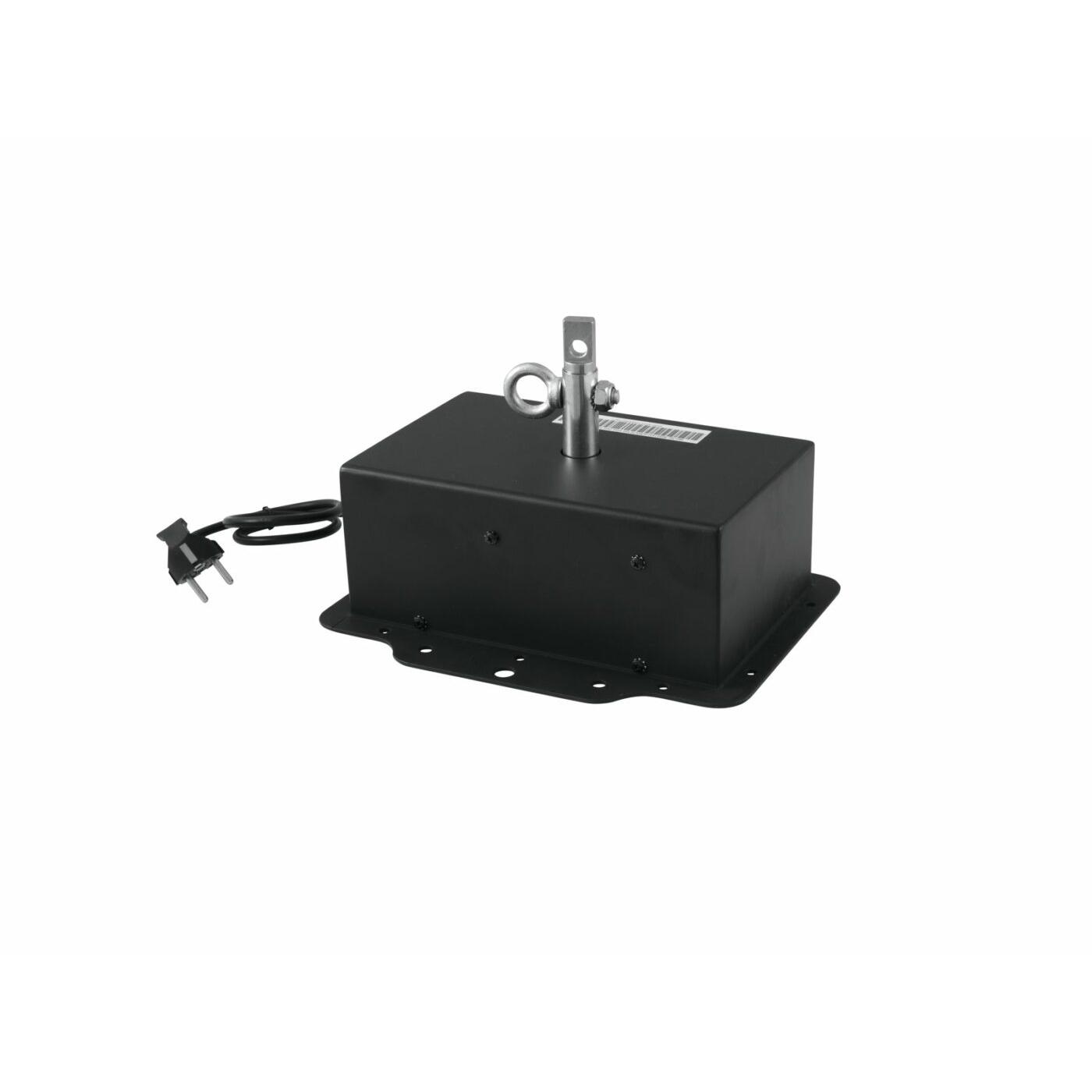

EUROLITE MD-3030 DMX Safety Rotary Motor
Original price was: €201,11.€149,69Current price is: €149,69.
Uitverkocht - Neem contact met ons op voor meer informatie.
Description
DMX controlled motor for mirror balls up to 100 cm, up to 5 RPM
- Suitable for driving mirror balls up to a maximum weight of 40 kg
- This weight corresponds with a diameter of 100 cm for the EUROLITE mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
- Operable in stand-alone mode or via DMX interface

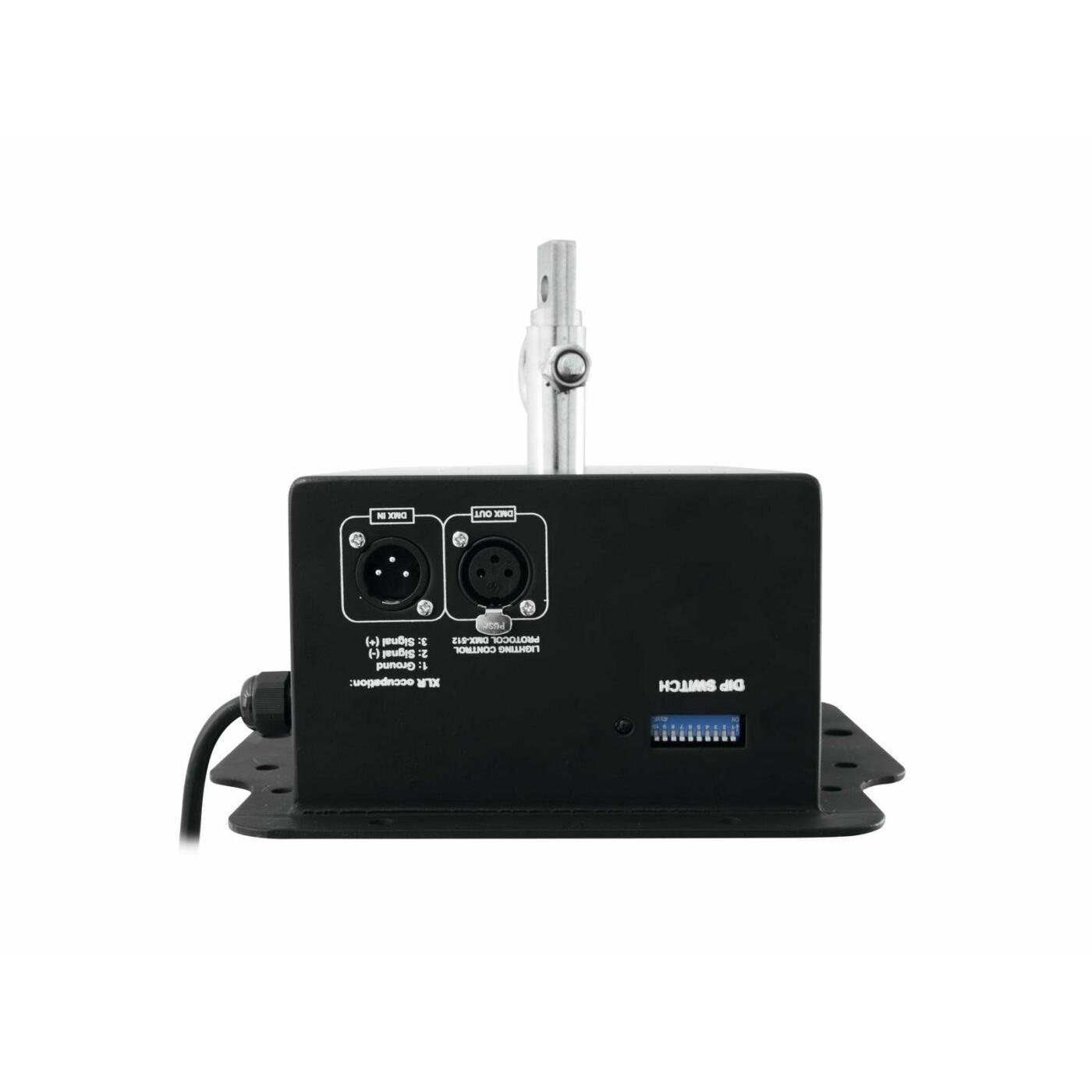

- DMX512 control possible via any commercial DMX controller (occupies 1 channel)
- Functions: Rotation direction, Rotation speed, Master/Slave
- Programable via DIP switches
- 2 chains and 4 quick links must be ordered separately
- Ready for connection via power cord with safety-plug
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 16 W |
| Maximum load WLL (4-fold): | 120 kg |
| Maximum load BGV C1 (8-fold): | 60 kg |
| Maximum load BGV C1 (10-fold): | 50 kg |
| Maximum load BGV C1 (12-fold): | 40 kg |
| Max. diameter of mirror ball: | 100 cm (EUROLITE) |
| Rotation-speed: | up to 5 RPM |
| Dimensions (L x W x H): | 285 x 235 x 190 mm |
| Weight: | 6 kg |
Specifications
| Weight | 6,75 kg |
|---|---|
| Dimensions | 0,2250 × 0,2850 × 0,2650 m |
| Maximum load kg | 40 |
| Weight kg | 6 |
| Power supply | 230 V AC, 50 Hz |
| Power consumption W | 16.00 |
