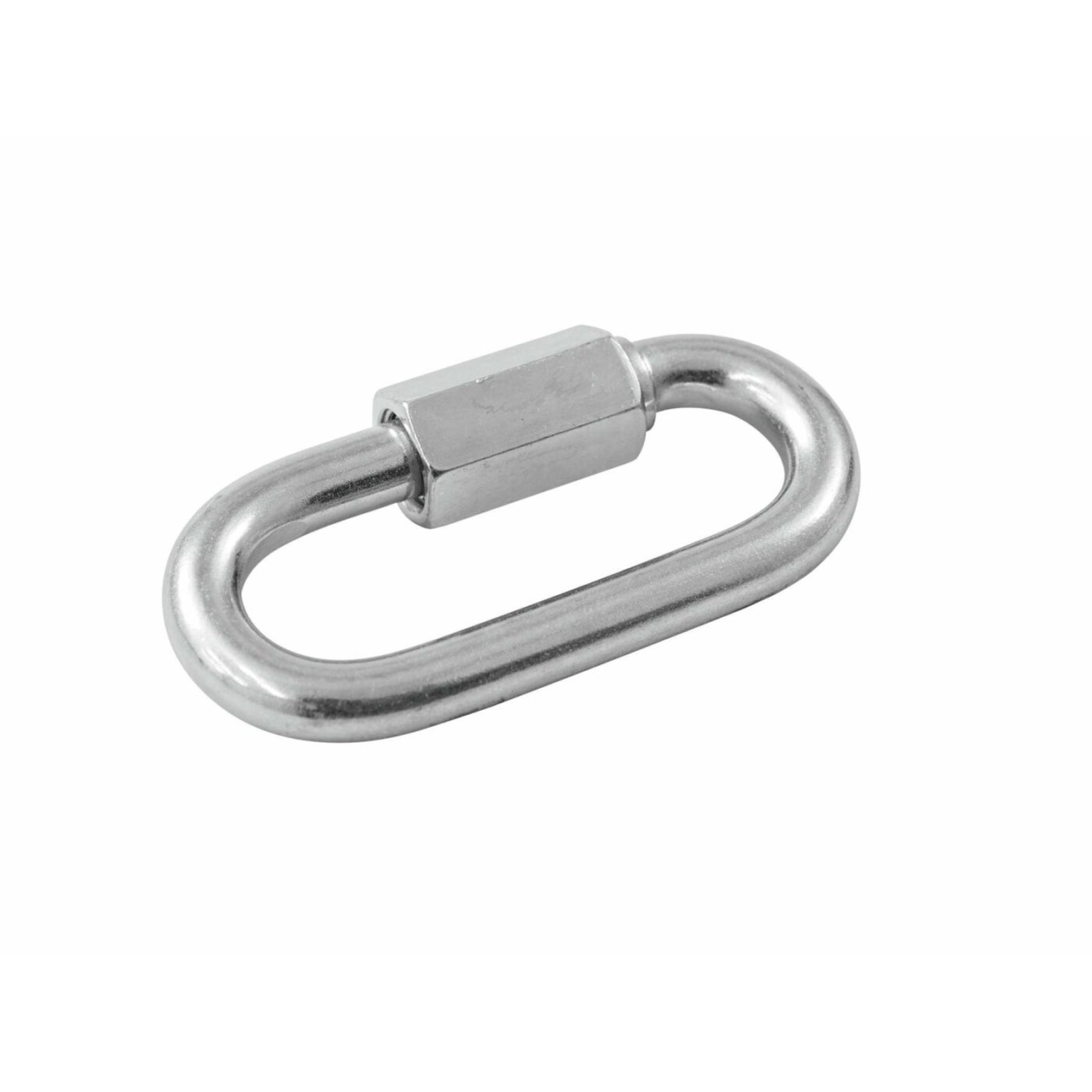

Eurolite Quick Link Type A-350
€5,36
Uitverkocht - Neem contact met ons op voor meer informatie.
Description
Official quick link
- Complies with DIN 56927:2009-03
- Nominal size: 8 mm
- Form A (short)
- Galvanized
- Identification number: 350
- Stamp: DIN 56926 A 350
- Test report according to DIN EN 10204 as download
| Maximum load WLL (5-fold): | 700 kg |
| Maximum load BGV C1 (10-fold): | 350 kg |
| Identification: | DIN 56926-A-350 |
| Temperature range: | -40° C to +100° C |
| Diameter: | 8 mm |
| Form: | A – small |
| Standard: | DIN 56927:2009-03 |
| Spanner opening: | 11 mm |
Specifications
| Weight | 0,08 kg |
|---|---|
| Dimensions | 0,0150 × 0,0750 × 0,0350 m |
| Weight kg | 0,078 |
| Minimum breaking force kN | 35000 |
| Length mm | 74 |
| Diameter mm | 8 |
| Spanner opening mm | 0-8.5 |
| Maximum load WLL (5-fold) kg | 700 |
| Shape | A – Small opening |
| Standard | DIN 56927:2009-03, |
