Description

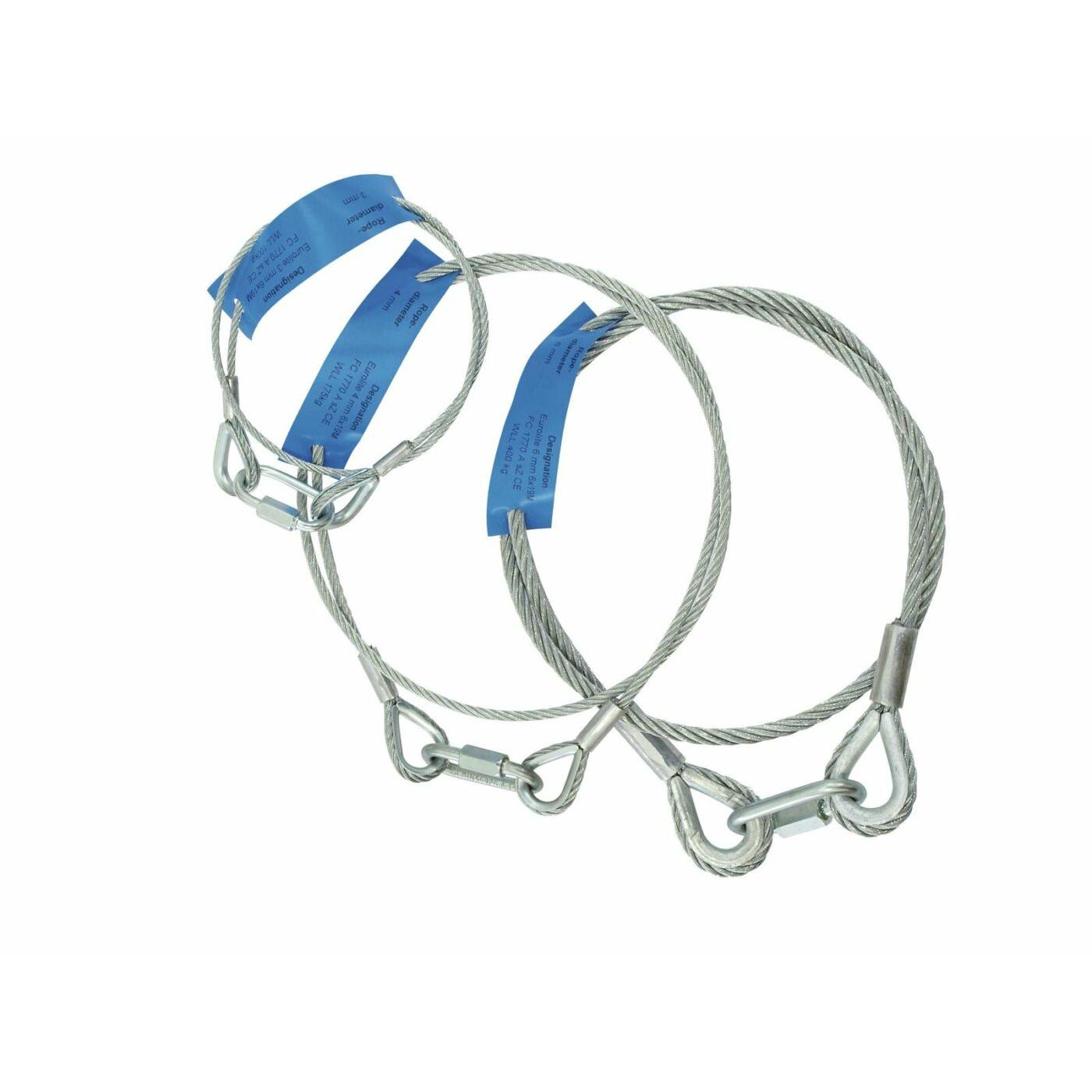

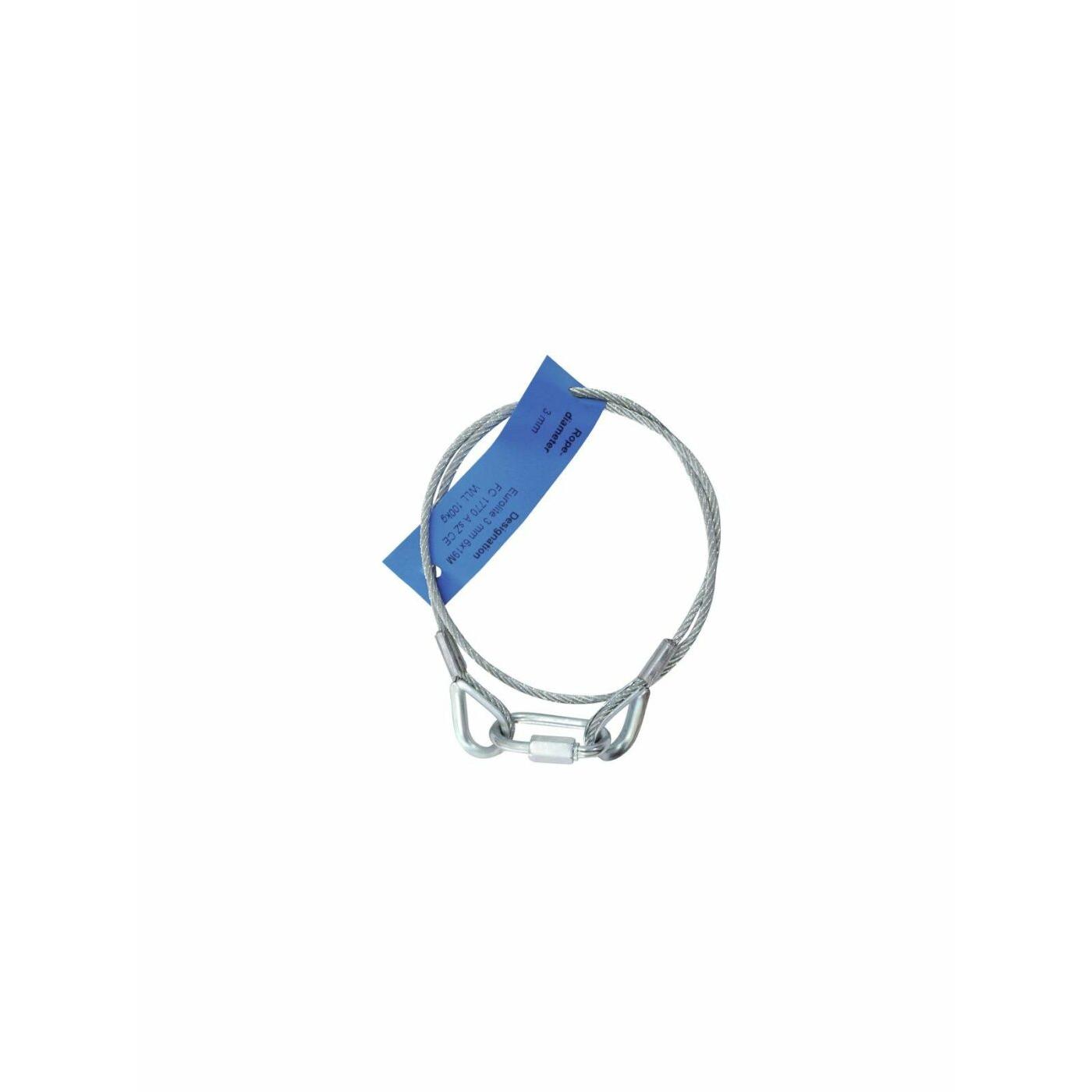

EUROLITE Safety bonds
The EUROLITE safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The safety bonds are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can secure loads above persons with these safety bonds in all areas where the BGV C1 is required.
The EUROLITE safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The safety bonds are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can secure loads above persons with these safety bonds in all areas where the BGV C1 is required.
High-quality safety rope in accordance with DIN EN 10204

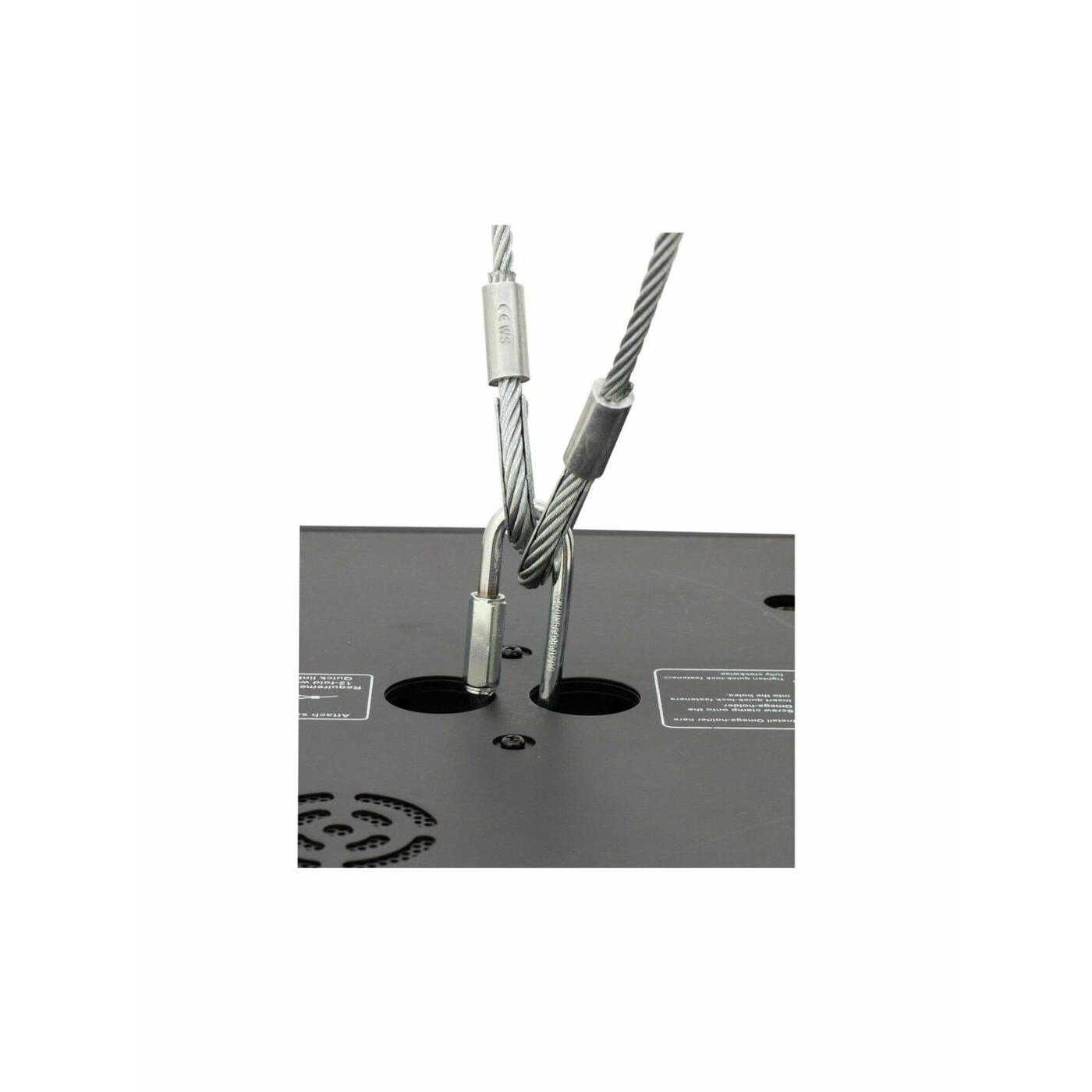

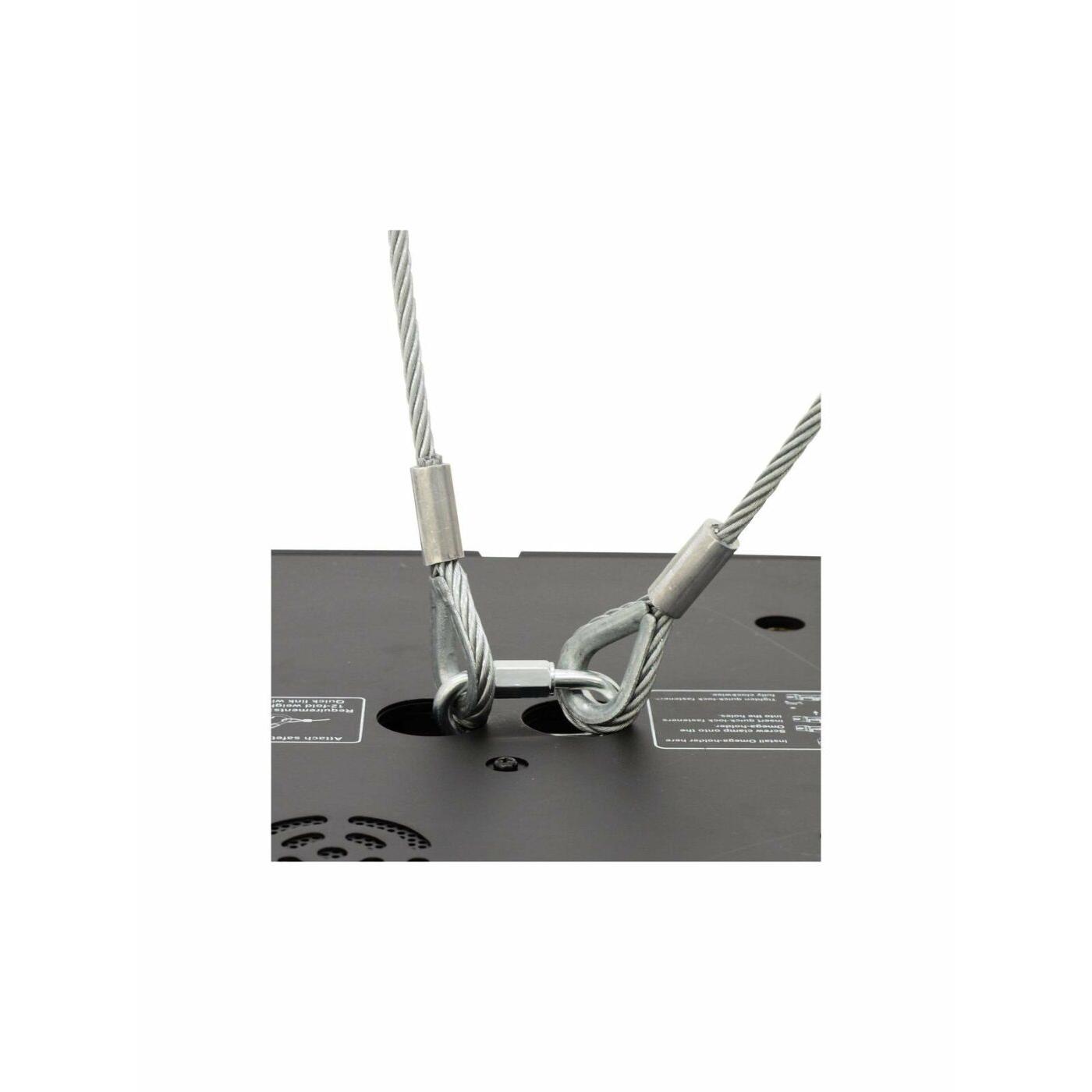

- Suitable for securing loads above persons
- Round strand rope 6 x 19 with fibre core
- With two thimbles
- 4 mm quick link (form A) included

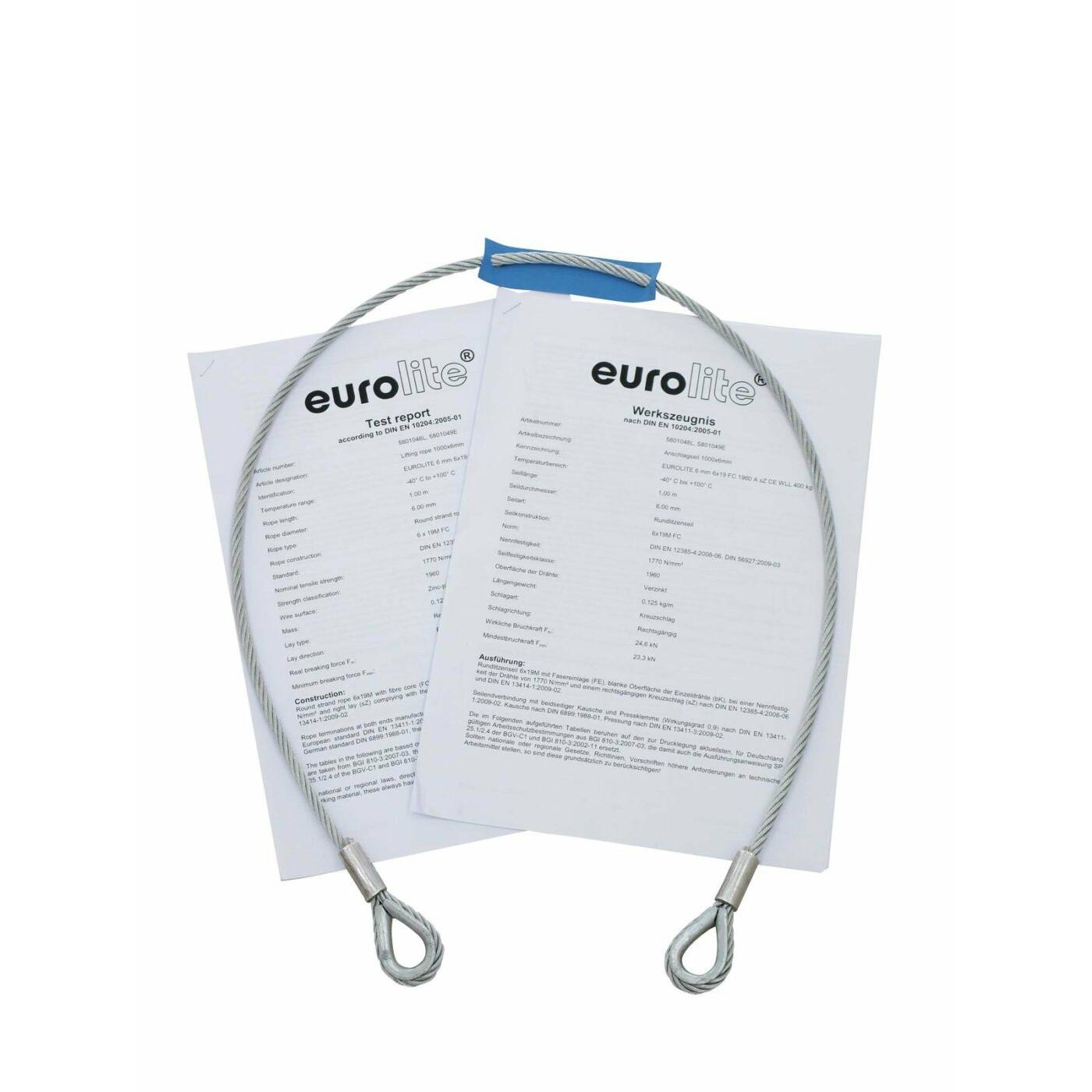

- Test report according to DIN EN 10204 as download
| Maximum load: | 5 kg |
| Temperature range: | -40° C to +100° C |
| Rope length: | 0.60 m |
| Rope diameter: | 3.00 mm |
| Rope type: | Round strand rope |
| Rope construction: | 6 x 19 FC |
| Standard: | DIN EN 12385-4:2008-06, DIN 56927:2009-03 |
| Nominal tensile strength: | 1770 N/mm² |
| Strength classification: | 1770 |
| Wire surface: | Zinc-plated |
| Mass: | 0.0311 kg/m |
Specifications
| Weight | 0,05 kg |
|---|---|
| Dimensions | 0,0050 × 0,6500 × 0,0200 m |
| Color | Silver |
| Loop (rope) | Rope with thimble + connector |
| Diameter mm | 3 |
| Maximum load WLL (5-fold) kg | 100 |
| Temperature range | -40 °C – +100 °C |
| Standard | DIN EN 12385-4:2008-06, DIN 56927:2009-03 |
| Secured weight (BGV C1) kg | max. 5 |
| Design of the core | 6 x 19 FC |
| Strength classification | 1770 |
| Wire surface | Zinc-plated |
| Lengthweigth kg/m | 0.0311 |
| Length cm | 60 |
