Sale!

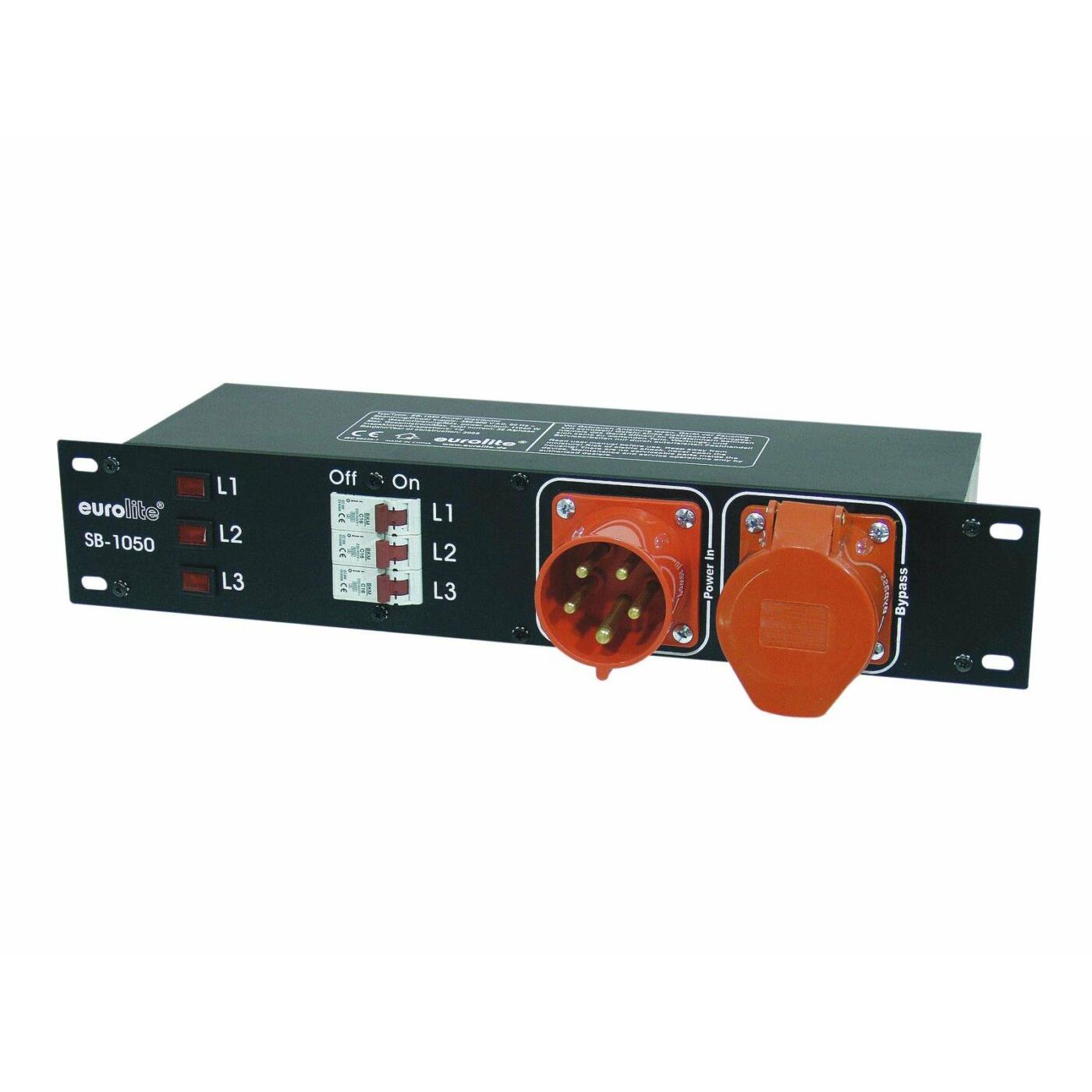

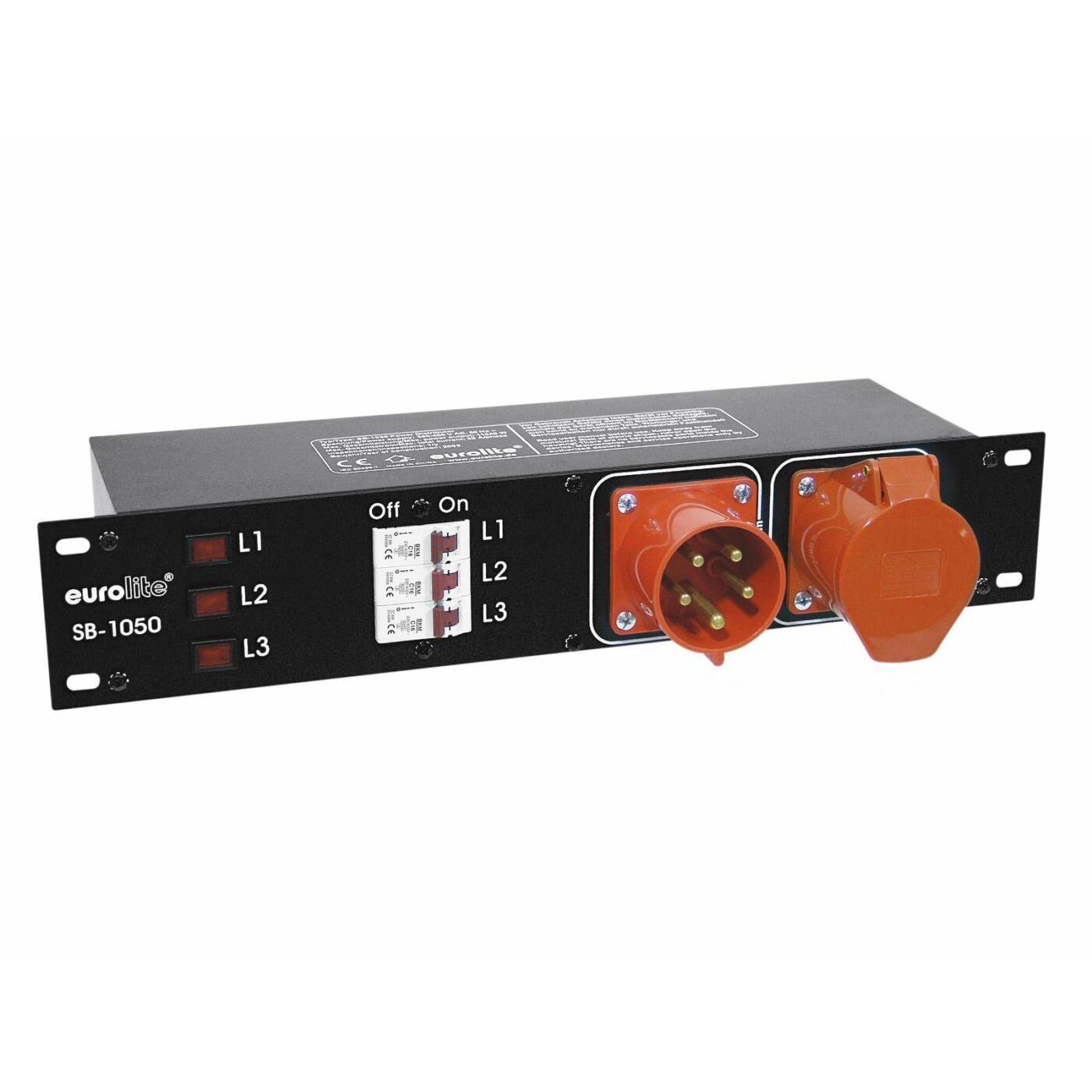

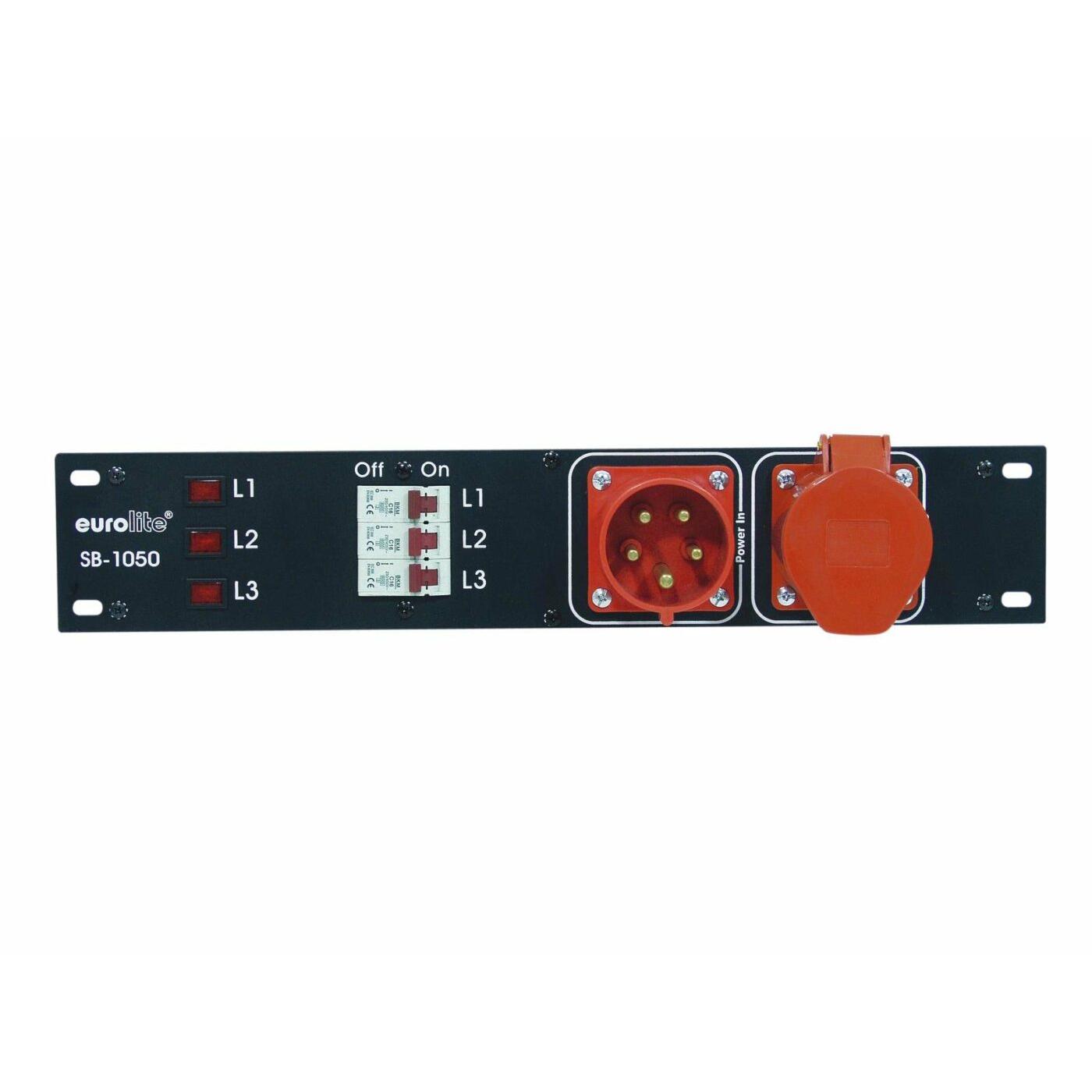

EUROLITE SB-1050 Power Distributor
Original price was: €236,81.€163,57Current price is: €163,57.
Op Voorraad - Op werkdagen voor 22:00 besteld volgende dag in huis.
Description
Practical 32A distributor in 483 mm housing (19″)
- Designed for mounting in 483 mm racks (19″)
- 2U necessary for installation
- 32A three phase current input and output via mounted plugs
- Control lamps indicate each phase

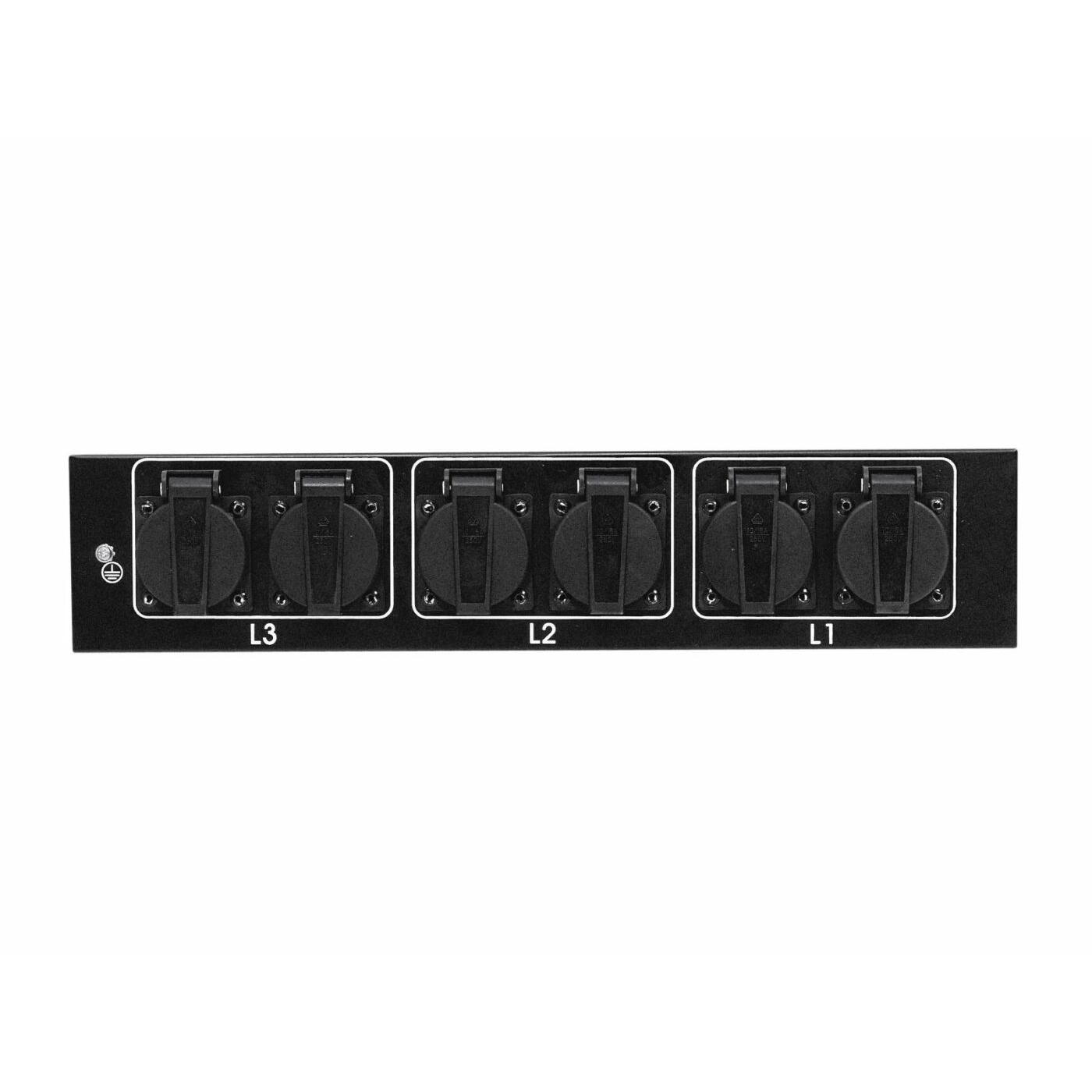

- 6 safety sockets on the housing back (2 per phase)
- Fuse protection via C16A circuit breaker
| Power supply: | 380-400 V AC, 50 Hz |
| Max. power: | 22080 W |
| Max. power/phase: | 7360 W |
| Max. current/phase: | 32 A |
| Fuse: 3 x C16A 1 ph circuit breakers | |
| Height: | 2 U |
| Dimensions (W x D x H): | 485 x 215 x 90 mm |
| Weight: | 3 kg |
Specifications
| Weight | 3,06 kg |
|---|---|
| Dimensions | 0,1400 × 0,5100 × 0,2400 m |
| Weight kg | 2.9 |
| Output plug (Power) | 6 x Safety connector, 1 x CEE 32A 3-pole (F) |
| Input connector (Power) | 1 x CEE 32A 5-pole (M) |
r.reijnders53 (verified owner) –
Het apparaat is stevig en veilig uitgevoerd, doet wat het moet doen. Bij inbouw in 19 inch flightcase rekening houden met plaatsing van de unit i.v.m. de klep van 32A stekker.
