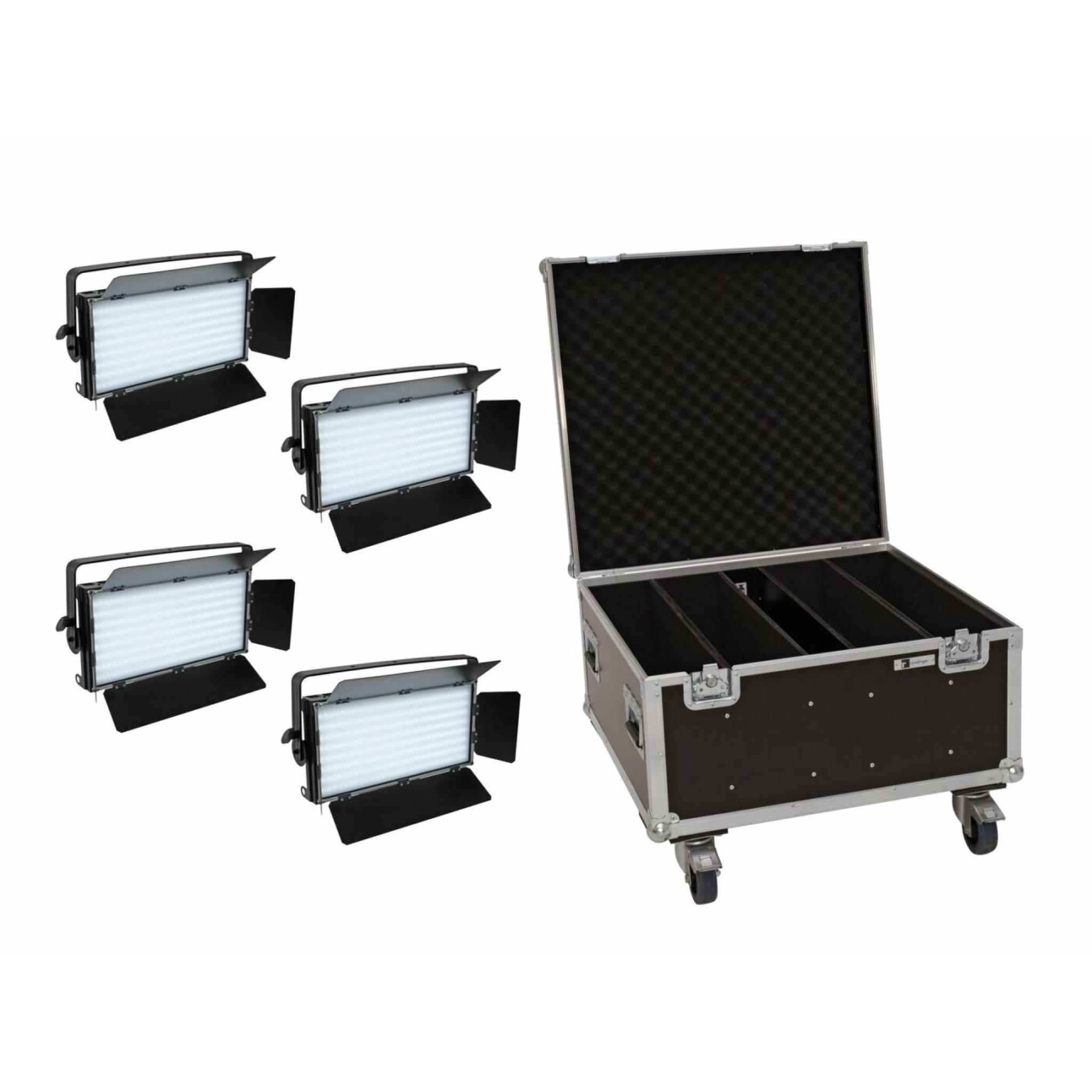

EUROLITE Set 4x LED PLL-480 QCL Panel + Case
Original price was: €3.866,31.€2.841,34Current price is: €2.841,34.
Description
EUROLITE LED PLL-480 QCL Panel
DMX-controlled surface light with 480 4in1 RGBW LEDs
- High-grade surface light with 480 super bright LEDs
- Ideal for photography, film, stage and trade fair lighting
- Energy-saving, durable and environmentally friendly
- Milky diffuser provides a homogeneous and soft continuous light
- 4 barn doors to avoid blinding the audience and for protection during transport
- Stepless color blend, color change, color fade, dimmer and strobe effect
- Variable PWM frequency (pulse-width modulation)
- Master/slave function for synchronous operation of multiple devices
- Control panel with LC display for easy configuration
- Slim, rugged metal housing
- Swivel mounting bracket
- Comfortable carrying handle
- Stand or truss installation
- Mains input and output for power linking up to 8 units
- LED: 480 x SMD 5050 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 6; 4 CH mode
- The device is cooled by passive convection
- Controlling by DMX; stand-alone; Master/slave function
- Preprogrammed in Light´J; Light Captain
- Flicker-free projection
ROADINGER Flightcase 4x LED PLL-480
- 7 mm, dark brown, laminated
- With castors
| Weight: | 72,20 kg |
| EUROLITE LED PLL-480 QCL Panel | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 204 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 480 x SMD 5050 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 6; 4 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | DMX; Light´J; stand-alone; Master/slave function; Light Captain |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Illuminance in Lux (lx): | Red (R) 1m: 438 lx, 3m: 61 lx, 6m: 18 lx Green (G) 1m: 633 lx, 3m: 88 lx, 6m: 25 lx Blue (B) 1m: 209 lx, 3m: 29 lx, 6m: 8 lx Cold white (CW) 1m: 2130 lx, 3m: 296 lx, 6m: 87 lx All 1m: 2696 lx, 3m: 380 lx, 6m: 112 lx |
| Lamp life: | 50000 h |
| Luminous flux: | 17103 lm |
| Housing color: | Black |
| Display type: | LCD display |
| Dimensions: | Width: 64 cm Depth: 13 cm Height: 33,5 cm |
| Weight: | 12,60 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Energy efficiency class (A – G): | F |
| ROADINGER Flightcase 4x LED PLL-480 | |
| Maximum load: | 100 kg |
| Transport aid: | Castors |
| Color: | Dark brown, laminated |
| Inside dimensions: | 70 cm x 66 cm x 35 cm |
| Accessory compartment: | 8 cm x 66 cm x 35 cm |
| Device compartment: | 14 cm x 65,5 cm x 35 cm |
| Material thickness: | 7 mm |
| Dimensions: | Length: 74 cm Width: 71 cm Height: 52,5 cm |
| Weight: | 21,80 kg |
