Sale!

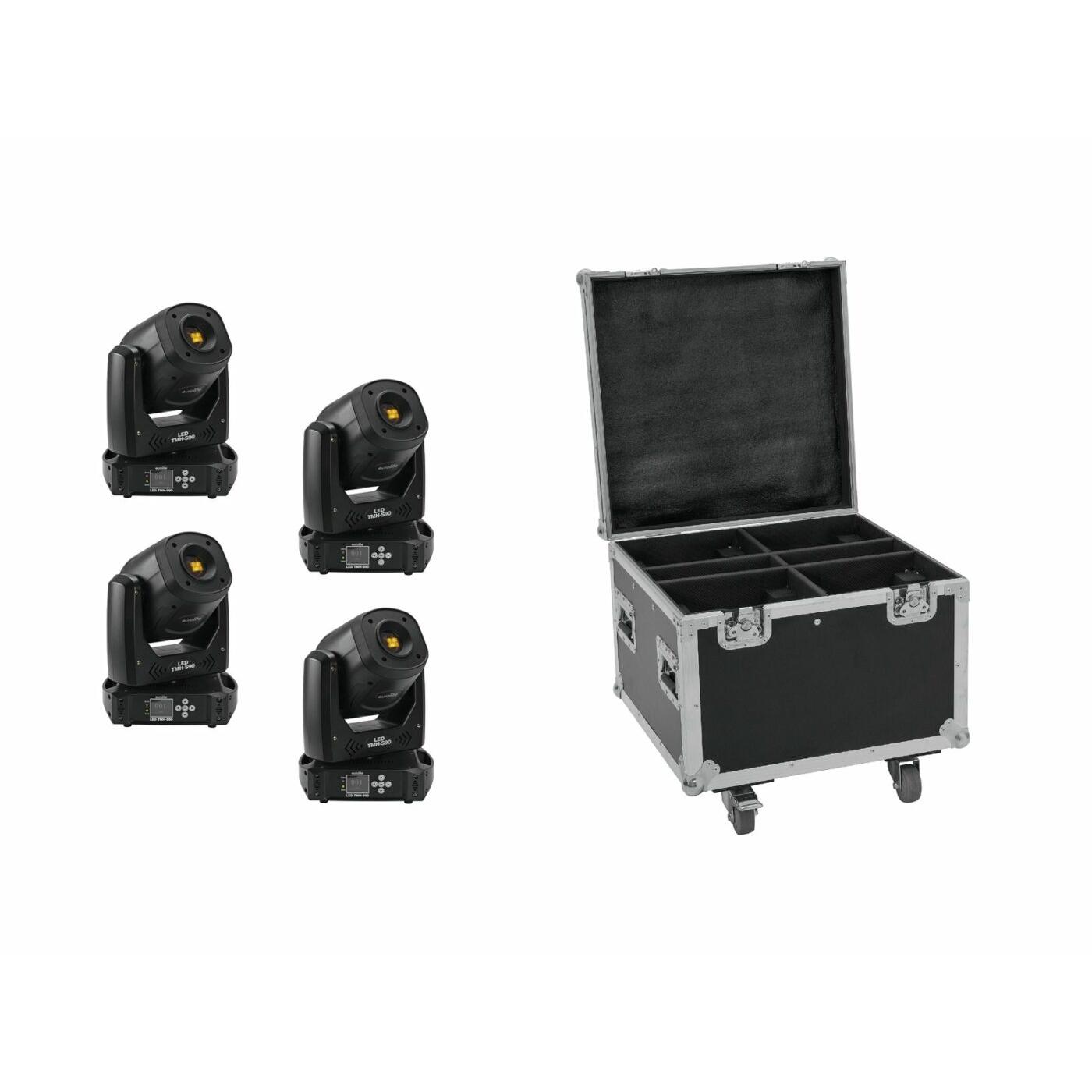

EUROLITE Set 4x LED TMH-S90 + Case
Original price was: €2.854,81.€2.119,98Current price is: €2.119,98.
Description
51786075 EUROLITE LED TMH-S90 Moving-Head Spot
LED moving head spot with color wheel, static and rotating gobo wheel, prism and focus
- Equipped with a cold white 90 W COB LED
- Positioning within 540° PAN and 200° TILT
- Exact positioning via 16 bit PAN/TILT movement resolution
- Auto, music, master/slave and DMX mode
- Sound-control via built-in microphone
- Rotating 3-facet prism
- The prism rotates at different speeds
- Strobe effect with 2-30 flashes per second
- Internal programs
- Dimmer
- Motorized focus
- Automatic position correction
- Supports QuickDMX – the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT-Reverse, Program, Reset
- Switch-mode power supply for operation between 100 and 240 volts
- Additional rubber feet protect the device when positioned on the floor
- LED: 1 x COB (chip-on-board) 90 W CW
- Color wheel 1 x 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 6 gobos,1 multi color gobo and open
shake effect - Gobo wheel with rotating gobos, 6 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for exchanging gobos without tools
- Can be operated in 15 CH mode
- The device is cooled by cooling fan
- Controling by DMX; Sound to light via Microphone; Stand-alone; QuickDMX via USB (optional); Master/slave function
- Flicker-free projection
31001078 ROADINGER Flightcase 4x TMH-S90
Flightcase for 4 x EUROLITE LED TMH-S90 Moving-Head Spot
- Developed for 51786075 EUROLITE LED TMH-S90 Moving-Head Spot or comparable Moving Heads
- Suitable for 4 units
- Interior and cover (not removable) upholstered with foam
- High-quality workmanship with multiplex birch wood, dark brown laminated
- Aluminum profile frames (30 mm) with rounded edges
- Three-leg, medium-sized steel ball corners (chrome)
- 2 hinges
- 2 high-quality butterfly locks
- 4 high-quality plated case handles
- For perfect protection
- Transport aid: With wheels
| Weight: | 47.50 kg |
| 51786075 EUROLITE LED TMH-S90 Moving-Head Spot | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 140 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug |
| Fuse: | 5 x 20 mm, T 2 A |
| LED: | 1 x COB (chip-on-board) 90 W CW |
| Max. TILT movement: | Exact positioning (16 bit resolution) 200° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: | 2 – 30 Hz |
| Equipment: | Prism 3-fold; gobo wheel with rotating gobos rotating; gobo wheel with static gobos; Focus motor-driven; color wheel |
| Color generation: | Color wheel 1 x 7 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 6 gobos,1 multi color gobo and open Shake effect Gobo wheel with rotating gobos, 6 gobos and open Outside diameter 21.8mm Image diameter 16mm Shake effect Gobos changeable Slot-in gobo system for exchanging gobos without tools |
| DMX channels: | 15 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX Sound to light via Microphone Stand-alone QuickDMX via USB (optional) Master/slave function |
| Beam angle: | 12° |
| Beam angle (1/2 peak): | 12° |
| Illuminance in Lux (lx): | CW 1m: 52772 lx, 3m: 6198 lx, 6m: 1543 lx |
| Housing color: | Black |
| Width: | 25.0 cm |
| Height: | 35.0 cm |
| Depth: | 20.5 cm |
| Weight: | 6.20 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
| 31001078 ROADINGER Flightcase 4x TMH-S90 | |
| Maximum load: | 100 kg |
| Material: | Glued plywood, 7 mm |
| Color: | Black, laminated |
| Additional dimensions: | Compartment dimensions: 26 cm x 20 cm x 33 cm |
| Width: | 59 cm |
| Height: | 58 cm |
| Depth: | 53 cm |
| Weight: | 19.00 kg |
