Description

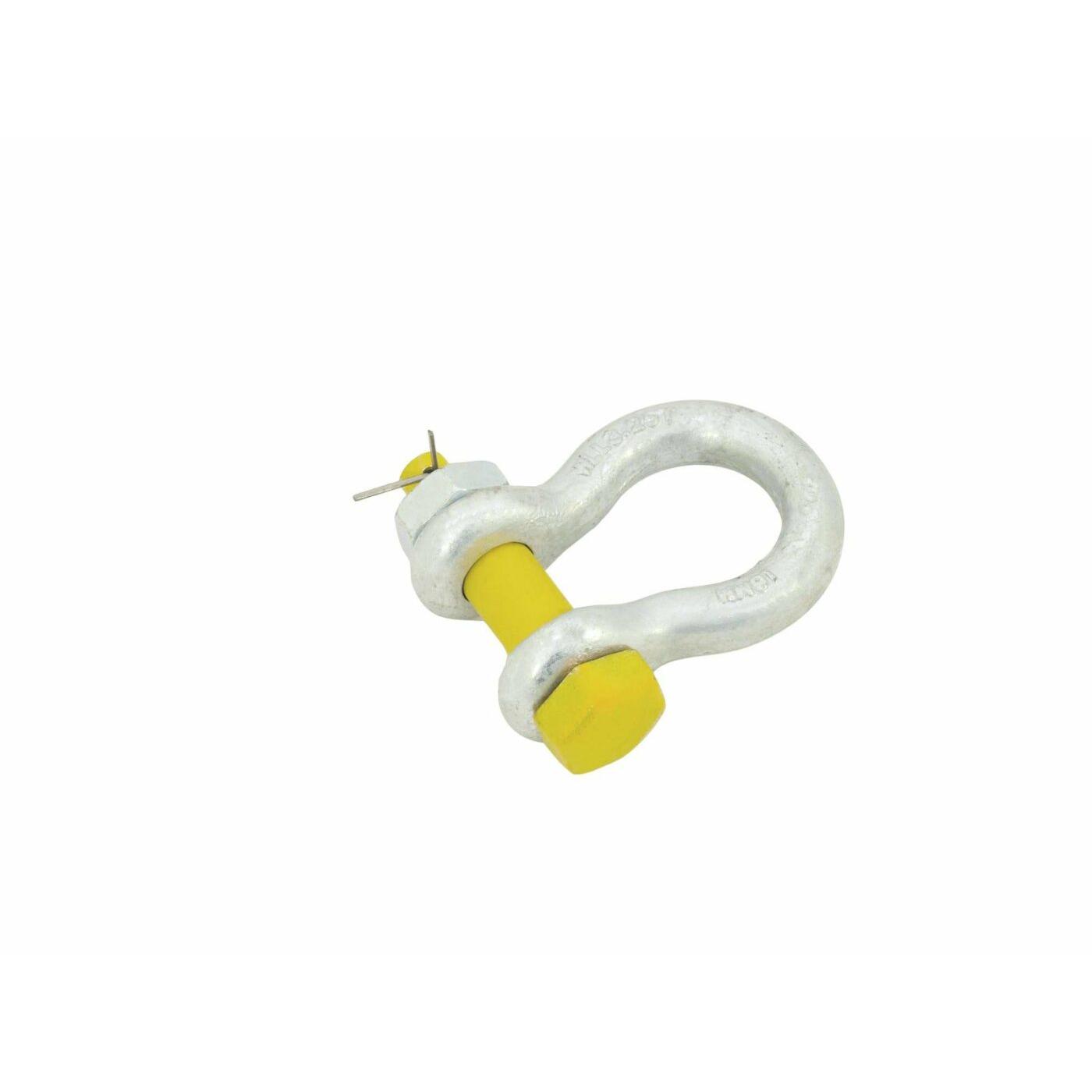

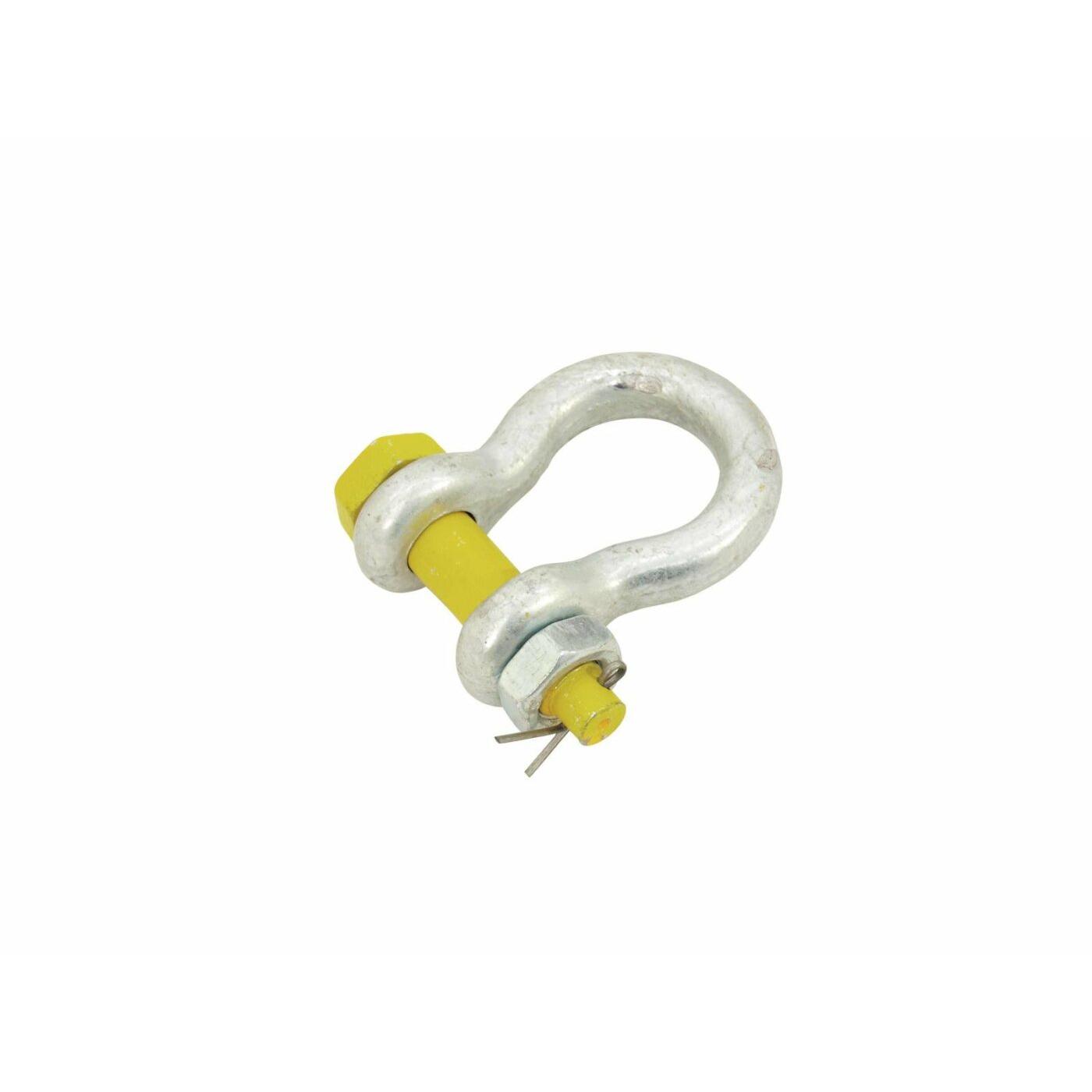

Bow shackle, maximum load WLL 3250 kg
- Complies with DIN EN 13889:2009-02
- Nominal size: 16 mm
- Yellow 19 mm screw bolt (X-type) with hexagon head, hexagon nut and safety pin
| Maximum load WLL (5-fold): | 3.25 t |
| Maximum load BGV C1 (10-fold): | 1.6 t |
| Identification: | 5/8 WLL 3¼ t |
| Temperature range: | -20° C to +200° C |
| Diameter: | 16 mm |
| Standard: | DIN EN 13889:2009-02 |
| Dimensions: | 107 x 95 x 38 mm |
| Weight: | 0.68 kg |
Specifications
| Weight | 0,65 kg |
|---|---|
| Dimensions | 0,0400 × 0,1050 × 0,0900 m |
| Color | Silver |
| Weight kg | 0.680 |
| Length mm | 107 |
| Width mm | 95 |
| Height mm | 38 |
| Diameter mm | 16 |
| Maximum load WLL (5-fold) kg | 3250 |
| Temperature range | -20 °C – +200 °C |
| Standard | DIN EN 13889:2009-02, |
