EUROLITE Steel Rope (SC) 900x3mm black

Description

50301648 EUROLITE Quick Link Type A-200

EUROLITE quick linksThe EUROLITE quick links comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The quick links are constructed in accordance with the German standard DIN 56927:2009-03.The quick links are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.Clearly, every user can secure loads above persons with these quick links in all areas where the BGV C1 is required.

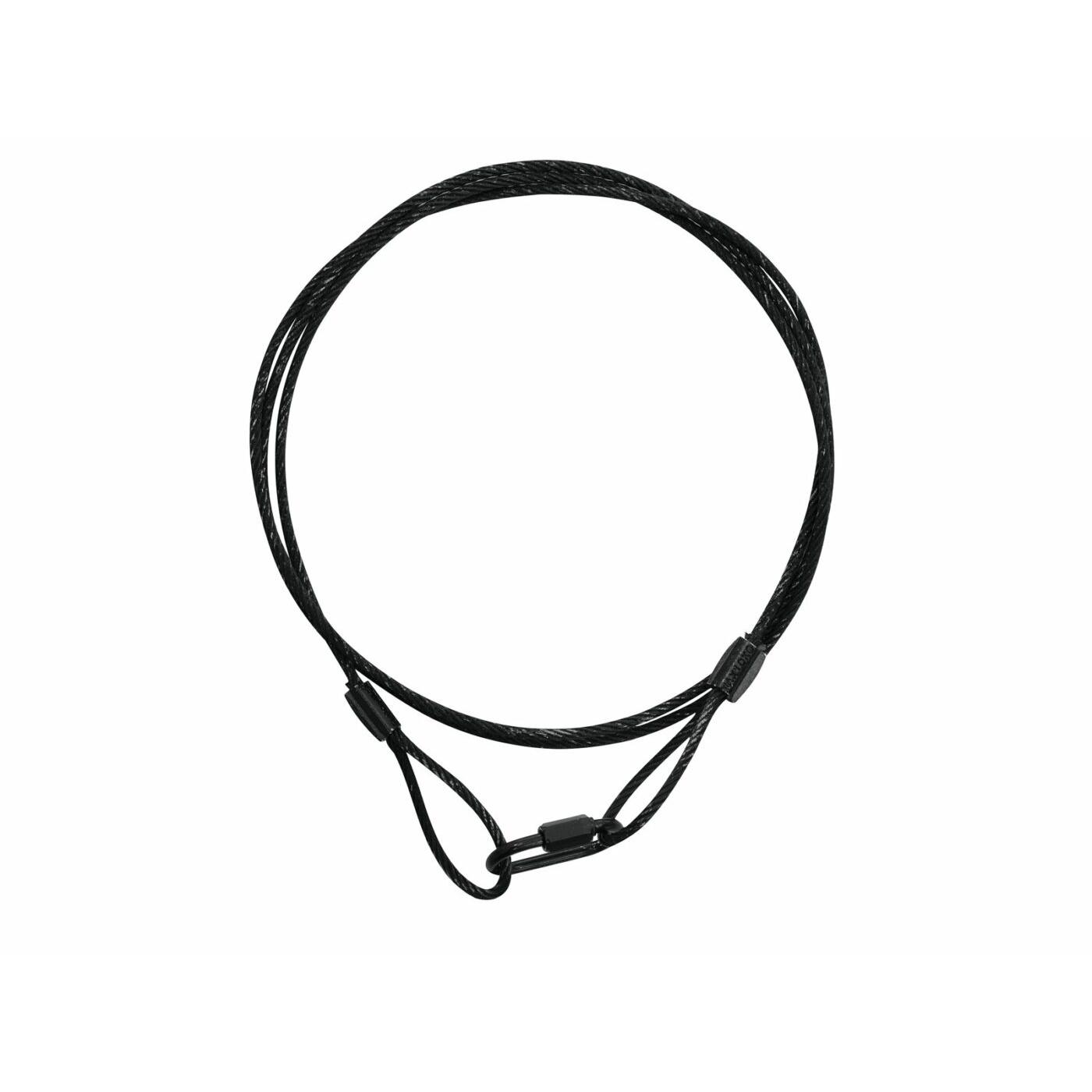

58010423 EUROLITE Steel Rope (SC) 900x3mm black without quick link

Steel rope with loops, grouted without grummet thimbles
• With steel core
• Black
• Stopping rope for general lifting purposes

50301648 EUROLITE Quick Link Type A-200

Official quick link
• Complies with DIN 56927:2009-03
• Nominal size: 6 mm
• Form A (short)
• Galvanized
• Identification number: 200
• Stamp: DIN 56926 A 200
• Test report according to DIN EN 10204 as download

58010423 EUROLITE Steel Rope (SC) 900x3mm black without quick link

Length:   900 mm
Diameter:   3 mm
Rope design:   6×19
Design of the core:   WSC
Rope grade:   1770
Surface finish of wires:   A
Type of lay and direction of lay:   sZ
Maximum load WLL (5-fold):   100 kg
Safety factor:   5
Temperature range:   -40°C to +150°C

50301648 EUROLITE Quick Link Type A-200

Maximum load WLL (5-fold):   400 kg
Maximum load BGV C1 (10-fold):   200 kg
Identification:   DIN 56926-A-200
Temperature range:   -40° C to +100° C
Diameter:   6 mm
Form:   A – small
Standard:   DIN 56927:2009-03
Spanner opening:   7.5 mm
Dimensions:   58 x 27 mm
Weight:   30 g
