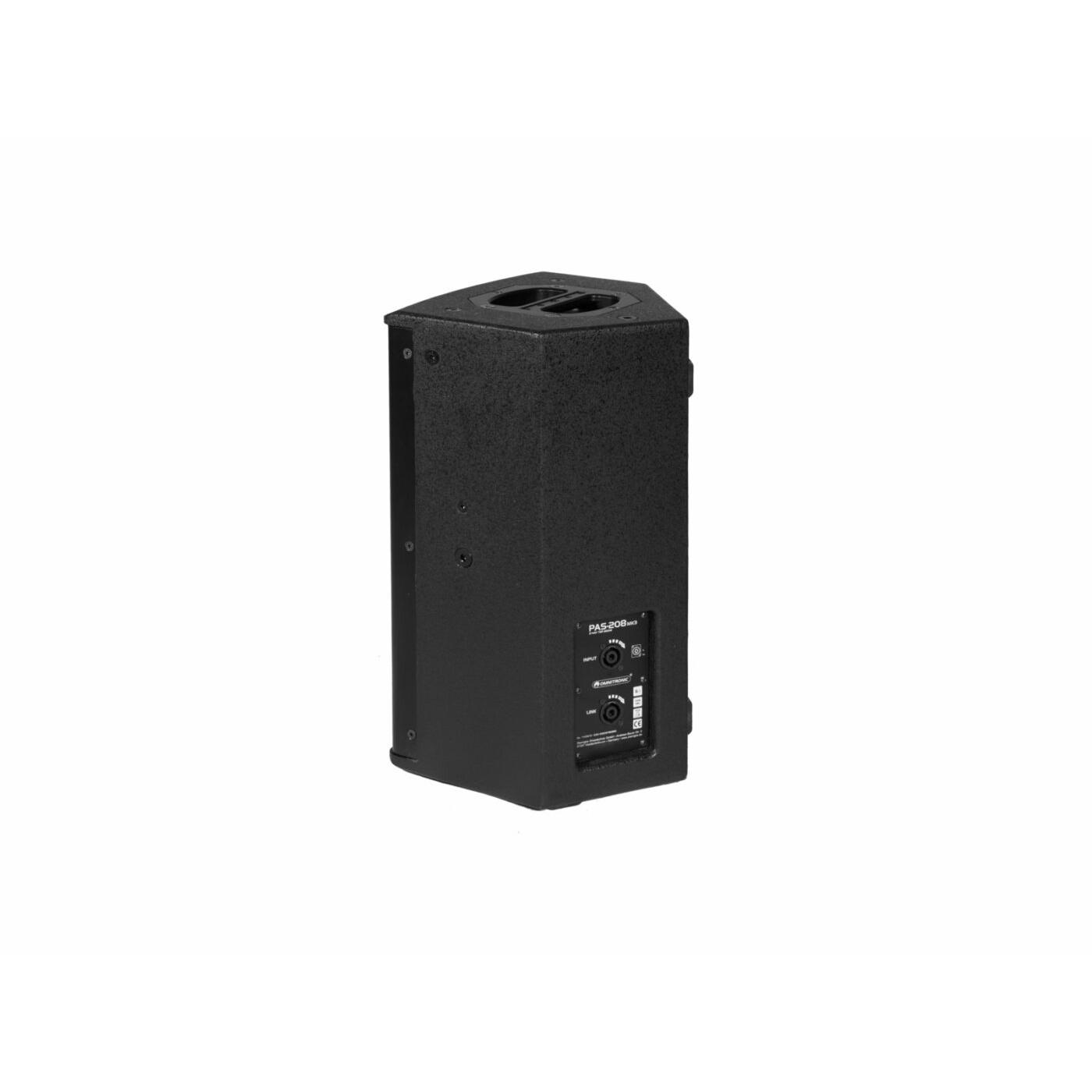

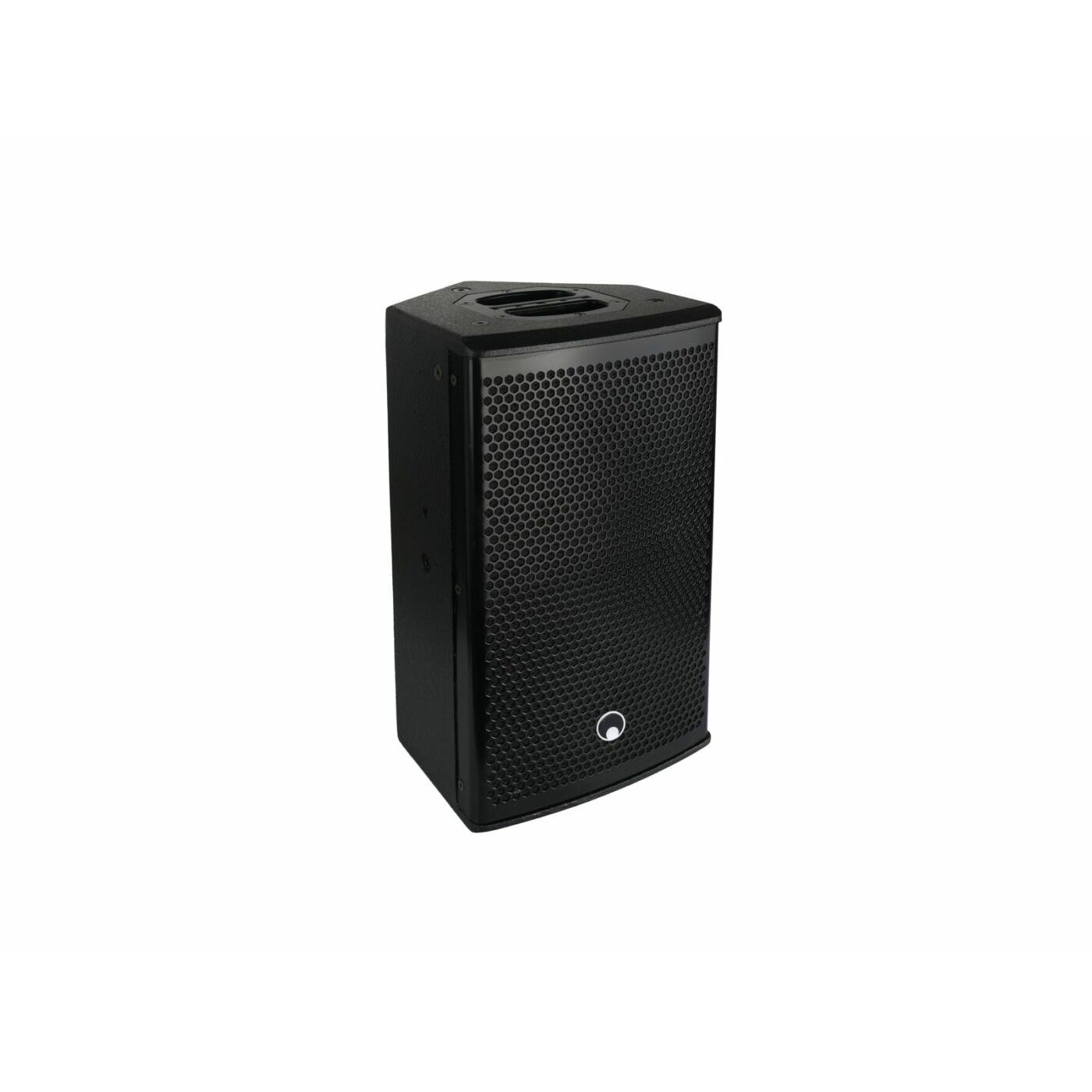

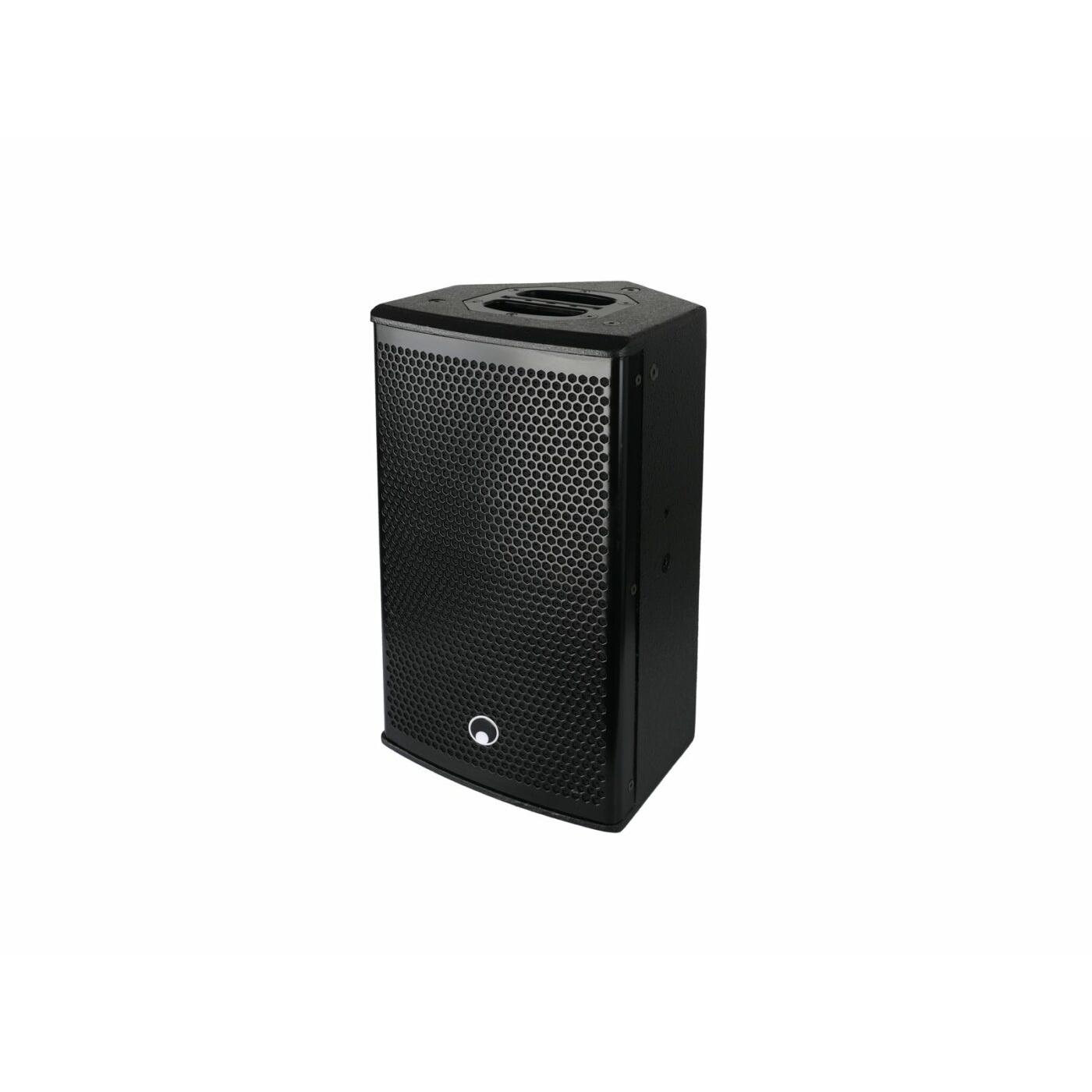

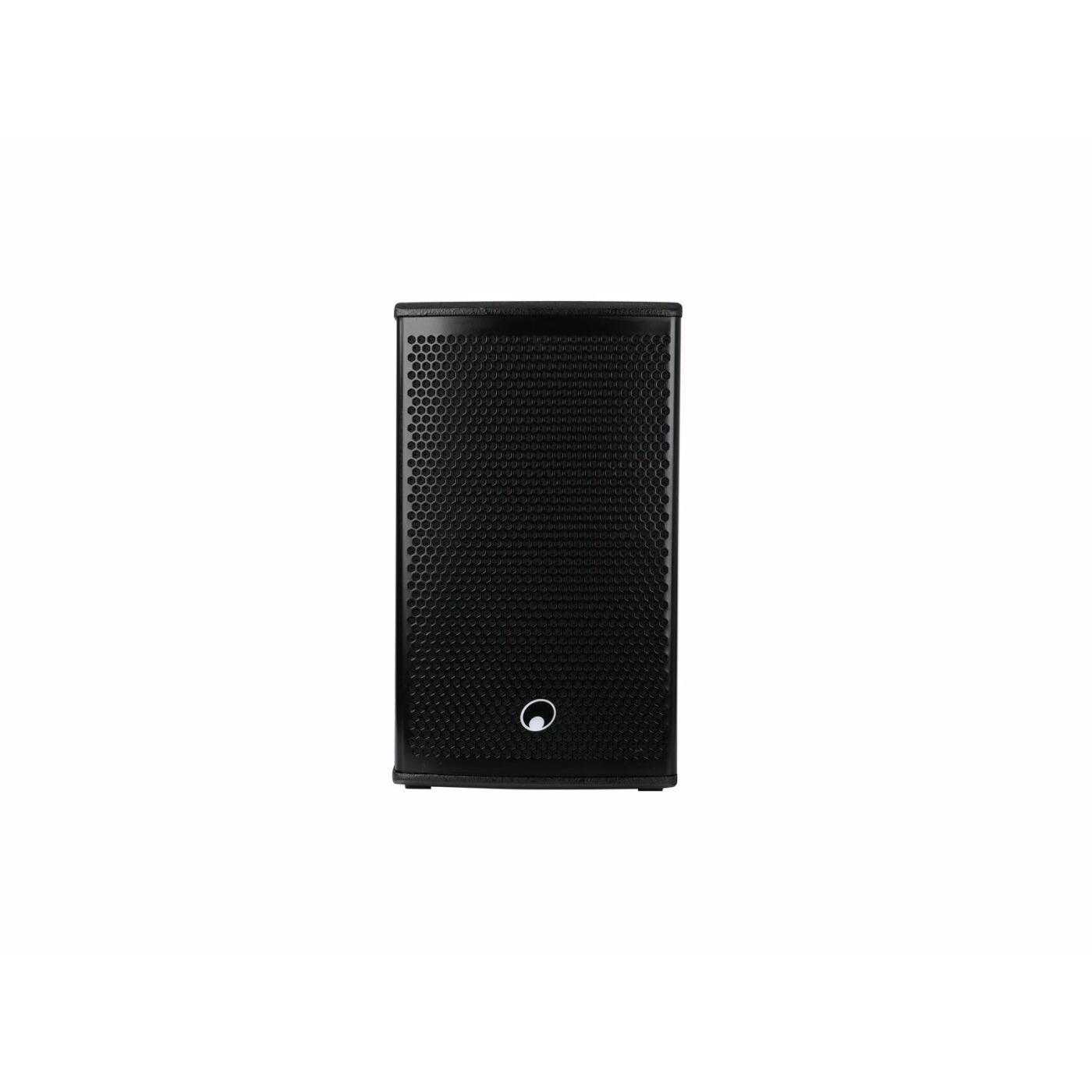

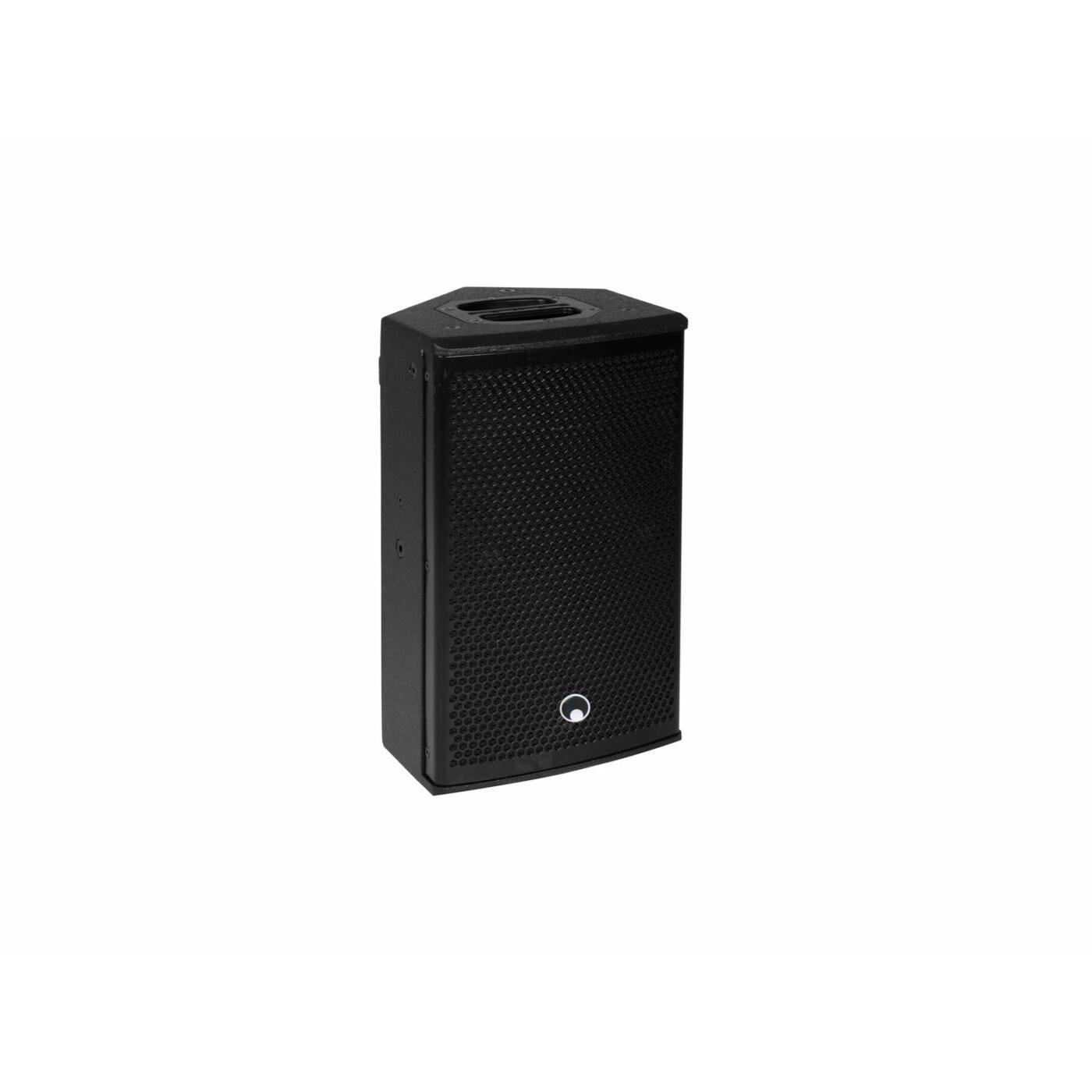

Omnitronic PAS-208 MK3 2-Way Top
Original price was: €260,61.€192,43Current price is: €192,43.
Uitverkocht - Neem contact met ons op voor meer informatie.
Description
Passive speaker with 8″ woofer, 1″ driver and 200 W RMS
- Rugged full-range top speaker, qualified for suspension
- Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
- 2-way bass-reflex system with 20 cm woofer and 2.5 cm compression driver
- Parallel Speaker connections
- Optimized for combination with PAS subwoofers
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- M8 threaded inserts for suspended installation
- Protective grille and recessed handlebars
- Applications: standing, on a subwoofer or speaker stand, suspended
| Rated power: | 200 W RMS |
| Program power: | 400 W |
| Frequency range: | 75 – 20000 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Max. SPL: | 121 dB |
| Dispersion angle: | 90° x 60° |
| Crossover frequency: | 3500 Hz |
| Impedance: | 8 Ohm |
| Color: | Black painted |
| Attachment: | Flange system Ø 35mm variable tilt |
| Connections: | Input: 2 x Speakers via Speaker built-in socket (f) |
| Speakers: | 1 x Tweeter highs (1″) approx 2,5 cm with Ferritmagnet |
| Voice coil tweeter (1.5″) approx 4 cm | |
| Horn vent (1″) approx 2,5 cm | |
| 1 x woofer (8″) approx 20 cm with Ferritmagnet basket material Aluminum |
|
| Voice coil lows (2″) approx. 5 cm | |
| Material: | Birch multiplex |
| Flying points: | 5 x M8; 4 x M10 |
| Width: | 27 cm |
| Height: | 26,8 cm |
| Depth: | 46 cm |
| Weight: | 11,30 kg |
Specifications
| Weight | 12,15 kg |
|---|---|
| Dimensions | 0,5300 × 0,3200 × 0,3300 m |
| EAN | 4026397660890 |
