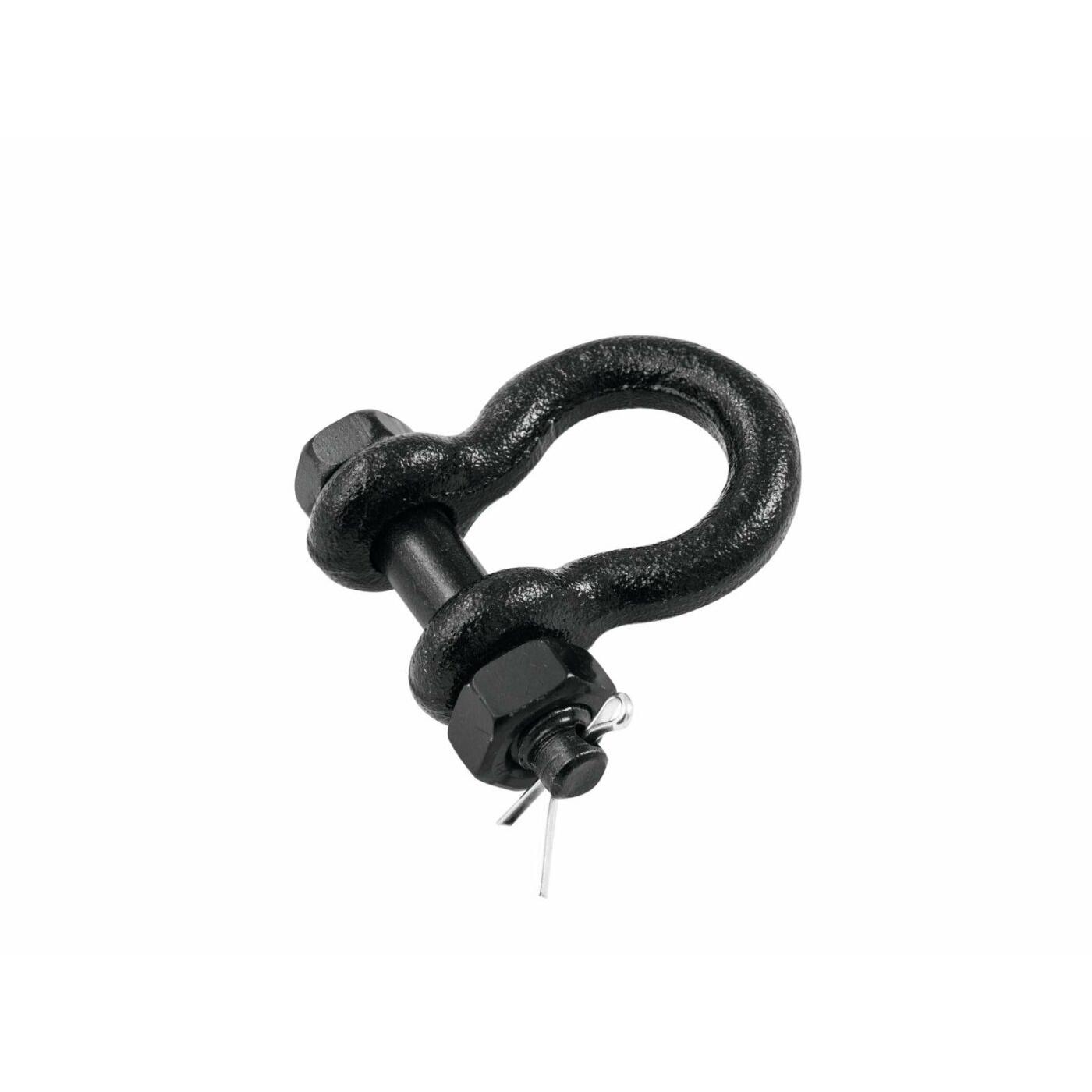

SAFETEX Shackle 10mm bk with Bolt, Mother, Splint
€7,03
Description
Bow shackle 10 mm with bolt, nut & pin, maximum load WLL 1 t
- Complies with DIN EN 13889:2009-02
- Nominal size: 10 mm
- Screw bolt with hexagon head, hexagon nut and safety pin
- Colour black
| Maximum load WLL (6-fold): | 1 t |
| Maximum load BGV C1 (12-fold): | 0.5 t |
| Diameter: | 10 mm |
| Standard: | DIN EN 13889:2009-02 |
| Weight: | 0.18 kg |
Specifications
| Weight | 0,167 kg |
|---|---|
| Dimensions | 0,0300 × 0,6000 × 0,6000 m |
| Color | Black |
| Weight kg | 0,18 |
| Diameter mm | 10 |
| Maximum load WLL (5-fold) kg | 1000 |
| Temperature range | -20 °C – +200 °C |
| Standard | DIN EN 13889:2009-02, |
