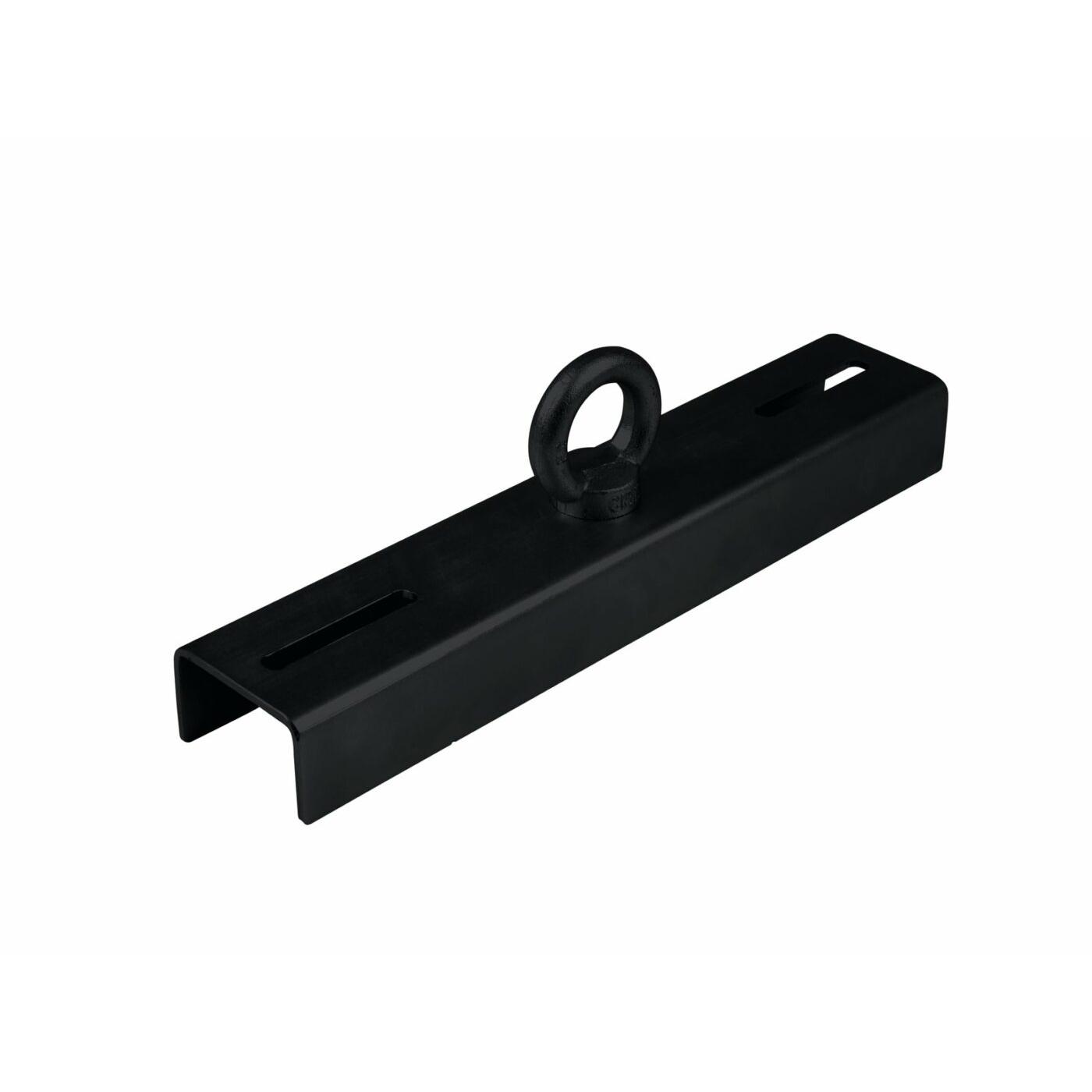

ALUTRUSS GI-1 Truss Adapter black
Original price was: €89,90.€76,95Current price is: €76,95.
Description
Truss mounting
- U-profile for hanging truss from the ceiling
- Designed for trusses from 25 to 40 cm
- Thanks to its adjustable system, just one adapter can be used for different trusses
- M20 ring bolt with washer and self-locking nut
- Without clamps
- Made in Europe
| Maximum load WLL (4-fold): | 500 kg |
| Maximum load BGV C1 (8-fold): | 250 kg |
| Maximum load BGV C1 (10-fold): | 200 kg |
| Maximum load BGV C1 (12-fold): | 150 kg |
| Material strength: | 3.5 mm |
| Hole (LxW): | 80 x 11.5 mm |
| Dimensions (L x W x H): | 400 x 80 x 50 mm |
| Weight (without clamps): | 2.5 kg |
Specifications
| Weight | 2,41 kg |
|---|---|
| Dimensions | 0,1250 × 0,4000 × 0,0800 m |
| Color | Black |
| Trusspipe diameter | 50 mm |
| Type (Truss) | Accessory |
| Type (Truss accessories) | Miscellaneous Trussaccesories |
