ALUTRUSS Truss Transport Board TRIO incl. 3 Wheels

Description

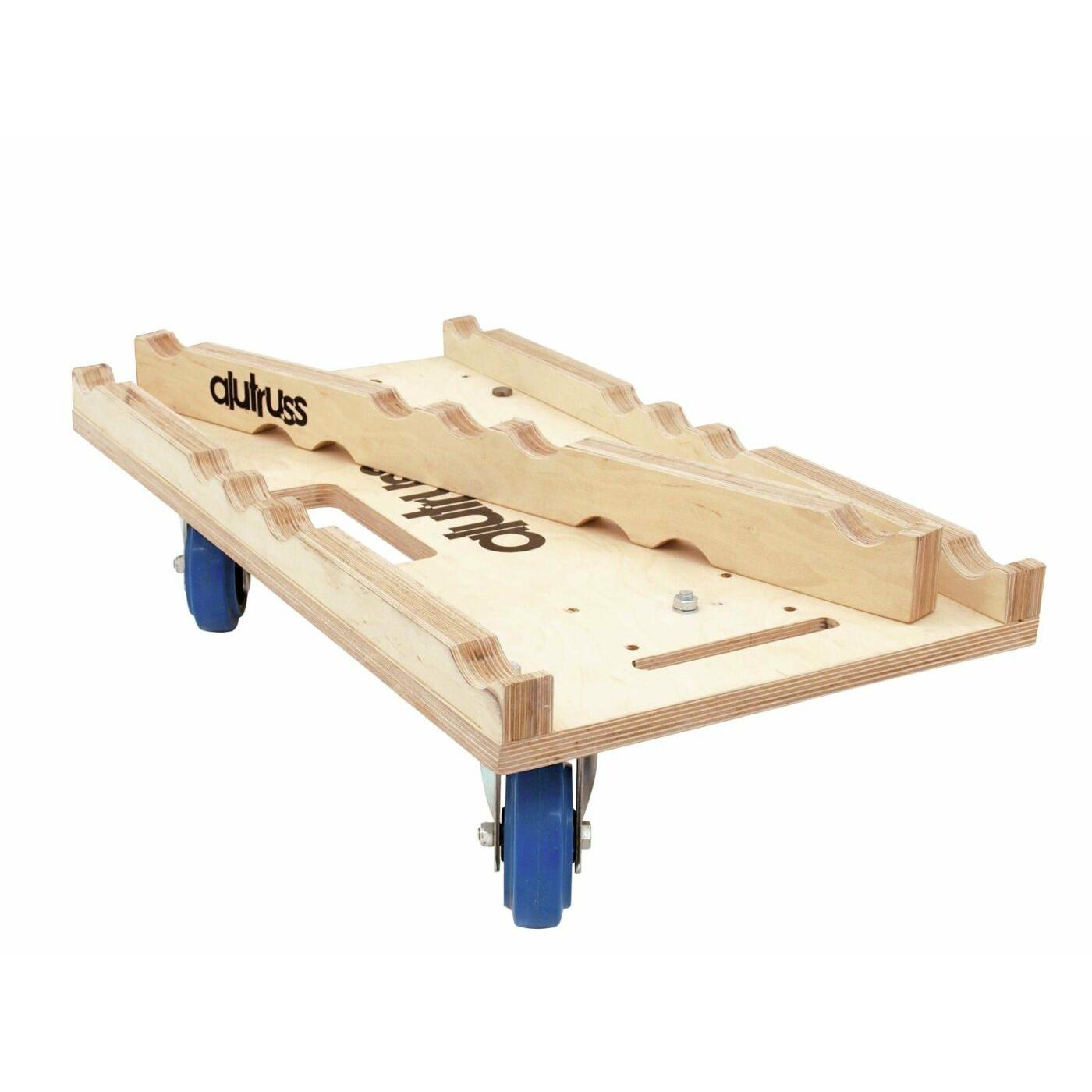

60320308 ALUTRUSS Truss Transport Board TRIO for 3 Wheels

Practical transport cart for TRILOCK truss elements
• Practical transport cart made of multiplex wood
• Suitable for 3 TRILOCK truss elements with 290 mm
• Quick and secure stacking with optional stacking ridges
• Grip hole and cut-outs for safety bands for safe transport of the truss elements
• 12 borings for mounting castors (optional)

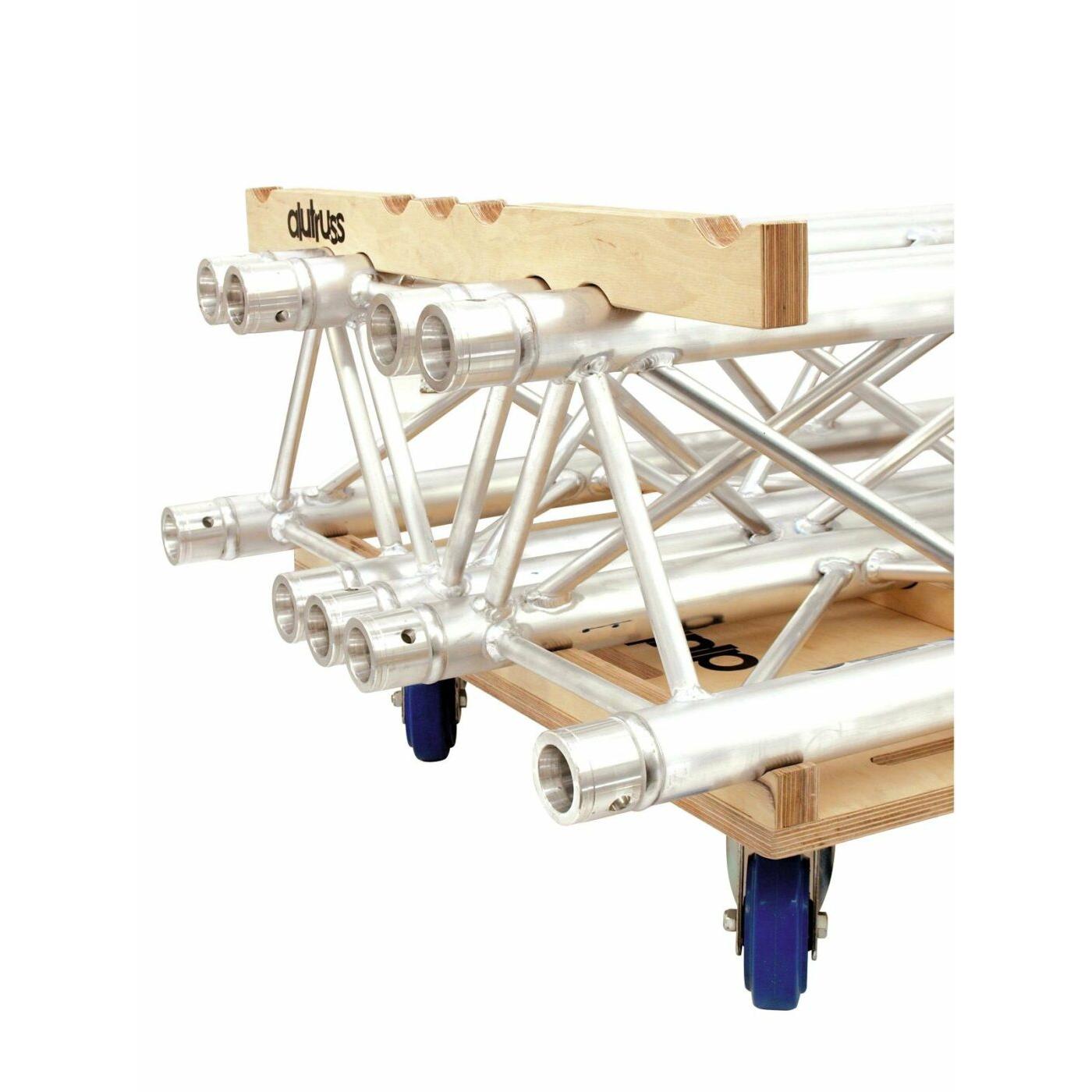

• The combination of 2 transport carts and 10 stacking ridges allows transport of 18 truss elements (recommended maximum load)

• Made in Germany

30004005 ROADINGER Swivel Castor 100mm BLUE WHEEL light blue

100 mm swivel castor
• Double ball race
• Housing made of steel, zinc-plated
• Blue elastic tyre
• Roller race hub bearing
• Replaceable bolt-on wheel
• Height: 128 mm
• Carrying capacity: 450 kg per set (4 castors)

• Made in Germany

30004007 ROADINGER Swivel Castor 100mm BLUE WHEEL with brake

100 mm swivel castor
• Double-action brake (wheel and swivel)
• Double ball race
• Housing made of steel, zinc-plated
• Blue elastic tyre
• Roller-race hub bearing
• Replaceable bolt-on wheel
• Height: 128 mm
• Carrying capacity: 450 kg per set (4 castors)

• Made in Germany

30004056 ROADINGER Bolt Set for Wheels

Complete set (4 x screw, 4 x nut, 4 x washer)
• Screw: hexagon screw M8 x30 DIN933 galvanized
• Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
• Washer: FormA 8,4 DIN125 galvanized

60320308 ALUTRUSS Truss Transport Board TRIO for 3 Wheels

Recommended maximum load:   6 truss elements vertical (height approx. 2.1 m)
Dimensions (L x W x H):   670 x 300 x 41 mm
Weight:   3.2 kg
