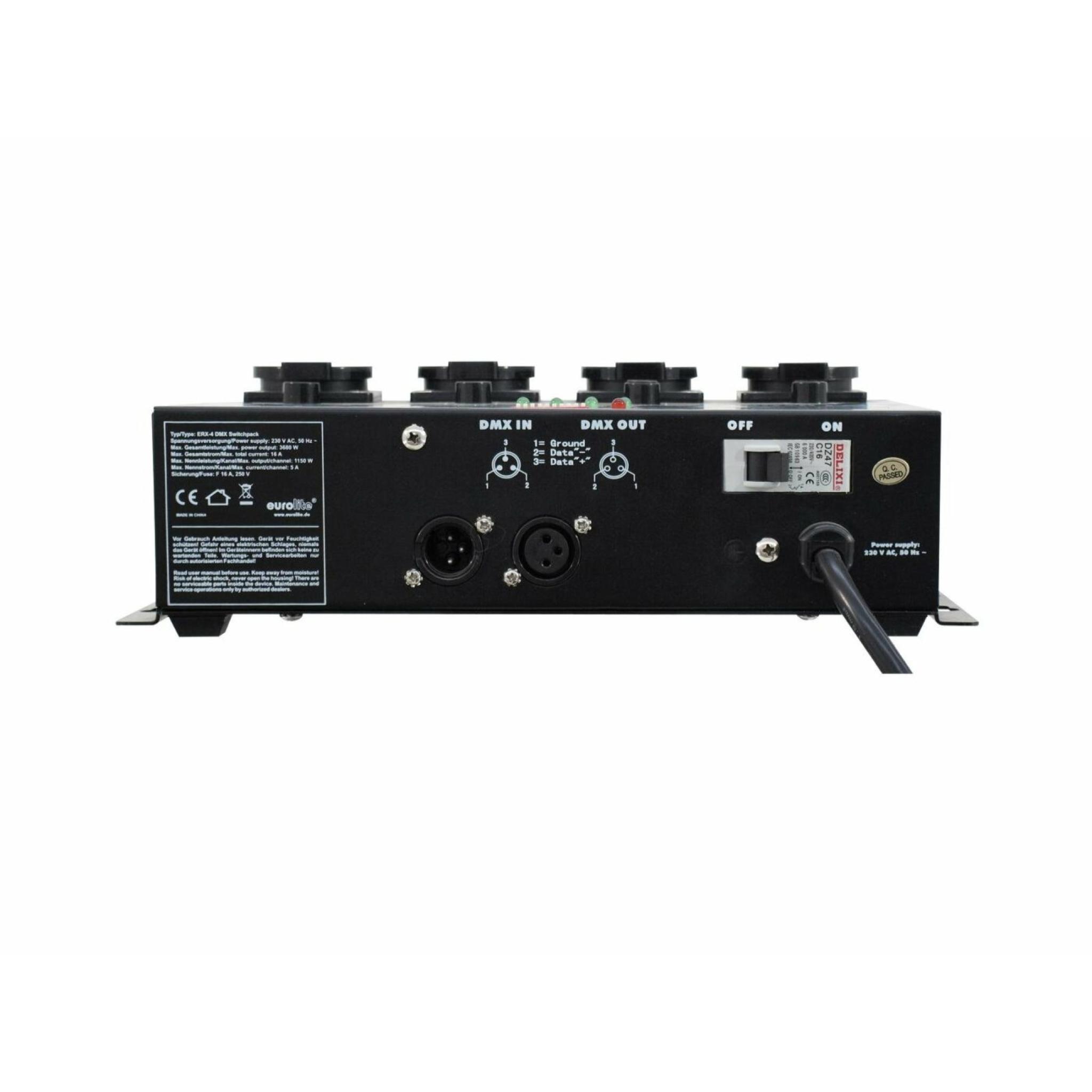

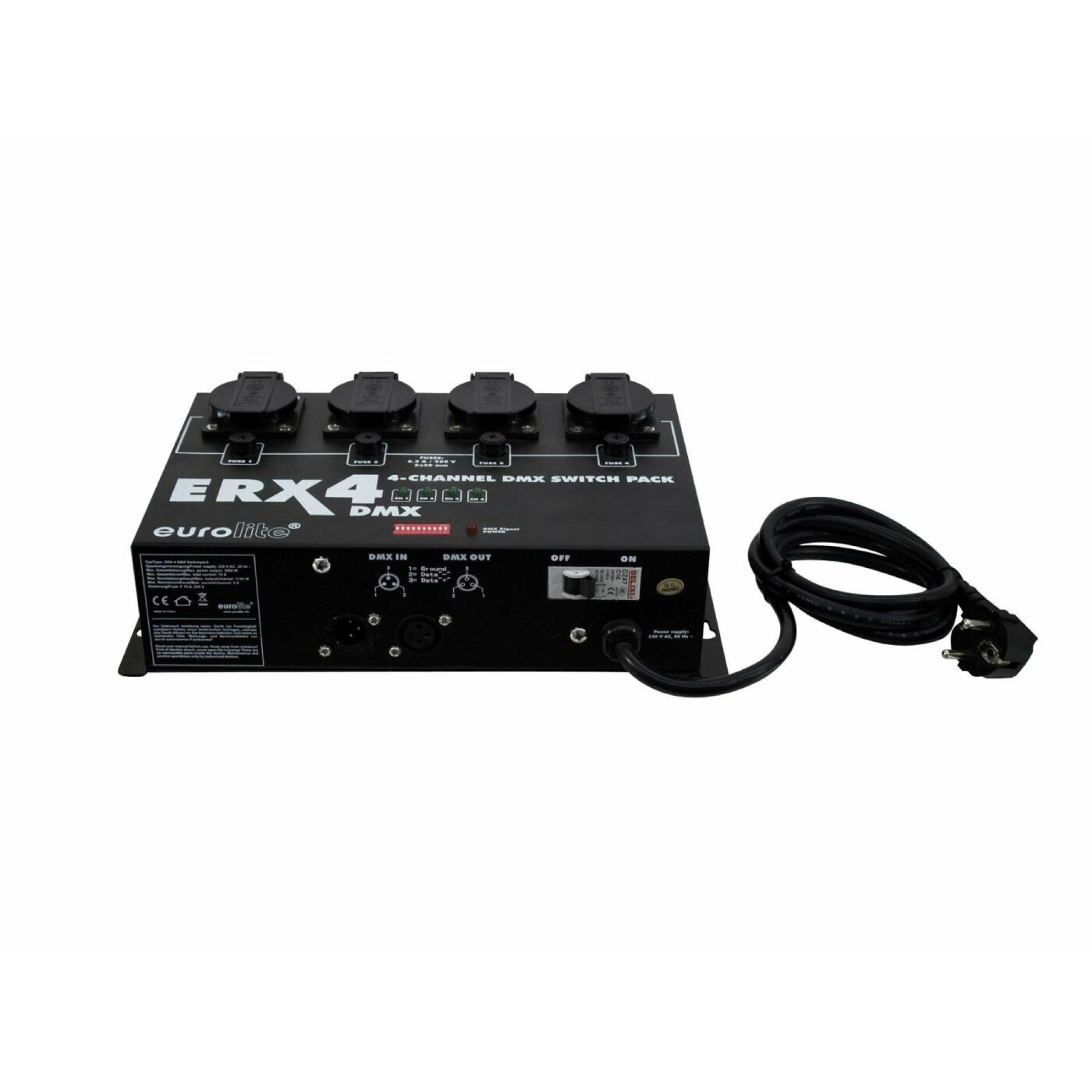

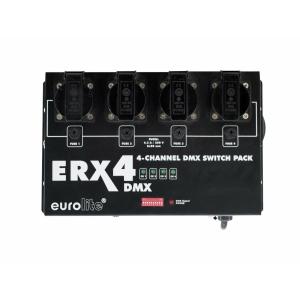

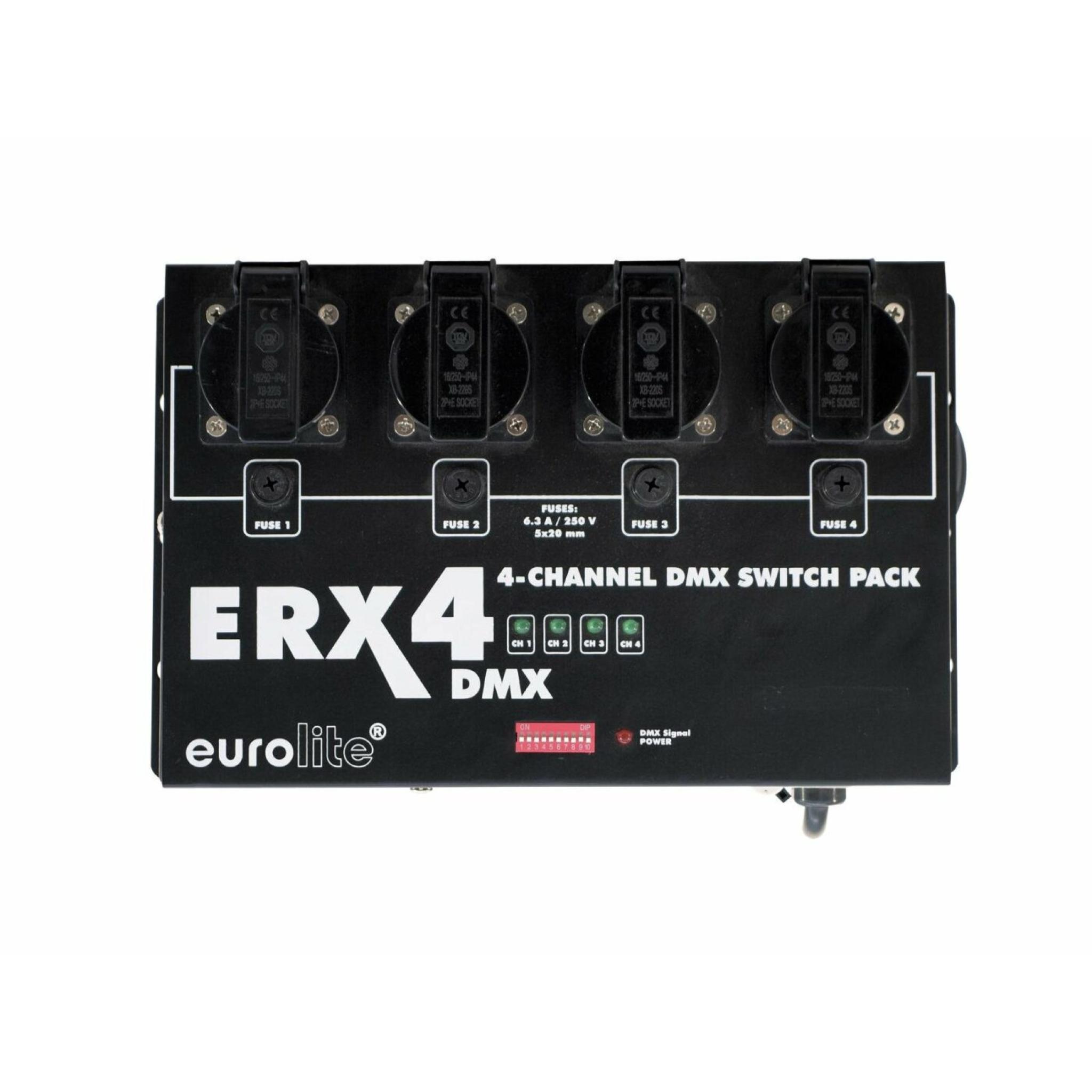

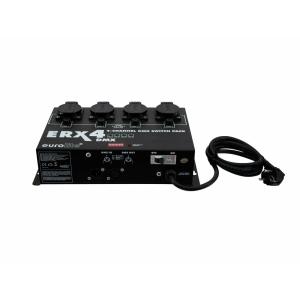

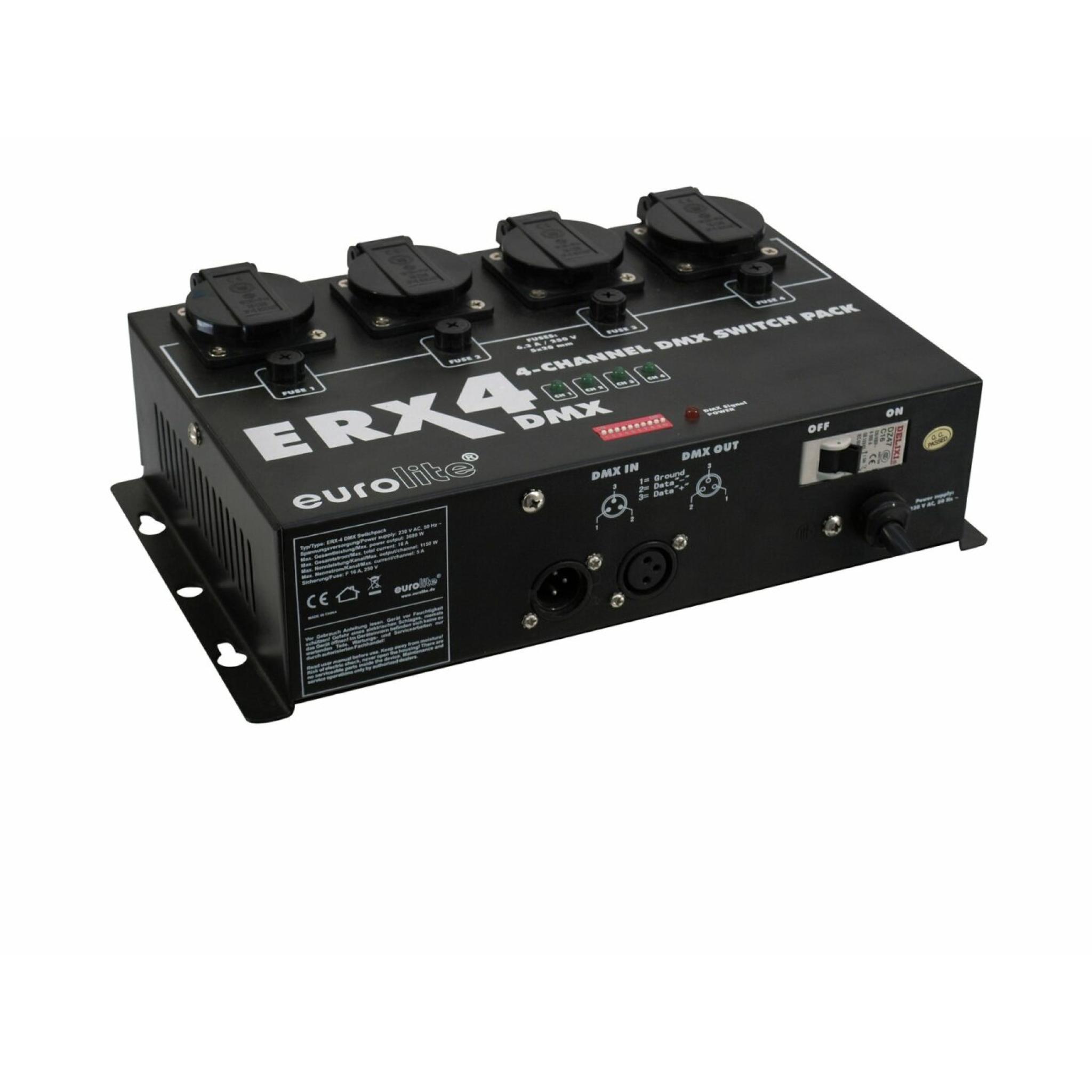

EUROLITE ERX-4 DMX Switch Pack
Original price was: €141,61.€106,22Current price is: €106,22.
Description
4-channel switch pack, up to 5 A load per channel, control with relay
- Relay allows for controlling luminaires with electronic transformers (e.g. LED effects)
- 4 controllable channels
- LED indicator per channel
- 5 A load per channel
- Maximum current 16 A
- Outputs via 4 safety sockets
- DMX512 input and output
- DMX starting address adjustable via DIP switches
- For truss installation and wall installation
| Power supply: | 230 V AC, 50 Hz |
| Max. power output: | 3680 W |
| Max. total current: | 16 A |
| Number of channels: | 4 |
| Load/channel: | 1150 W |
| Max. current/channel: | 5 A |
| Output sockets: | 4 safety power outlets |
| DMX output: | 3-pin XLR mounting plug |
| DMX input: | 3-pin XLR mounting jack |
| Dimensions: | 300 x 190 x 85 mm |
| Weight: | 2.8 kg |
Specifications
| Weight | 2,6 kg |
|---|---|
| Dimensions | 0,1400 × 0,3400 × 0,2750 m |
| Color | Black |
| Control | DMX, Stand-alone |
| Weight kg | 28 |
| Power supply | 230 V AC, 50 Hz |
| Max. output per channel W | 1150 |
| Accumulator | No |
| Number of DMX channels | 4 |
| Max. power output W | 3680 |
| Control Channels | 4 |
| Dimmer/Switcher | Switcher |
| Current type | Alternating current |
