EUROLITE LED PIX-144 RGB Bar
Original price was: €106,99.€85,63Current price is: €85,63.
Description

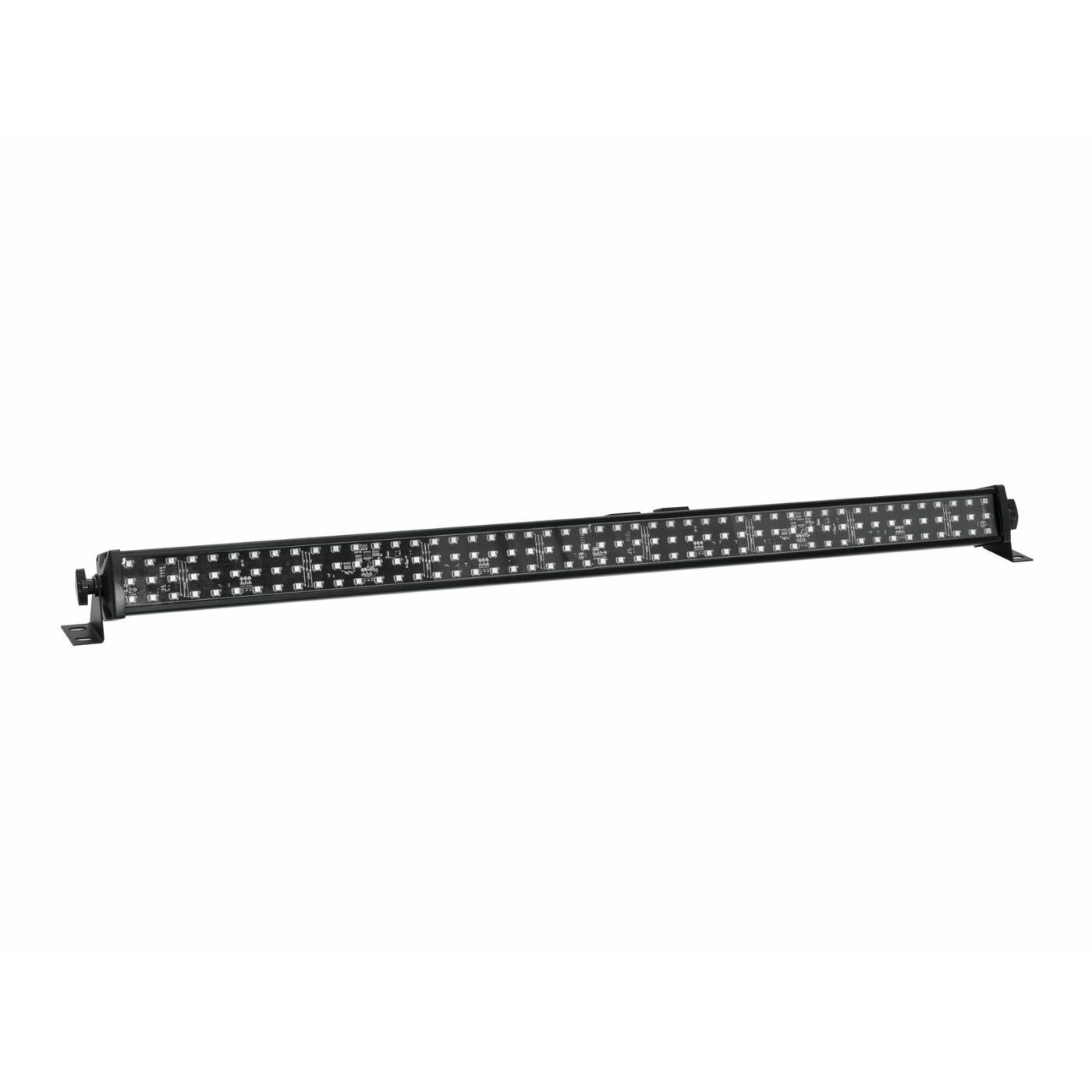

Bar (100 cm) with 144 wide beam SMD LEDs (RGB), 8 segments
- Equipped with 144 x SMD-LED in the colors red, green and blue
- Flicker-free projection
- 3, 5, 6, 12, 24 or 48 DMX channels selectable
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Addressing and setting via Control Board with LED display and four operating buttons
- Functions: Static colors, RGB color blend, internal programs, dimmer, strobe settings via DMX, Master/Slave

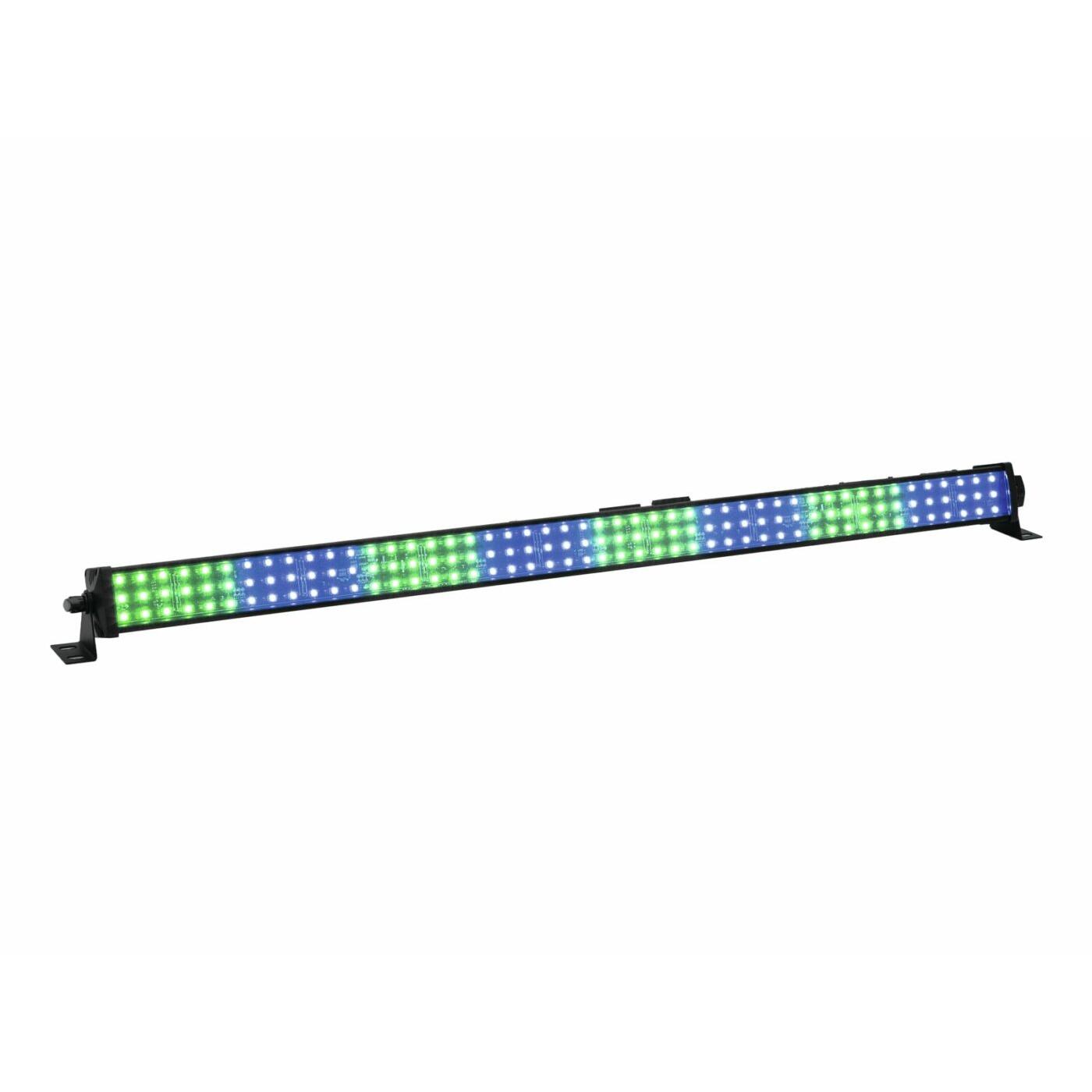

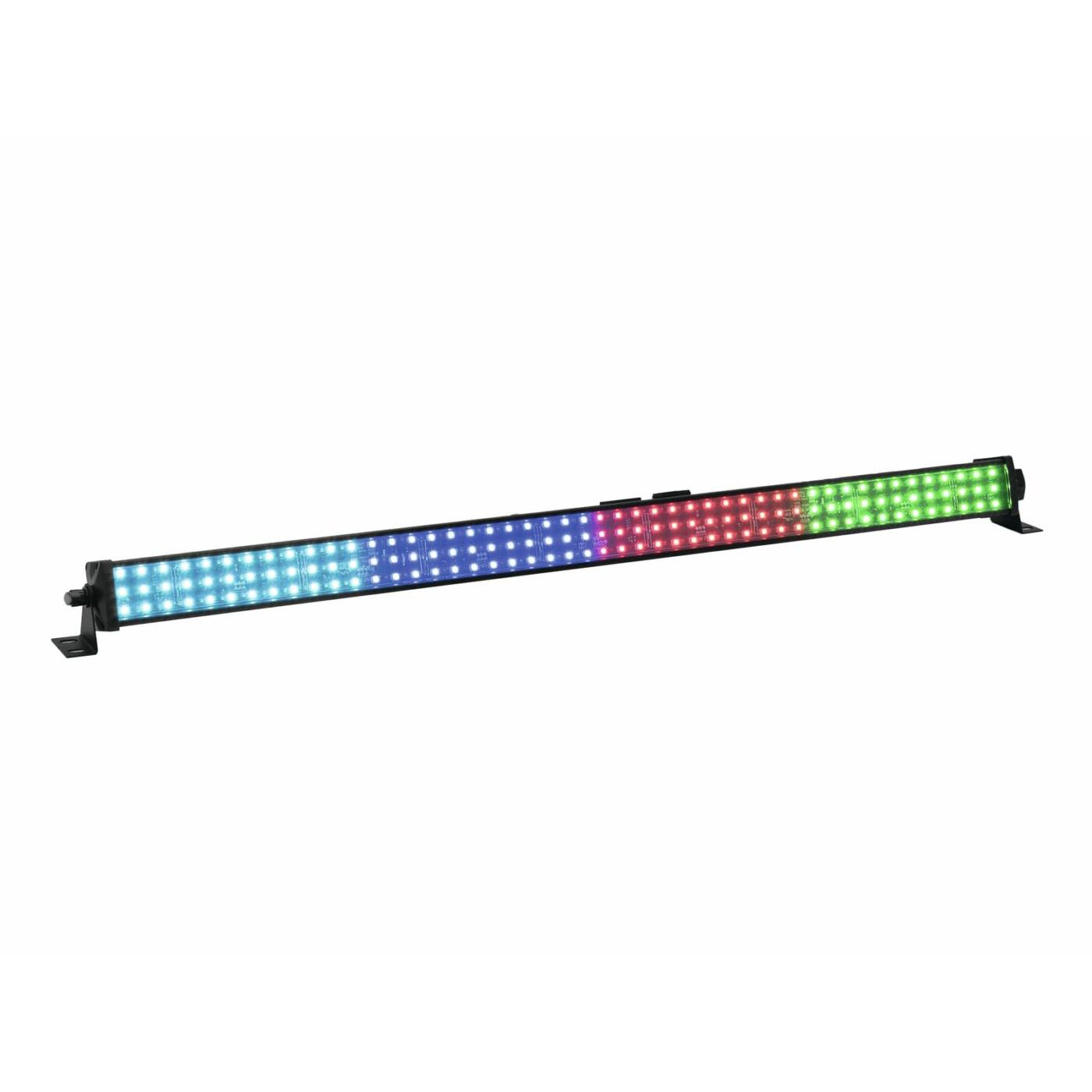

- Subdivided into 8 pixels (illumination units with 18 LED each) which can be controlled individually via DMX
- Sound-control via built-in microphone, sensitivity adjustable via control board
- Hanging as well as standing installation possible
- Locking possibility at the brackets
- Switch-mode power supply for operation between 100 and 240 volts
- DMX control via every standard DMX controller
- Feed-through output allows to power up to 8 devices
- Ready for connection via enclosed IEC power cord with safety-plug
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 25 W |
| DMX control channels: | 3/5/6/12/24/48 |
| DMX512 connection: | 3-pin XLR |
| Sound-control: | via built-in microphone |
| Flash-rate: | 20 Hz |
| LED type: | RGB-SMD |
| LED number: | 144 |
| Dimensions (L x W x H): | 1020 x 65 x 80 mm |
| Weight: | 1.5 kg |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
Specifications
| Weight | 1,86 kg |
|---|---|
| Dimensions | 0,1100 × 1,0500 × 0,1200 m |
| IP classification | IP20 |
| Case color | Black |
| Control | DMX, Stand-alone |
| Weight kg | 1.5 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption W | 25 |
| Accumulator | No |
| Youtube manufacturer video | http://www.youtube.com/watch?v=O0GaXoeFQaQ |
| Color generation | RGB |
| Lamp type | LED lamp |
