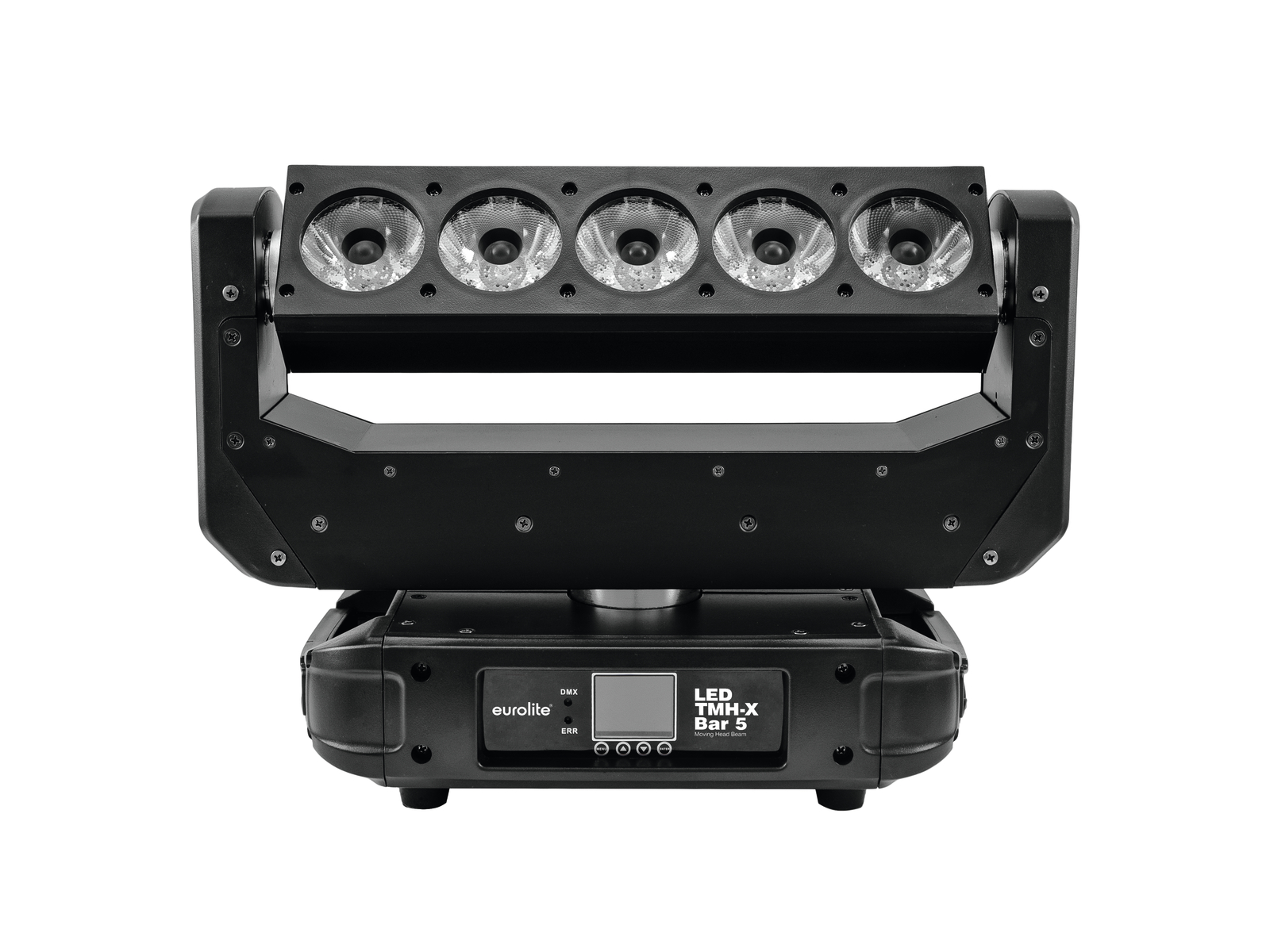

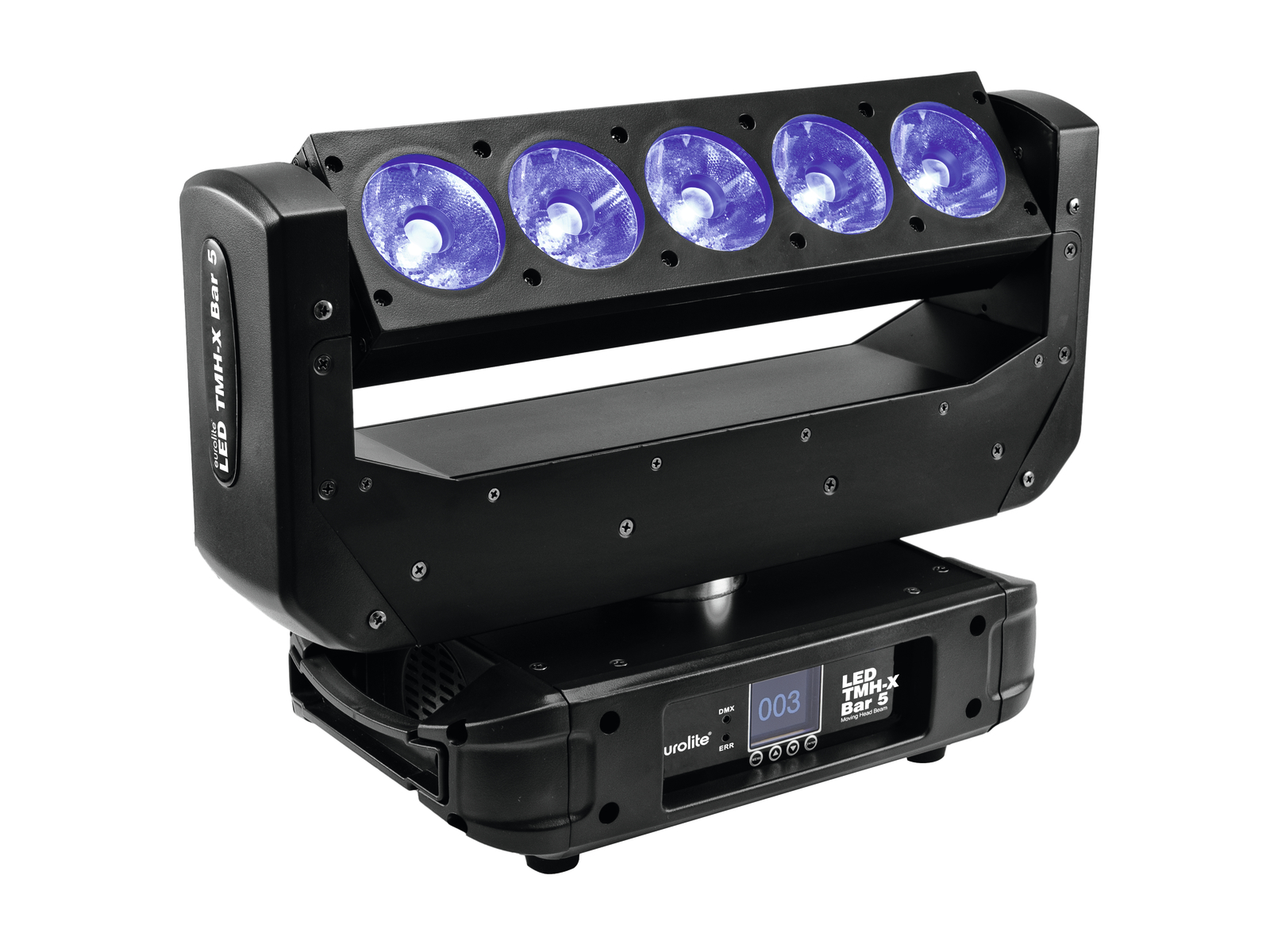

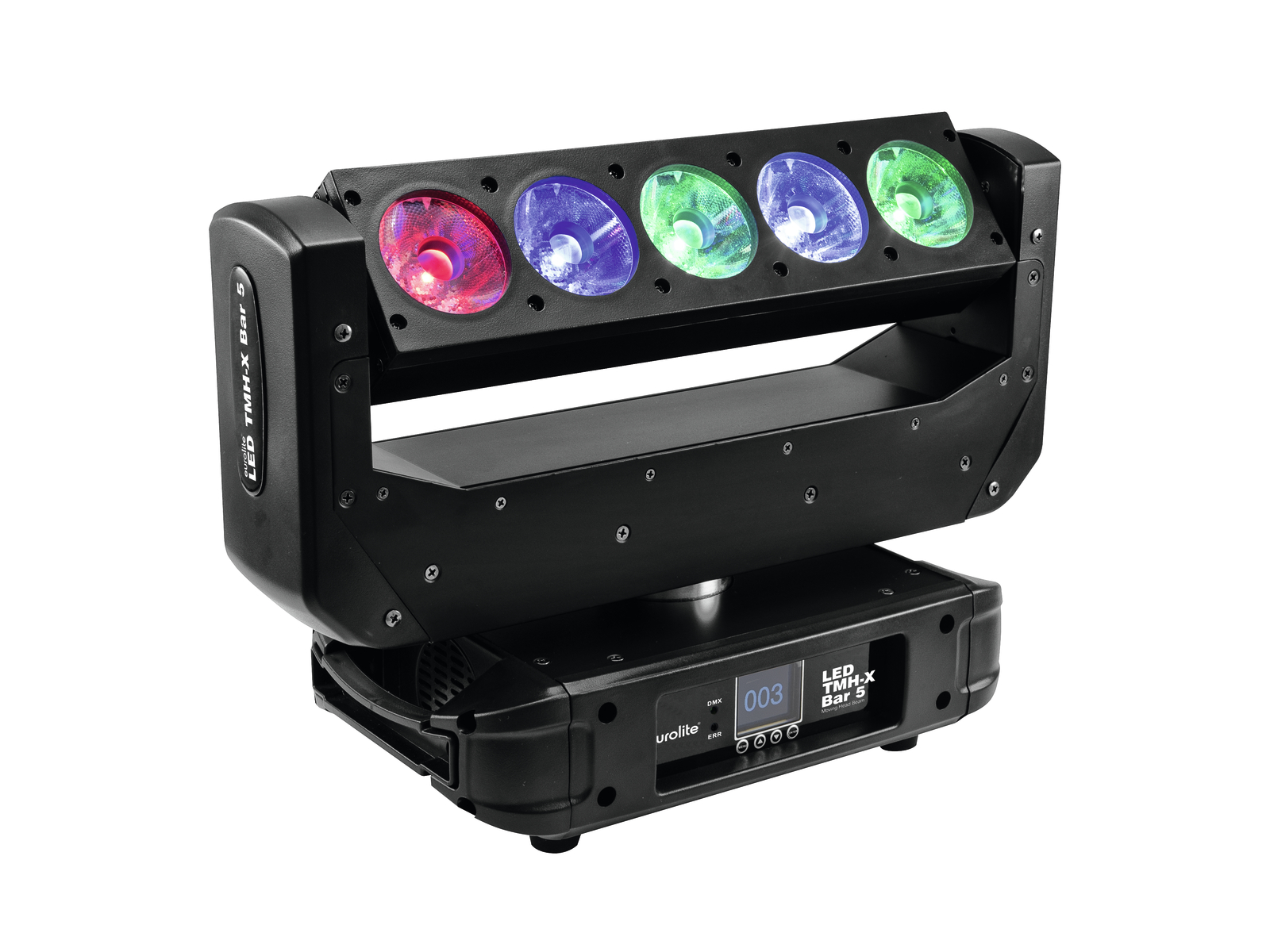

Eurolite LED TMH-X Bar 5 movinghead Beam

Original price was: €534,31.Current price is: €381,23.

Sold out

Shop & pay securely with iDEAL, Creditcard and Bancontact.
Need advice? Contact us — we’re happy to help!
International shipping across Europe.

Uitverkocht - Neem contact met ons op voor meer informatie.

SKU: 51785905 Category:

Description

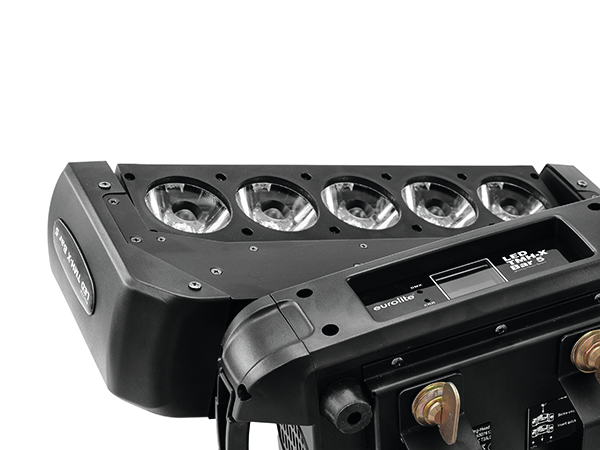

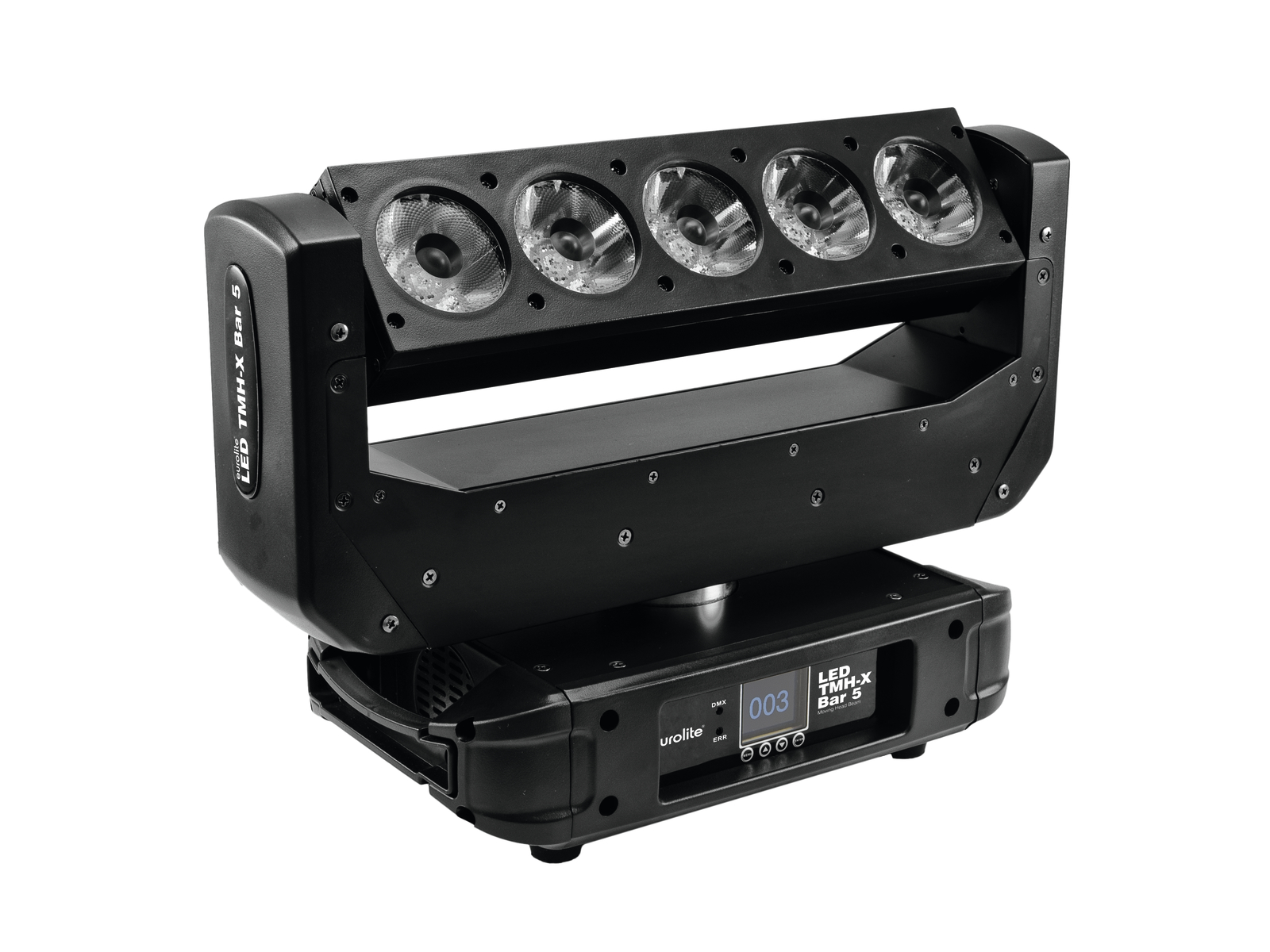

Narrow angle LED Moving Bar with 5 RGBW LEDs (15 W each) and unlimited TILT

  • Moving Beam bar equipped with five 15 W COB LEDs with RGBW colors
  • Each LED can be controlled individually
  • Narrow beam angle
  • With Infinity function for unlimited TILT movement
  • Positioning within 540° PAN and 360° TILT
  • Automatic position correction for PAN
  • 16 or 32 DMX channel mode selectable
  • Flicker-free projection
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-controlled via built-in microphone

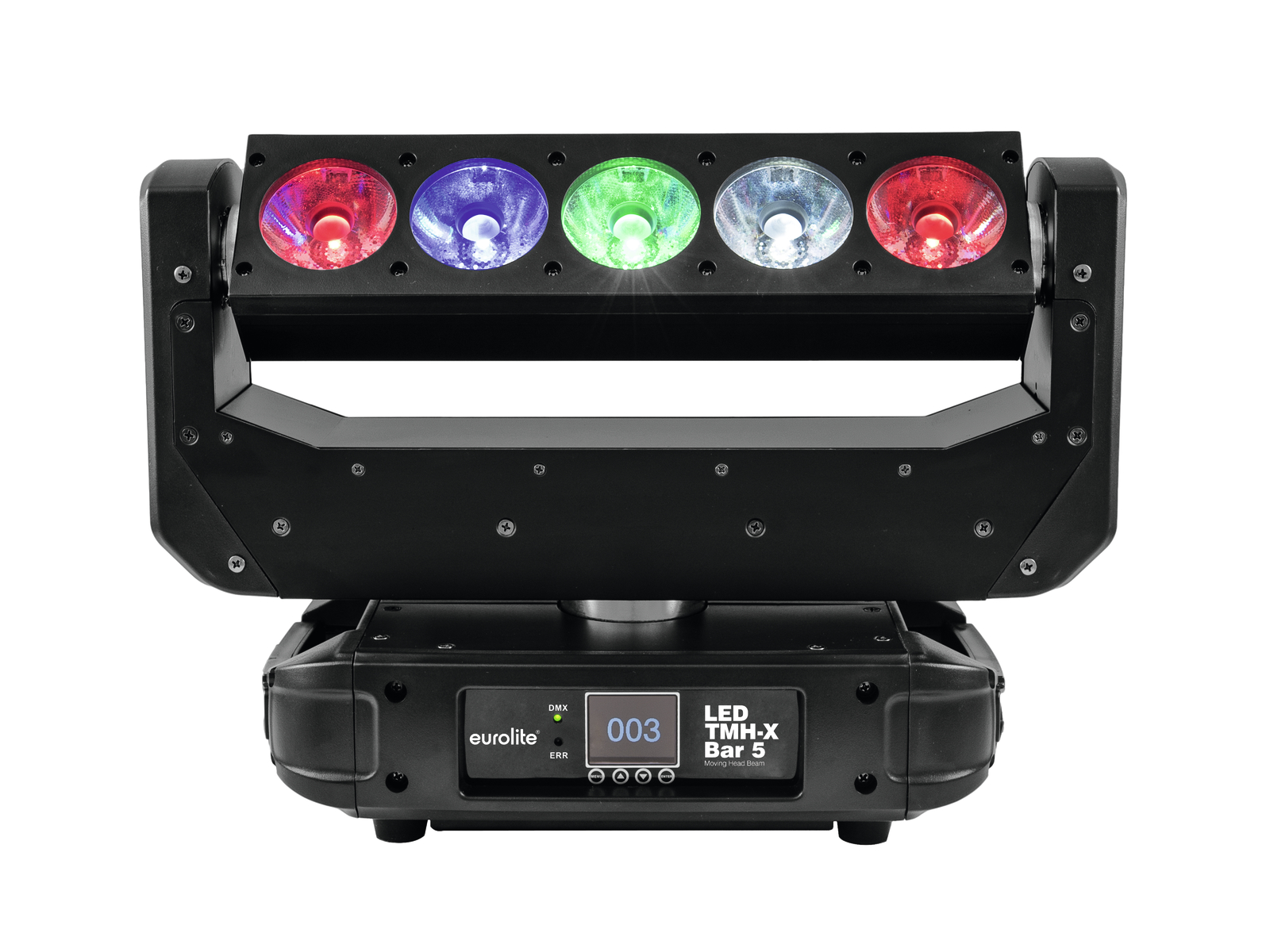

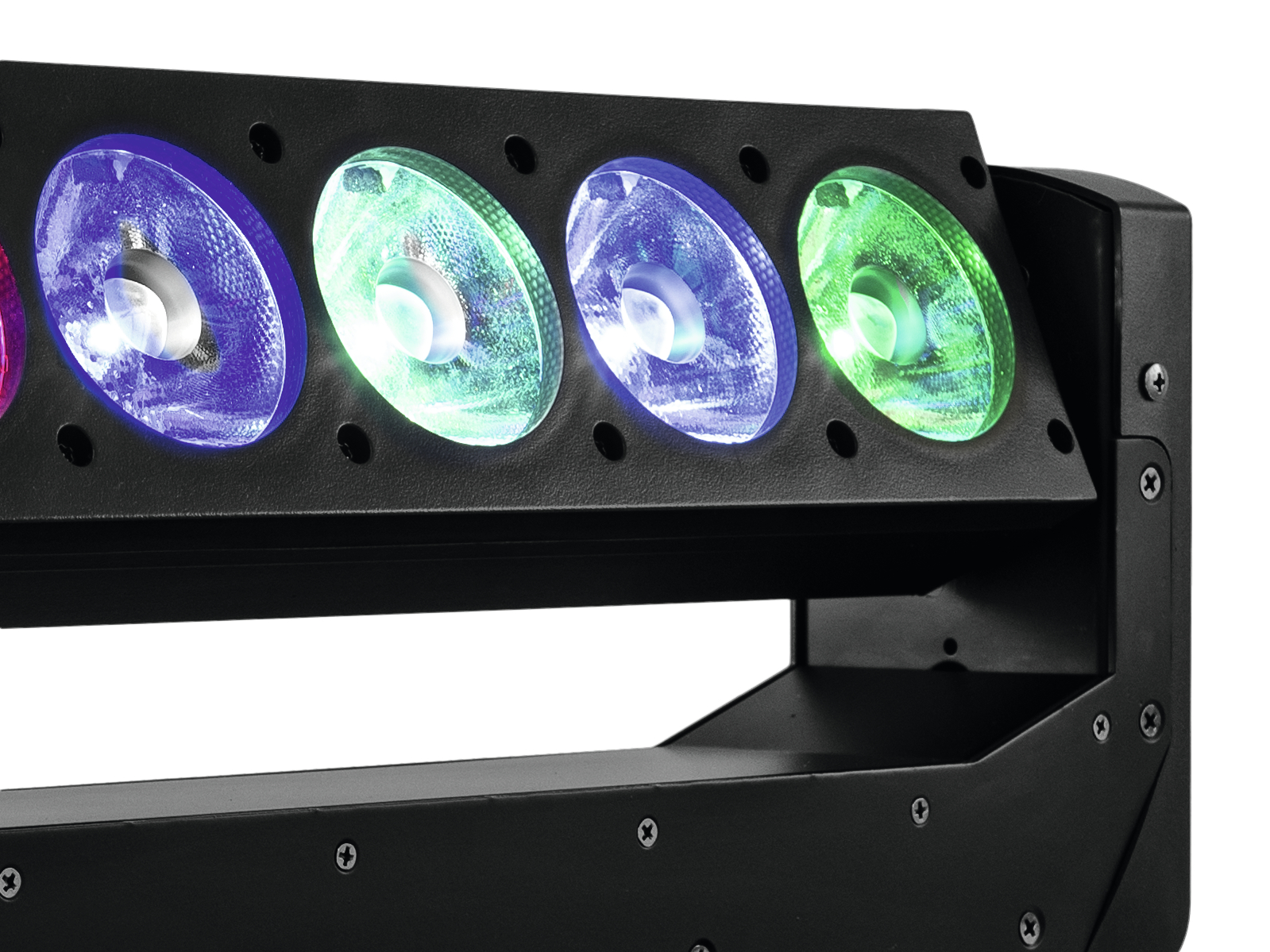

  • Colored beams in red, green, blue and white
  • Stepless RGBW color mixture
  • Color presets
  • Strobe effect with variable speed
  • Internal programs
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Dimmer
  • Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • Switch-mode power supply for operation between 100 and 240 volts

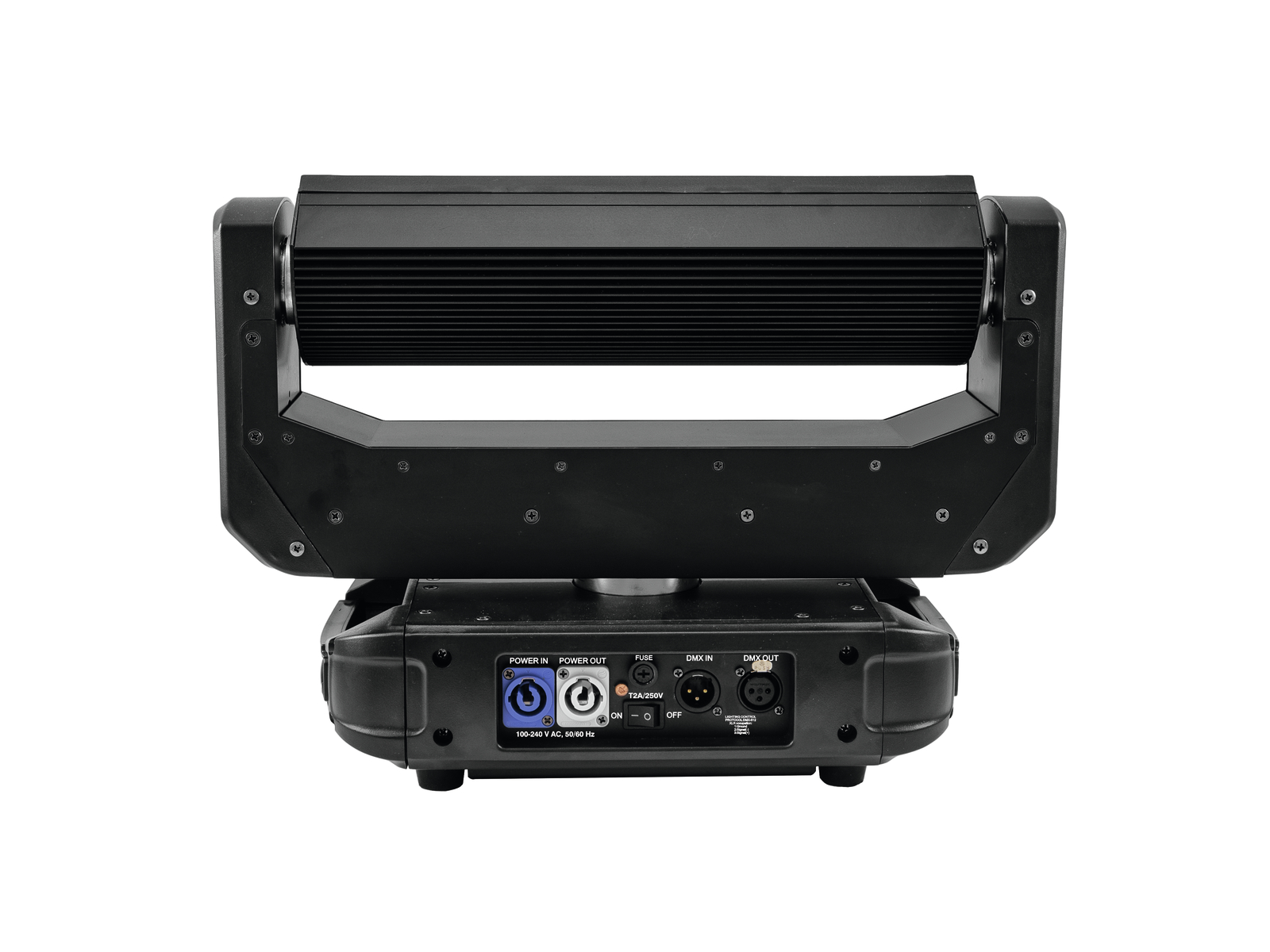

  • Power connection via P-Con jack and included power cable with safety plug
  • Feed-through output allows to power up to 8 devices
  • DMX control via every standard DMX controller
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 100 W
DMX channels: 16/32
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
Flash-rate: 18 Hz
LED type: 15 W, RGBW
LED number: 5
Beam angle:
Maximum PAN-movement: 540°
Maximum TILT-movement: unlimited
Dimensions (L x W x H): 195 x 430 x 300 mm
Weight: 9 kg
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting

Specifications

Weight 10 kg
Dimensions 0,2700 × 0,4800 × 0,3850 m
Beam angle °

NULL

Laser class

Without laser

Voeding

100-240 V AC, 50/60 Hz

EAN

4026397613902

IP classification

IP20

Case color

Black

Control

DMX

Weight kg

9

Aansluitingen

XLR 3-pin

Power supply

100-240 V AC, 50/60 Hz

Power consumption W

100

Effect

Multi beam effect

Cooling fan

Yes

Accumulator

No

Gobos

No

Youtube manufacturer video

http://www.youtube.com/watch?v=fD45bUlrouM

Color generation

RGBW

Lamp type

LED lamp

Type Movinghead

Effect

Vermogen (W)

100

Artnet

Nee

Aantal DMX Kanalen

32

Sturing

DMX, Muziekgestuurd

Shutterspeed (Hz)

18

Bundel

LED Kleuren

RGBW

Aantal LEDs

5

LED Vermogen

15

Pan (gr)

540

Tilt (gr)

unlimited

Gewicht (kg)

9
