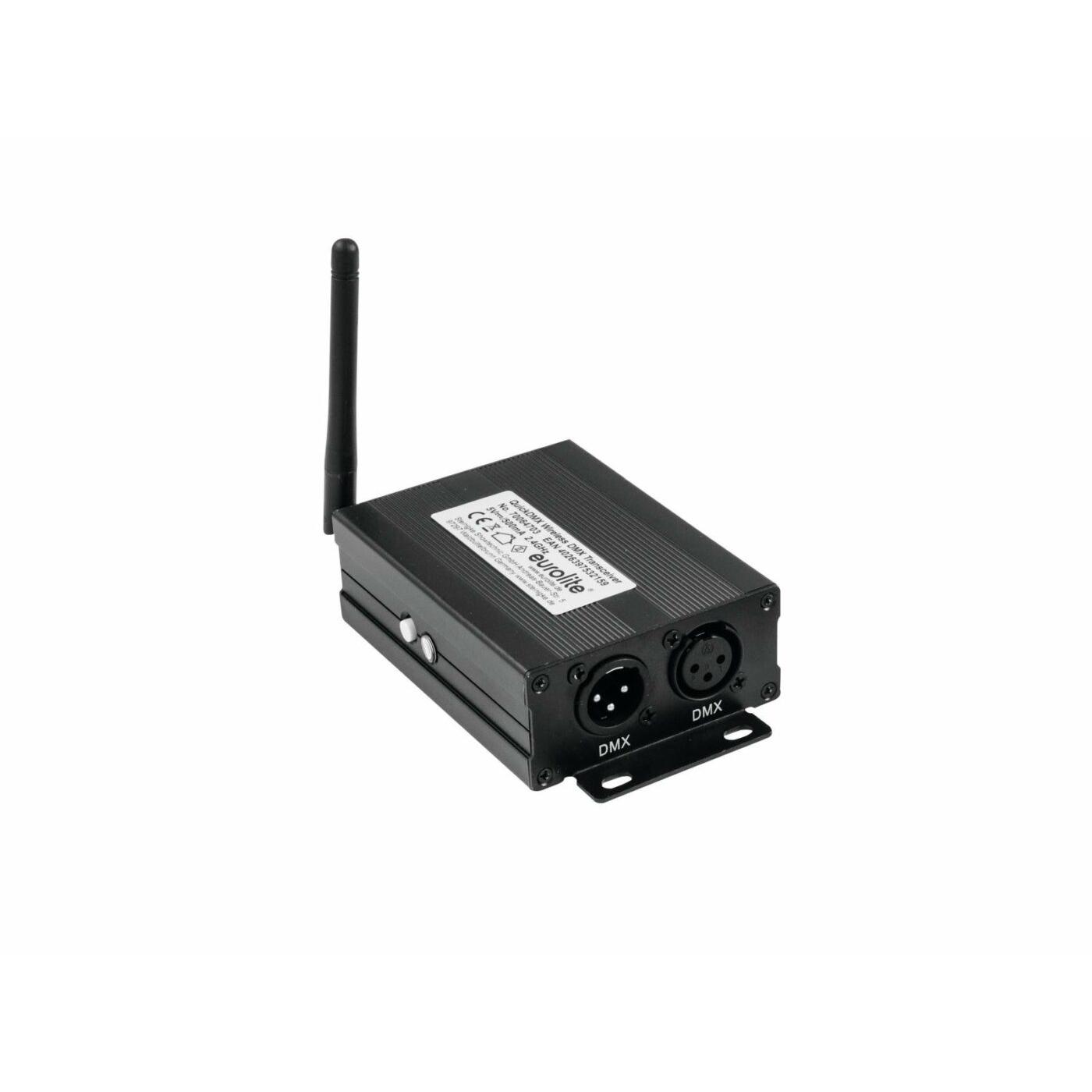

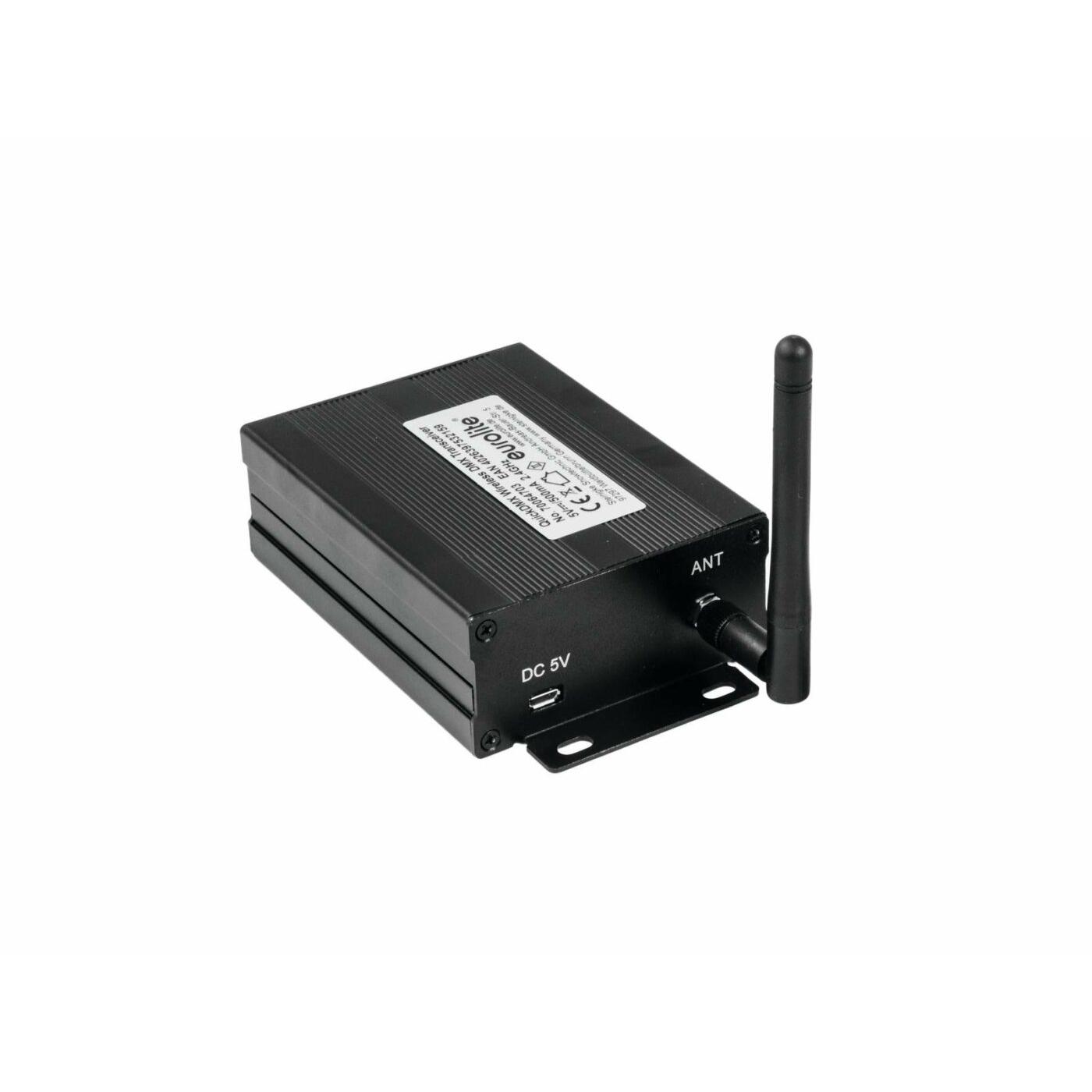

EUROLITE QuickDMX Wireless Transmitter/Receiver
Original price was: €106,99.€81,46Current price is: €81,46.
Description
Wireless DMX system 2.4 GHz
- Compact DMX transmitter/receiver for the wireless transmission of up to 512 DMX channels
- DMX input and output, 3-pin XLR
- Auto-switching transceiver
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Operating range up to 400 m (with line-of-sight)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX units
- LED indication for functions
- Micro USB port; PSU included
- 2.4 GHz ISM band – license-free worldwide
| Power supply: | 100-240 V AC, 50/60 Hz |
| via power unit included in the delivery | |
| Carrier frequency: | 2.4 GHz ISM band, 78 channels |
| Modulation: | GFSK |
| Coverage: | 400 m (line-of-sight) |
| Parallel operation: | max. 6 transmitters |
| DMX conncector: | 3-pin XLR mounting socket |
| 3-pin XLR mounting plug | |
| DMX channels: | 1 universe (512 channels) |
| Dimensions with antenna (L x W x H): | 212 x 75 x 100 mm |
| Weight: | 220 g |
Specifications
| Weight | 0,355 kg |
|---|---|
| Dimensions | 0,0600 × 0,1450 × 0,1200 m |
| IP classification | IP20 |
| Color | Black |
| Control | DMX, Quick-DMX |
| Weight kg | 0,22 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Accumulator | No |
| Number of DMX channels | 512 |
