Description

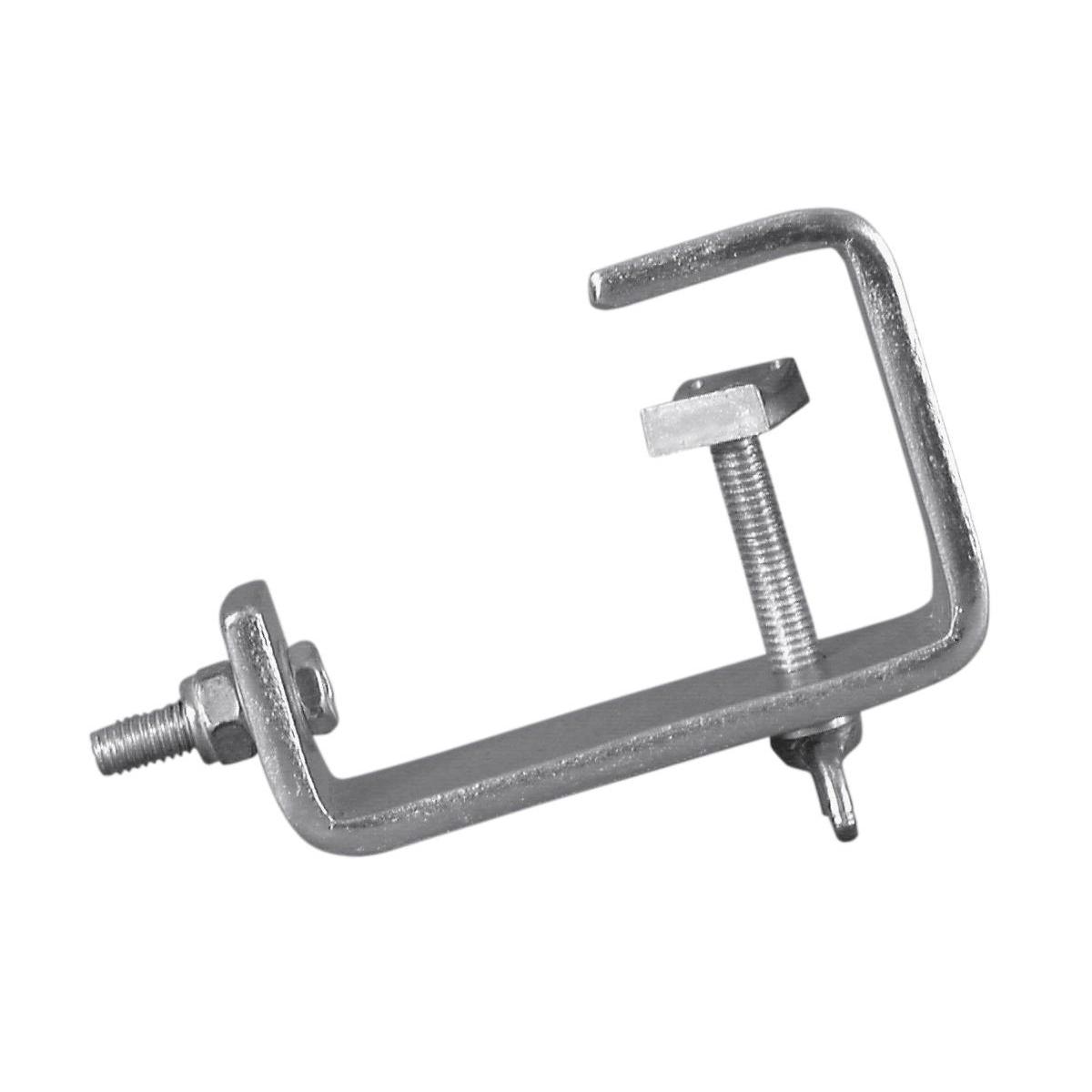

Mounting clamp for 40 mm tube, maximum load WLL 30 kg
- Hook for installing projectors, lighting effects etc. via a truss system
- For truss systems with a tube diameter of 40 mm
| Maximum load WLL (4-fold): | 30 kg |
| Maximum load BGV C1 (8-fold): | 15 kg |
| Maximum load BGV C1 (10-fold): | 12 kg |
| Maximum load BGV C1 (12-fold): | 10 kg |
| Dimensions (L x W x H): | 125 x 90 x 30 mm |
| Weight: | 0.4 kg |
Specifications
| Weight | 0,355 kg |
|---|---|
| Dimensions | 0,3500 × 0,1150 × 0,0800 m |
| Color | Silver |
| Weight kg | 0.4 |
| Max. load WLL (4fold) kg | 30 |
| Length mm | 125 |
| Width mm | 90 |
| Tube diameter sector mm | 35 – 40 |
