Description

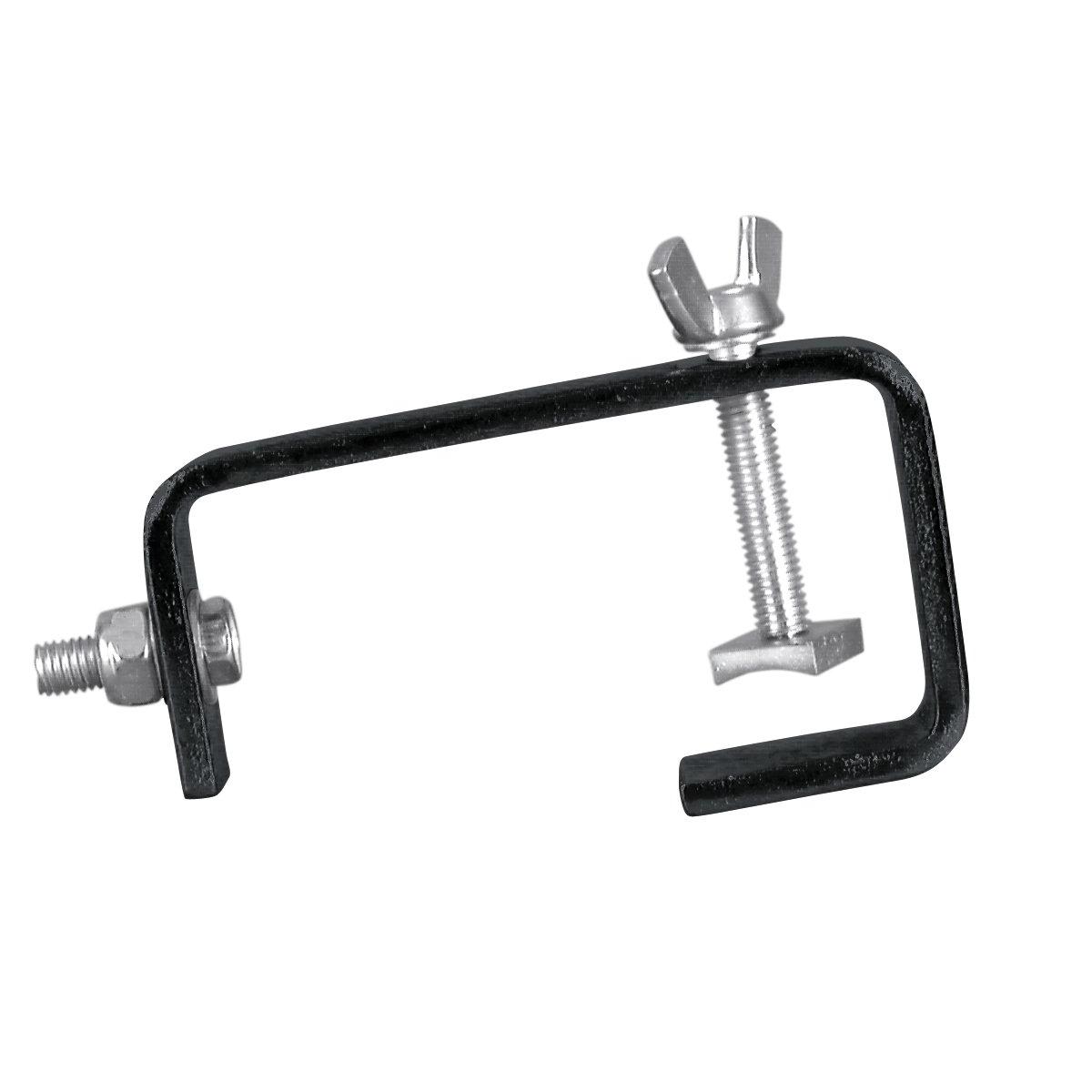

Mounting clamp for 50 mm tube, maximum load WLL 24 kg
- Hook for installing projectors, lighting effects etc. via a truss system
- For truss systems with a tube diameter of 50 mm
- Only for the installation at horizontal truss!
| Maximum load WLL (4-fold): | 24 kg |
| Maximum load BGV C1 (8-fold): | 12 kg |
| Maximum load BGV C1 (10-fold): | 10 kg |
| Maximum load BGV C1 (12-fold): | 8 kg |
| Dimensions (L x W x H): | 135 x 75 x 30 mm |
| Weight: | 0.5 kg |
Specifications
| Weight | 0,5 kg |
|---|---|
| Dimensions | 0,0400 × 0,1600 × 0,1000 m |
| Color | Black |
| Weight kg | 0.5 |
| Max. load WLL (4fold) kg | 24 |
| Length mm | 135 |
| Width mm | 75 |
| Tube diameter sector mm | 45 – 50 |
