Description

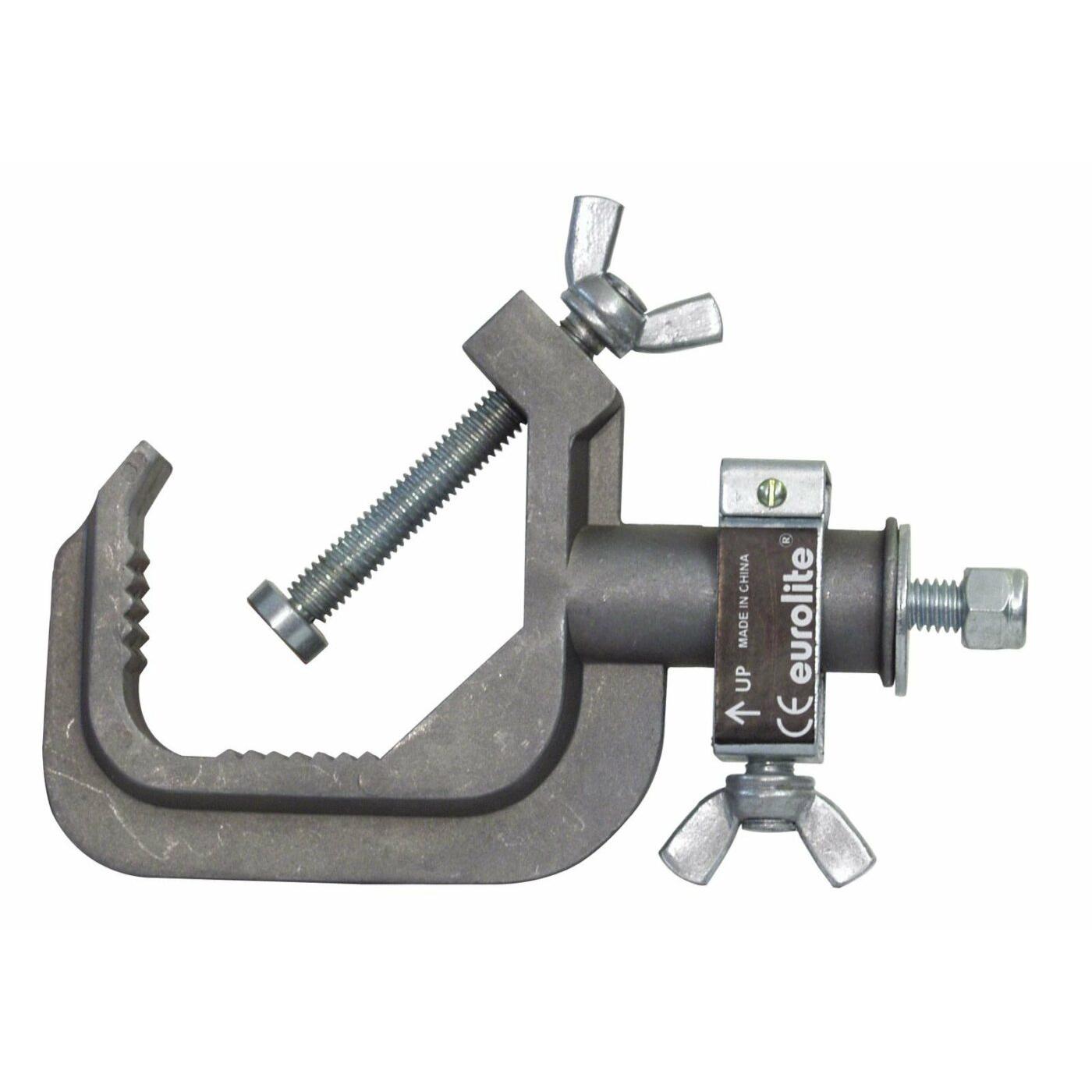

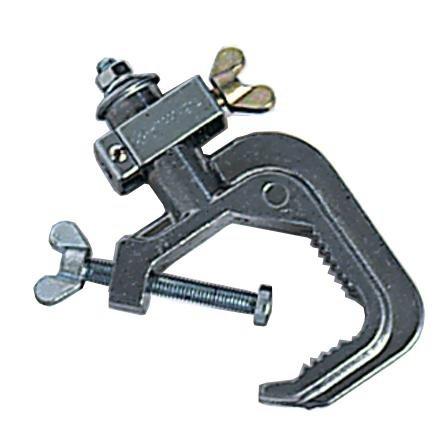

Mounting clamp for 50 mm tube, removeable support , max. load WLL 100 kg
- Hook for installing projectors, lighting effects etc. via a truss system
- For truss systems with a tube diameter of 50 mm
- Only for the installation at horizontal truss!
| Maximum load WLL (4-fold): | 100 kg |
| Maximum load BGV C1 (8-fold): | 50 kg |
| Maximum load BGV C1 (10-fold): | 40 kg |
| Maximum load BGV C1 (12-fold): | 35 kg |
| Dimensions (L x W x H): | 175 x 120 x 35 mm |
| Weight: | 0.4 kg |
Specifications
| Weight | 0,472 kg |
|---|---|
| Dimensions | 0,0350 × 0,1750 × 0,1200 m |
| Color | Silver |
| Weight kg | 0.4 |
| Max. load WLL (4fold) kg | 100 |
| Length mm | 175 |
| Width mm | 120 |
| Tube diameter sector mm | 45 – 50 |
