Eurolite TPC-52 Coupler met Spigot
Original price was: €23,69.€20,35Current price is: €20,35.
Uitverkocht - Neem contact met ons op voor meer informatie.
Description

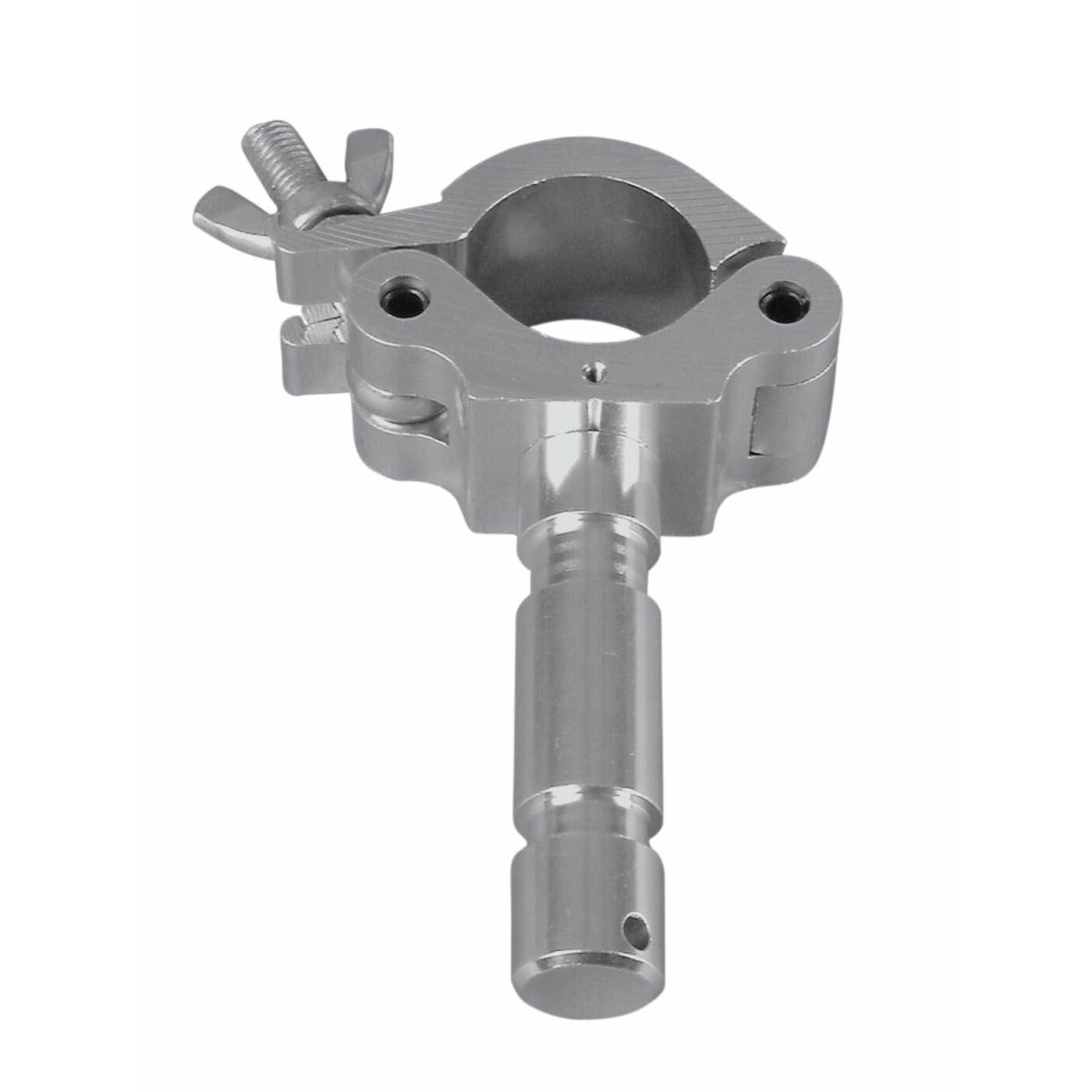

Mounting coupler with TV pin for 50 mm tube, maximum load WLL 1000 kg
- Truss adapter for truss systems up to 50 mm diameter
- Width 50 mm
- Diameter TV-pin: 28 mm
- Maximum load with STC-310: 80 kg
| Maximum load WLL (4-fold): | 1000 kg |
| Maximum load BGV C1 (8-fold): | 500 kg |
| Maximum load BGV C1 (10-fold): | 400 kg |
| Maximum load BGV C1 (12-fold): | 330 kg |
| Spigot: | D = 28 mm |
| Dimensions (L x W x H): | 200 x 130 x 60 mm |
| Weight: | 0.9 kg |
Specifications
| Weight | 0,905 kg |
|---|---|
| Dimensions | 0,0600 × 0,2000 × 0,1270 m |
| Color | Silver |
| Weight kg | 0.9 |
| Max. load WLL (4fold) kg | 1000 |
| Tube diameter sector mm | 45 – 50 |
| Length mm | 115 |
| Width mm | 50 |
| Height mm | 200 |
