Beschrijving

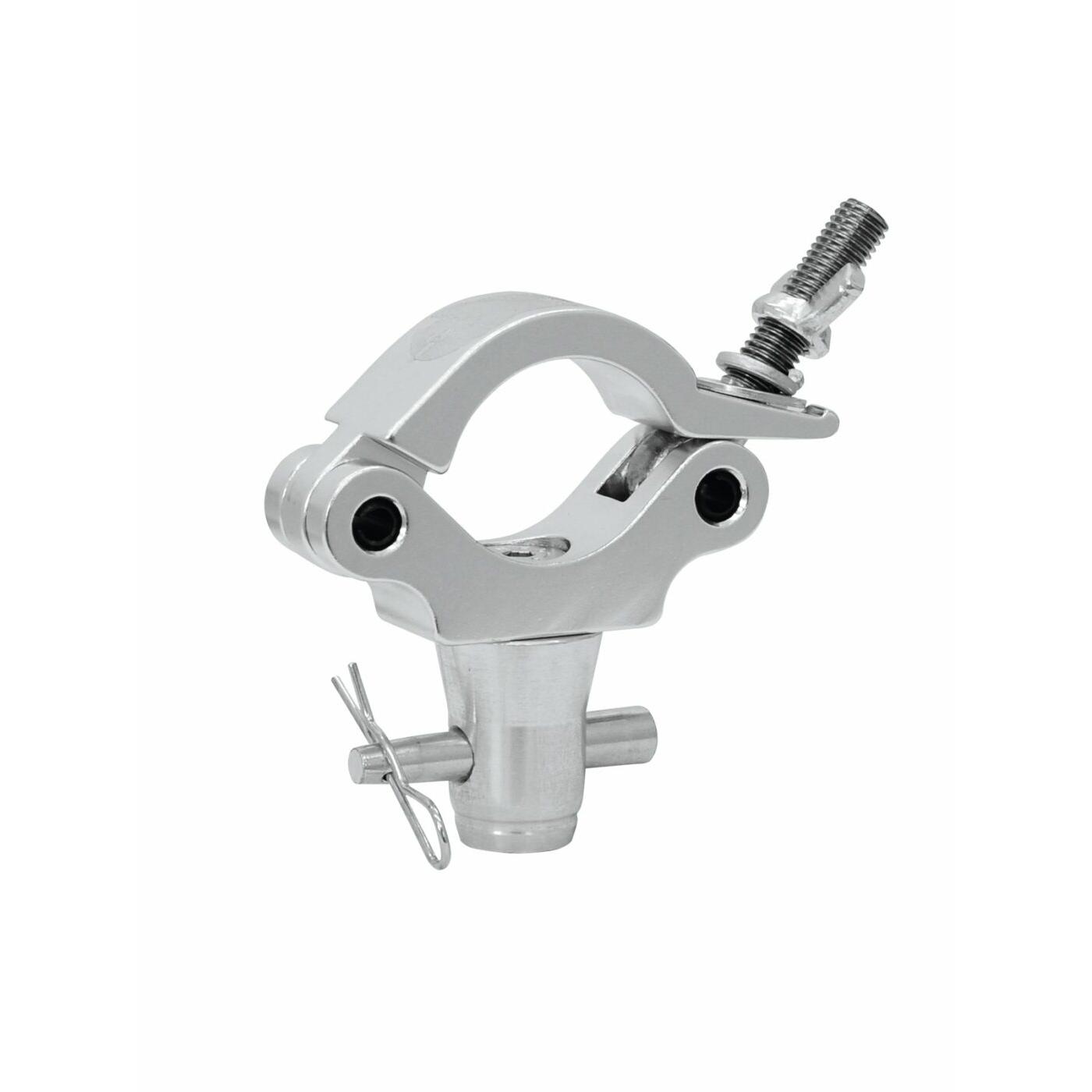

Coupler (50 mm tube) with Quicklock 6082 cone, max. load WLL 200 kg
- With conical connector matching the Quicklock truss systems Singlelock, Bilock, Trilock 6082, Quadlock 6082
- For 50 mm tube
- Width 30 mm
- Color: silver
| Maximum load WLL (4-fold): | 200 kg |
| Maximum load BGV C1 (8-fold): | 100 kg |
| Maximum load BGV C1 (10-fold): | 80 kg |
| Maximum load BGV C1 (12-fold): | 66.5 kg |
| Dimensions (L x W x H): | 120 x 30 x 130 mm |
| Weight: | 0.5 kg |
Specificaties
| Gewicht | 0,46 kg |
|---|---|
| Afmetingen | 0,1000 × 0,1600 × 0,0300 m |
| Color | Silver |
| Weight kg | 0.5 |
| Max. load WLL (4fold) kg | 200 |
| Tube diameter sector mm | 45 – 50 |
| Length mm | 110 |
| Width mm | 30 |
| Height mm | 120 |
