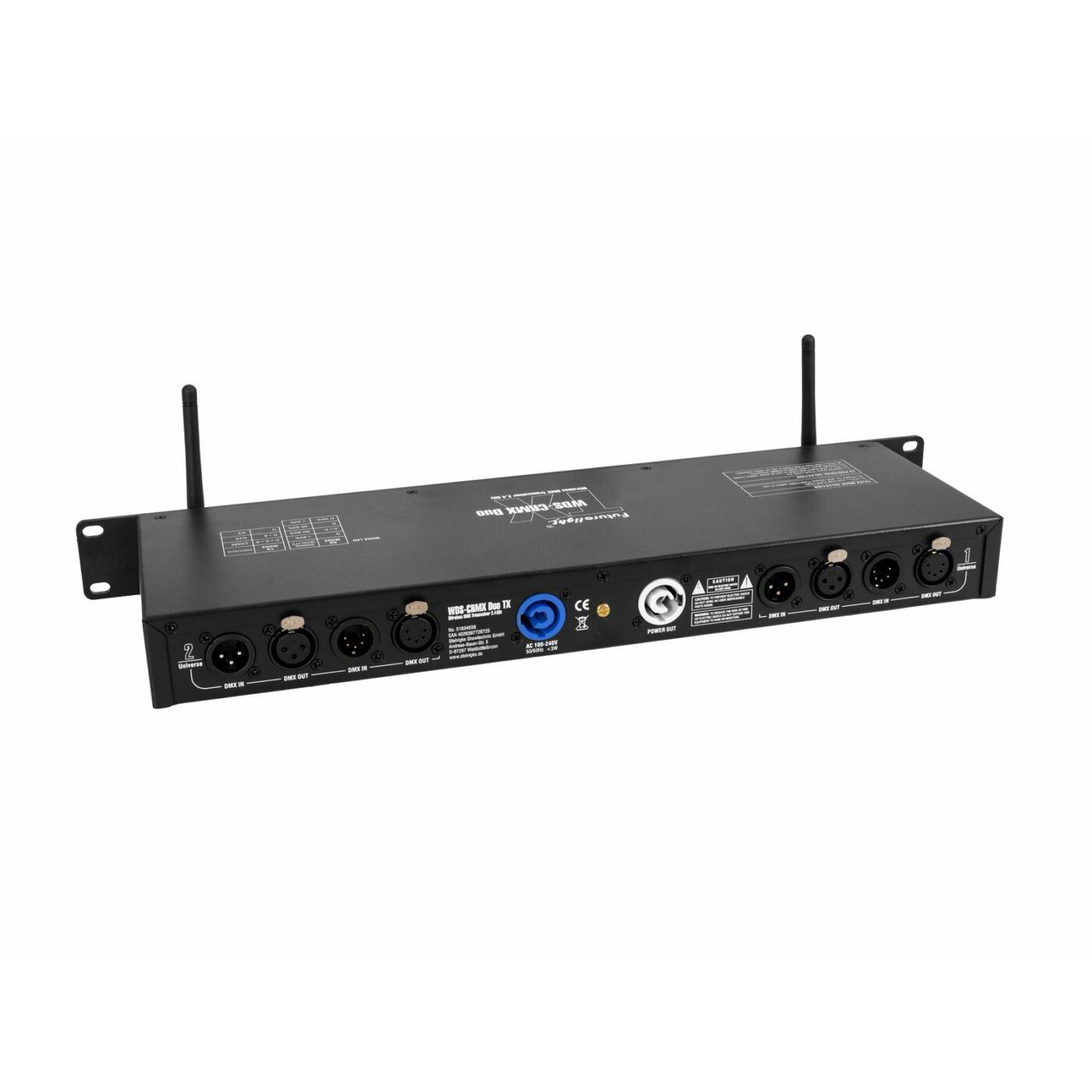

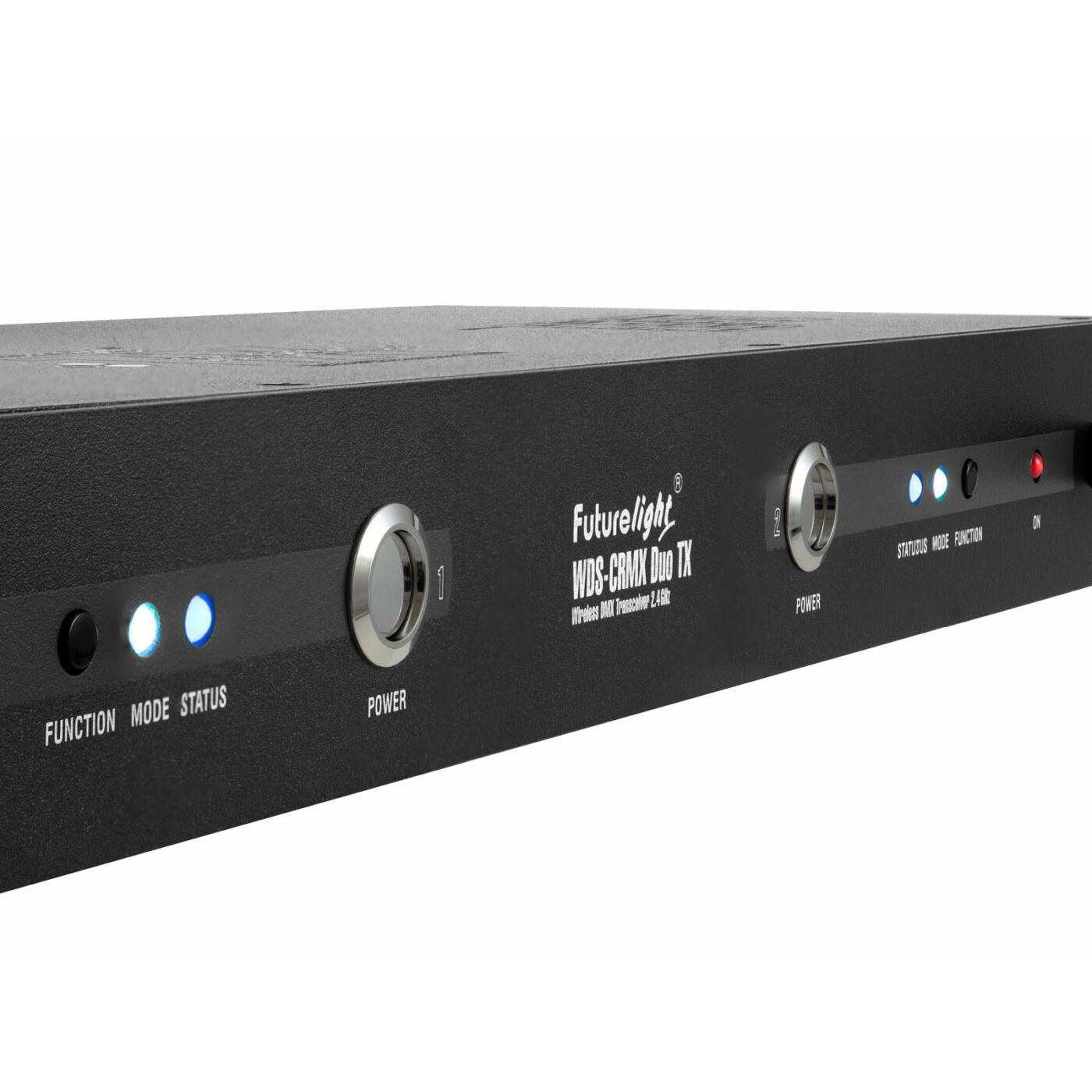

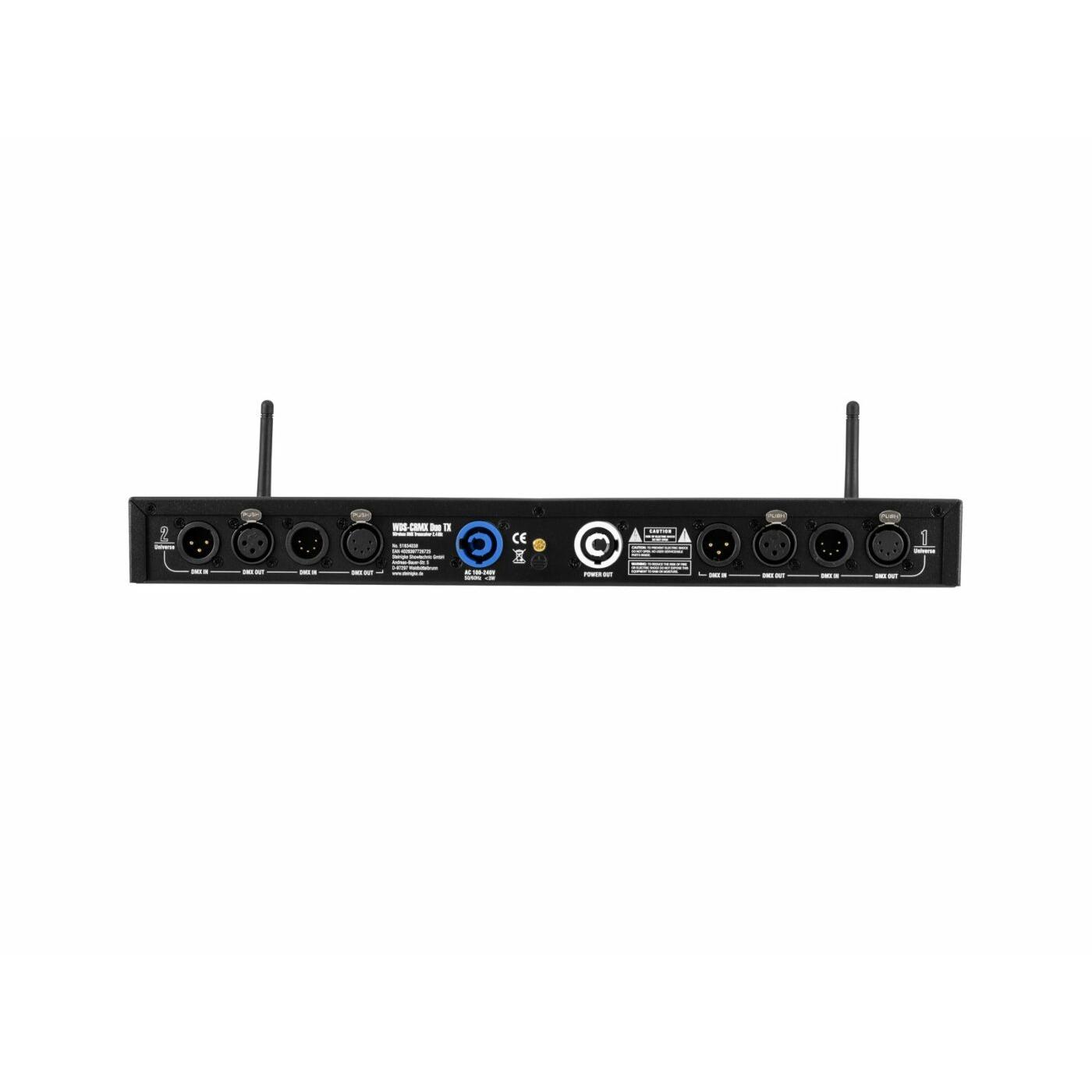

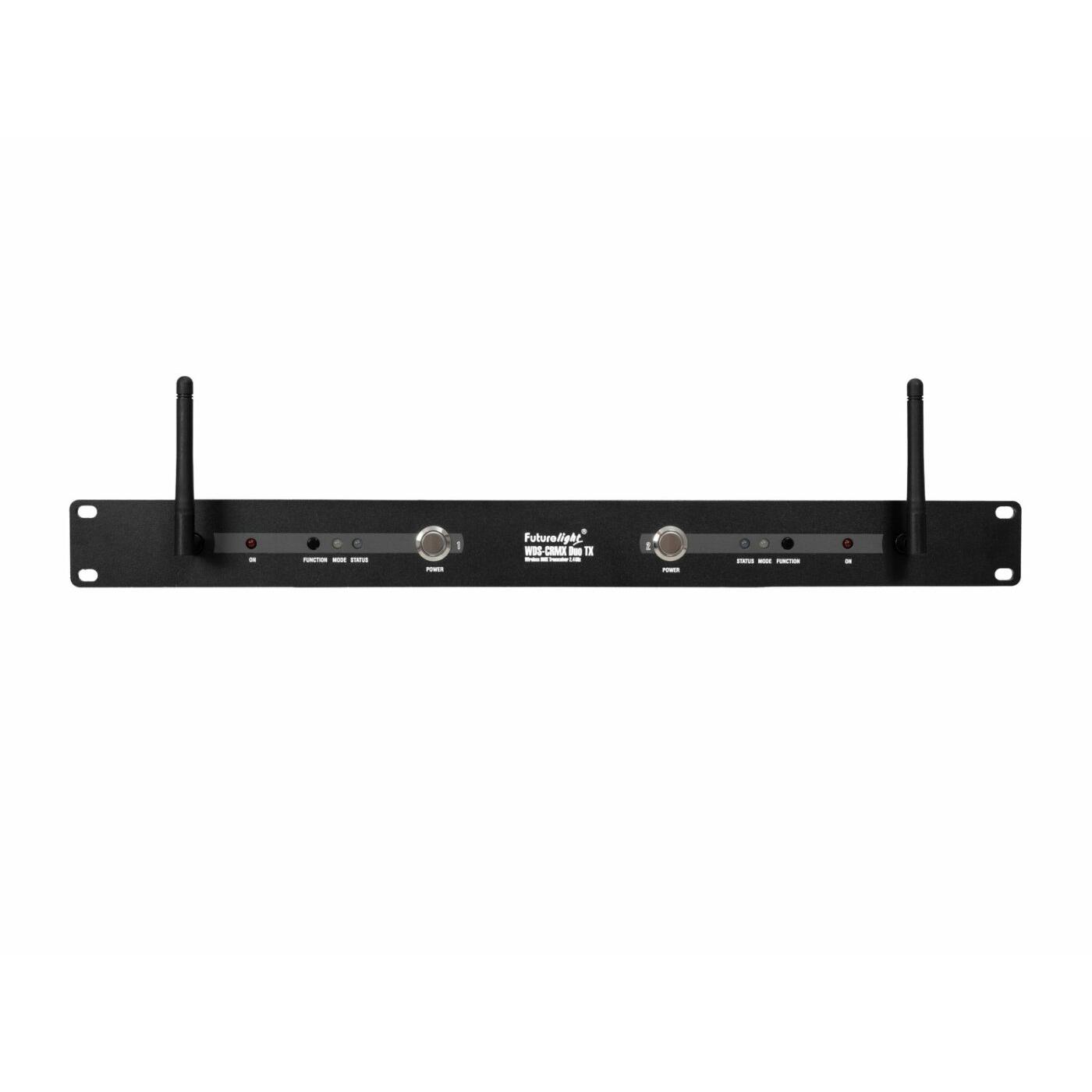

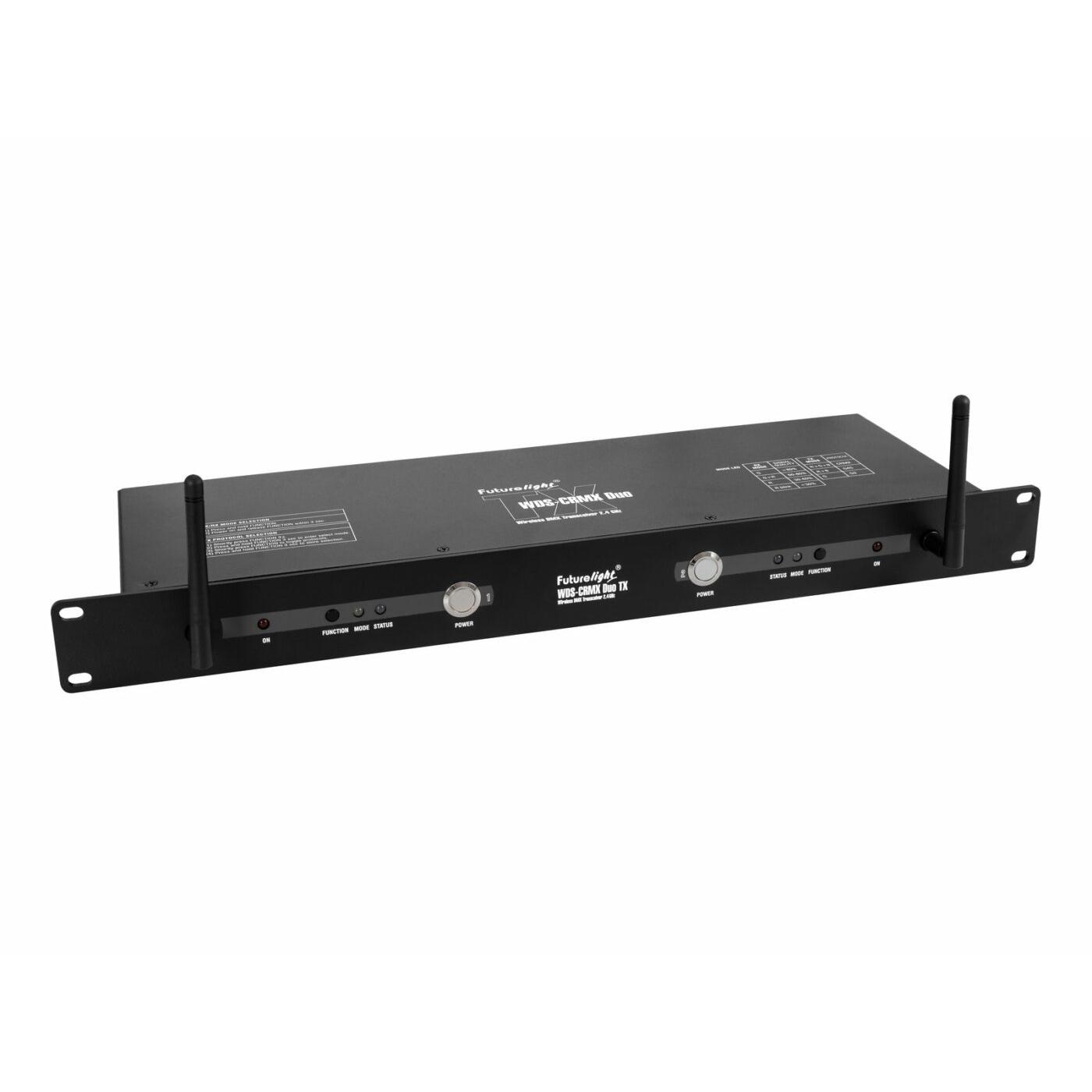

FUTURELIGHT WDS-CRMX Duo TX Wireless DMX Transceiver
Original price was: €593,00.€499,00Current price is: €499,00.
Description
Wireless DMX system 2.4 GHz – two transceivers with CRMX unit in 19″ housing
- Transceiver, to be used as transmitter or receiver
- Control via CRMX by LumenRadio; W-DMX by wireless solution
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- Can receive and process up to 1024 DMX channels
- Can transmit up to 1024 DMX channels
- Operating range up to 600m with line-of-sight
- Multicolored LED indicator
- Mains input and output for power linking up to 8 units
- (19″) 48.3 cm rack installation 1 U
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 3 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Device fuse: | T 1 A Fuse serviceable |
| DMX channels: | Input 1024 Output 1024 |
| DMX input: | 2 x 3-pin XLR (M) mounting version 2 x 5-pin XLR (M) mounting version |
| DMX output: | 2 x 3-pin XLR (F) mounting version 2 x 5-pin XLR (F) mounting version |
| Control: | CRMX by LumenRadio; W-DMX by wireless solution |
| Status LED: | DMX, level meter, power |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Antenna gain: | 3 dBi |
| Parallel mode: | Max. 10 transmitter |
| Range: | Range up to 600m with line-of-sight |
| Color: | Black |
| Housing design: | (19″) 48.3 cm rack installation 1 U |
| Dimensions: | Length: 48,3 cm Depth: 14,0 cm Height: 44 cm |
| Weight: | 1,33 kg |
Specifications
| Weight | 1,8 kg |
|---|---|
| Dimensions | 0,1000 × 0,5000 × 0,2500 m |
| EAN | 4026397726725 |
