OMNITRONIC ALT-105 Audio Link Module WAMS-05
Original price was: €177,31.€132,46Current price is: €132,46.
Description

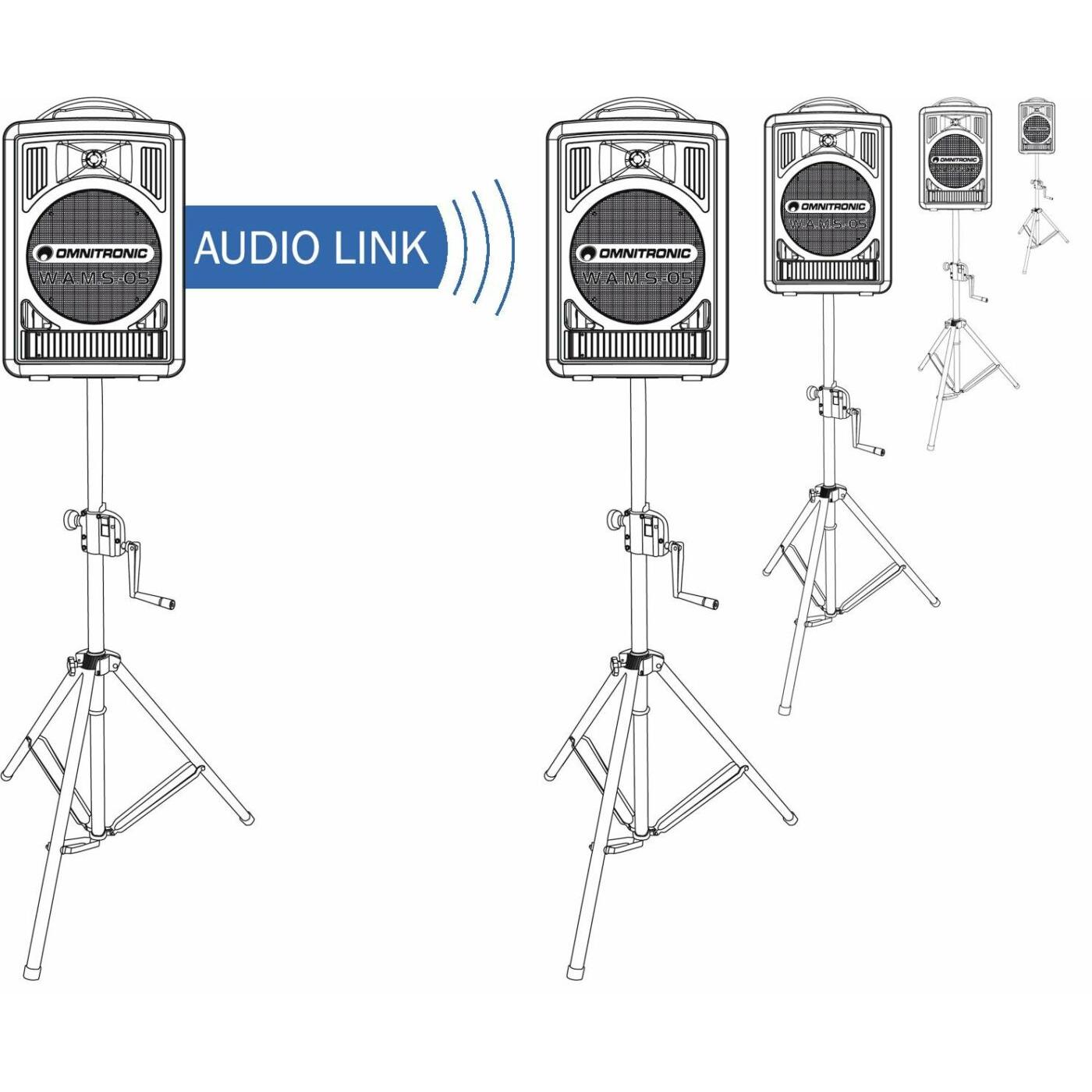

The multifrequency transmitting ALT-105 serves as a replacement part or as an extension for the PA system W.A.M.S.-05. The unit operates in the UHF range of 863.100 – 864.900 MHz. The frequency range is divided into 16 channels, which can be selected as desired. The transmitter module allows for wireless transmission of the audio signal of the speaker system to receiving units RM-105 of further W.A.M.S.-05 systems (audio link mode). The unit is tuned to the frequencies of the receiver module.

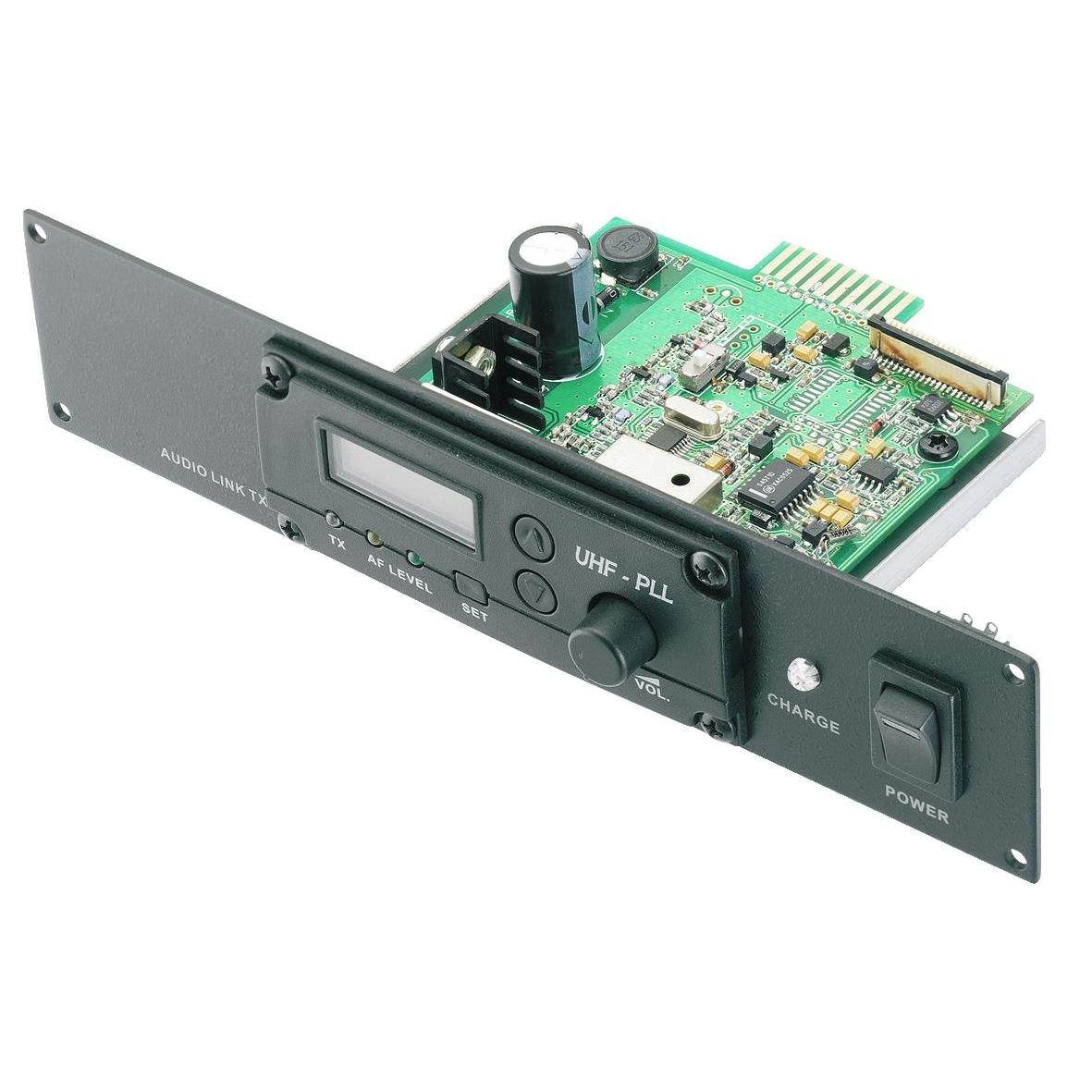

Multifrequency transmitting unit for W.A.M.S.-05
- Transmitter as UHF PLL system, suitable for W.A.M.S.-05 system
- Applicable for wireless audio transmission to receiving units of further W.A.M.S.-05 systems (audio link mode) or as a replacement
- Operation in the low-interference UHF-band (863,1-864,9 MHz) with 16 frequencies selectable
- LCD for channel and frequency
- Volume control
- LEDs for carrier and audio signals
- License-free and approved in the EU
| System: | PLL multifrequency transmitter |
| Carrier frequency: | UHF 863.100-864.900 MHz |
| RF power output: | 10 mW |
| Range: | approx. 30 m |
| Power supply: | 12 V DC, 120 mA |
| Frequency range: | 70-16000 Hz |
| Input sensitivity: | 130 mV |
| Dimensions (L x W x H): | 191 x 42.5 x 110 mm |
| Weight: | 230 g |
Specifications
| Weight | 0,31 kg |
|---|---|
| Dimensions | 0,0550 × 0,2500 × 0,1300 m |
| Height cm | 4.25 |
| Frequency band | UHF |
| Weight kg | 0.23 |
| Frequency range Hz | 70 – 16000 |
| Type | Compact cabinet speaker |
