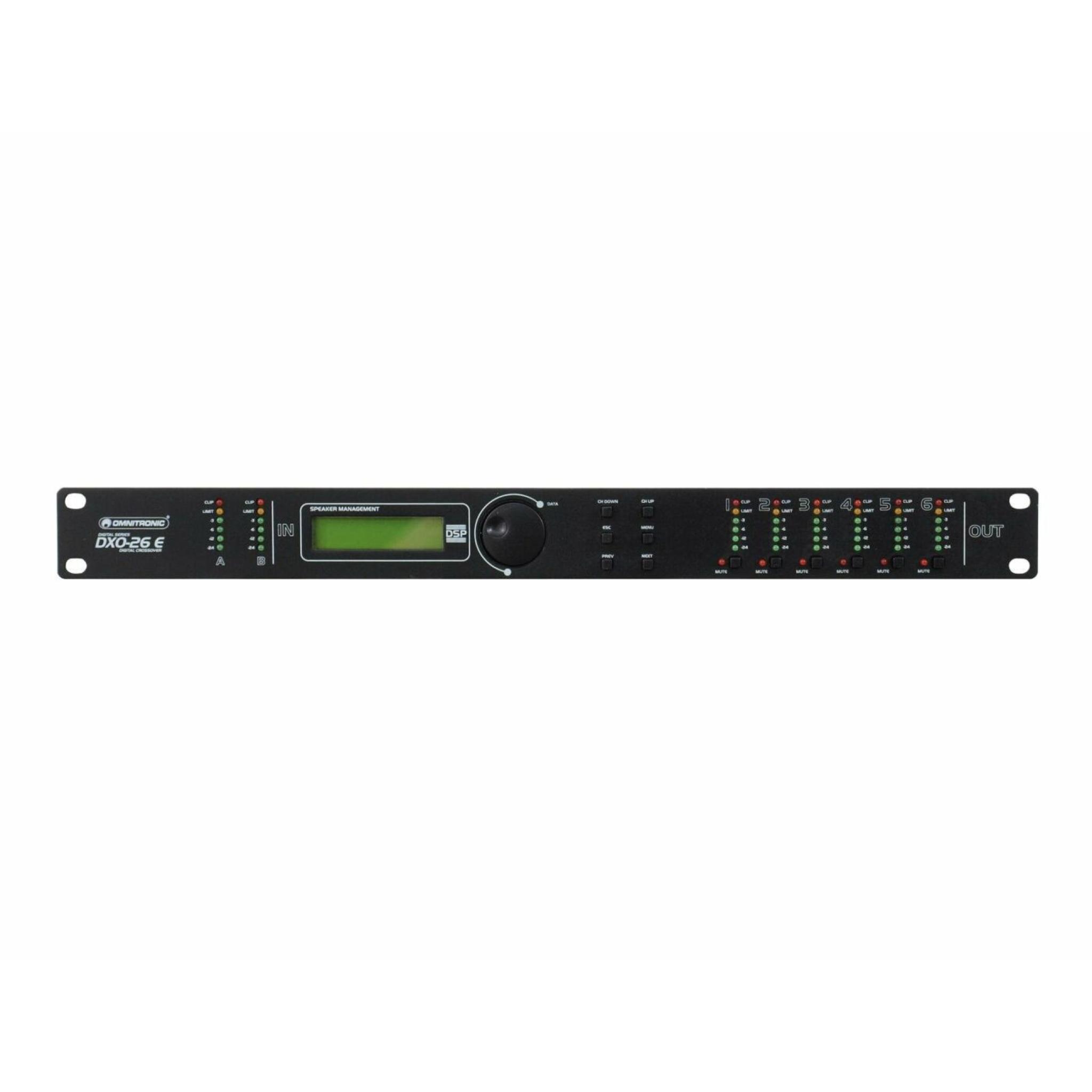

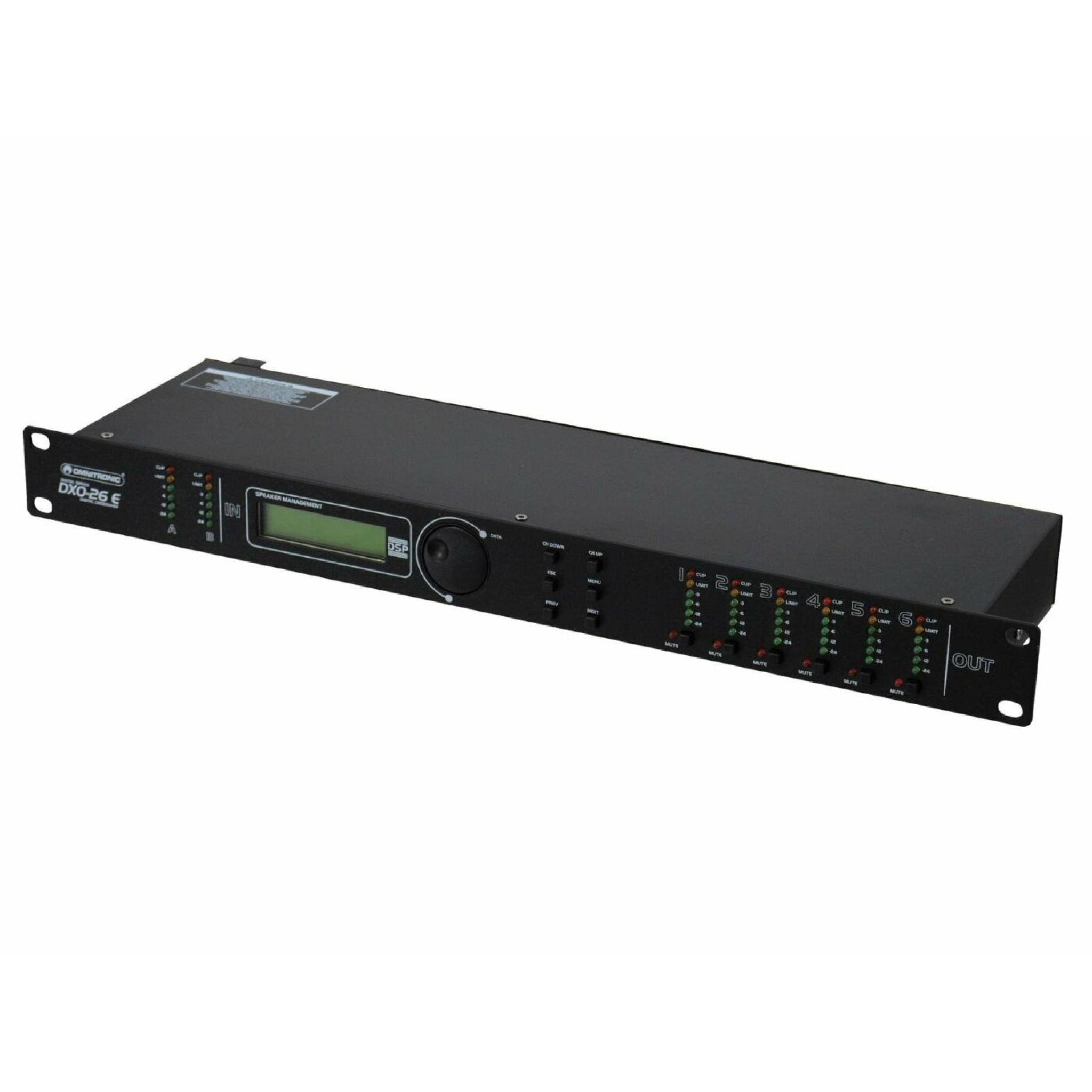

OMNITRONIC DXO-26E Digital Controller

Description

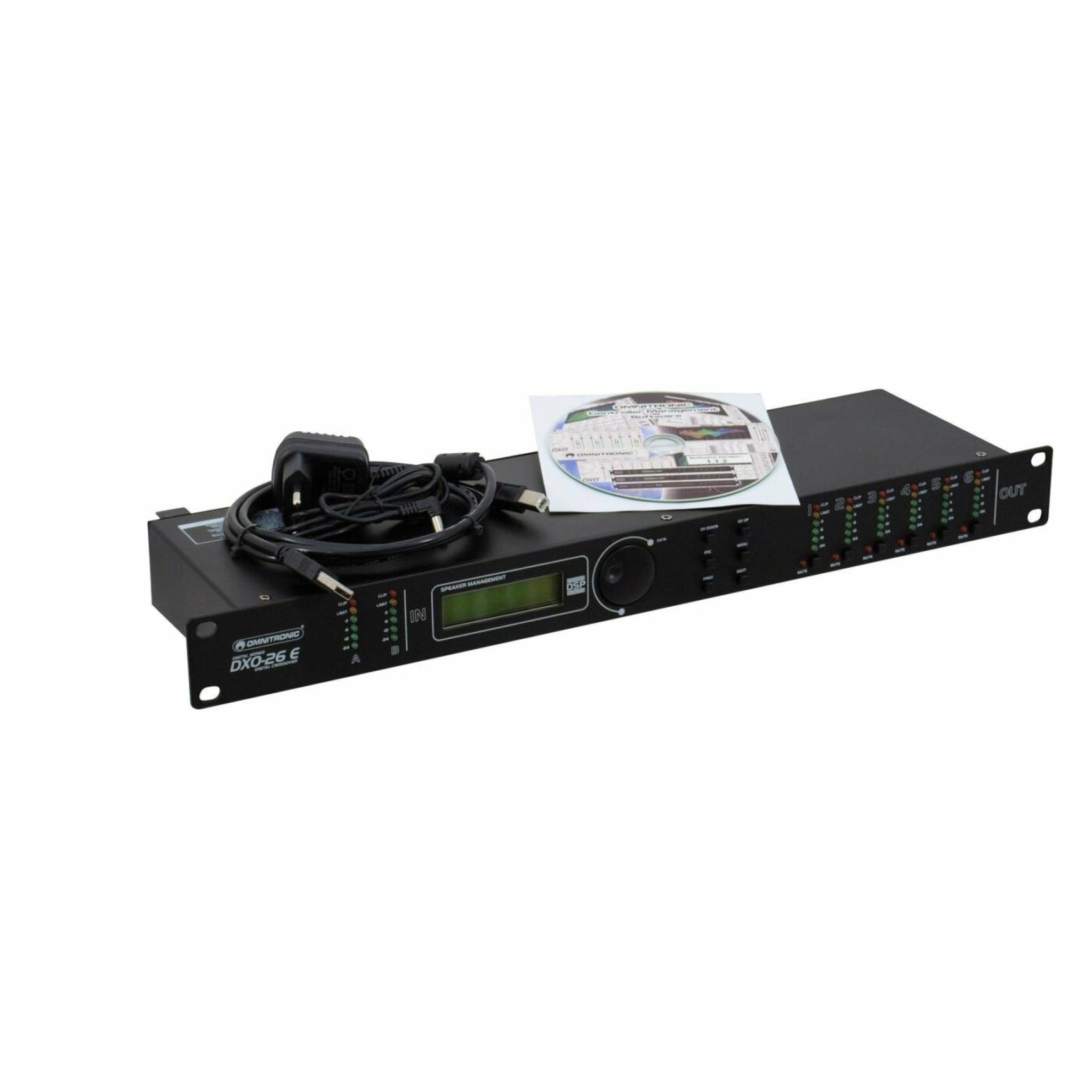

Digital stereo active crossover with 2 inputs and 6 outputs, incl. software

• Flexible routing configurations for all standard mono and stereo output operating modes

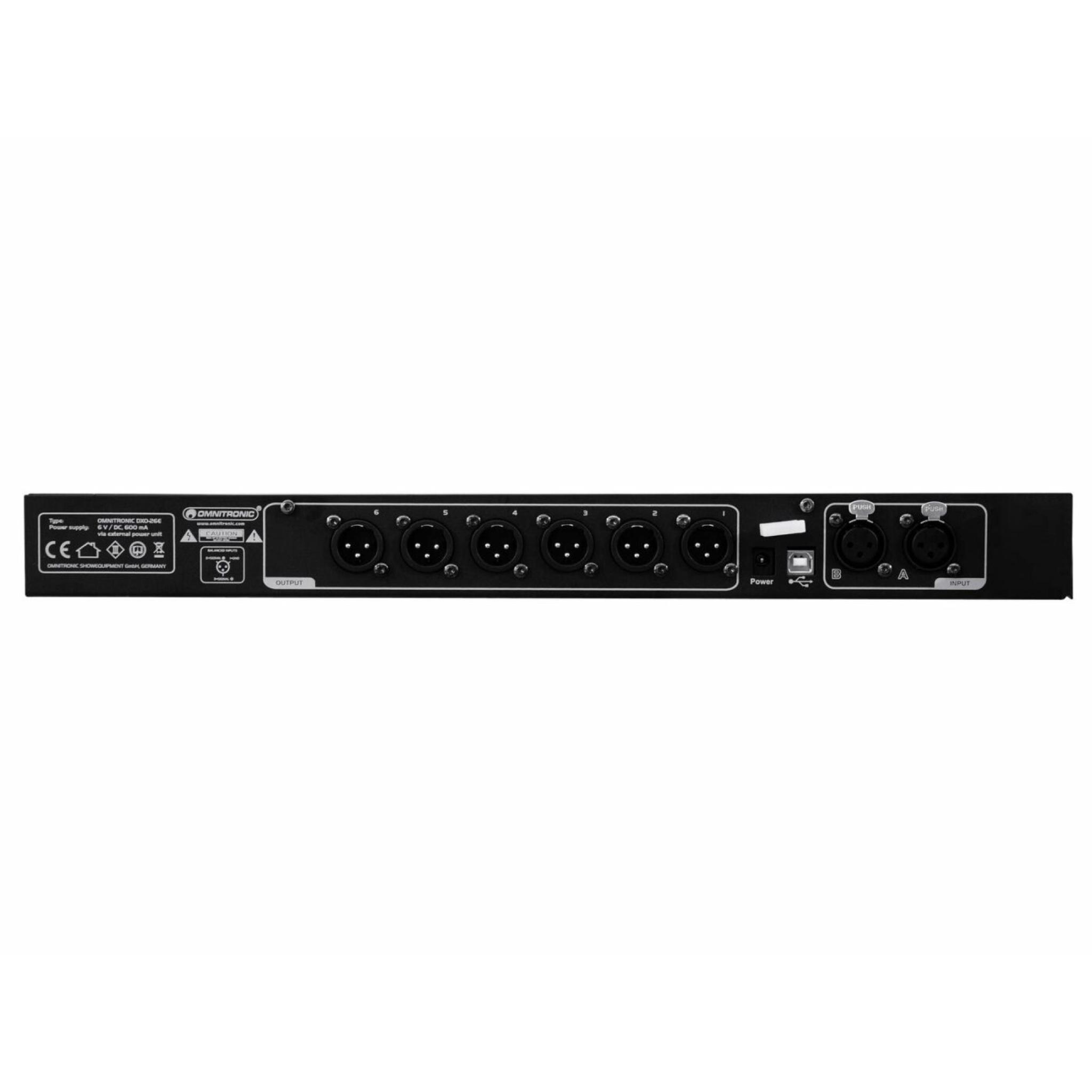

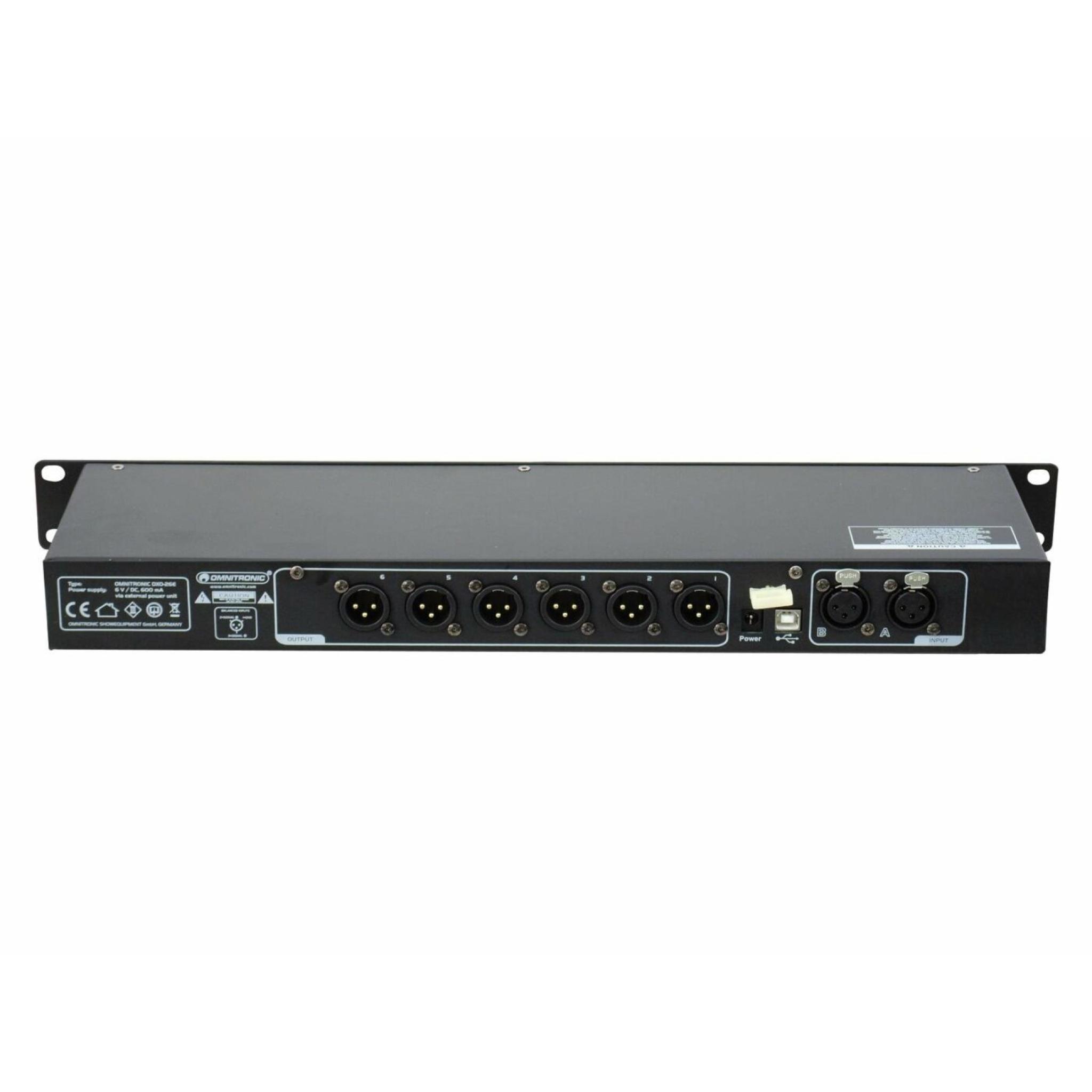

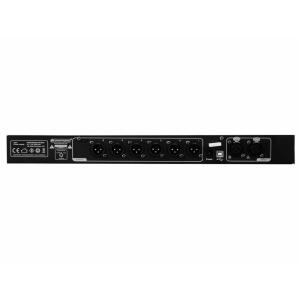

• 2 analog inputs and 6 analog outputs (XLR)
• Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
• Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
• Up to 30 user presets storable in the device via software
• Alphanumeric LCD screen with 2 lines of 16 characters each
• Input sensitivity digitally adjustable
• Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
• Mute switch with LED indicator per output
• 7-band parametric EQ per output
• Up to 7 ms signal delay adjustable for the outputs
• Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
• Switchable phase
• Lock function for protecting the program settings
• Rack installation, 1 U
• Windows XP, Vista, 7 and Mac OS X 10.5.8 and better
