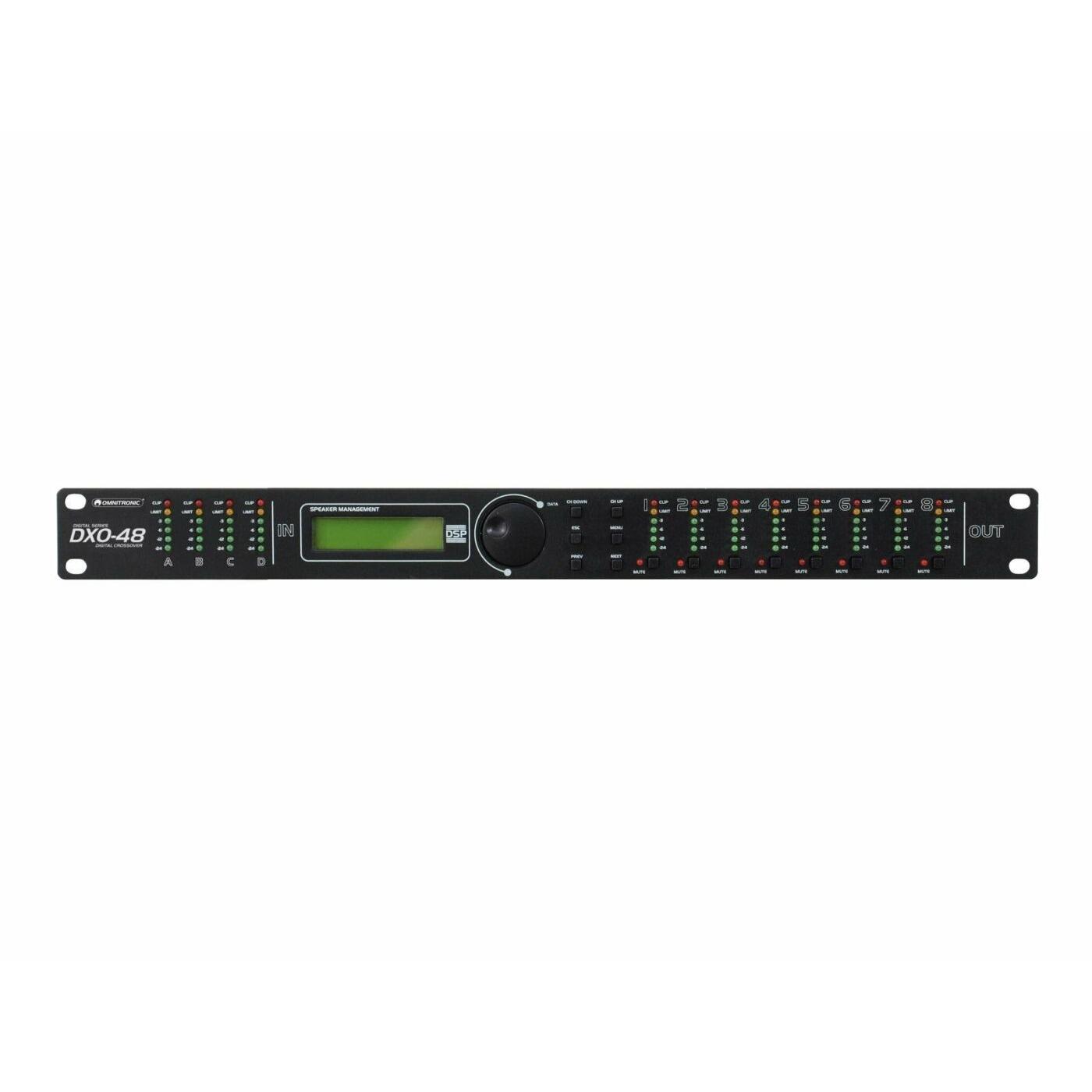

OMNITRONIC DXO-48E Digital Controller
Original price was: €498,61.€357,43Current price is: €357,43.
Description
Digital stereo active crossover with 4 inputs and 8 outputs, incl. software
- Flexible routing configurations for all standard mono and stereo output operating modes

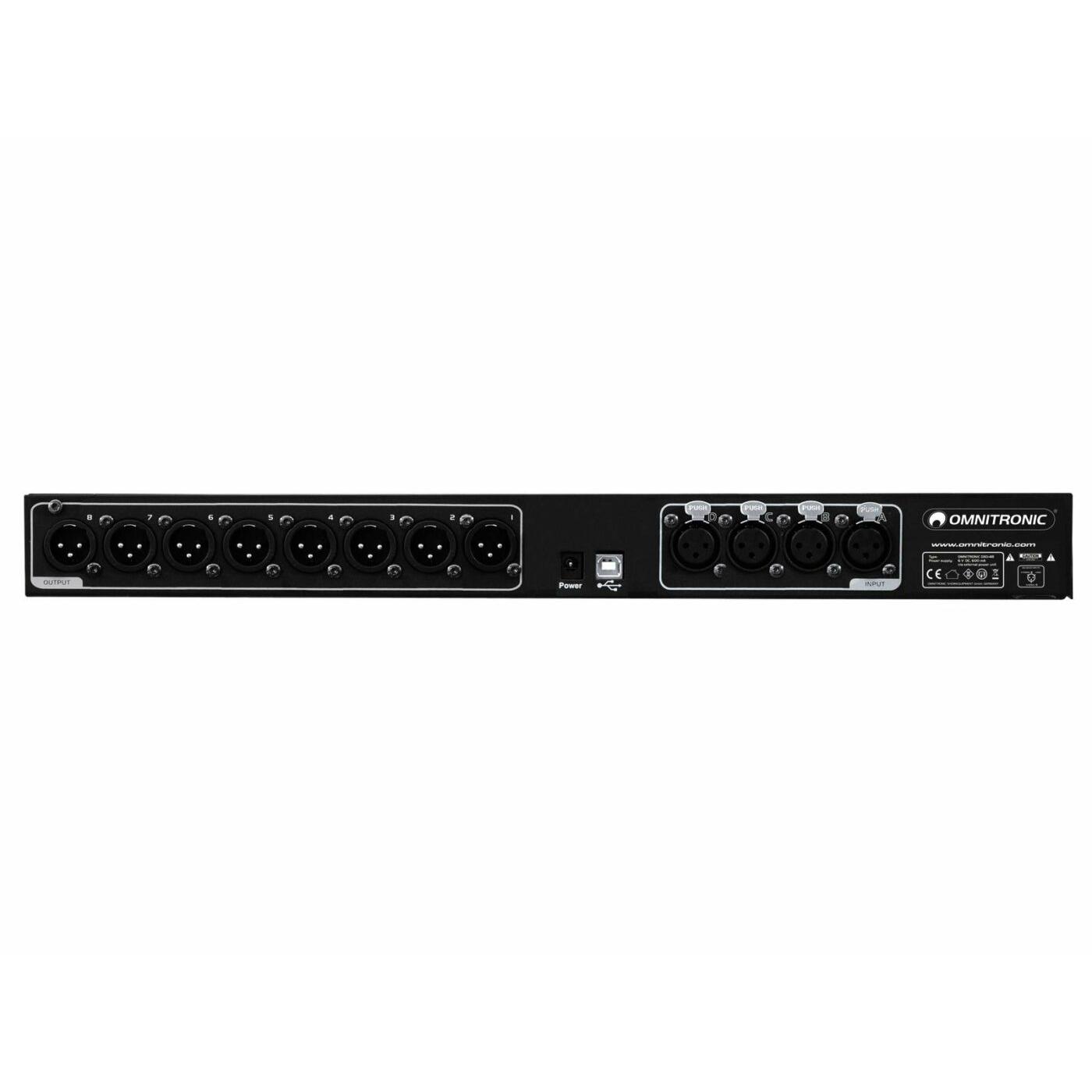

- 4 analog inputs and 8 analog outputs (XLR)
- Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
- Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
- Up to 30 user presets storable in the device via software
- 5 menu languages selectable (German, English, French, Spanish, Dutch)
- Alphanumeric LCD screen with 2 lines of 16 characters each
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
- Mute switch with LED indicator per output
- 7-band parametric EQ per output
- Up to 7 ms signal delay adjustable for the outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- Switchable phase
- Lock function for protecting the program settings
- Rack installation, 1 U
- Windows XP, Vista, 7 and Mac OS X 10.5.8 and better
| Power supply: | 100-240 V AC, 50/60 Hz |
| via power unit included in the delivery | |
| Inputs: | 4 x XLR, balanced |
| Maximum input level: | +22 dBu |
| Input impedance: | 10 kohms |
| Dynamic range: | 114 dBA |
| Outputs: | 8 x XLR, balanced |
| Output impedance: | 50 ohms (electronically balanced) |
| Output gain range: | -50 to +12 dB |
| Maximum output level: | +9 dBu |
| Dynamic range: | 110 dBA |
| Sampling frequency: | 48 kHz |
| Frequency range: | 10-22000 Hz |
| Distortion: | 0.005 % |
| Filter types: | Bessel, Butterworth or Linkwitz-Riley |
| Slopes: | 6, 12, 18 or 24 dB/octave |
| Crossover frequency: | 20-20000 Hz |
| Delay: | 0-5 msec |
| Communication: | USB type B |
| Dimensions (W x D x H): | 482 x 44 x 223 mm |
| Weight: | 1.7 kg |
Specifications
| Weight | 2,106 kg |
|---|---|
| Dimensions | 0,0800 × 0,5250 × 0,2900 m |
| Weight kg | 1,7 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Frequency range Hz | 10 – 22000 |
