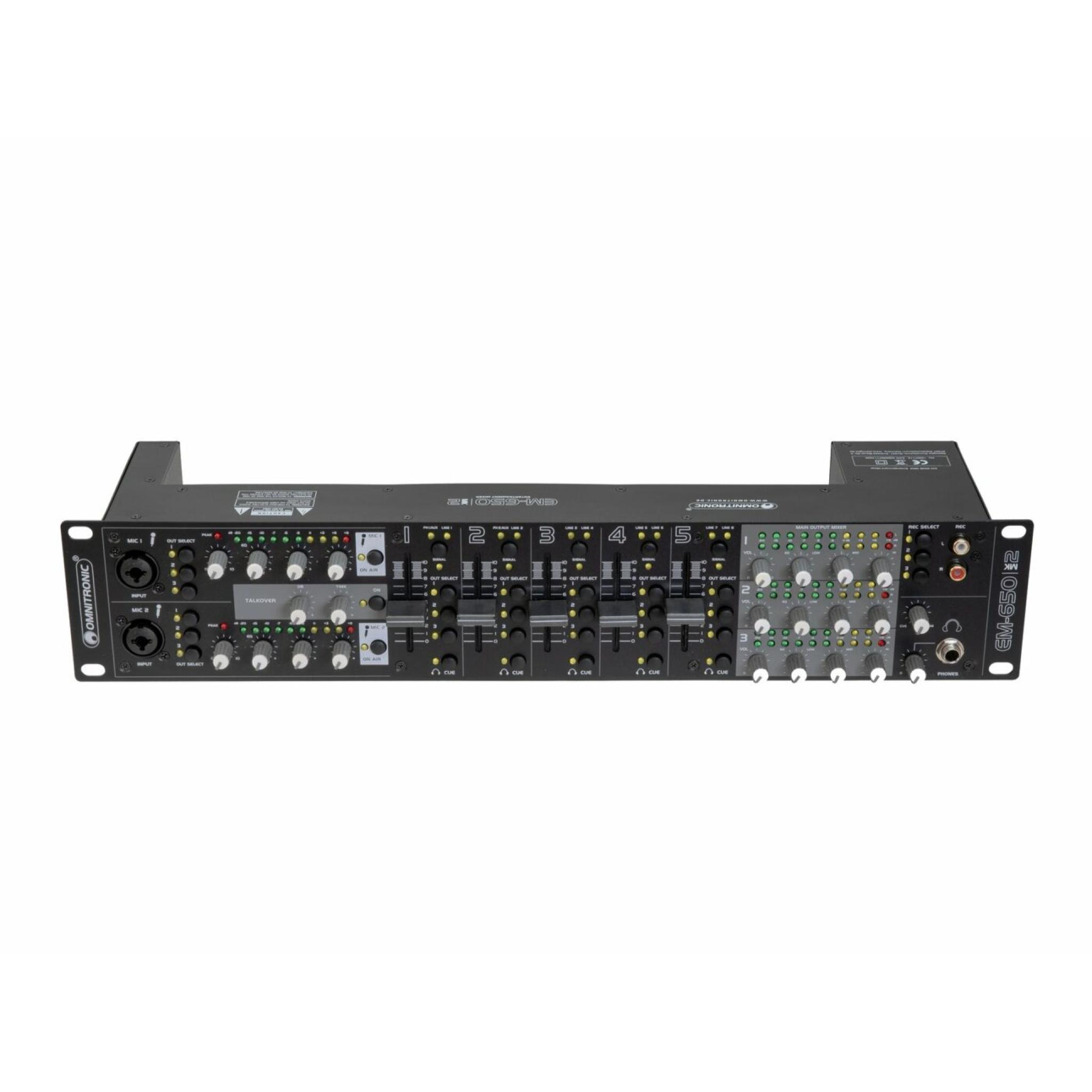

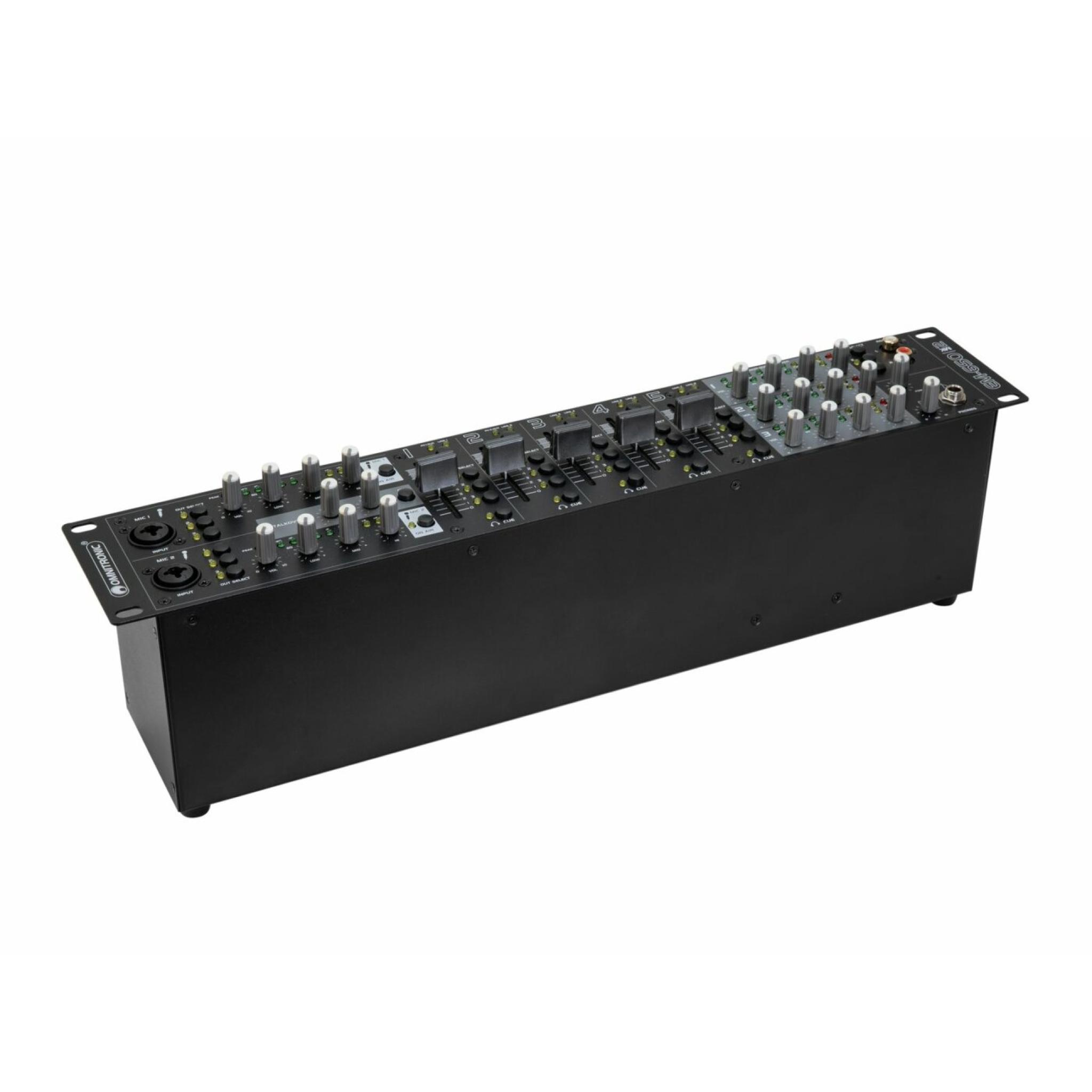

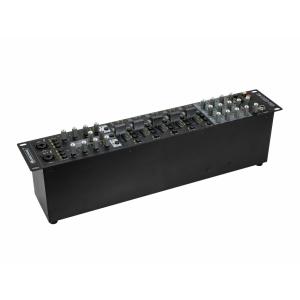

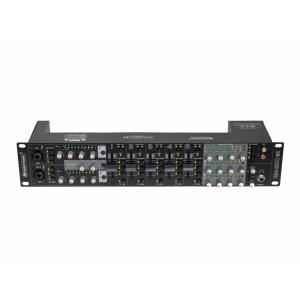

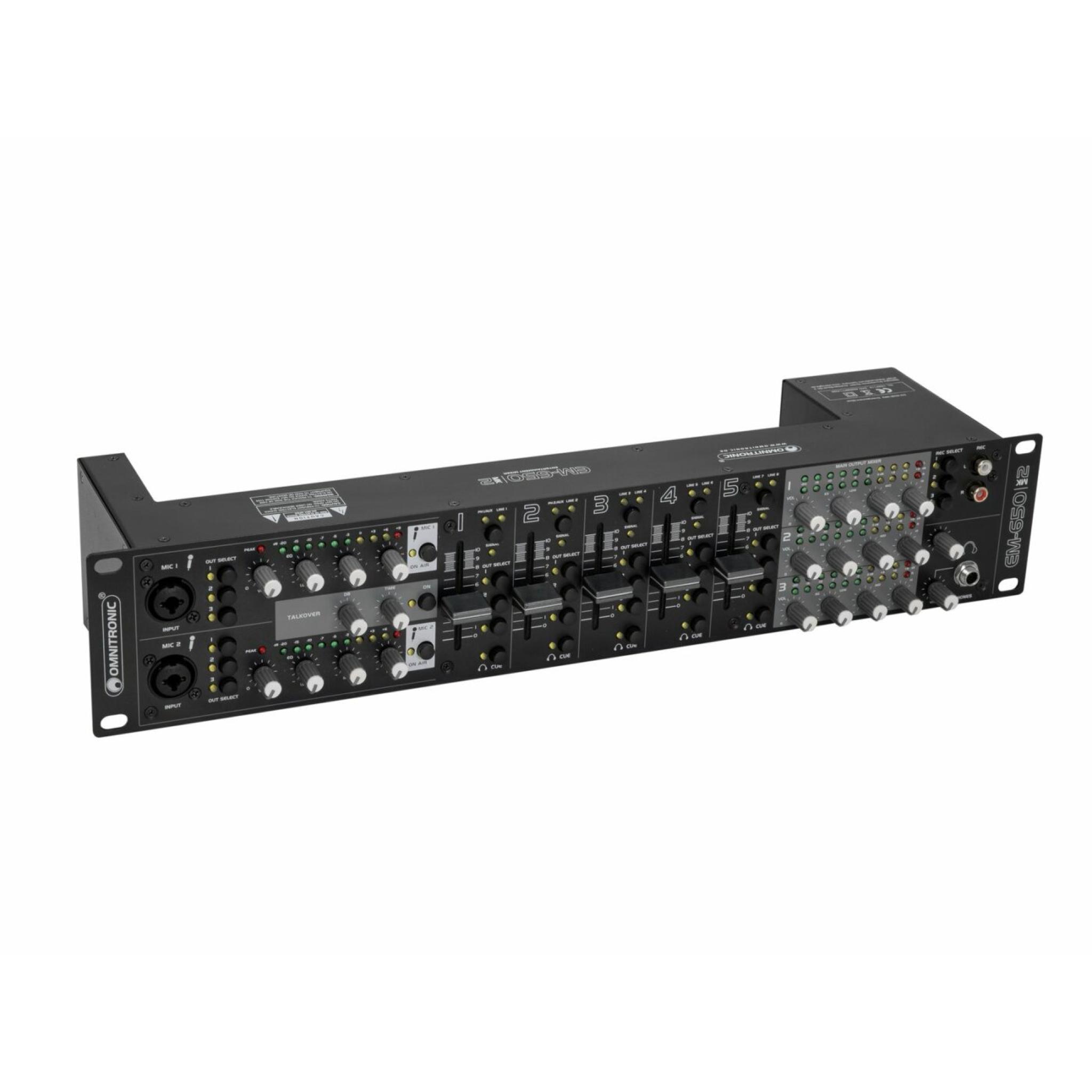

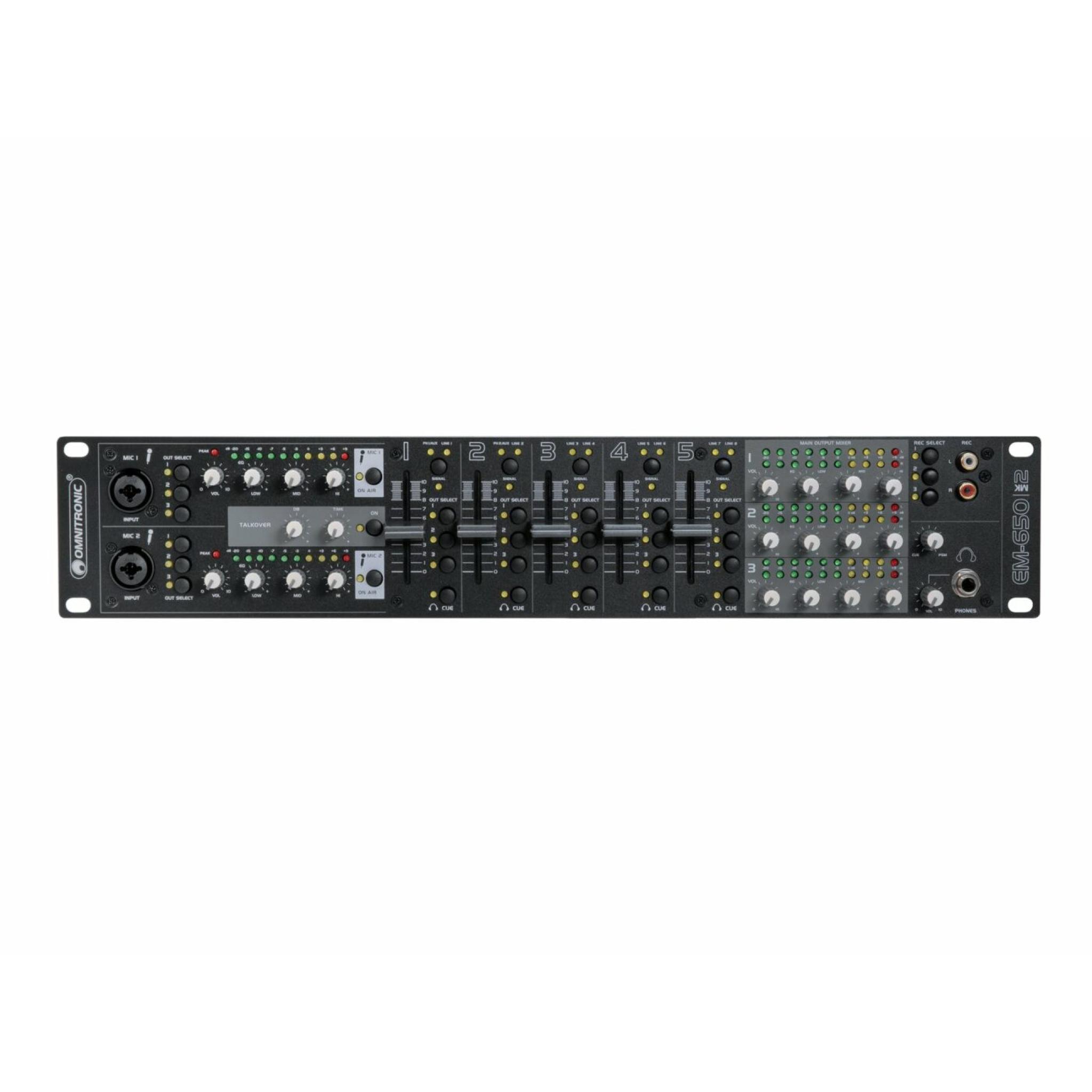

OMNITRONIC EM-650B MK2 Entertainment Mixer
Original price was: €474,81.€297,64Current price is: €297,64.
Description
Multifunctional 5+2-channel mixer with 3 zones, black
- 5 input channels with recessed gain controls on the rear panel, signal LED and smooth channel faders
- 2 separate microphone channels with level control, 3-way equalizer and talkover button
- Talkover level and response time adjustable
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- 3 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter
- 2 record outputs (independent of the master channels) with on/off switch for microphone signals
- 9 line inputs and 2 line/phono inputs via RCA jacks
- 2 microphone inputs via combo jacks (XLR/6.3 mm)
- 3 master outputs (optionally XLR/RCA) and 2 record outputs via RCA jacks
- (19″) 48.3 cm rack installation 2 U
| Power supply: | 230 V AC, 50 Hz |
| Protection class: | Protection class II |
| Power connection: | Power supply cord with Euro plug (provided) |
| Frequency range: | 20 – 20000 Hz |
| S/N ratio: | >60 dB line >70 dB phono |
| THD: | Line/phono <0,02 % at 1 kHz |
| Gain: | Microphone 52 dB Line 17 dB Phono 53 dB |
| Housing color: | Black |
| Control elements: | Power switch, regular talkover, source selector |
| Status LED: | Signal, chanal level meter, master level meter, peak, chanal source; CUE, Talkover, ON AIR, Routing |

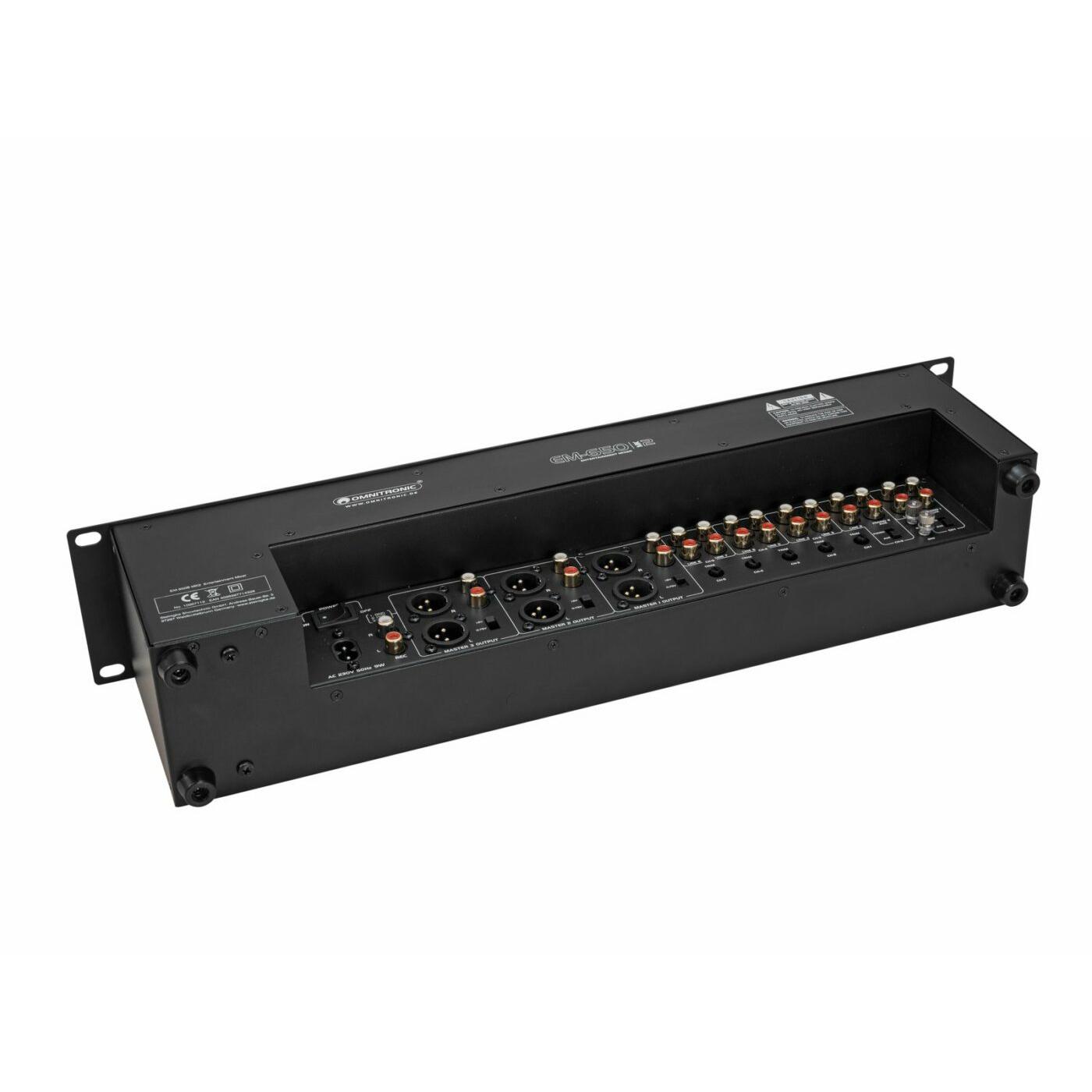

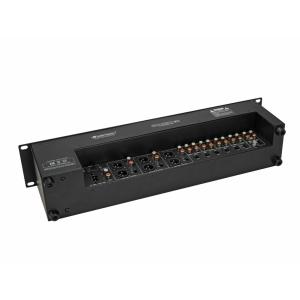

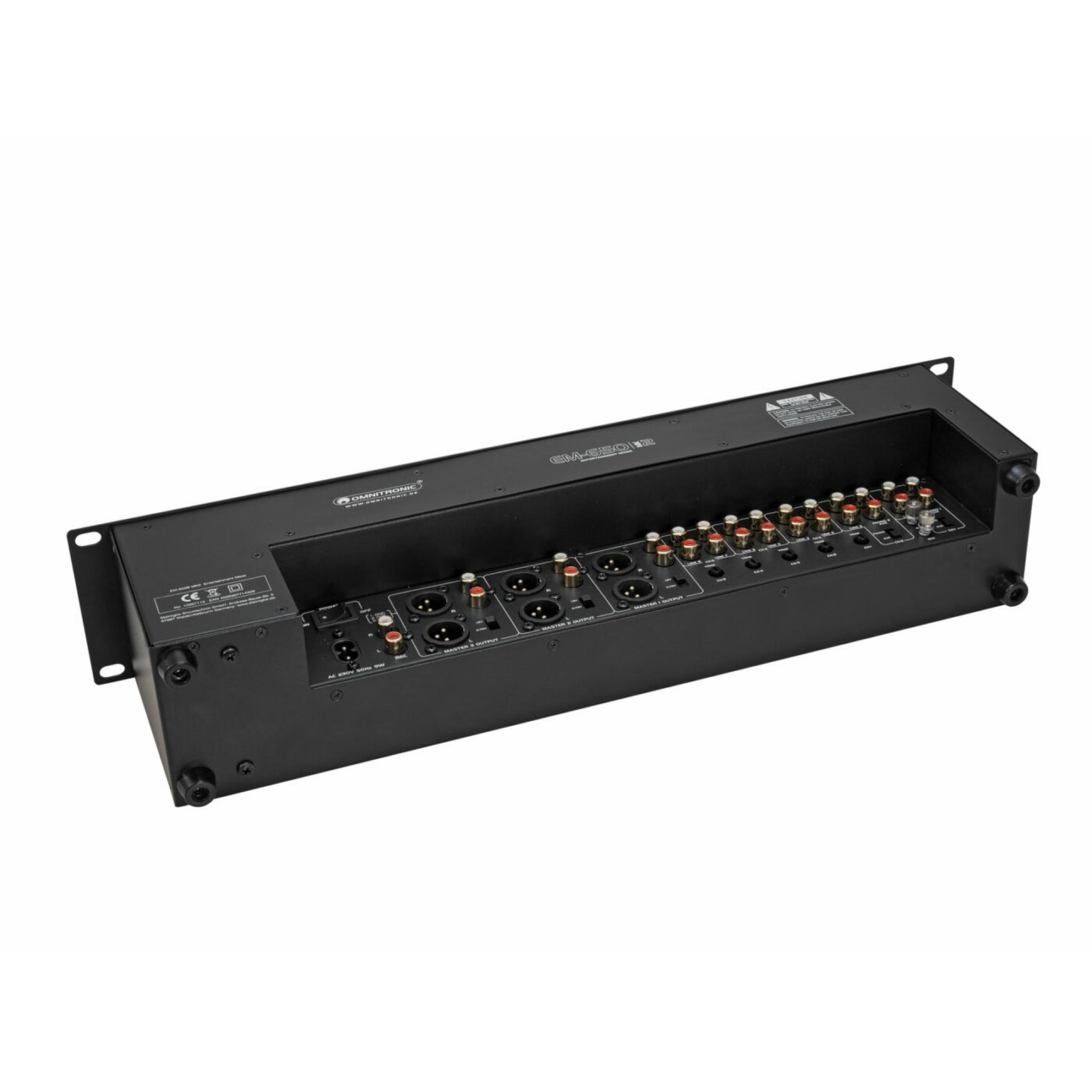

| Connections: | Output: master via 3 x stereo RCA Input: line/phono via 2 x stereo RCA Input: Microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 9 x stereo RCA Output: master via 3 x 3-pin XLR Output: master via 3 x stereo RCA Rec. via 2 x stereo RCA Output: headphones via 1 x 6.3-mm-jack (bal.) |
| Input channels: | 2 x stereo with line-phono switch via RCA, channel control via fader 3 x stereo via RCA, channel control via fader 2 x mono via XLR or jack |
| Housing design: | (19″) 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 14,8 cm Height: 8,9 cm |
| Weight: | 3,00 kg |
Specifications
| Weight | 4 kg |
|---|---|
| Dimensions | 0,1820 × 0,4960 × 0,1360 m |
| EAN | 4026397714326 |
