Sale!

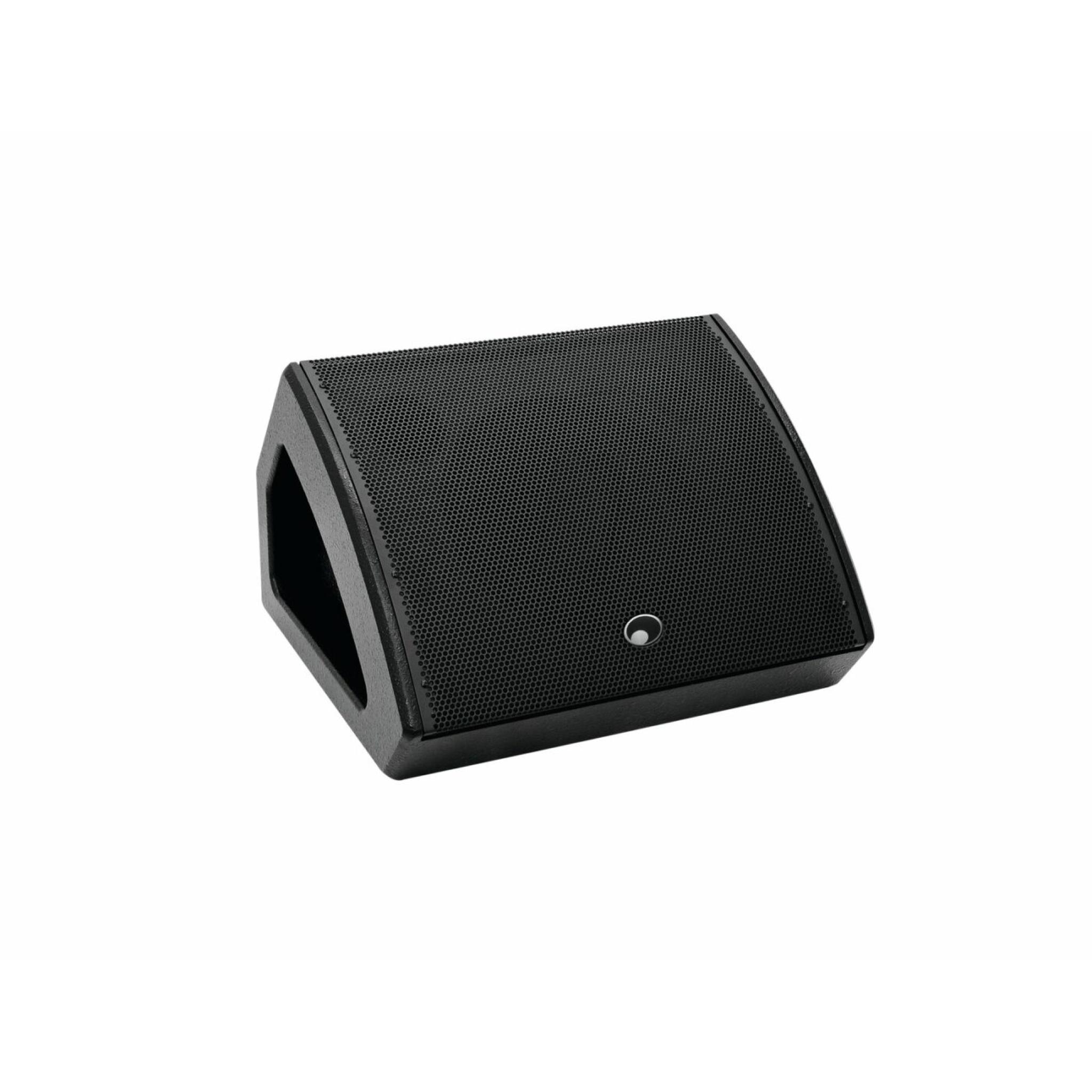

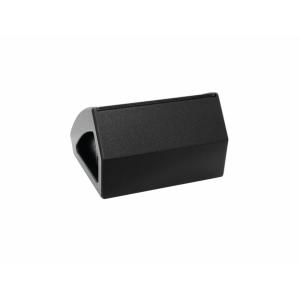

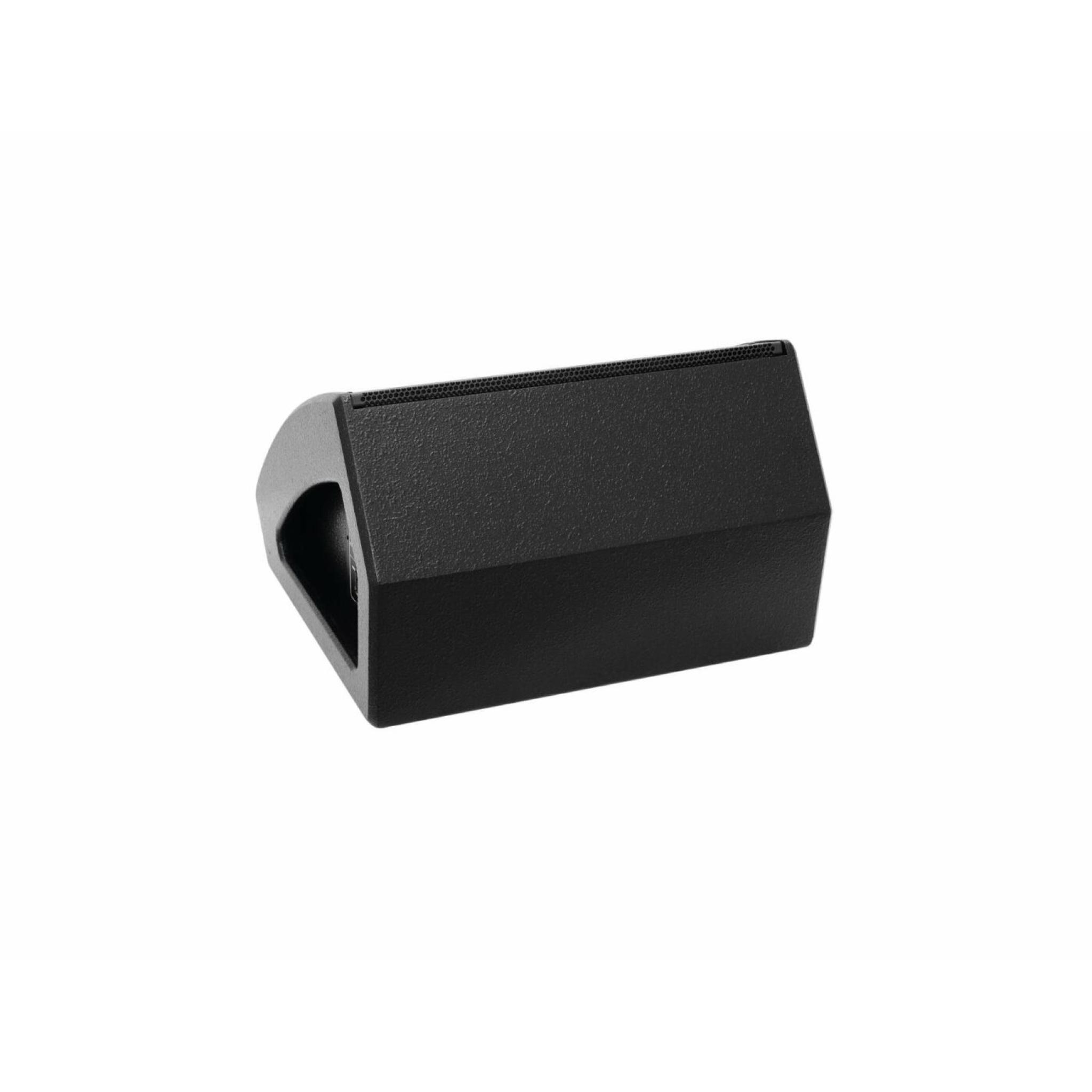

OMNITRONIC KM-110A Active Stage Monitor, coaxial
Original price was: €343,91.€254,30Current price is: €254,30.
Description
Monitor, 10″ woofer, 1,35″ driver, LF: 150 W RMS, HF: 50 W RMS
- Active 2-way coaxial stage monitor for live and playback applications
- Class D/AB biamp power amplifier
- Power output LF: 150 W RMS
- Power output HF: 50 W RMS
- 25 cm bass speaker (10″) and 3.5 cm compression driver (1.35″)
- 80° x 80° nominal coverage
- Bassreflex cabinet provides deep bass and high SPL

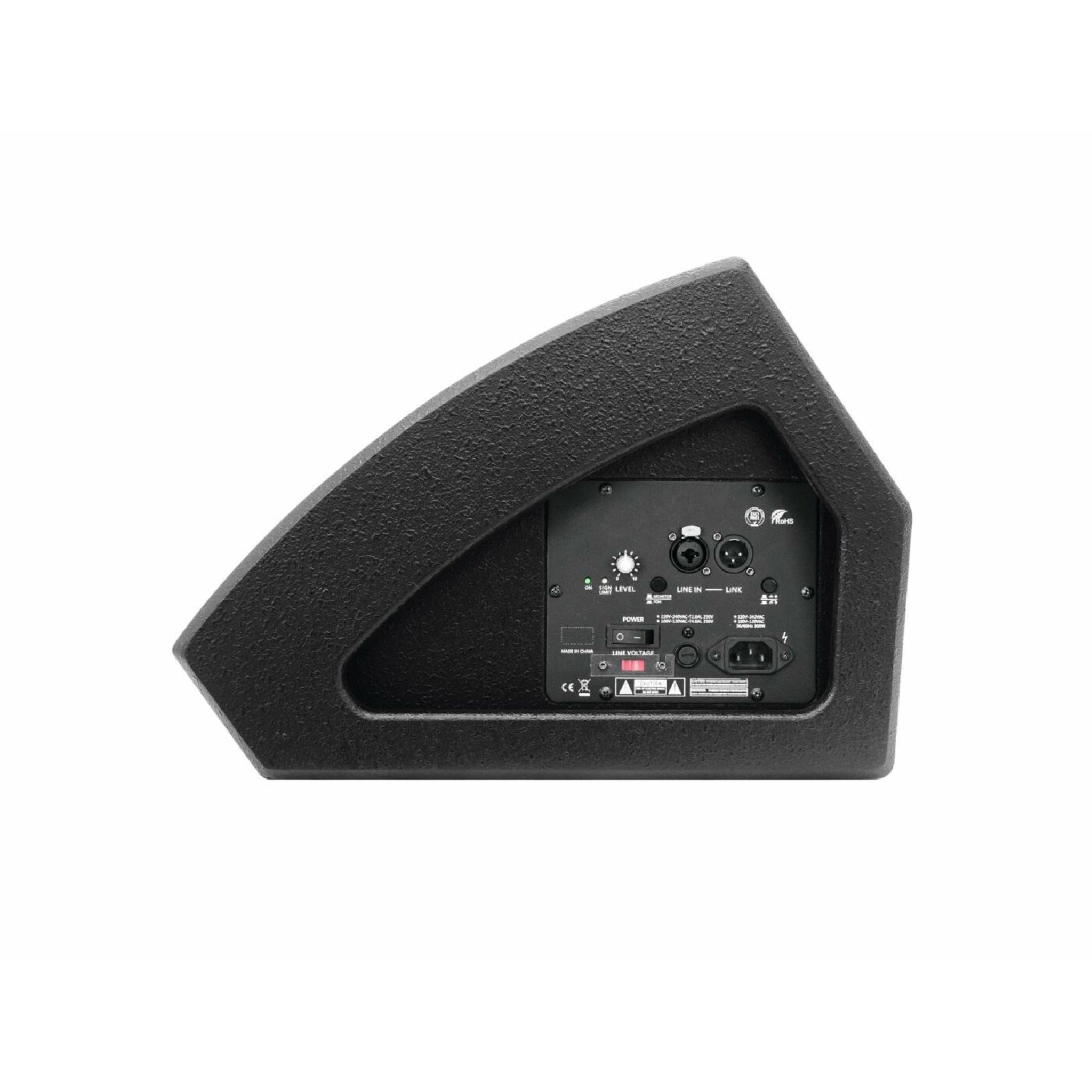

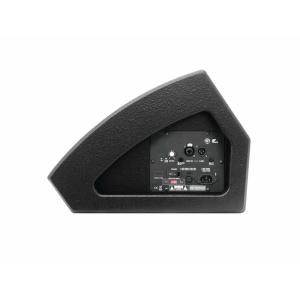

- Line input (XLR/6.3 mm jack)
- Parallel output (XLR) for linking further active speaker systems
- Low cut, volume control
- Dual limiter and overload protection
- Rugged MDF housing with scratch-resistant lacquer surface and impact-resistant steel grille

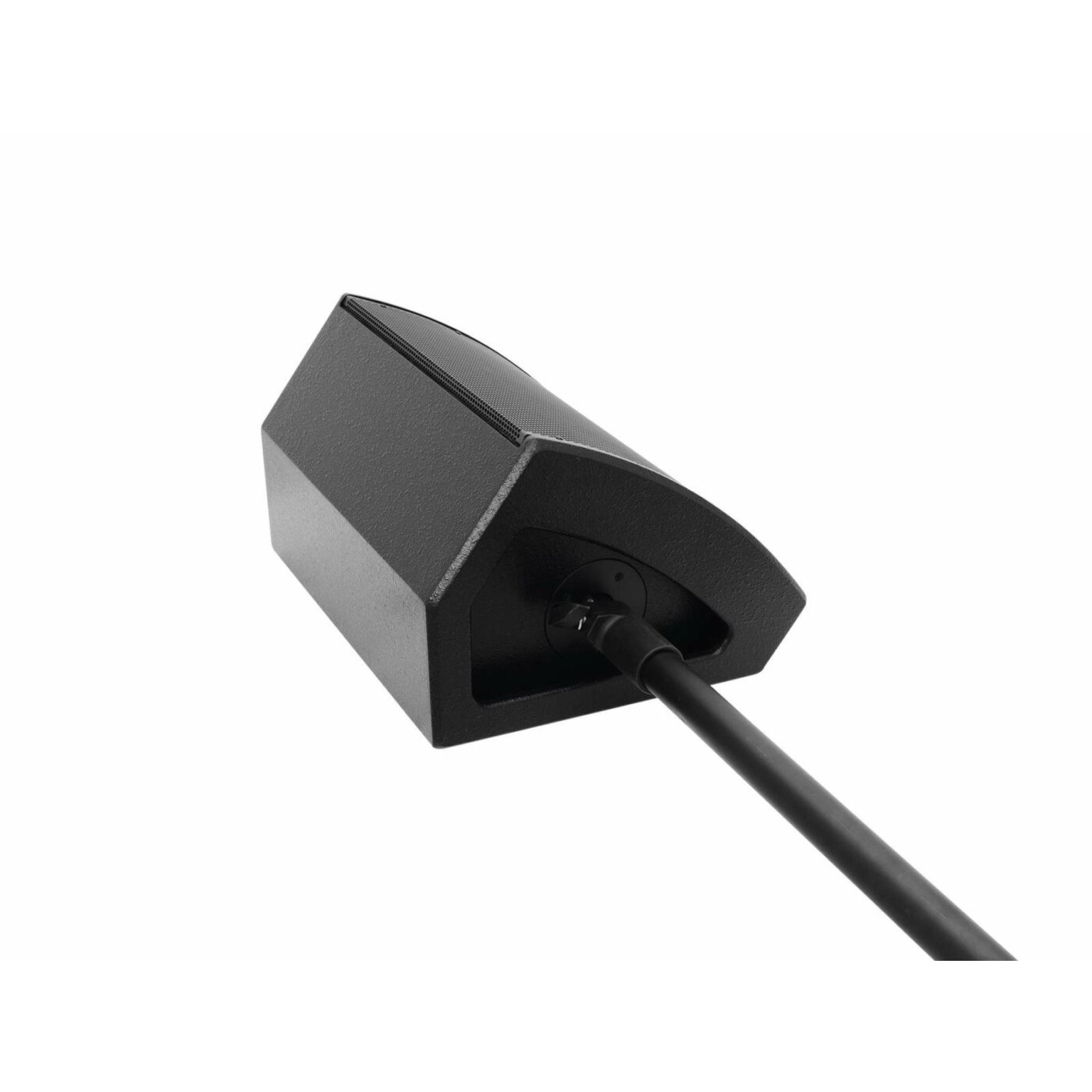

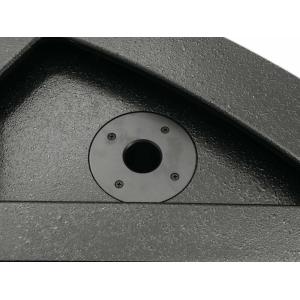

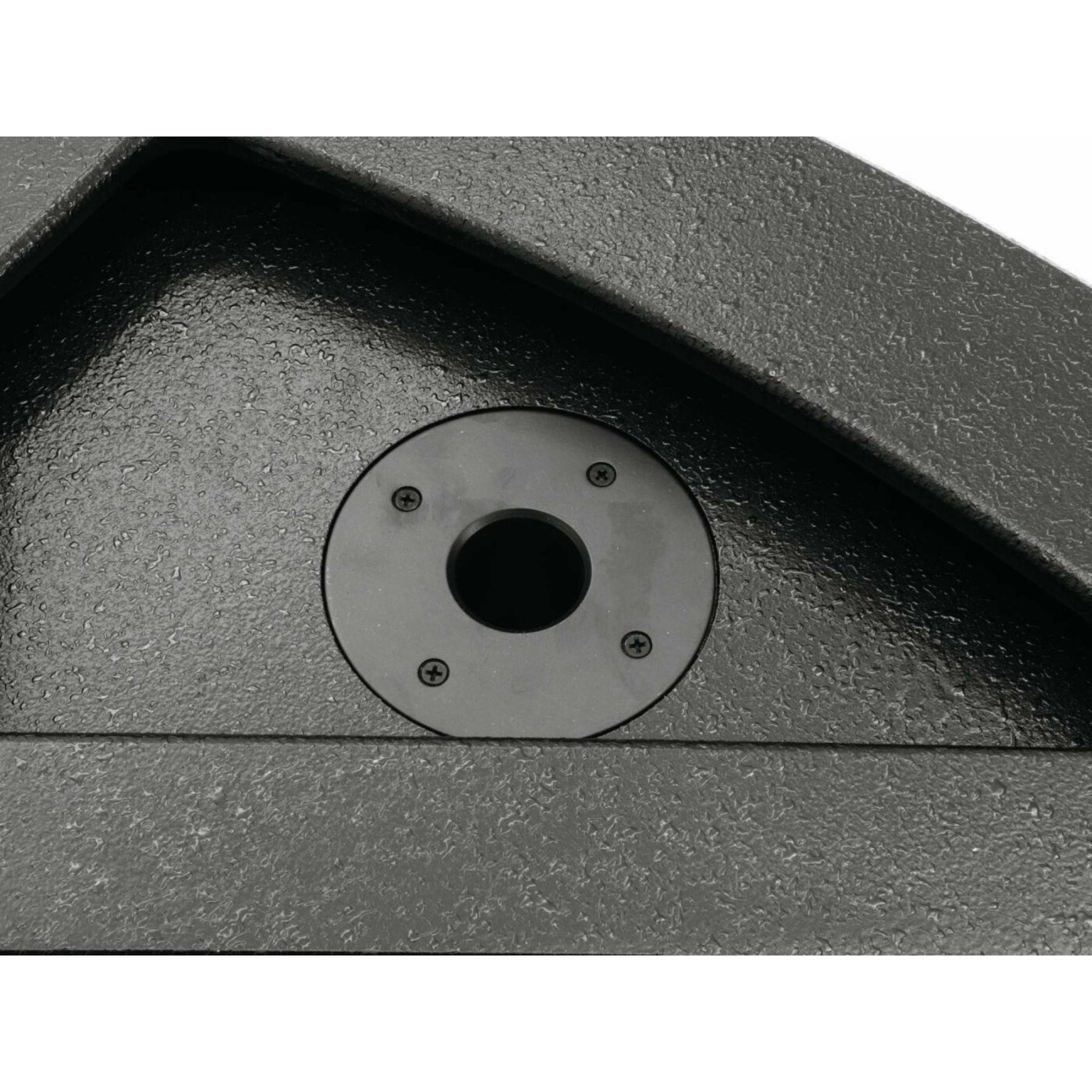

- Flange for stand installation
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 80 W (1/8 power) |
| Amplifier power: | LF: 150 W RMS, HF: 50 W RMS |
| Components: | 25 cm woofer (10″), 3.5 cm driver (1.35″) |
| Input: | combination XLR/6.3 mm jack |
| Parallel output: | XLR |
| Frequency range: | 60-20000 Hz |
| Maximum SPL: | 121 dB |
| Dispersion angle: | 80° x 80° |
| Dimensions (H x W x D): | 420 x 480 x 300 mm |
| Weight: | 11 kg |
Specifications
| Weight | 15,85 kg |
|---|---|
| Dimensions | 0,5400 × 0,4600 × 0,4100 m |
| Gewicht (kg) | 11 |
| Weight kg | 11 |
| Application use | Stage monitor |
| Program power W | 300 |
| Rated power W RMS | 150 |
| Frequency range Hz | 60 – 20000 |
| Power consumption W | 80 |
| Power supply | 115/230 V AC, 50/60 Hz |
| Size of woofer | 25 cm (10") |
| Active/Passiv | Active |
| Actief-Passief | Actief |
| Speakerdiameter (inch) | 10 |
| Speakerdiameter HF (inch) | 1.35 |
| Max SPL (dB) | 121 |
| Microfoonaansluiting | N |
| Afmetingen (BxDxH) mm | 420 x 480 x 300 mm |
| Aansluitingen | XLR 3-pin |
| Versterkervermogen | LF: 150 W RMS, HF: 50 W RMS |
| Frequentiebereik | 60-20000 Hz |
| Afstraling | 80° x 80° |
