OMNITRONIC KM-115A Active Stage Monitor coaxial
Original price was: €474,81.€355,82Current price is: €355,82.
Description
Monitor, 15″ woofer, 1,35″ driver, LF: 250 W RMS, HF: 50 W RMS

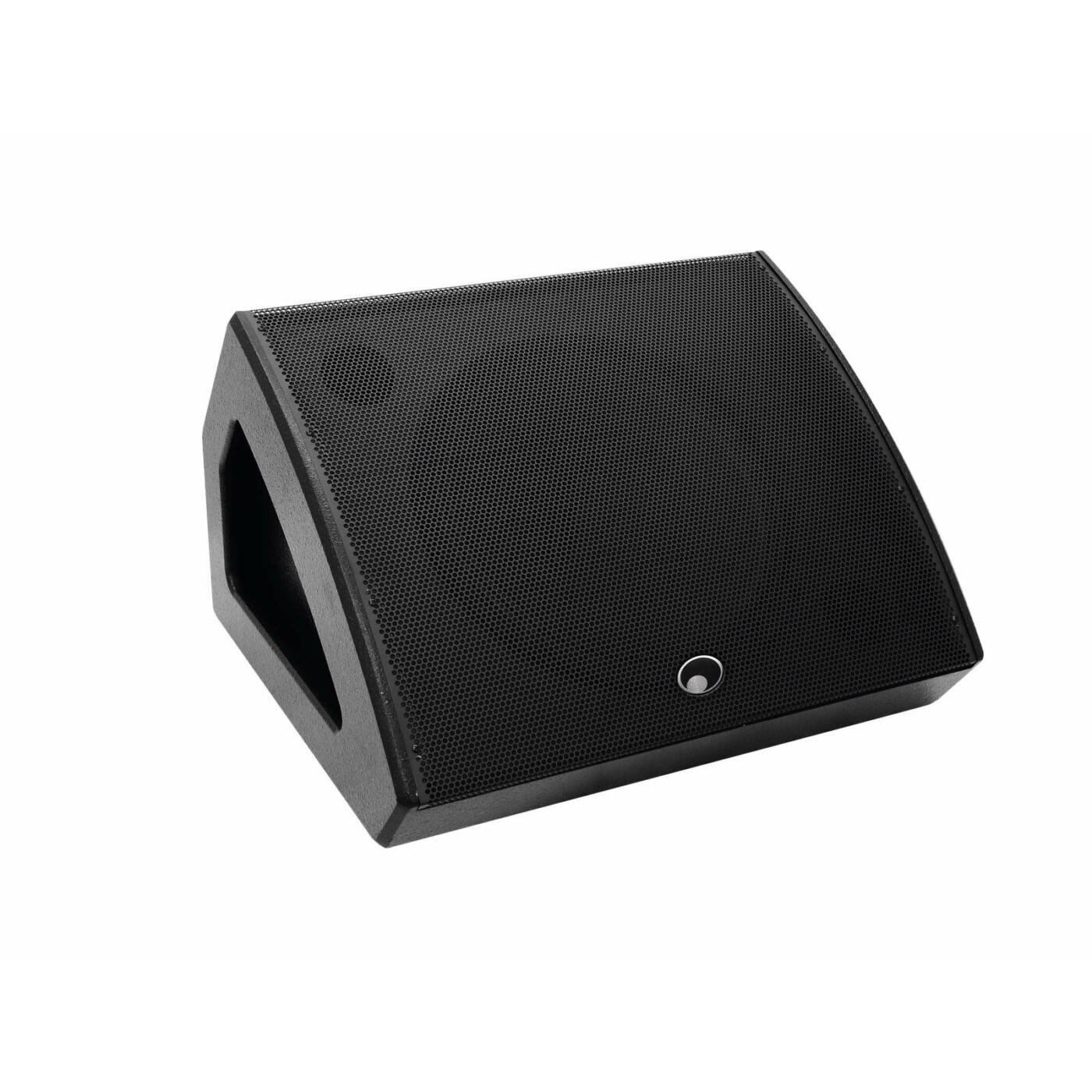

- Active 2-way coaxial stage monitor for live and playback applications
- Class D/AB biamp power amplifier
- Power output LF: 250 W RMS
- Power output HF: 50 W RMS
- 38 cm bass speaker (15″) and 3.5 cm compression driver (1.35″)
- 60° x 60° nominal coverage
- Bassreflex cabinet provides deep bass and high SPL

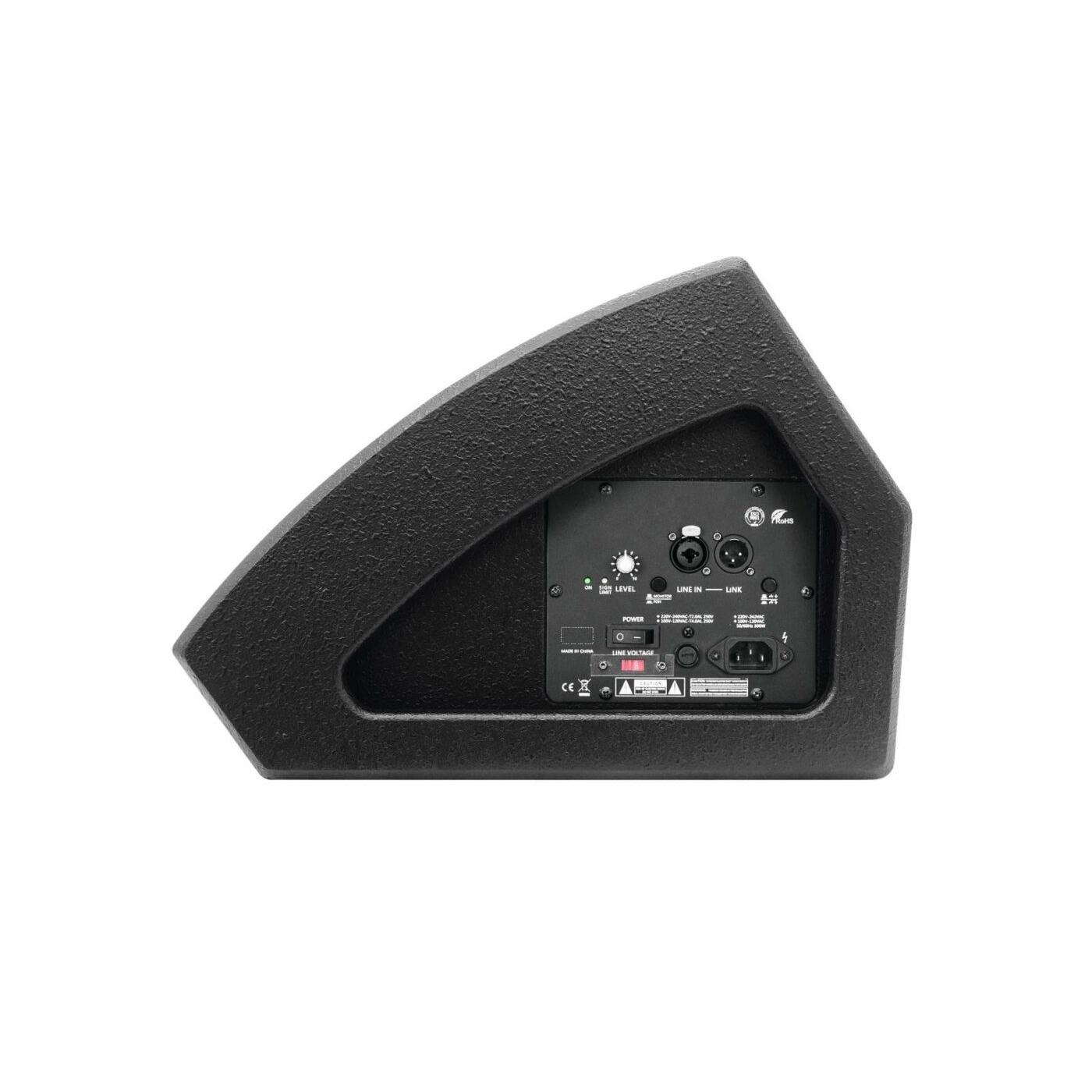

- Line input (XLR/6.3 mm jack)
- Parallel output (XLR) for linking further active speaker systems
- Low cut, volume control
- Dual limiter and overload protection
- Rugged MDF housing with scratch-resistant lacquer surface and impact-resistant steel grille

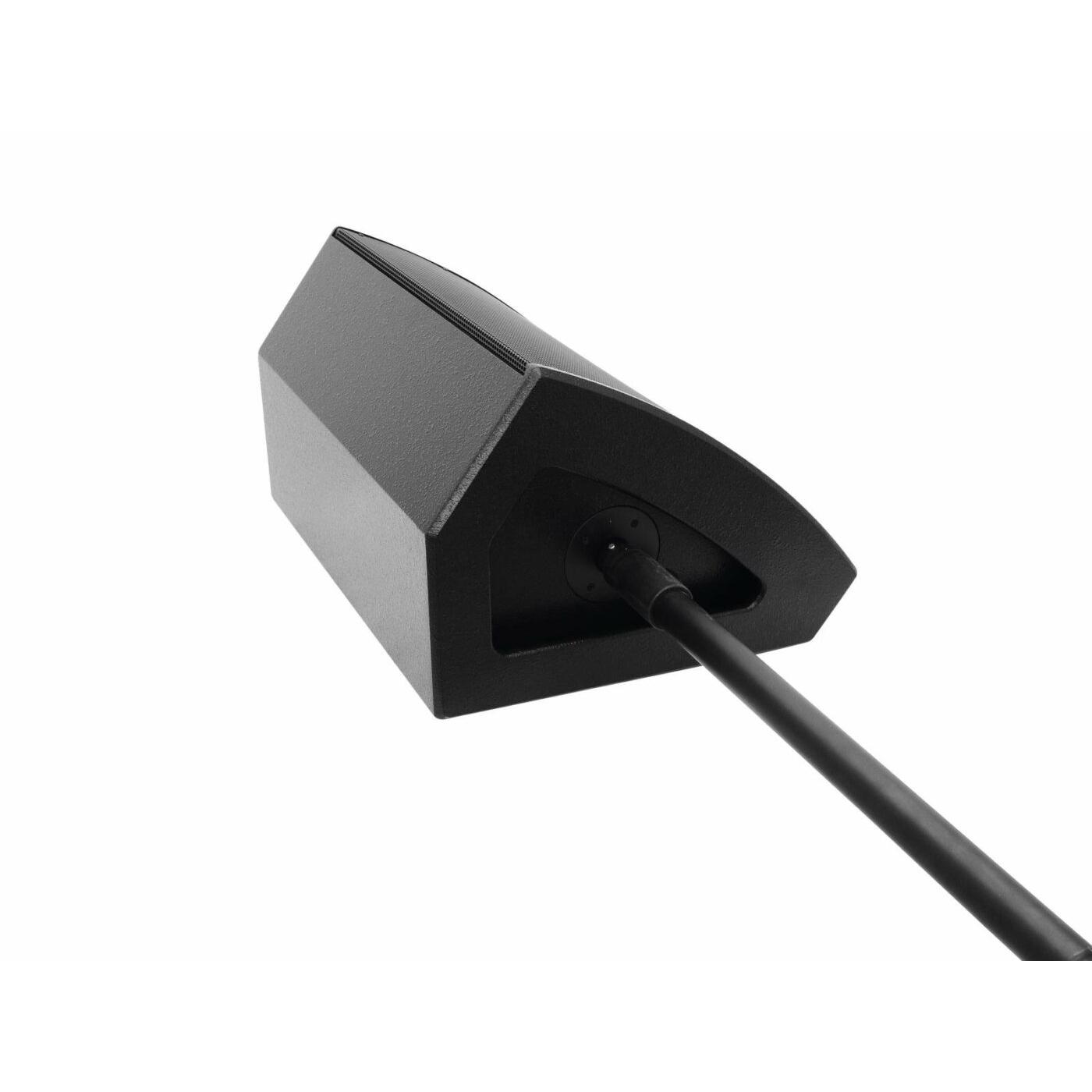

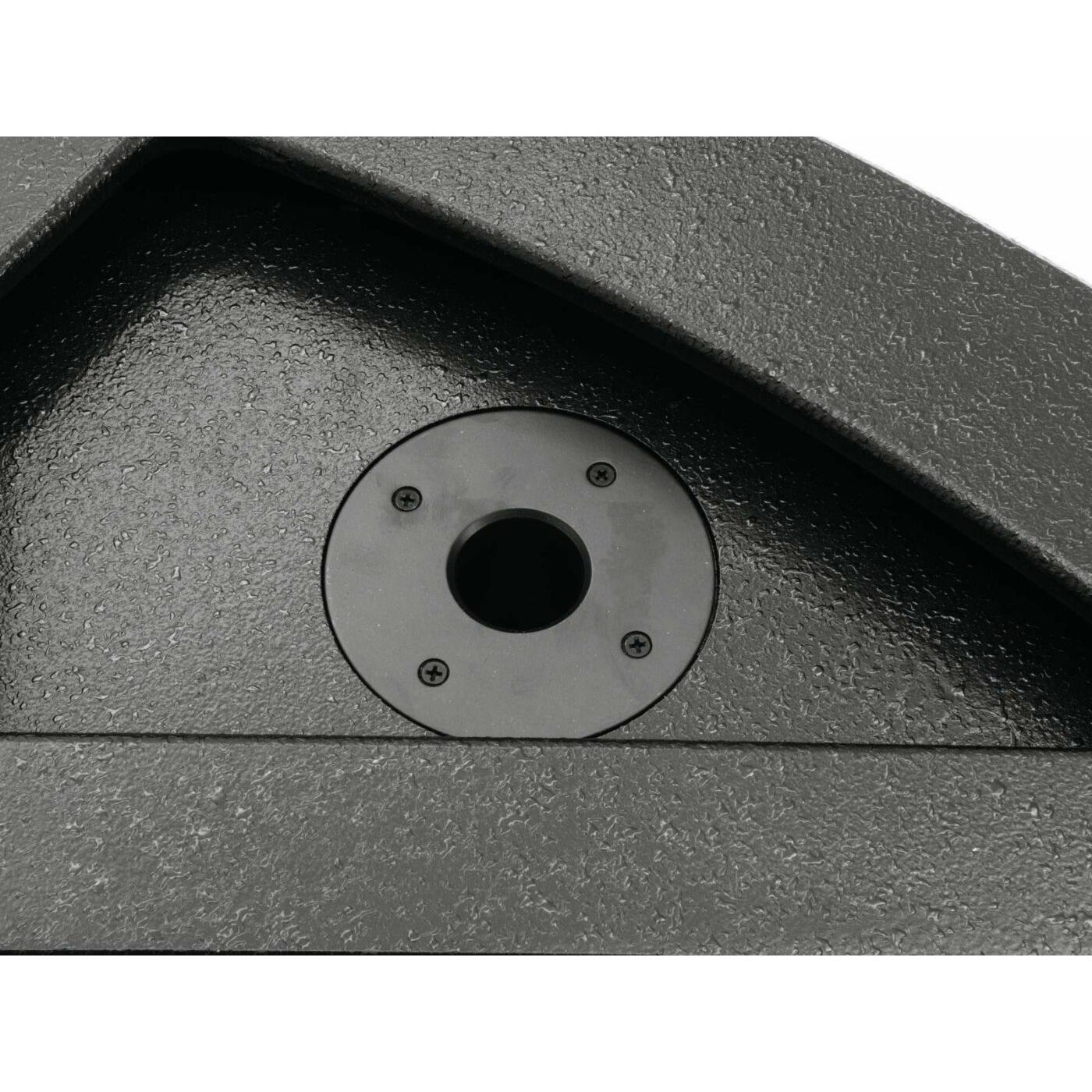

- Flange for stand installation
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 300 W (1/8 power) |
| Amplifier power: | LF: 250 W RMS, HF: 50 W RMS |
| Components: | 38 cm woofer (15″), 3.5 cm driver (1.35″) |
| Input: | combination XLR/6.3 mm jack |
| Parallel output: | XLR |
| Frequency range: | 45-20000 Hz |
| Maximum SPL: | 124 dB |
| Dispersion angle: | 60° x 60° |
| Dimensions (H x W x D): | 510 x 600 x 370 mm |
| Weight: | 18 kg |
Specifications
| Weight | 26,2 kg |
|---|---|
| Dimensions | 0,6700 × 0,5800 × 0,4800 m |
| Gewicht (kg) | 18 |
| Weight kg | 1,8 |
| Application use | Stage monitor |
| Program power W | 500 |
| Rated power W RMS | 250 |
| Frequency range Hz | 45 – 20000 |
| Power consumption W | 300 |
| Power supply | 115/230 V AC, 50/60 Hz |
| Size of woofer | 38 cm (15") |
| Active/Passiv | Active |
| Actief-Passief | Actief |
| Speakerdiameter (inch) | 15 |
| Speakerdiameter HF (inch) | 1.35 |
| Max SPL (dB) | 124 |
| Microfoonaansluiting | N |
| Afmetingen (BxDxH) mm | 510 x 600 x 370 mm |
| Aansluitingen | XLR 3-pin |
| Versterkervermogen | LF: 250 W RMS, HF: 50 W RMS |
| Frequentiebereik | 45-20000 Hz |
| Afstraling | 60° x 60° |
