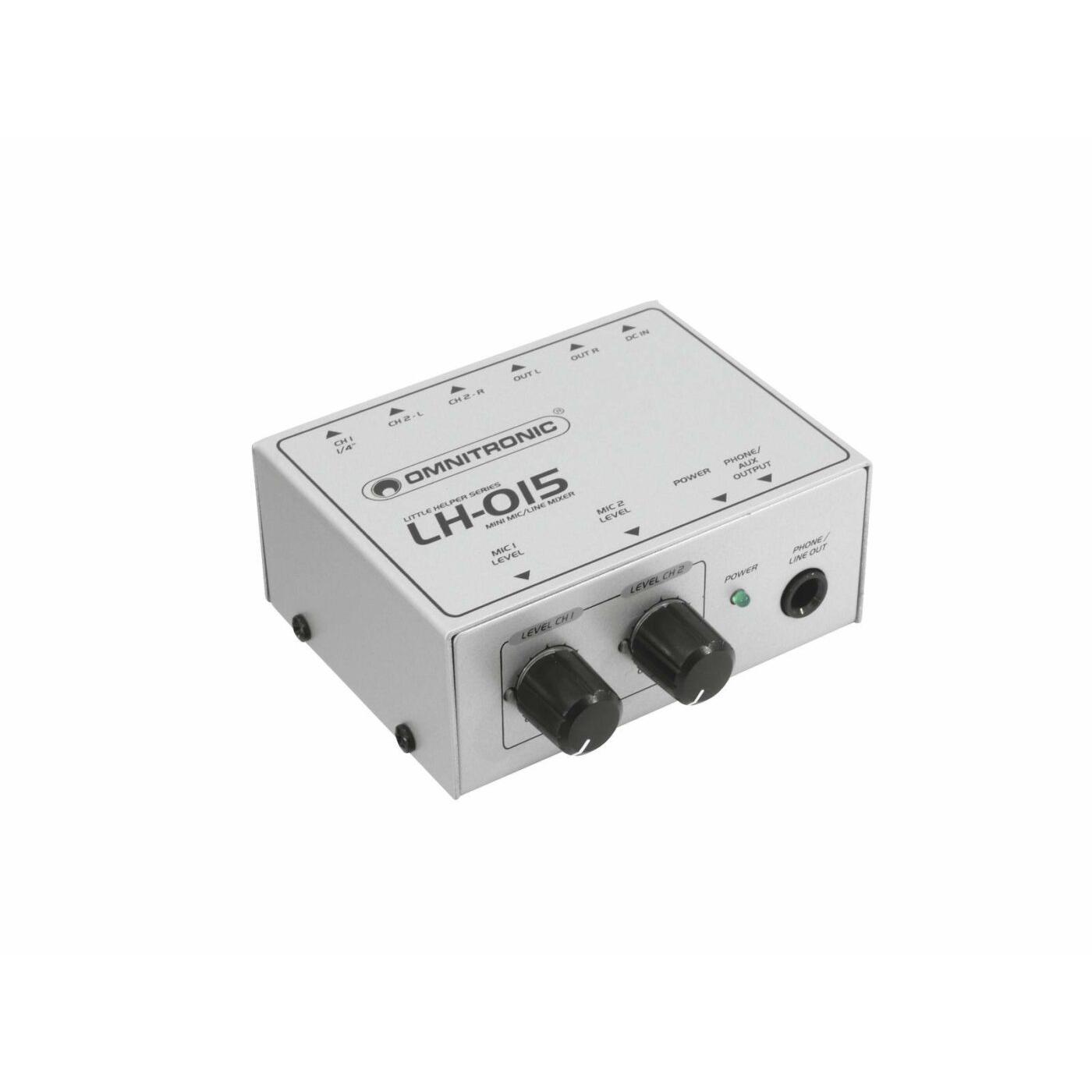

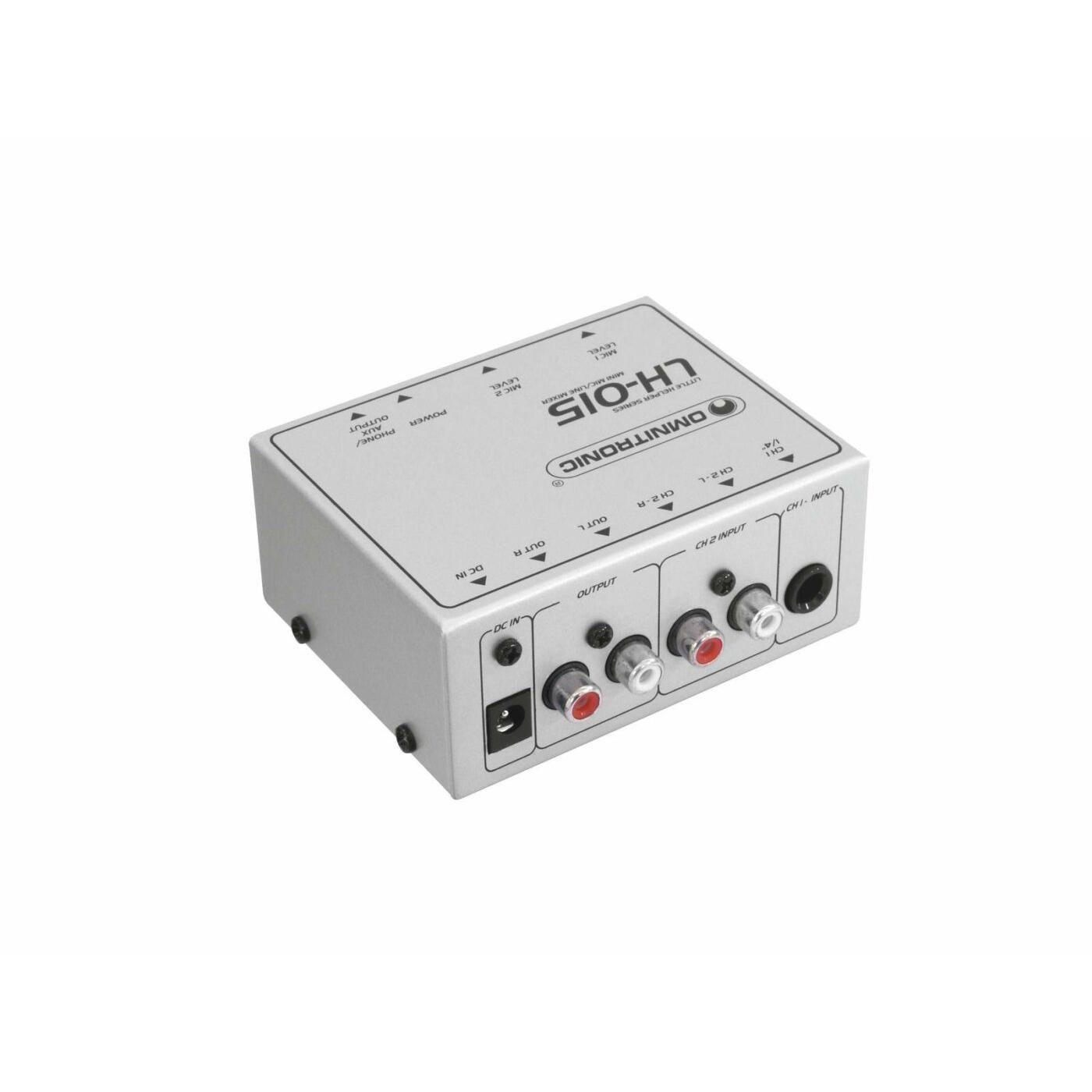

OMNITRONIC LH-015 2-channel Mic/Line Mixer
Original price was: €59,00.€56,55Current price is: €56,55.
Description
2-channel miniature mic/line mixer
- Distributes the signal of 2 audio sources (microphones, instruments or line level units) to 1 mono output
- 1 mono mic/line input (6.3 mm jack) with separate level control
- 1 stereo line input (RCA) input with separate level control
- 2 mono master outputs (RCA and 6.3 mm jack) e.g. for PA amplifier, mixer and headphones

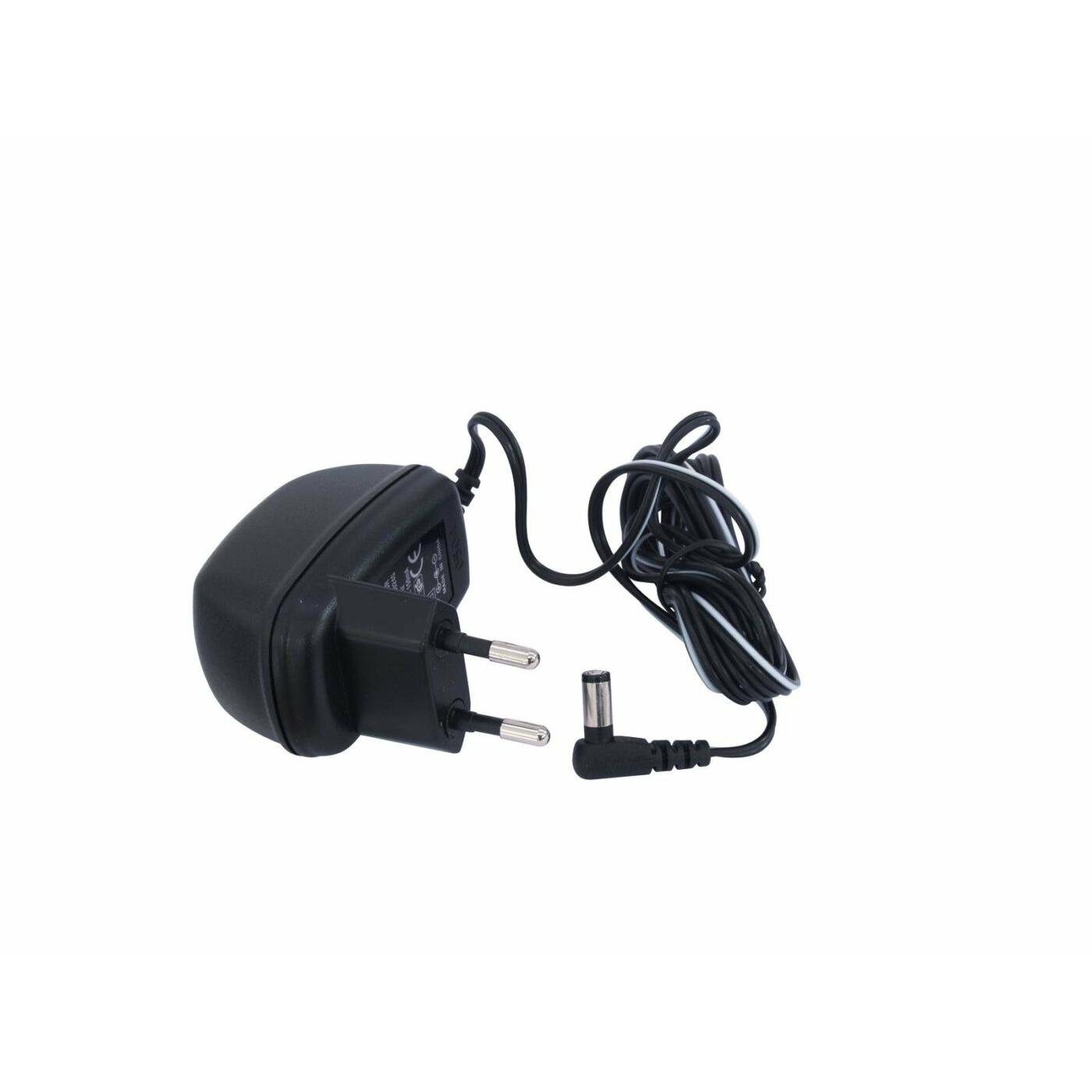

- Operation via supplied power unit
| Power supply: | 12 V DC, 150 mA |
| Input impedance CH-1: | 10 kohms |
| Input impedance CH-2: | 20 kohms |
| Output impedance: | 50 ohms |
| Gain CH-1: | 32 dB |
| Gain CH-2: | 20 dB |
| Frequency range: | 20-20000 Hz |
| S/N ratio: | >100 dB |
| Dimensions: | 95 x 73 x 40 mm |
| Weight: | 230 g |
Specifications
| Weight | 0,639 kg |
|---|---|
| Dimensions | 0,0850 × 0,2300 × 0,1350 m |
| Height cm | 4 |
| Weight kg | 0.23 |
| Frequency range Hz | 20 – 20000 |
