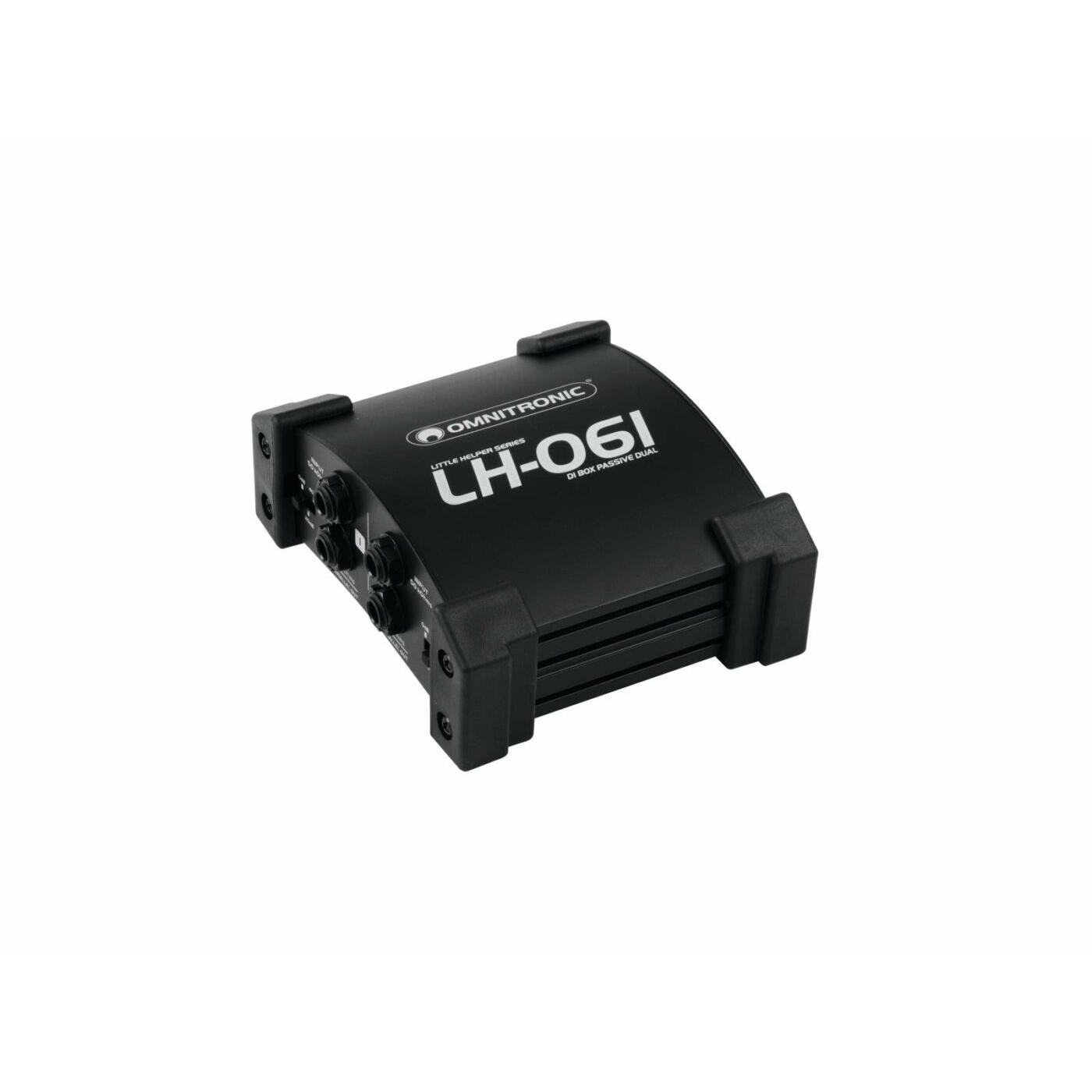

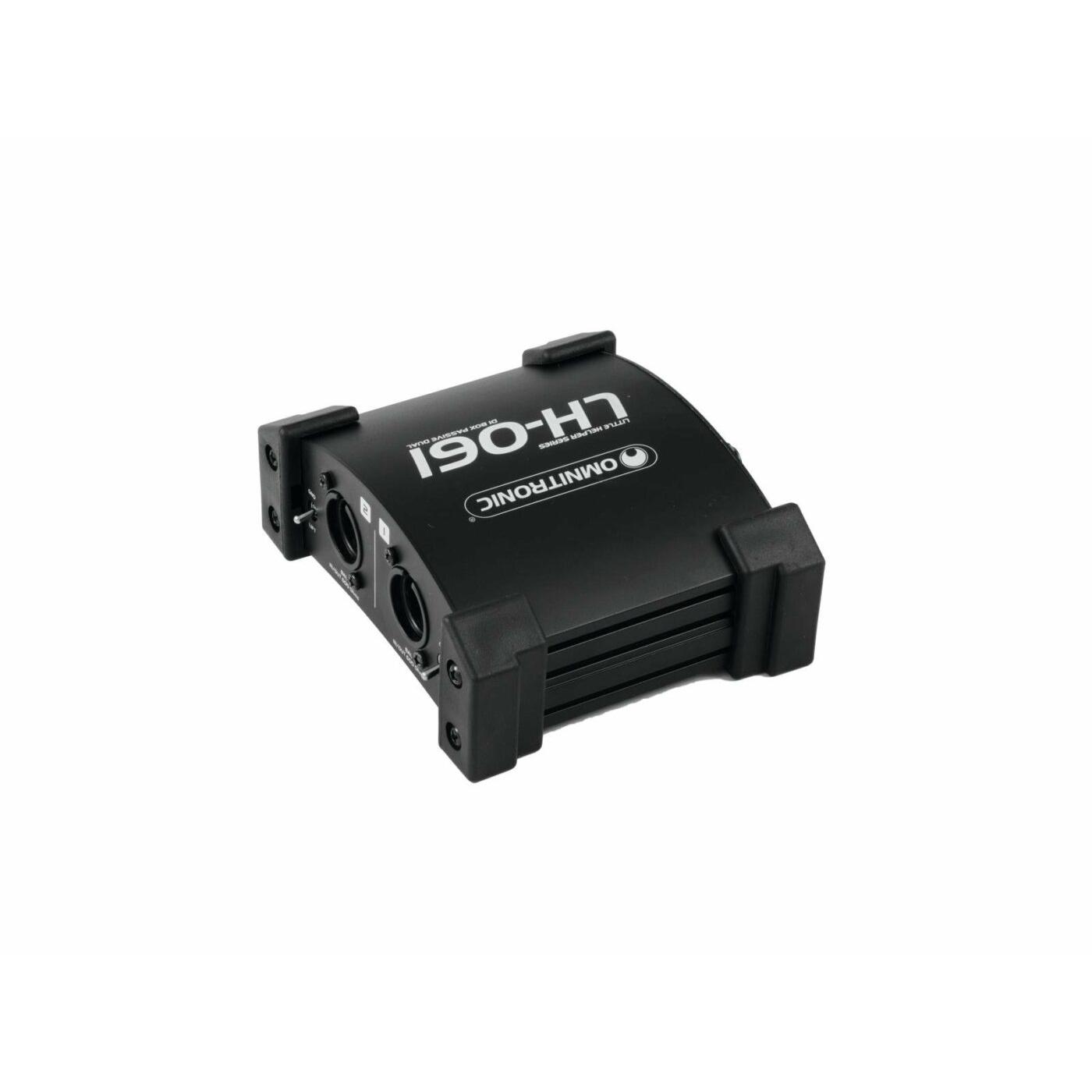

OMNITRONIC LH-061 PRO Dual DI Box passive
Original price was: €59,39.€44,15Current price is: €44,15.
Description
Passive 2-channel DI box/splitter, Black
- Passive 2-channel DI box with split mode

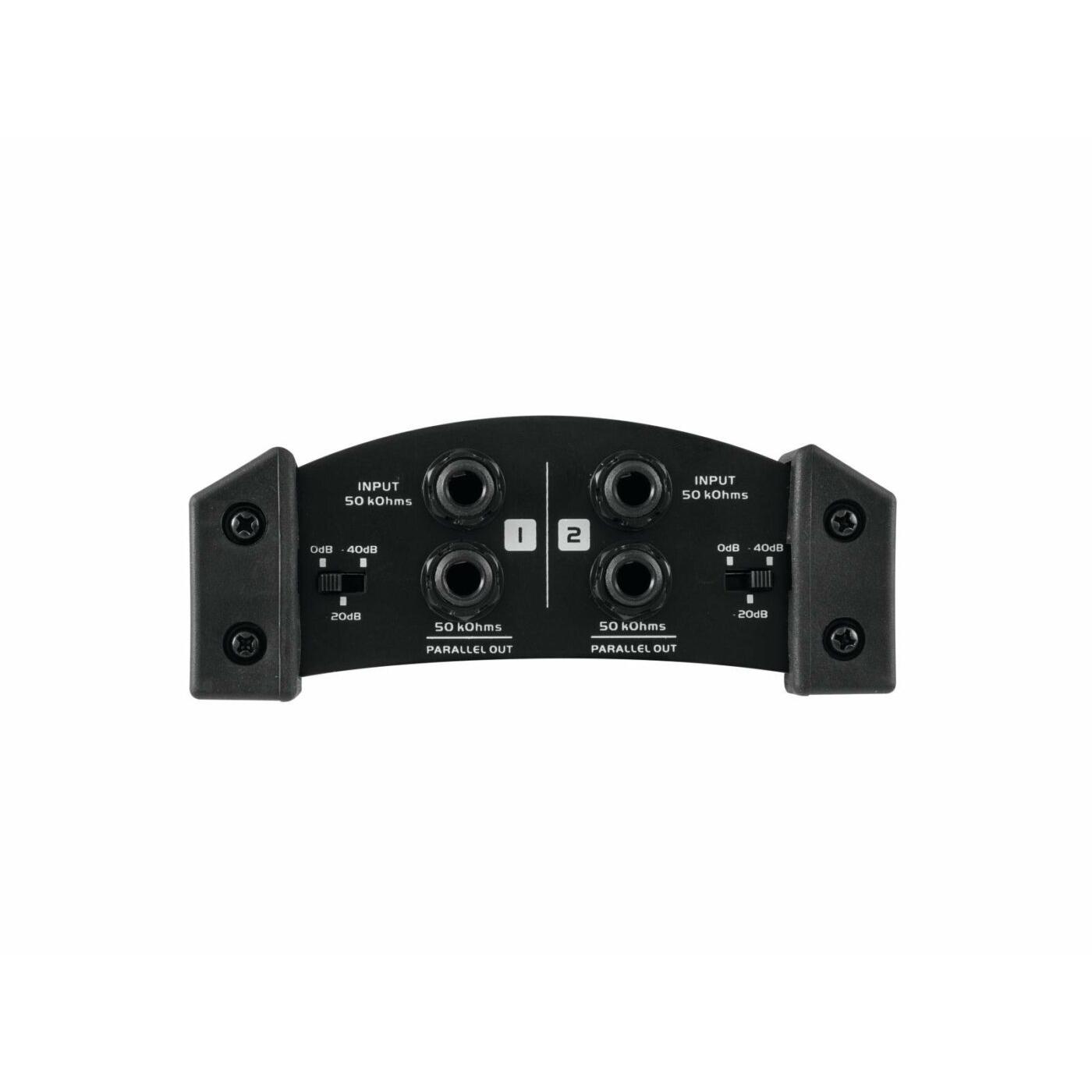

- 2 high-impedance signal inputs via two 6.3 mm jacks

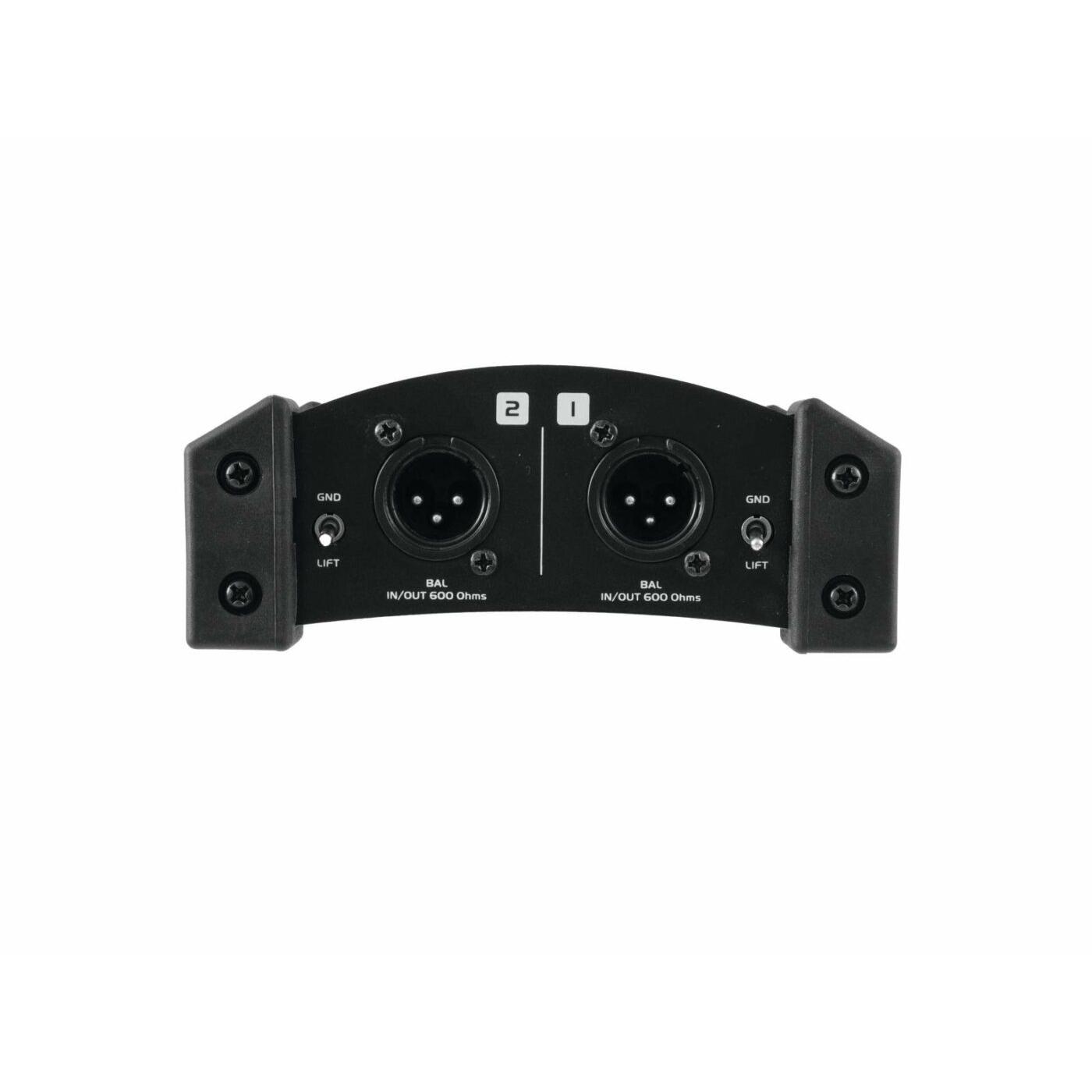

- 2 low-impedance XLR outputs
- 2 feed-through outputs (6.3 mm jack)
- Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs, for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Ground-lift switch eliminates signal interference and ground loop problems
- Modern convex housing design with rubber corners for safe positioning
- Stackable
- Cables can be routed under the housing
| Frequency range: | 15-30000 Hz |
| Input impedance: | 50 kohms |
| Output impedance: | 600 ohms |
| Maximum output level: | 6 dBu |
| Dynamic range: | >95 dB |
| Input connectors: | 2 x 6.3 mm jack |
| Output connectors: | 2 x XLR |
| 2 x 6.3 mm jack (parallel out) | |
| Dimensions: | 115 x 133 x 54 mm |
| Weight: | 0.6 kg |
Specifications
| Weight | 0,655 kg |
|---|---|
| Dimensions | 0,0650 × 0,1400 × 0,1200 m |
| Weight kg | 0,6 |
| Frequency range Hz | 15 – 30000 |
