Sale!

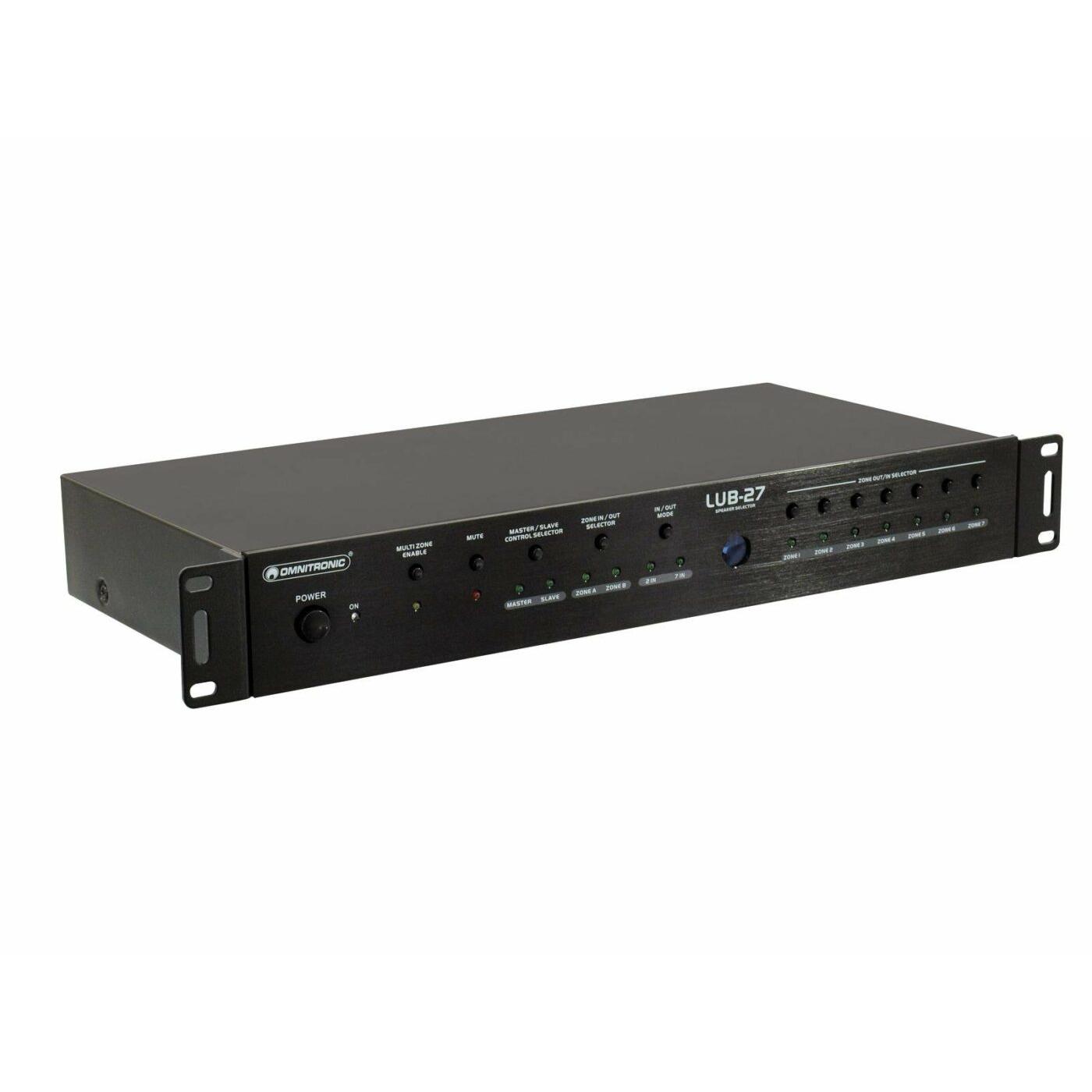

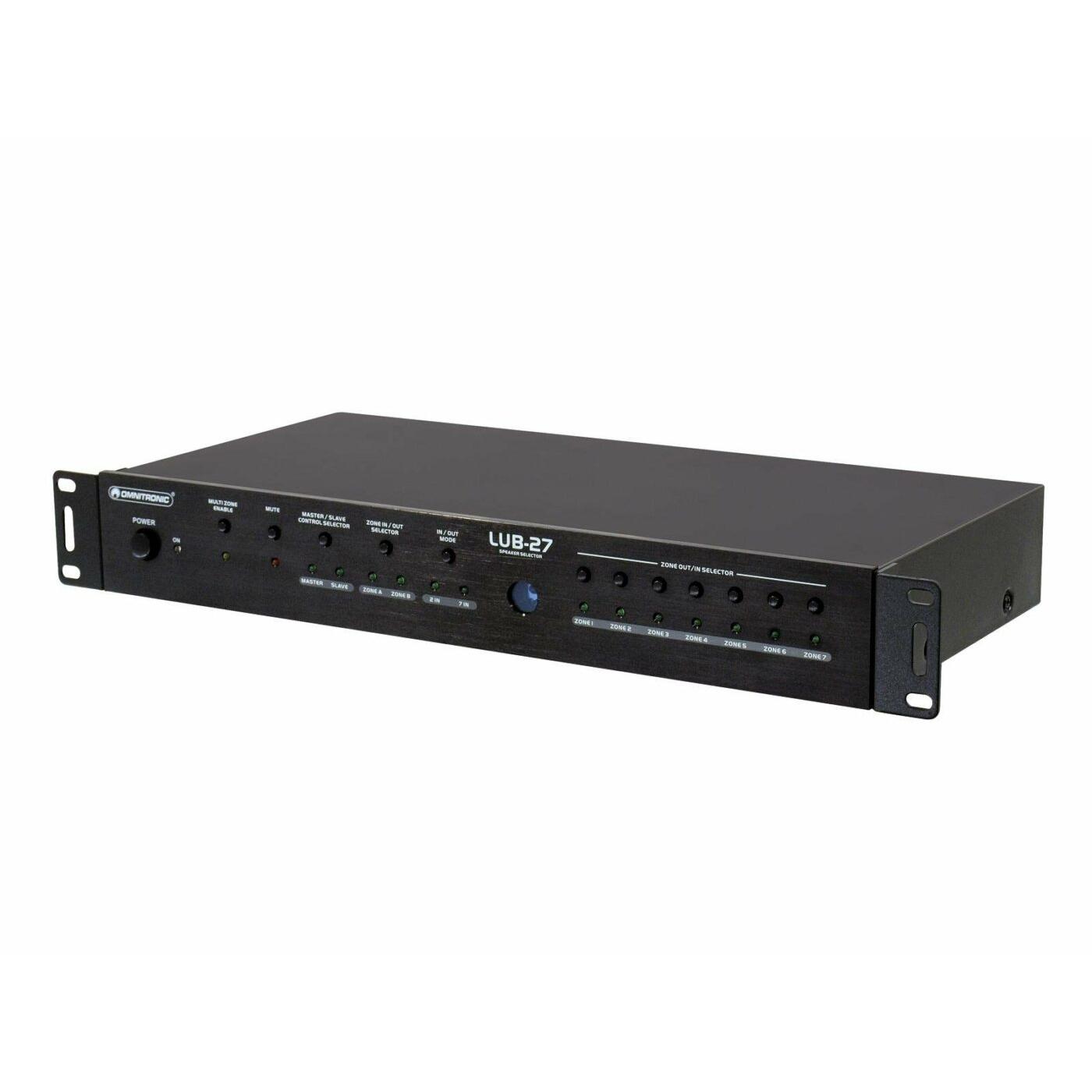

OMNITRONIC LUB-27 Speaker Switch Box
Original price was: €415,31.€299,67Current price is: €299,67.
Description
Speaker/amplifier switch box with IR remote control
- 7-channel switch box for speaker pairs or amplifiers
- Ideal for showrooms for comparing the performance of different speakers or amplifiers
- Operating mode 1: switching over on 7 speaker pairs to 2 stereo amplifiers with A/B selection
- Operating mode 2: switching over on 7 stereo amplifiers to 2 speaker pairs with A/B selection
- Multi-zone function also allows for freely combining the 7 speaker pairs in operating mode 1
- Parallel connection of 2 units for extension to 14 zones possible in operating mode 1, connection cables optional
- High-power audio signal transmission, power rating: 25 A per channel
- LED indicators for each status
- Mute function
- Automatic recall of last-used settings after switching on

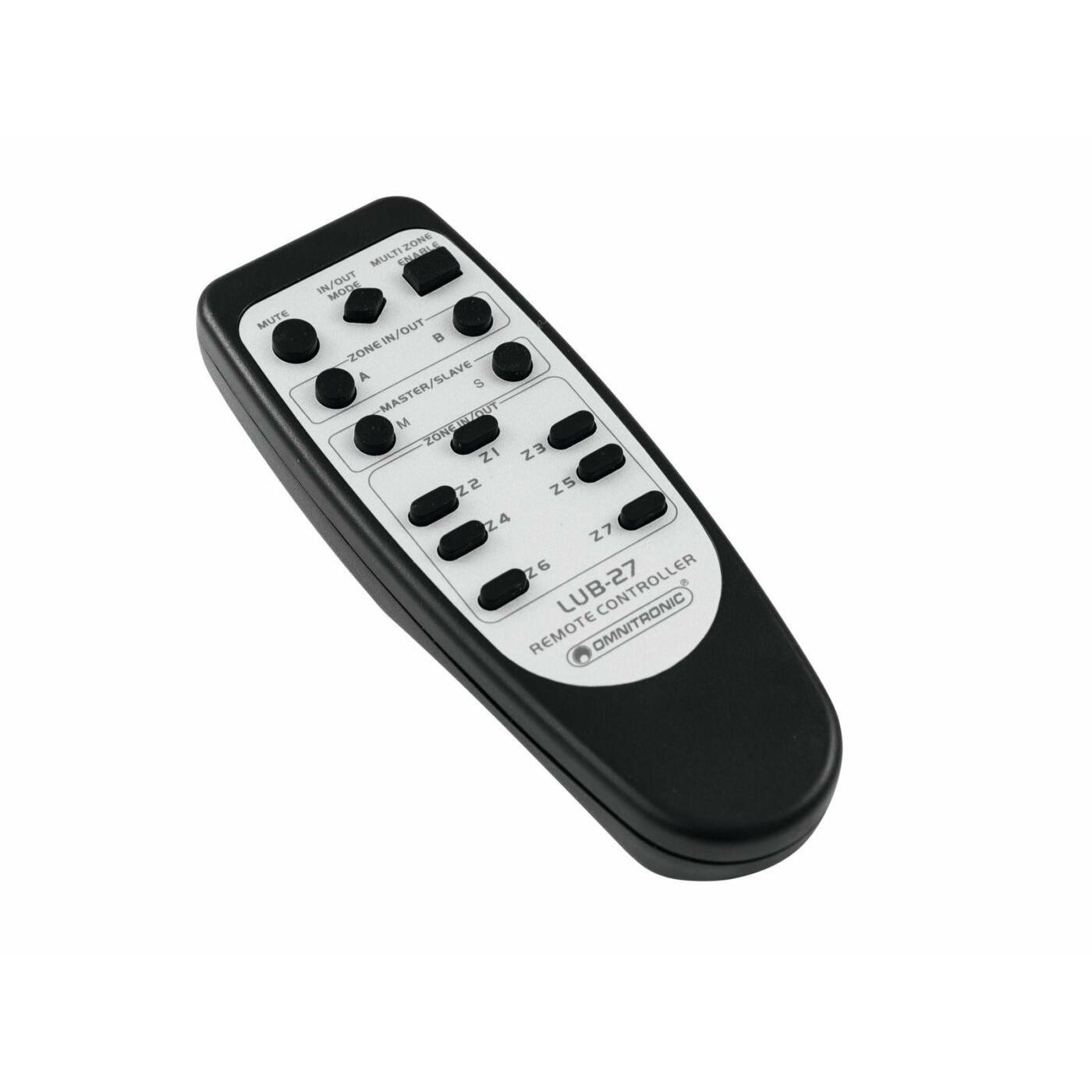

- Incl. IR remote control
- Optional extension IR receiver

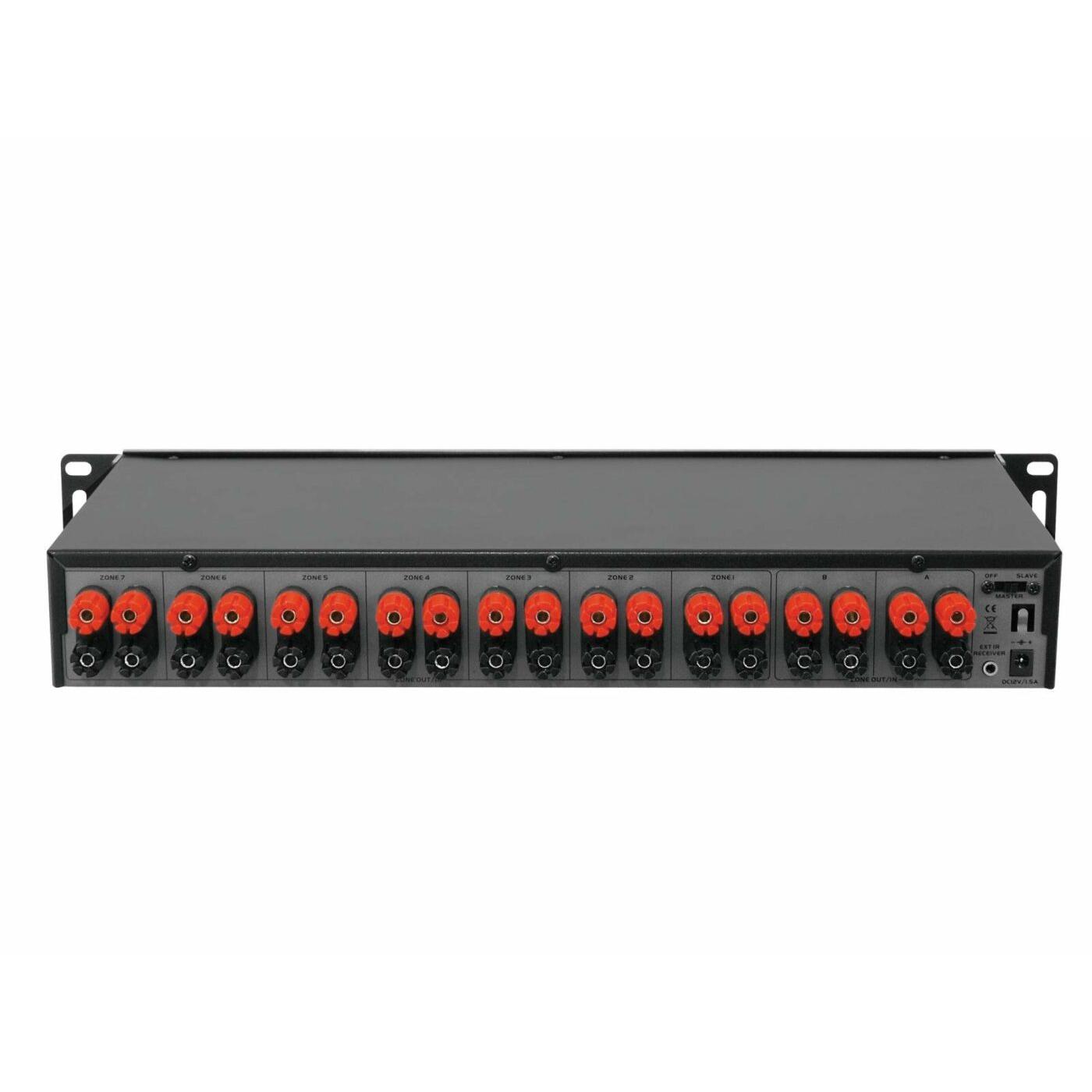

- Connections via pairs of screw terminals

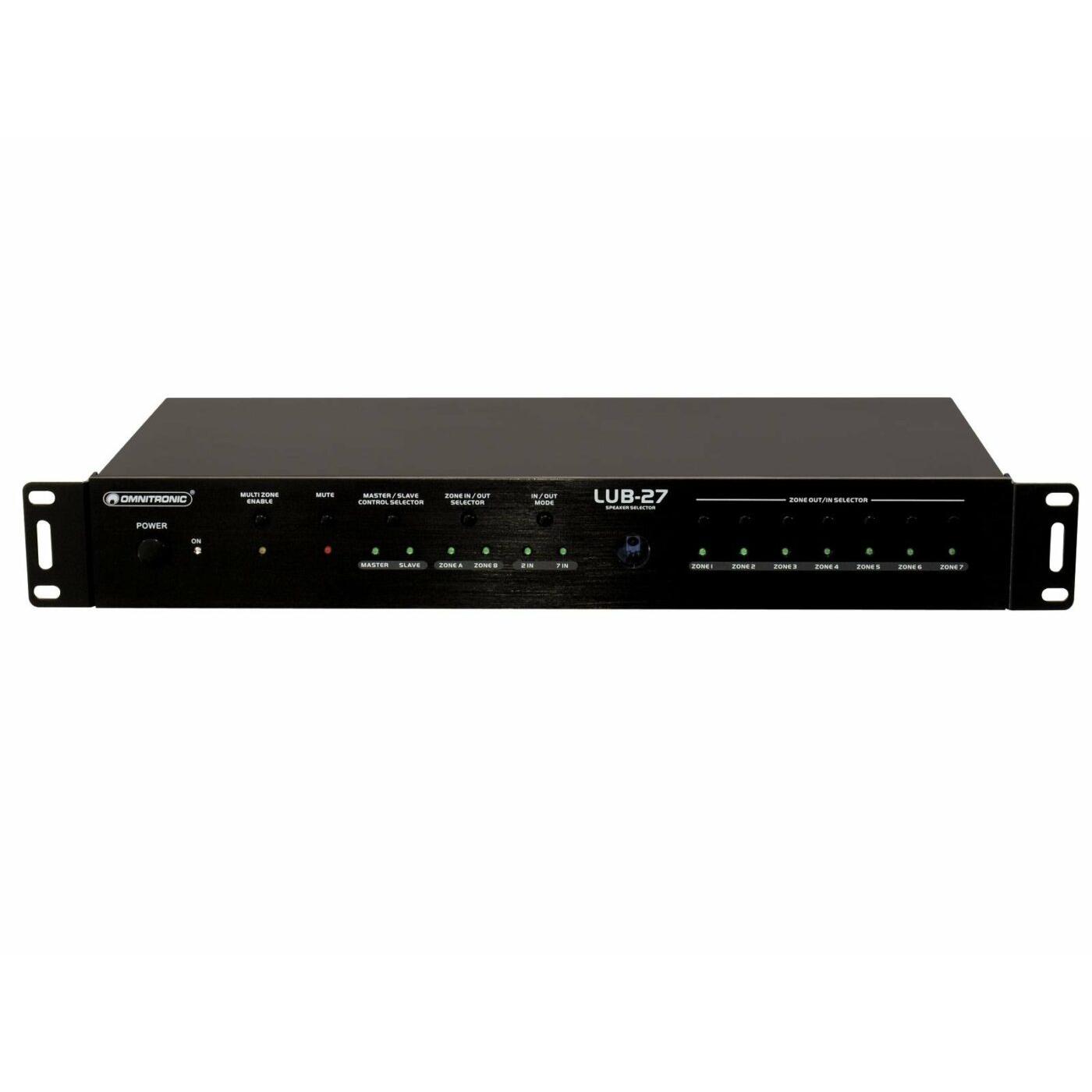

- Black metal housing with aluminum front panel
- Operation via supplied switch mode power unit
- Rack installation, 2 U
| Power supply: | 100-240 V AC, 50/60 Hz |
| via supplied power unit 12 V/1.5 A | |
| Power consumption: | 30 W |
| Rated power: | 25 A per channel |
| Connectors: | pairs of screw terminals |
| Remote control: | 2 x 1.5 V micro batteries (type AAA) |
| Coverage: | 10 m |
| Extension connection: | 3.5 mm jack |
| Dimensions (L x W x H): | 482 x 220 x 78 mm (19″, 2 U) |
| Weight: | 3.2 kg |
Specifications
| Weight | 5,05 kg |
|---|---|
| Dimensions | 0,1350 × 0,5400 × 0,3100 m |
| Height cm | 7.8 |
| Weight kg | 3.2 |
| Depths cm | 22 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption W | 30.00 |
