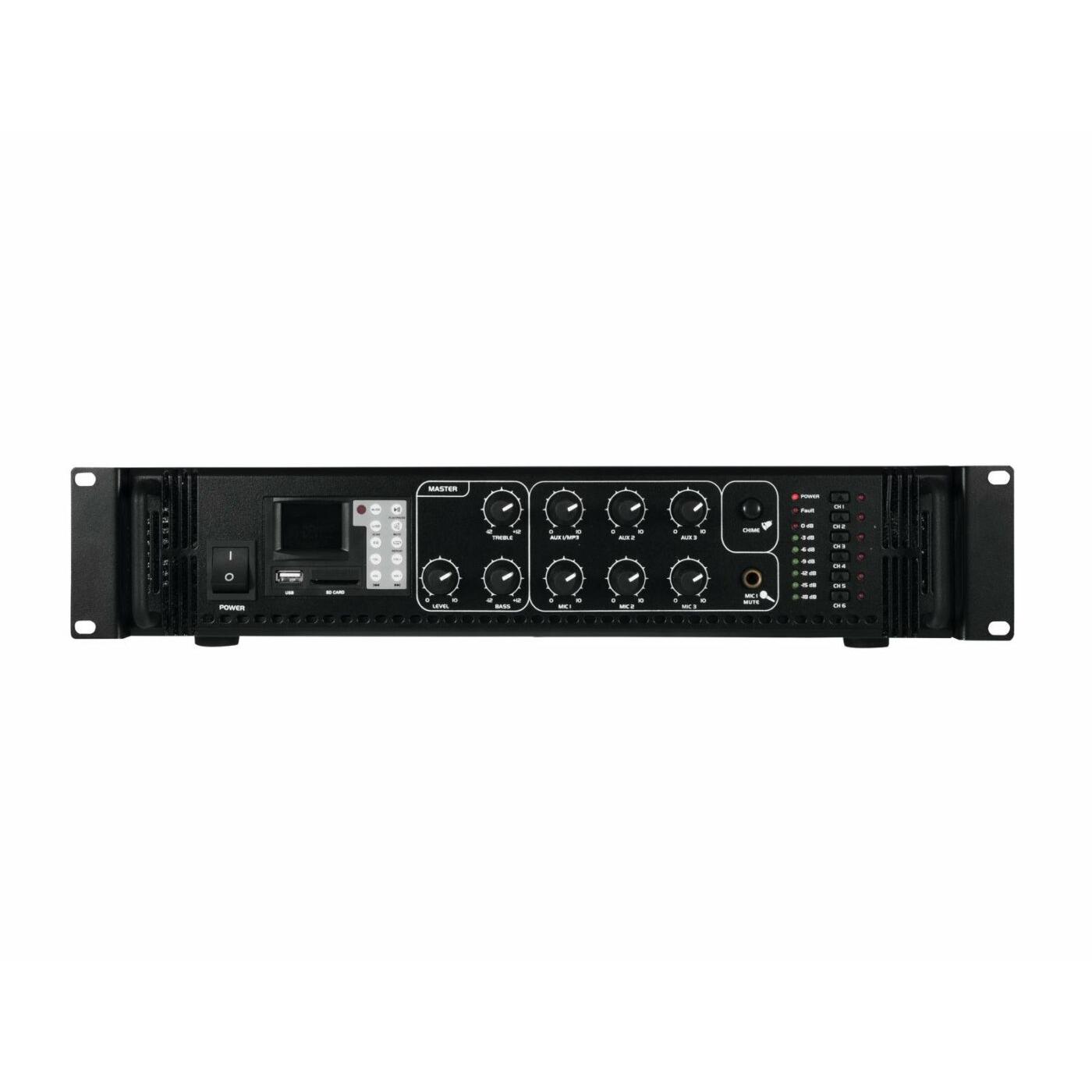

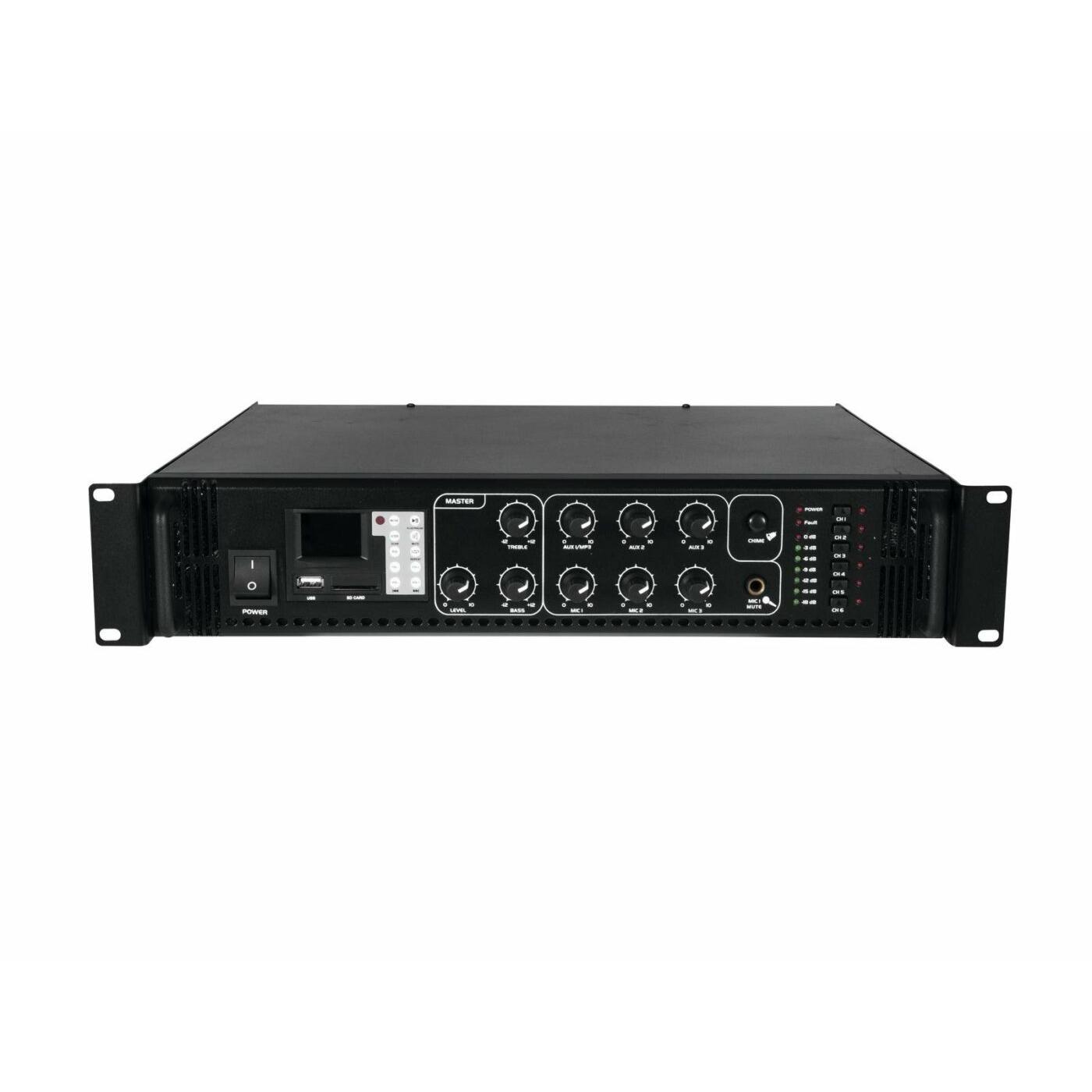

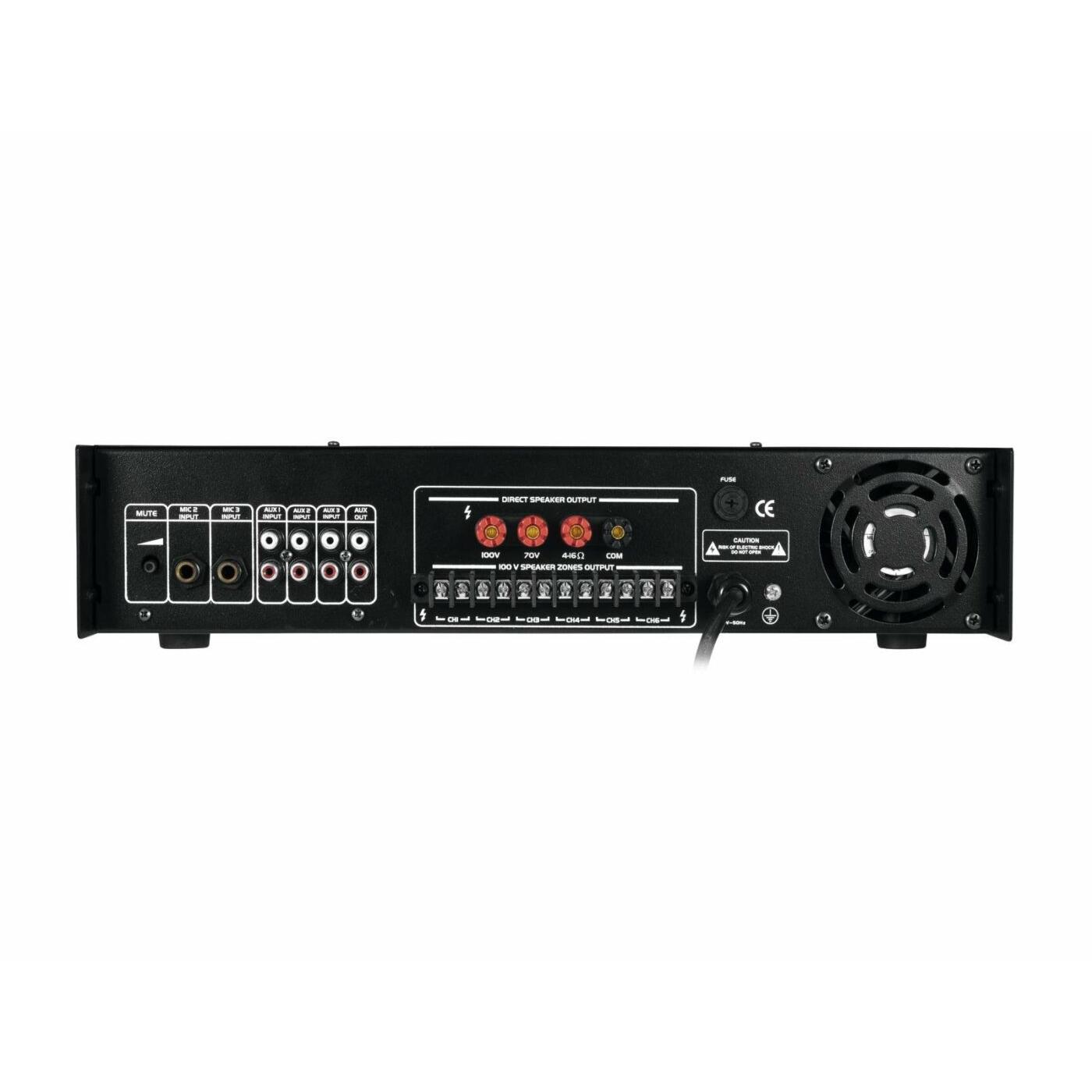

OMNITRONIC MPZ-500.6P PA Mixing Amplifier
Original price was: €831,81.€594,24Current price is: €594,24.
Description
6-zone PA mono mixing amplifier, MP3 player & IR remote, zones switchable, 500 watts
- Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs, independently switchable on the front panel
- Master PA output (70 V and 100 V)
- Output for low-impedance speakers (4-16 ohms)
- MP3 player with IR remote control and LCD with blue backlight
- SD card slot and USB input
- Folder navigation and repeat functions (1, All)
- 2 rear microphone inputs (6.3 mm jack, unbal.)
- 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
- All microphone inputs with separate level controls
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-fold LED level display
- Master control for the output signal
- Fan-cooled
- Protection circuits with LED indication: over current, short circuit, turn-on delay
- Rack installation, brackets detachable
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1000 W |
| Output power: | 500 W RMS |
| Output type: | 70 V, 100 V or 4-16 ohms |
| Output current: | 7 A (70 V), 5 A (100 V) |
| Mic inputs: | 5 mV, 600 ohms |
| Line inputs: | 300 mV, 10 kohms |
| Speaker connectors: | Screw connectors, terminal block |
| Frequency range: | 80-16000 Hz |
| Distortion: | 0.5 % (1 kHz) |
| S/N ratio: | 85 dB (line), 75 dB (mic) |
| Playback format audio player: | MP3 |
| Available storage media: | USB devices and SD(HC) cards up to 32 GB |
| File system: | FAT32 |
| Number of files: | max. 999 |
| Dimensions: | 483 x 385 x 92 mm |
| Weight: | 16 kg |
Specifications
| Weight | 18,2 kg |
|---|---|
| Dimensions | 0,1900 × 0,5300 × 0,4900 m |
| Control | IR remote control |
| Mode of operation | Class-AB |
| Weight kg | 16 |
| Power supply | 230 V AC, 50 Hz |
| Power consumption W | 1000.00 |
| Frequency range Hz | 80 – 16000 |
| Audioplayer | USB + SD |
| Output power W RMS | 500 |
| Master Equalizer | 1 x 2 band tone control Mono |
