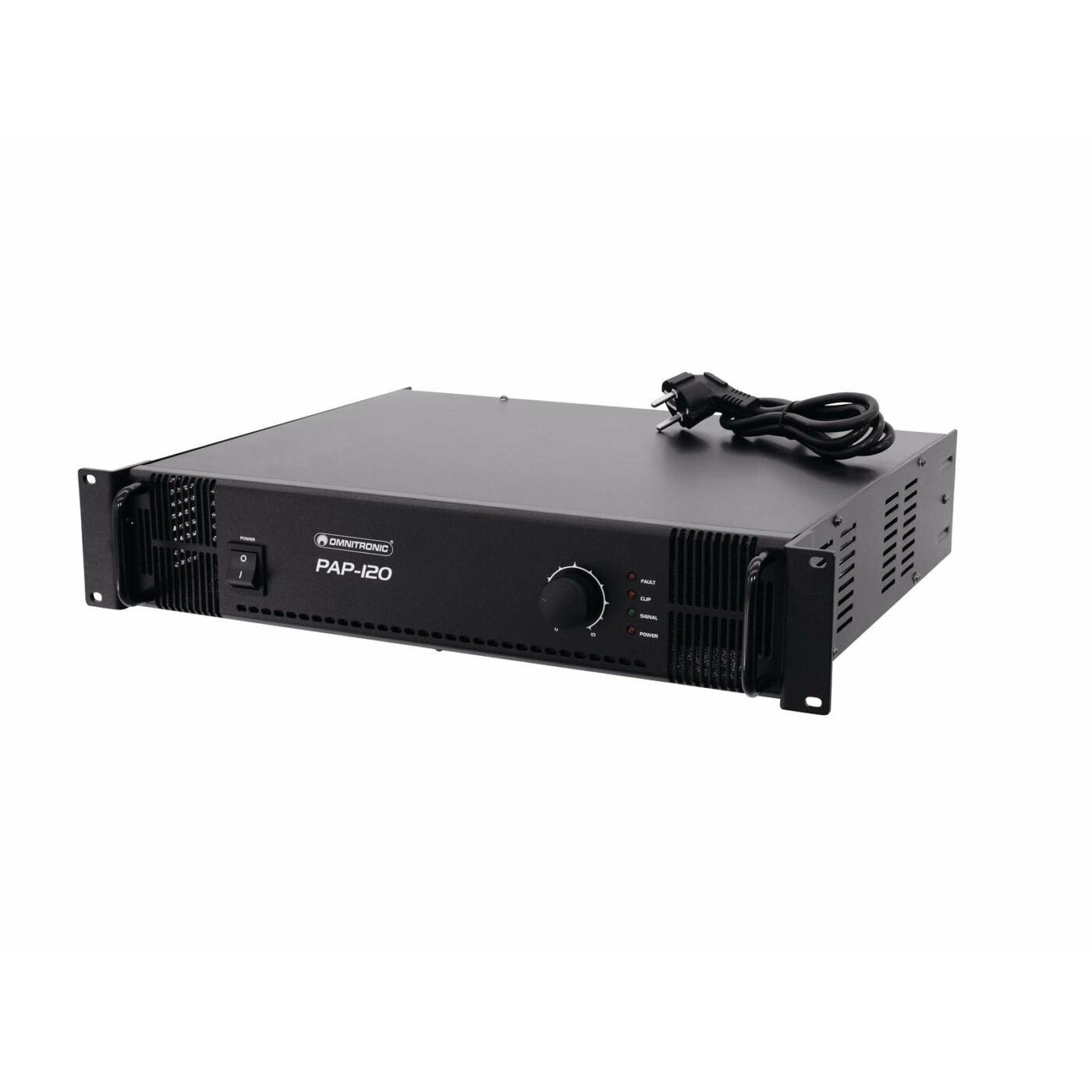

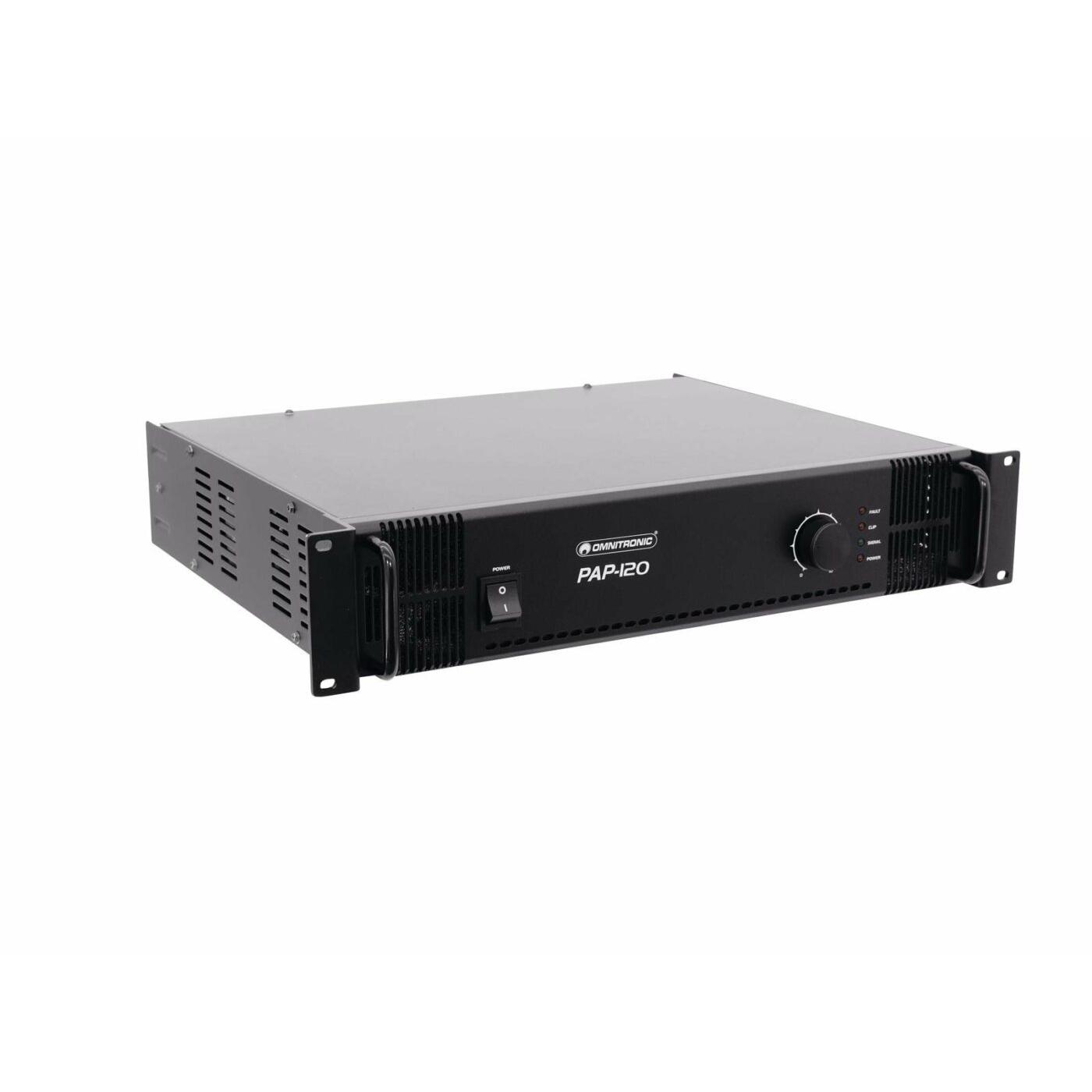

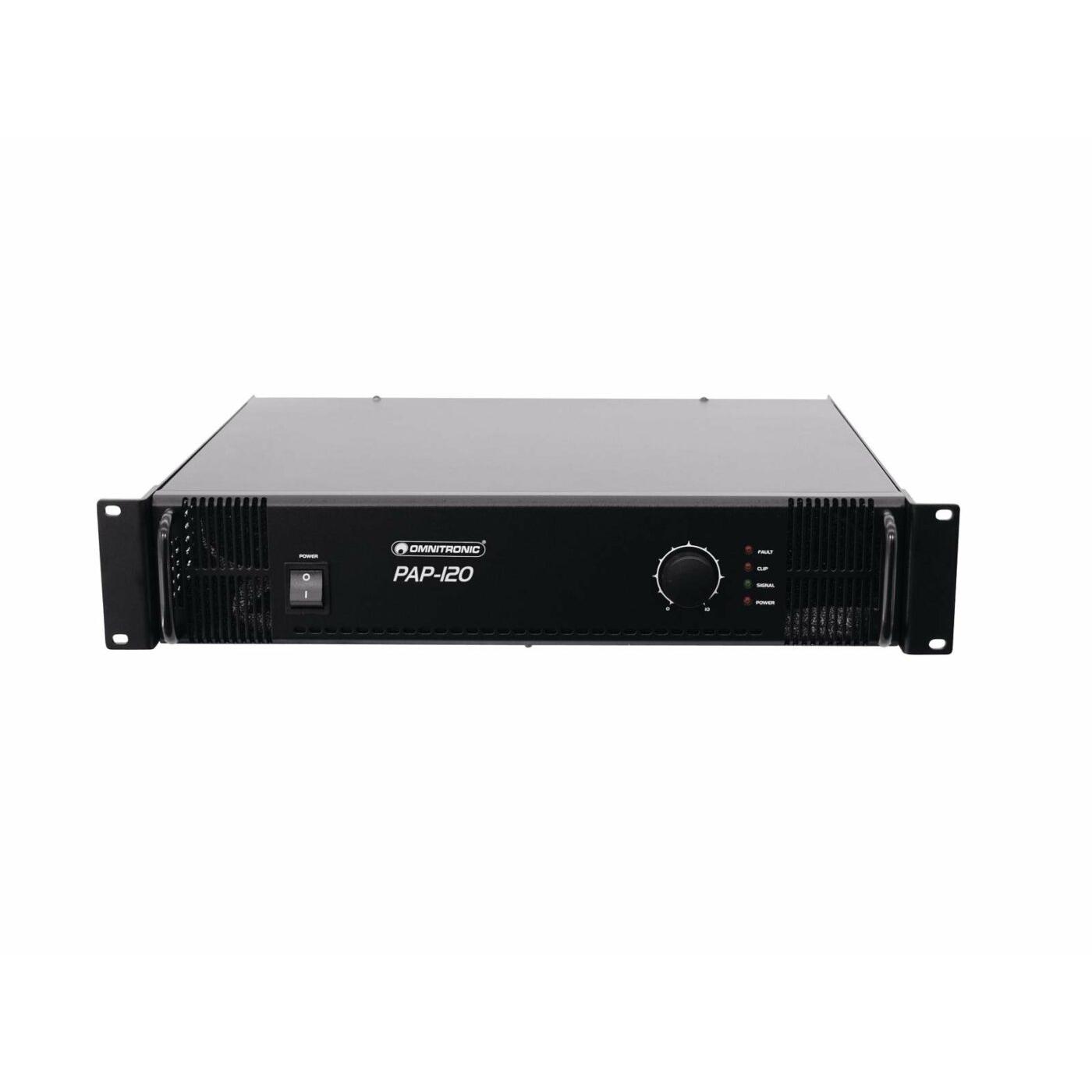

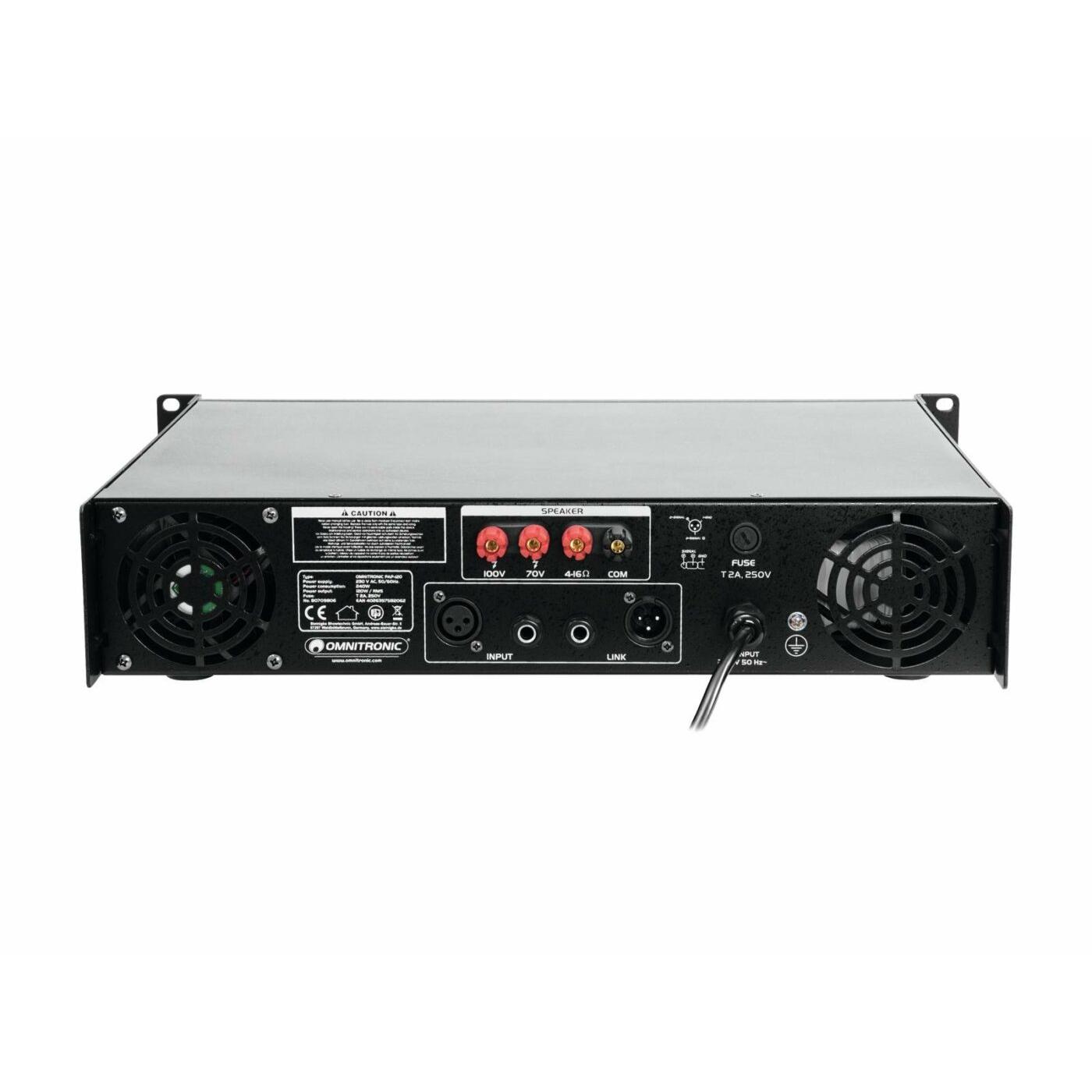

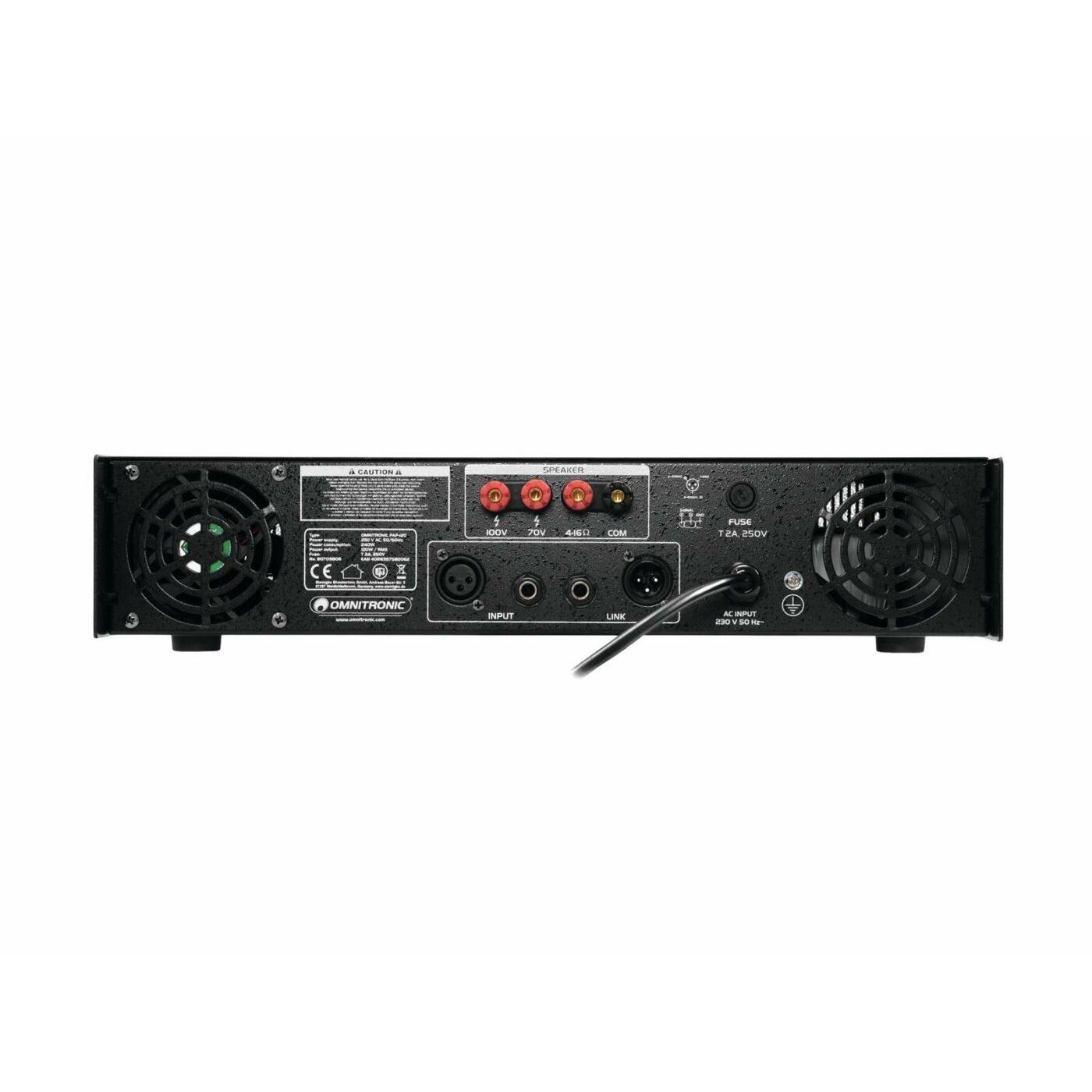

OMNITRONIC PAP-120 PA Amplifier
Original price was: €320,11.€236,98Current price is: €236,98.
Uitverkocht - Neem contact met ons op voor meer informatie.
Description
PA power amplifier, 120 watts
- 1 line input (optionally XLR or 6.3 mm jack)
- 1 feed-through output (optionally XLR or 6.3 mm jack)
- 70 V, 100 V or 4-16 ohms operation
- Master control
- LED indicators for power, signal, clip and fault
- Protective circuits: over load, short circuit, turn-on delay, over heating, DC offset protection
- Load detection and power control
- Rack installation
| Power supply: | 230 V AC, 50 Hz |
| Output power: | 120 W RMS |
| Output current: | 1.7 A/ 70 V, 1.2 A/ 100 V |
| Speaker outputs: | 70 V, 100 V or 4-16 ohms |
| Input connectors: | XLR, 6.3 mm jack mounting socket |
| Output connectors: | XLR, 6.3 mm jack mounting socket |
| Line input: | 800 mV, 10 kohms |
| Frequency range: | 60 Hz – 16 kHz |
| Distortion: | 0.5 %/ 1 kHz |
| S/N ratio (line): | 90 dB |
| Protection: | Overheat, overload, short-circuit, DC, softstart |
| Indicators: | Power, fault, clip, signal |
| Dimensions: | 483 x 335 x 92 mm |
| Rack installation with 2 U | |
| Weight: | 12.5 kg |
Specifications
| Weight | 10,5 kg |
|---|---|
| Dimensions | 0,1800 × 0,5400 × 0,4700 m |
| Mode of operation | Class-AB |
| Weight kg | 12,5 |
| Power supply | 230 V AC, 50 Hz |
| Frequency range Hz | 60 – 16000 |
| Output power W RMS | 120 |
