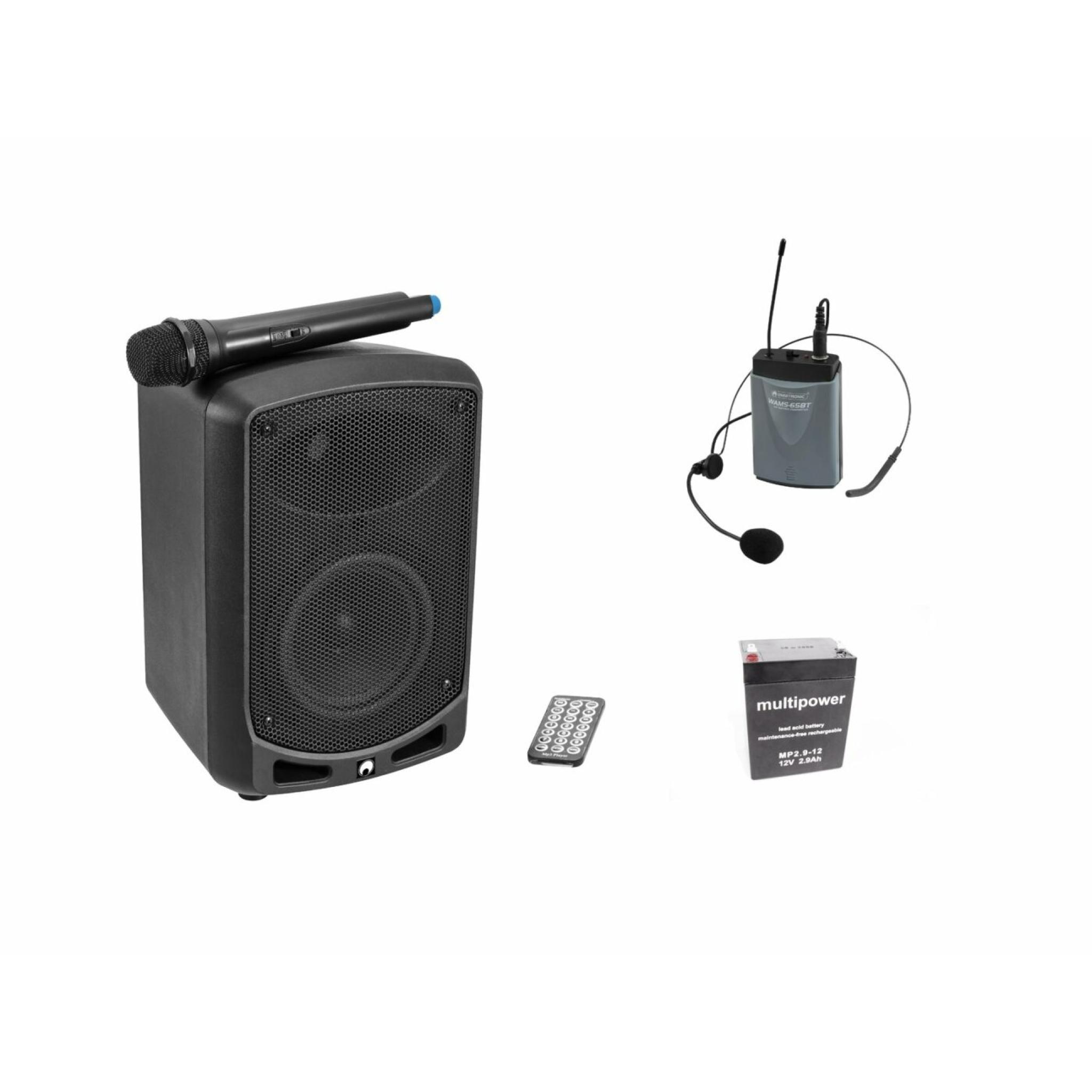

OMNITRONIC Set WAMS-65BT + Bodypack transmitter incl. headset + Battery

Description

13107003 OMNITRONIC WAMS-65BT Wireless PA System

Portable 6.5″ PA with UHF receiver unit, audio player, Bluetooth and 40 W RMS

• Compact, all-in-one PA system for mobile use
• Ideal for mains independent and wireless applications, e.g. at sales events, lectures and gyms
• 4-channel power mixer with 40 watts power
• 2-way bass-reflex system with 16 cm woofer (6.5″)
• Power-efficient and battery-saving class D amplifier
• MP3 player with Bluetooth receiver and IR remote control
• SD card slot and USB input
• Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
• UHF receiver unit and matching wireless microphone
• Mains operation or battery operation for up to 4 hours of music playing
• Integrated automatic charging of the battery
• Rechargeable battery optionally available (E0055612)
• 1 microphone input (XLR) with adjustable reverb effect
• 1 line input (RCA)
• Tone control and master control
• Link output for the combination of several amplifier systems
• Light-weight black plastic enclosure with metal grille and carrying handle
• Operation of the hand-held microphone via 2 x AA batteries (not included)
• Flange for speaker stand installation
• License-free and approved in the EU
• On/off/mute-switch: On/off/mute-switch Microphone
• Control: IR remote control MP3 Player

13107005 OMNITRONIC WAMS-65BT Bodypack Transmitter incl. Headset

Pocket transmitter with headset microphone for WAMS-65BT

• Pocket transmitter for the portable PA system WAMS-65BT
• Operation with 865 MHz
• Incl. headset microphone
• Transmitting power 10 mW
• Mute switch
• Power LED
• Operation via 2 x 1.5 V batteries (type AA), not included
• License-free and approved in the EU

13107003 OMNITRONIC WAMS-65BT Wireless PA System

Power supply:   100-240 V AC, 50/60 Hz
or 12 V DC via rechargeable battery
Rec. battery (accessory):   12 V DC, 2900 mAh
Battery operation:   4 hours
Recharging time:   4-6 hours
Amplifier power:   40 W RMS
Speakers:   16 cm subwoofer (6.5″), 2.5 cm tweeter (1″)
Inputs:   mic (XLR), line (stereo RCA)
Output:   line (6.3 mm jack)
T.H.D.:   <0.5 %
Audio player:   Bluetooth, USB devices and SD(HC) cards
Dimensions (L x W x H):   218 x 235 x 348 mm
Wireless microphone:
Carrier frequency:   865 MHz
Frequency stability:   ±0.005 %
RF power output:   10 mW
Polar pattern:   omnidirectional
Range:   approx. 30 m
Battery:   2 x 1.5 V AA
Battery life:    13 hours
Dimensions (D x L):   40 x 260 mm
Weight:   4 kg
Power consumption:   60 W
Size of woofer:   17 cm (6.5″)
Frequency range:   62 – 18000 Hz
Height:   34,8 cm
Depths:   21,8 cm
Width:   23,5 cm

13107005 OMNITRONIC WAMS-65BT Bodypack Transmitter incl. Headset

Carrier frequency:   865 MHz
Coverage:   50 m (with line-of-sight)
RF power output:   10 mW
Modulation method:   F3F
S/N ratio:   >105 dB
Selectivity:   >80 dB
T.H.D.:   <0.5 % at 1 kHz
Connection:   3.5 mm jack screw connection
Battery:   2 x 1.5 V, type AA
Battery life:   approx. 10 hours
Dimensions:   100 x 64 x 36 mm
Frequency range:   40 – 18000 Hz
Weight:   0.10 kg
