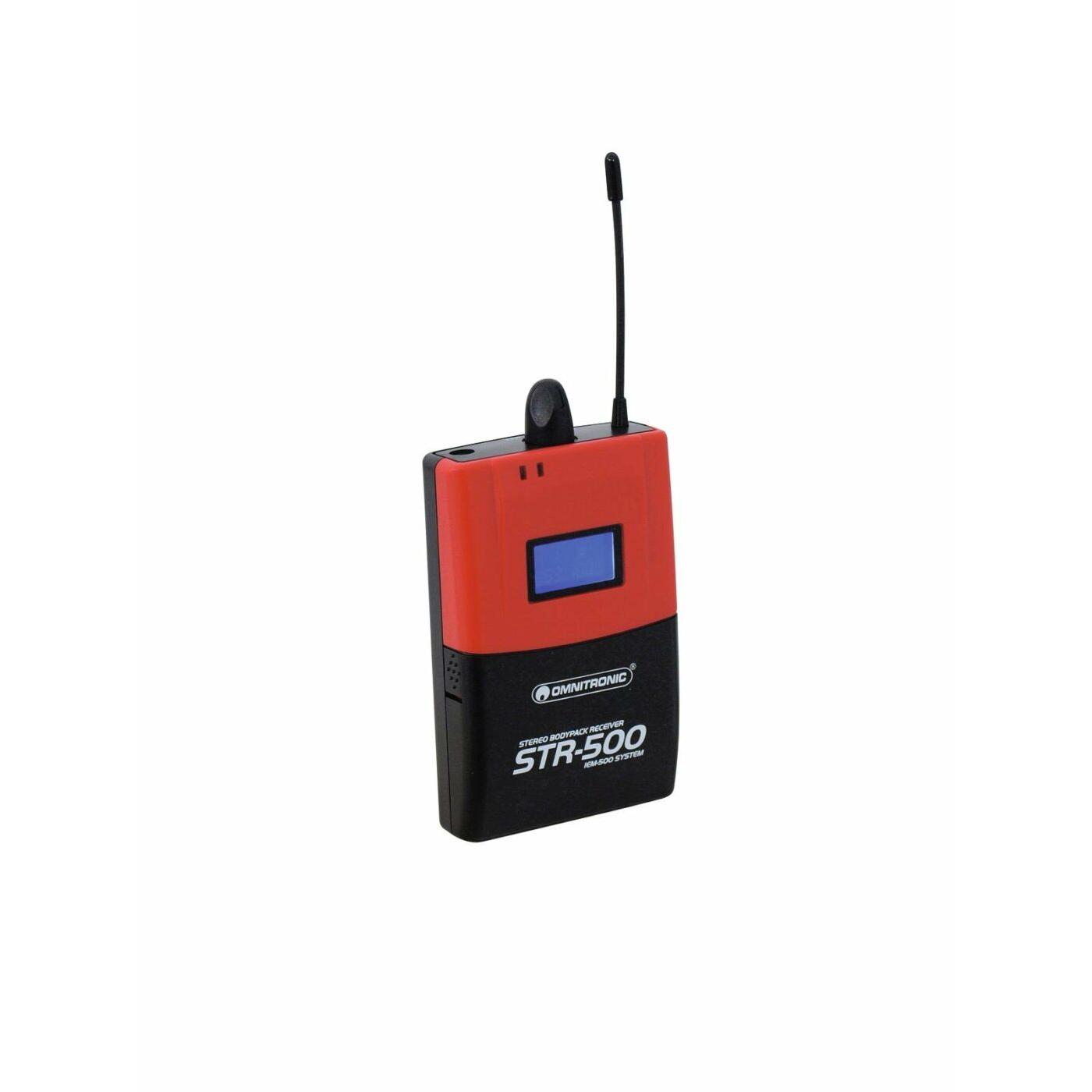

OMNITRONIC STR-500 Bodypack Receiver IEM
Original price was: €177,31.€139,44Current price is: €139,44.
Description
Optional pocket receiver for IEM-500
- Multifrequency in-ear monitoring receiver set with mini earphones, supplied in a practical transport case
- Replacement or extension for the matching in-ear monitoring system IEM-500
- Operation in the low-interference UHF band (863-865 MHz) with 16 frequencies selectable
- Pilot tone technology (PLL)
- Operation range with line of sight approx. 50 meters
- Adjustable earphones output
- Balance (left, right) adjustable
- LCD for battery capacity, receiving frequency, and RF signal
- High frequency boost selectable
- Lock function for prevents undesired changes to settings

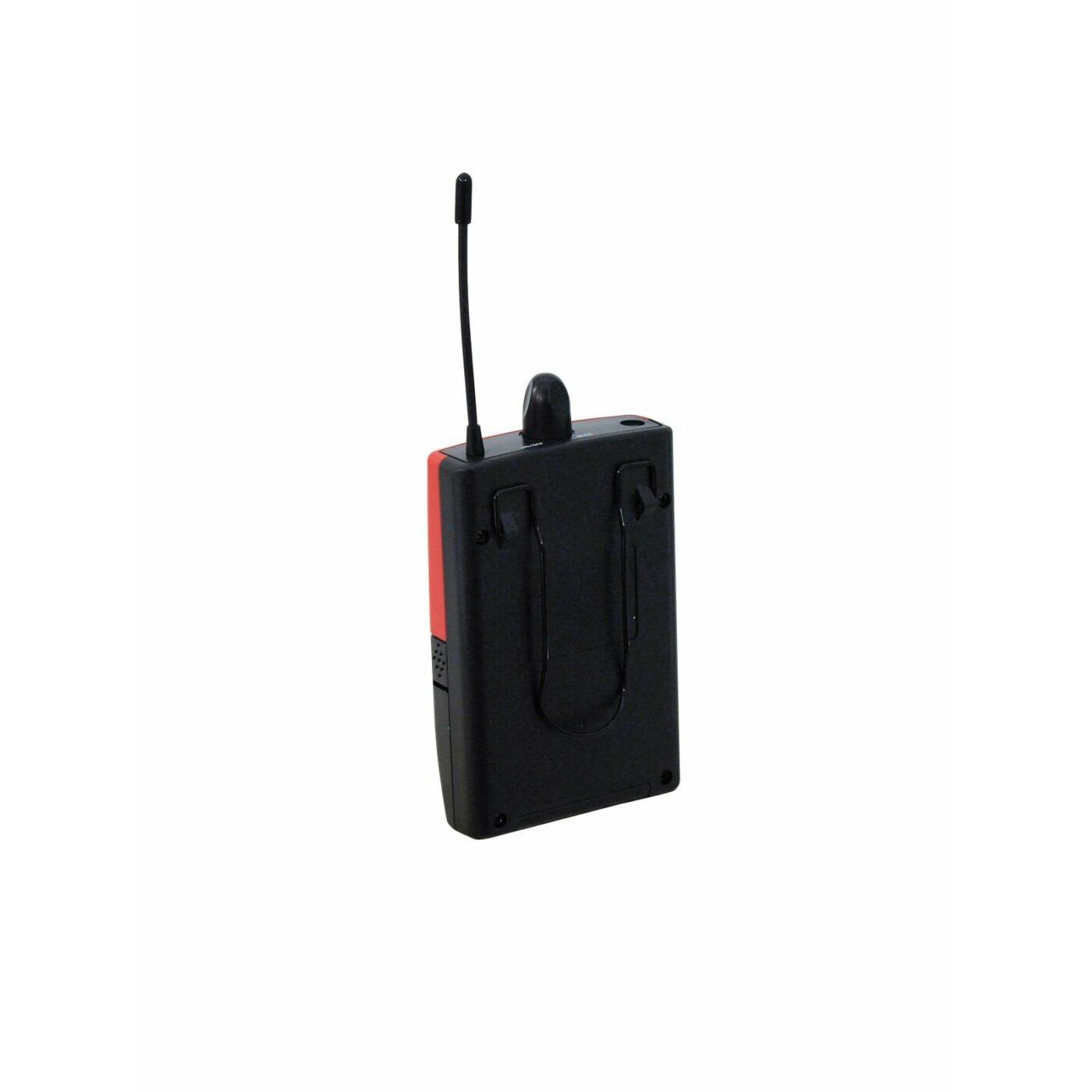

- Belt clip

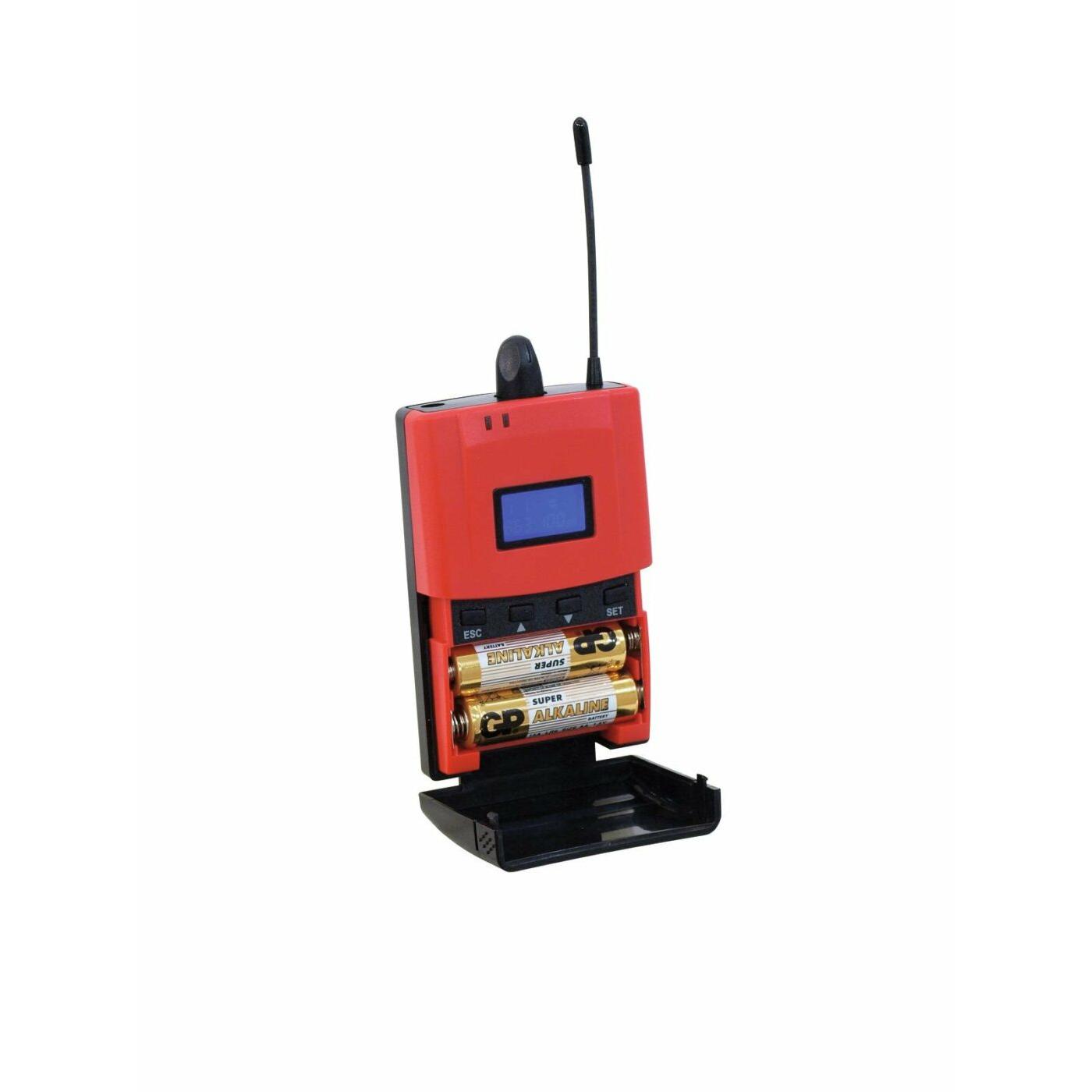

- Power supply via included 2 x 1.5 V mignon batteries (type AA)
- License-free and approved in the EU
| Modulation: | FM |
| Antenna: | Built-in |
| System: | Non-diversity, one channel |
| Carrier frequency: | UHF 863.000-865.000 MHz (16 channels) |
| Frequency stability: | ±0.005 % |
| Tone signal: | 32.768 kHz |
| Selectivity: | >55 dB |
| Dynamic range: | >94 dB |
| Audio output: | 3.5 mm stereo jack |
| Audio output level: | 100 mW |
| Power supply: | 2 x 1.5 V mignon batteries (type AA) |
| Current consumption: | approx. 130 mA, ±5 mA |
| Battery life: | approx. 5 hours, depending on the volume |
| Dimensions (W x D x H): | 165 x 23 x 64 mm |
| Weight: | 100 g |
| In-earphones | |
| Transducer type: | Dynamic |
| Frequency range: | 20-20000 Hz |
| Impedance: | 32 ohms ±15 % |
| Sensitivity: | 94 dB ±3 dB |
| Cable length: | 1.2 m |
| Connection: | via 3.5 mm stereo plug |
| Weight: | 14 g |
Specifications
| Weight | 0,169 kg |
|---|---|
| Dimensions | 0,0400 × 0,1900 × 0,0700 m |
| Height cm | 16.5 |
| Frequency band | UHF 863 – 865 MHz |
| On/off/mute-switch | Yes |
| Weight kg | 0.1 |
| Depths cm | 2.3 |
| Frequency range Hz | 20 – 20000 |
| Type | In-Ear Monitor |
| Frequency selection | Switchable frequency |
