OMNITRONIC TM-250 Transmitter VHF214.000
Original price was: €53,44.€40,88Current price is: €40,88.
Description

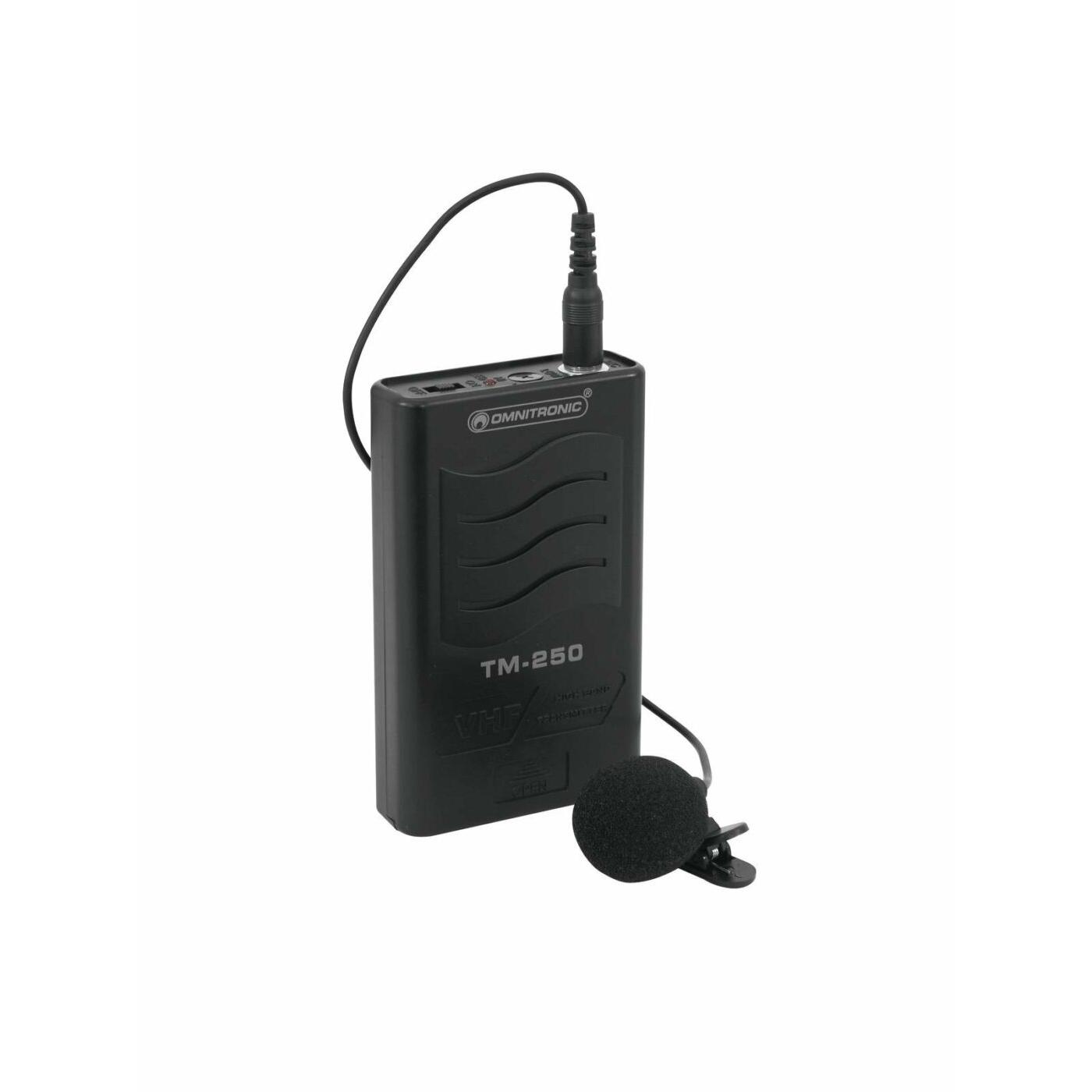

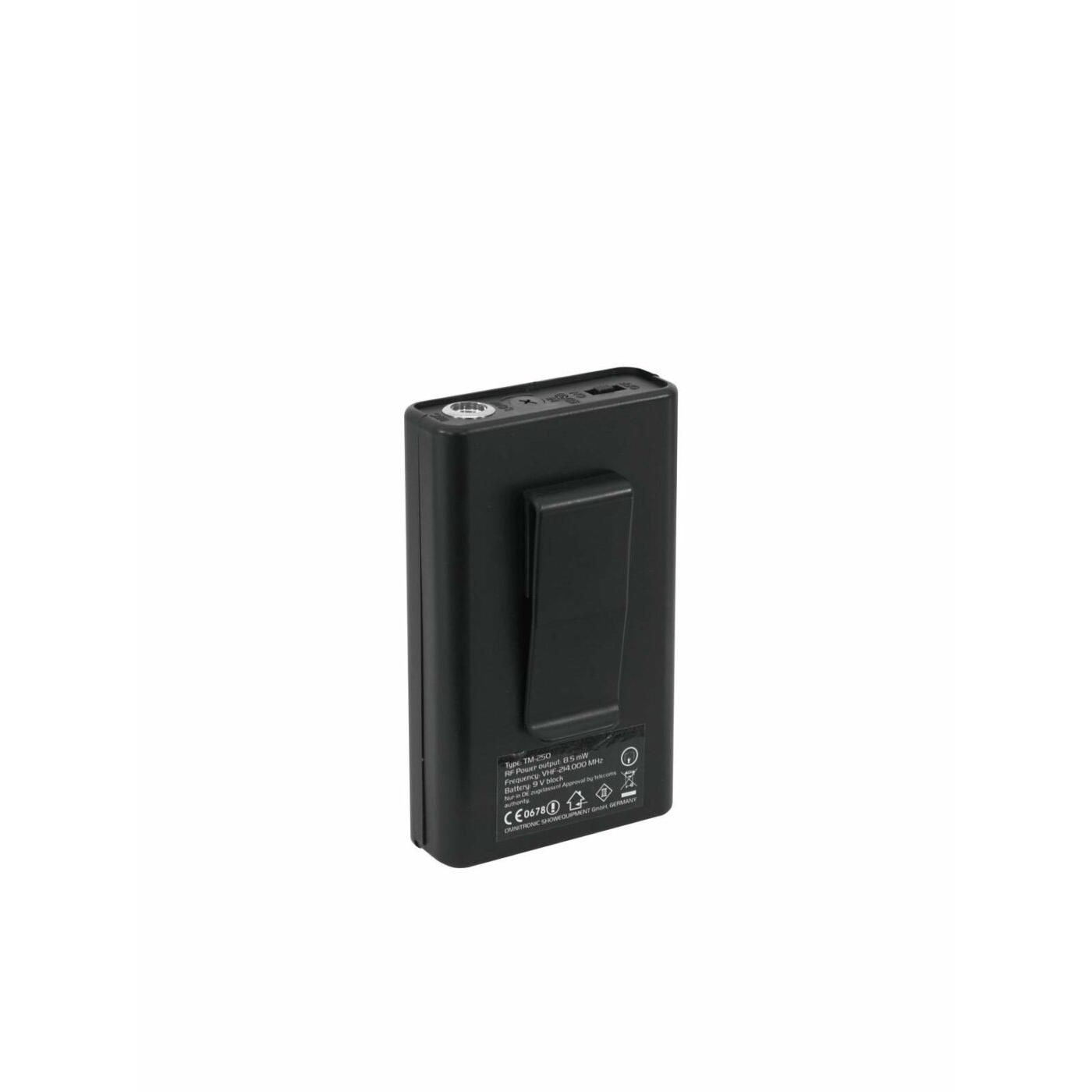

VHF pocket transmitter set for TM-250
- Set includes transmitter and lavalier microphone
- Matches receiver VHF-250 with the same carrier frequency
- Operation with fixed VHF frequency 214.000 MHz
- On/Off/Mute operation selector
- LED indicator for battery capacity
- Transmitting power 8.5 mW
- 3.5 mm jack (1/8") screw connection to headset or lavalier mic
- Power supply via 9 V battery (supplied)
- License-free and approved in Germany and other EU countries
| Carrier frequency: | VHF 214.000 MHz |
| Modulation: | FM, F3F |
| Frequency stability: | <±30 ppm |
| T.H.D.: | <0.5 % at 1 kHz |
| Band width: | 40-15 kHz (±3 dB) |
| Maximum deviation: | ±25 kHz |
| RF power output: | 8.5 mW |
| Power supply: | 1 standard 9 V battery |
| Battery life: | approx. 6 hours |
| Dimensions (L x W x H): | 106.5 x 64.5 x 31.5 mm |
| Weight: | 80 g |
Specifications
| Weight | 0,272 kg |
|---|---|
| Dimensions | 0,0700 × 0,1850 × 0,1450 m |
| Height cm | 3.15 |
| Frequency band | VHF |
| Microphone-Type | Condenser |
| On/off/mute-switch | Yes |
| Weight kg | 0.08 |
| Type | Pocket transmitter |
| Material | Plastic |
| Frequency selection | Fixed frequency |
| Polar pattern | Unidirectional |
