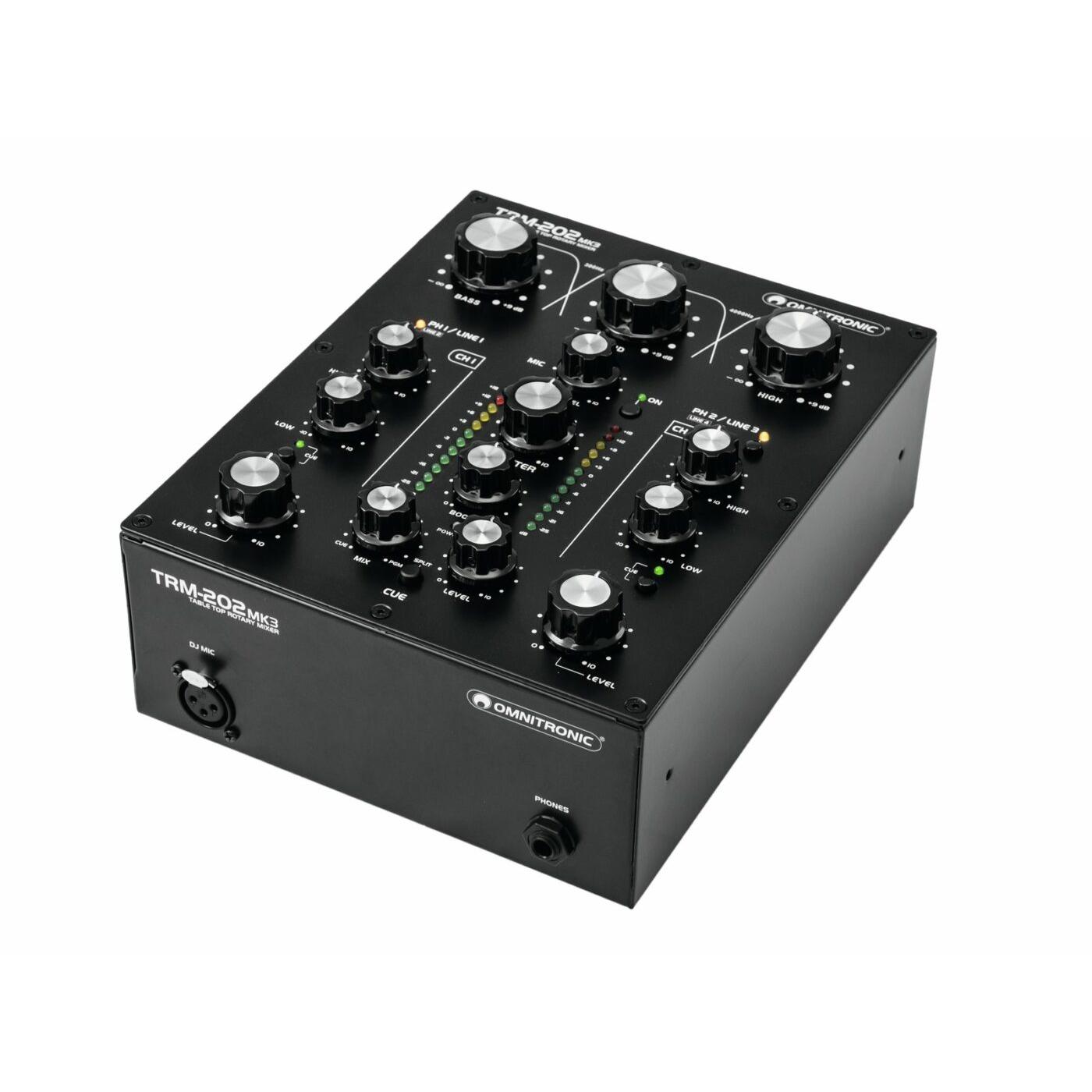

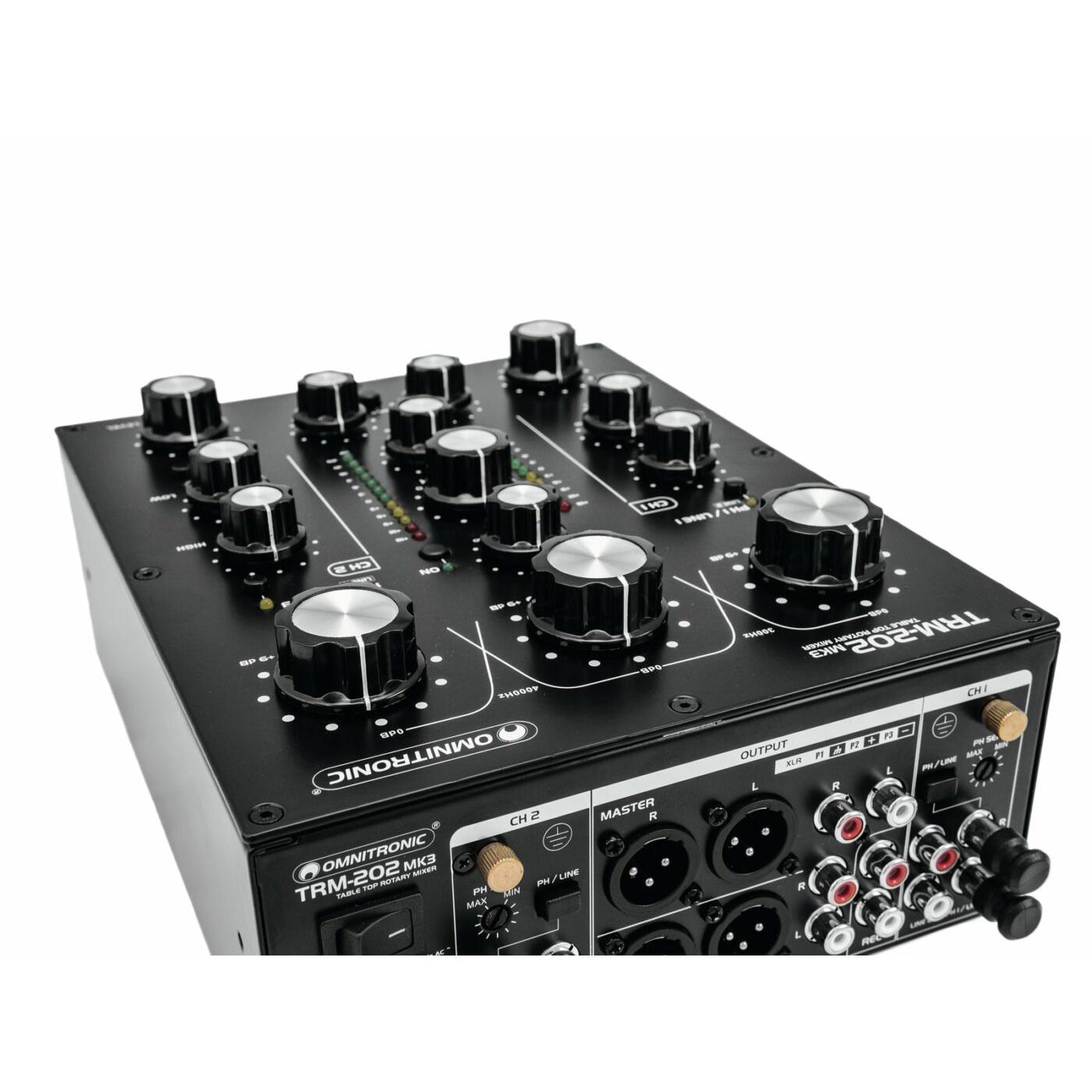

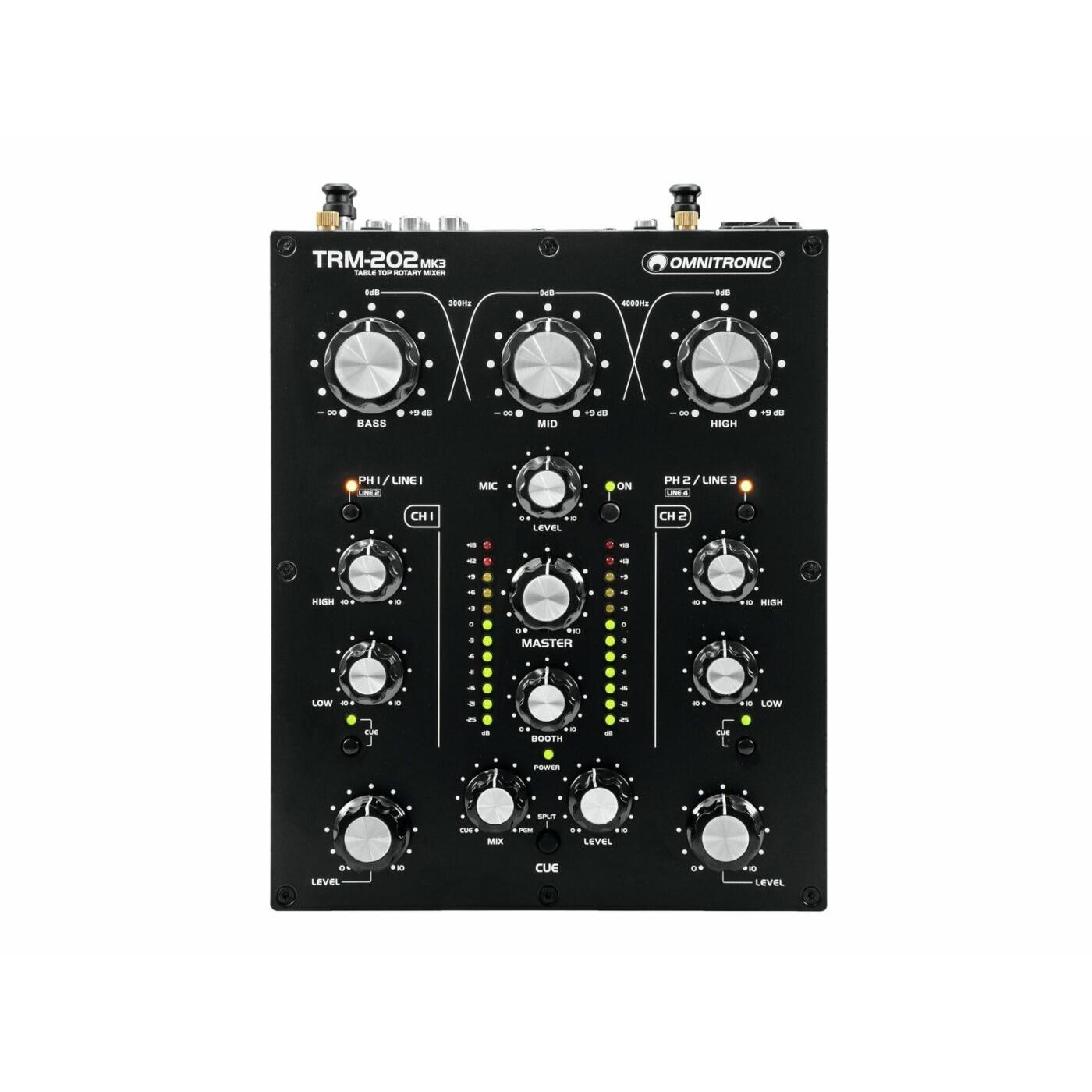

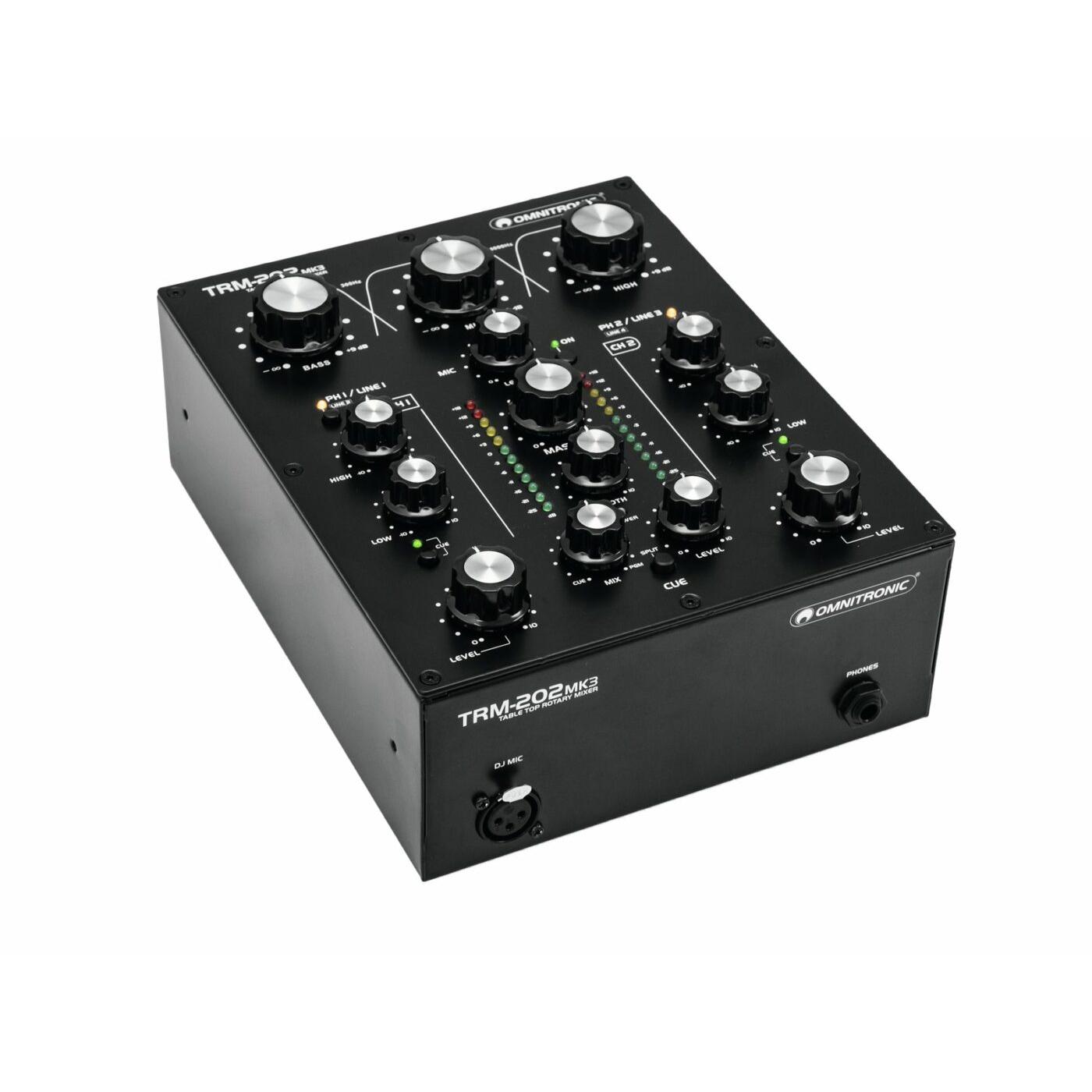

OMNITRONIC TRM-202MK3 2-channel Rotary Mixer

Description

🎚️ Omnitronic TRM-202MK3 – 2-Channel Rotary DJ Mixer with 3-Band Isolator

The Omnitronic TRM-202MK3 is a high-quality 2-channel rotary mixer designed for DJs who want a warm, analog sound and smooth transitions. Featuring classic ALPS “Blue Velvet” RK27 potentiometers and an integrated 3-band frequency isolator, this mixer delivers exceptional control over your mix.

🔧 Key Features

• Two stereo inputs with phono/line switching per channel

• 3-band frequency isolator with boost and kill-cut functions

• 2-band EQ (high/low) and gain control per channel

• DJ microphone input (XLR) with separate volume control

• Cue-mix split function for flexible headphone monitoring

• 12-segment stereo LED level meter and master volume control

• Booth output with separate volume control

• Rugged metal desktop housing

⚙️ Technical Specifications

• Power supply: 100–240 V AC, 50/60 Hz

• Power consumption: 6.5 W

• Frequency range:

  • Microphone: 20–20,000 Hz

  • Line: 20–20,000 Hz

  • Phono: 40–18,000 Hz

• Signal-to-noise ratio:

  • Phono: >77 dB

  • Microphone: >80 dB

  • Line: >85 dB

• Total harmonic distortion (THD):

  • Line: <0.03% at 1 kHz

  • Phono: <0.1% at 1 kHz

• Gain:

  • Microphone: 44 dB

  • Line: 20 dB

  • Phono: 60–75 dB

• Isolator:

  • Master Gain: -∞ to +9 dB

  • Low/Mid: 300 Hz, 18 dB/oct, Butterworth

  • Mid/High: 4000 Hz, 18 dB/oct, Butterworth

• Max. output level: +22 dBu

• Material: Metal

• Color: Black

• Dimensions (W x D x H): 19 x 25 x 10.7 cm

• Weight: 2.68 kg

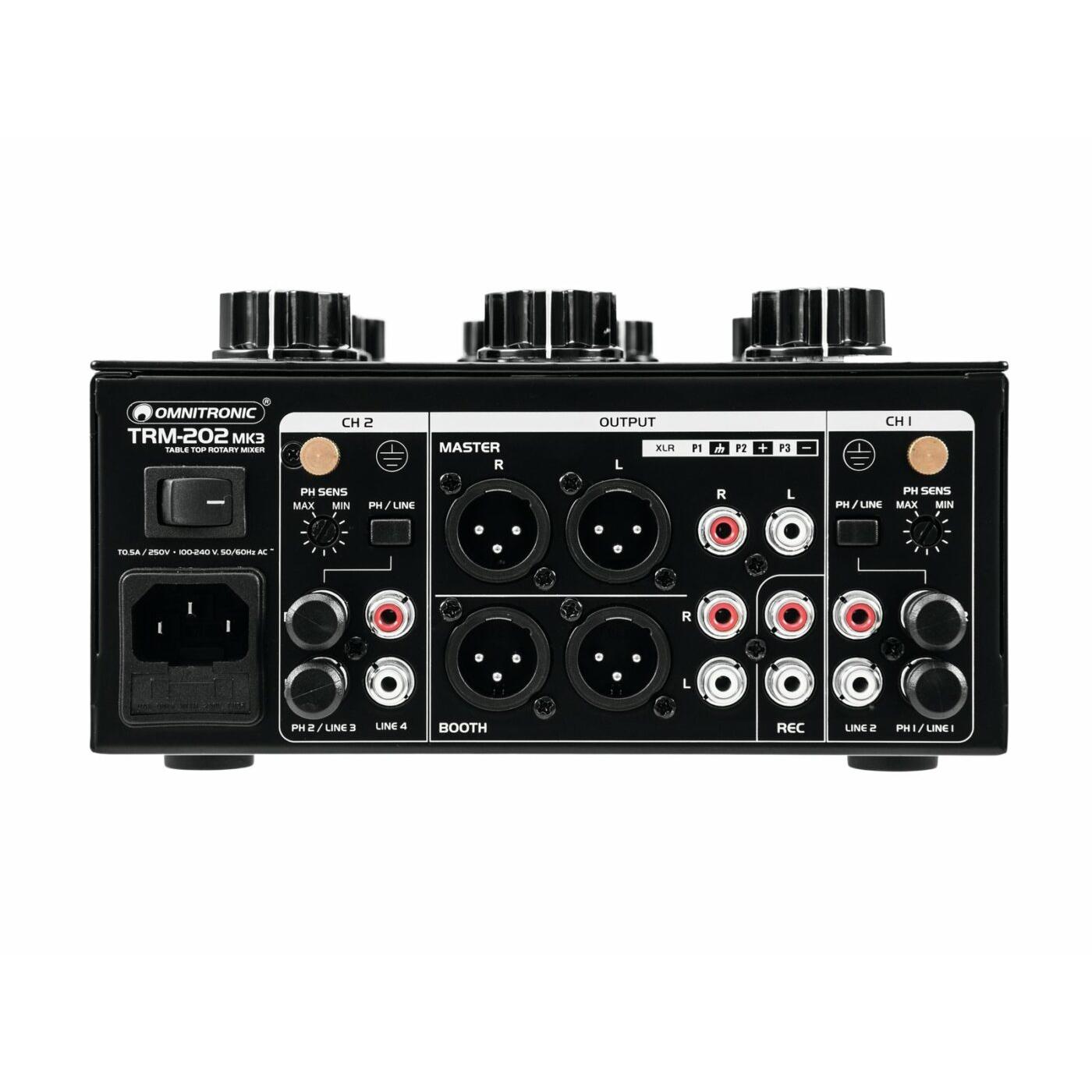

🔌 Connections

Inputs:

• 2 x line via stereo RCA

• 2 x line/phono via stereo RCA

• 1 x microphone via 3-pin XLR

Outputs:

• 1 x headphones via 6.3 mm stereo jack

• 1 x record via stereo RCA

• 2 x booth via 3-pin XLR

• 1 x booth via stereo RCA

• 2 x master via 3-pin XLR

• 1 x master via stereo RCA

📦 Box Contents

• 1 x Omnitronic TRM-202MK3 mixer

• 1 x Power cable

• 1 x User manual

🎧 Applications

This mixer is ideal for:

• Clubs and dance schools

• Mobile DJs and entertainers

• Home recording and studios

🔍 Why choose the Omnitronic TRM-202MK3?

The Omnitronic TRM-202MK3 strikes the perfect balance between classic functionality and modern reliability. With high-quality components and intuitive operation, it’s an ideal choice for DJs who want an authentic analog mixing experience.
