OMNITRONIC UHF-302 2-channel Wireless Mic System 823-832/863-865MHz
Original price was: €236,81.€172,90Current price is: €172,90.
Description

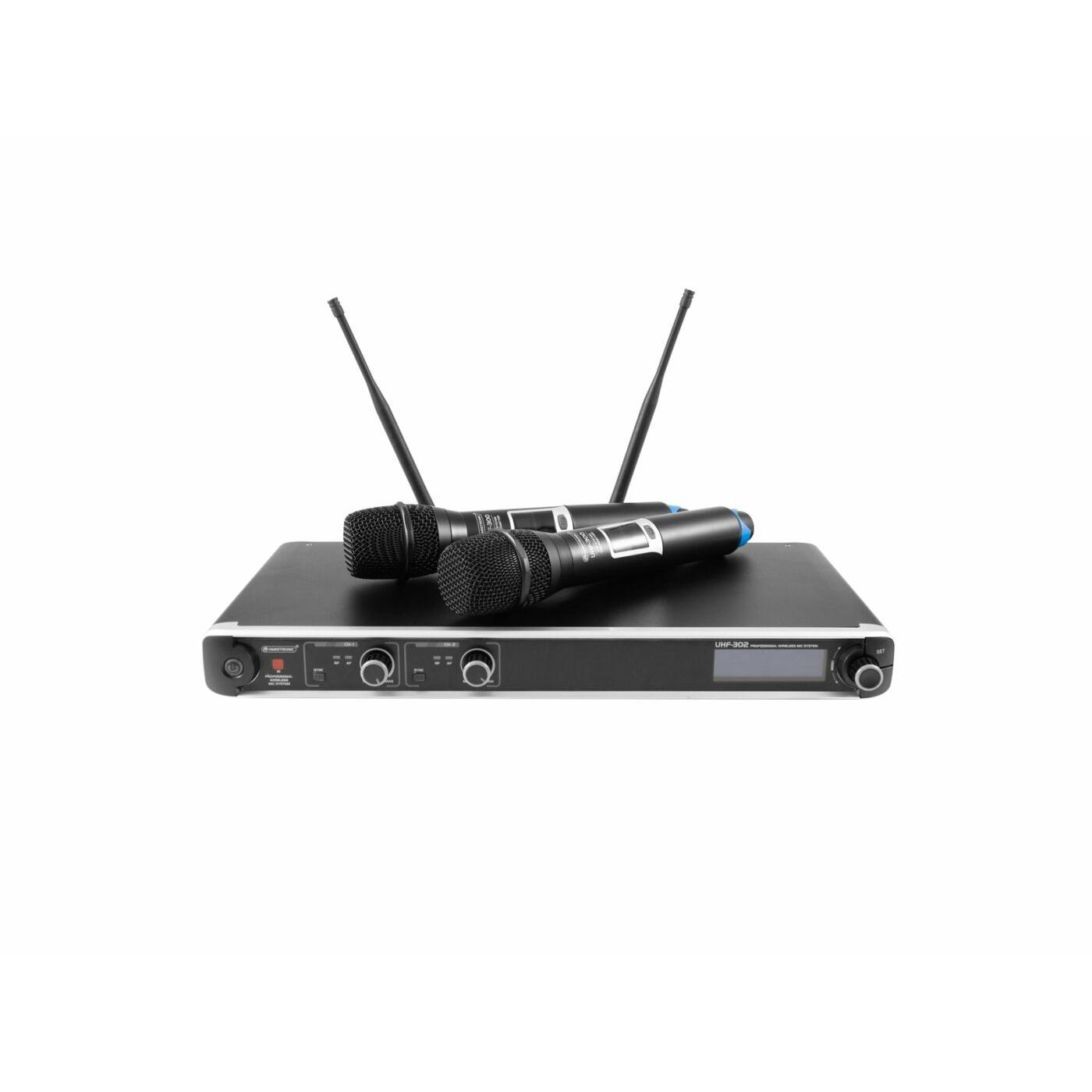

2-channel UHF PLL microphone system
- 2-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
- Operation in the license-free frequency ranges 823-832 MHz and 863-865 MHz
- 93 preset channels in 10 channel groups
- Operation range with line of sight approx. 60 meters
- Easy and error-free synchronization between receiver and transmitters via infrared signal
- LCDs for group, frequency and channel
- LEDs for carrier and audio signal
- 2 separate channels with volume controls
- Balanced XLR output per channel
- Unbalanced 6.3 mm jack for mixed signal output
- Jack cable included
- Removable antennas (BNC connection)
- Operation of the receiver unit via supplied power unit
- Incl. mounting brackets for 483 mm rack installation
- 2 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
- Operation of the microphones via 2 x 1.5 V batteries (type AA), not included
- Matching pocket transmitter can be ordered separately
- License-free and approved in large parts of the EU (please check on a country-by-country basis)

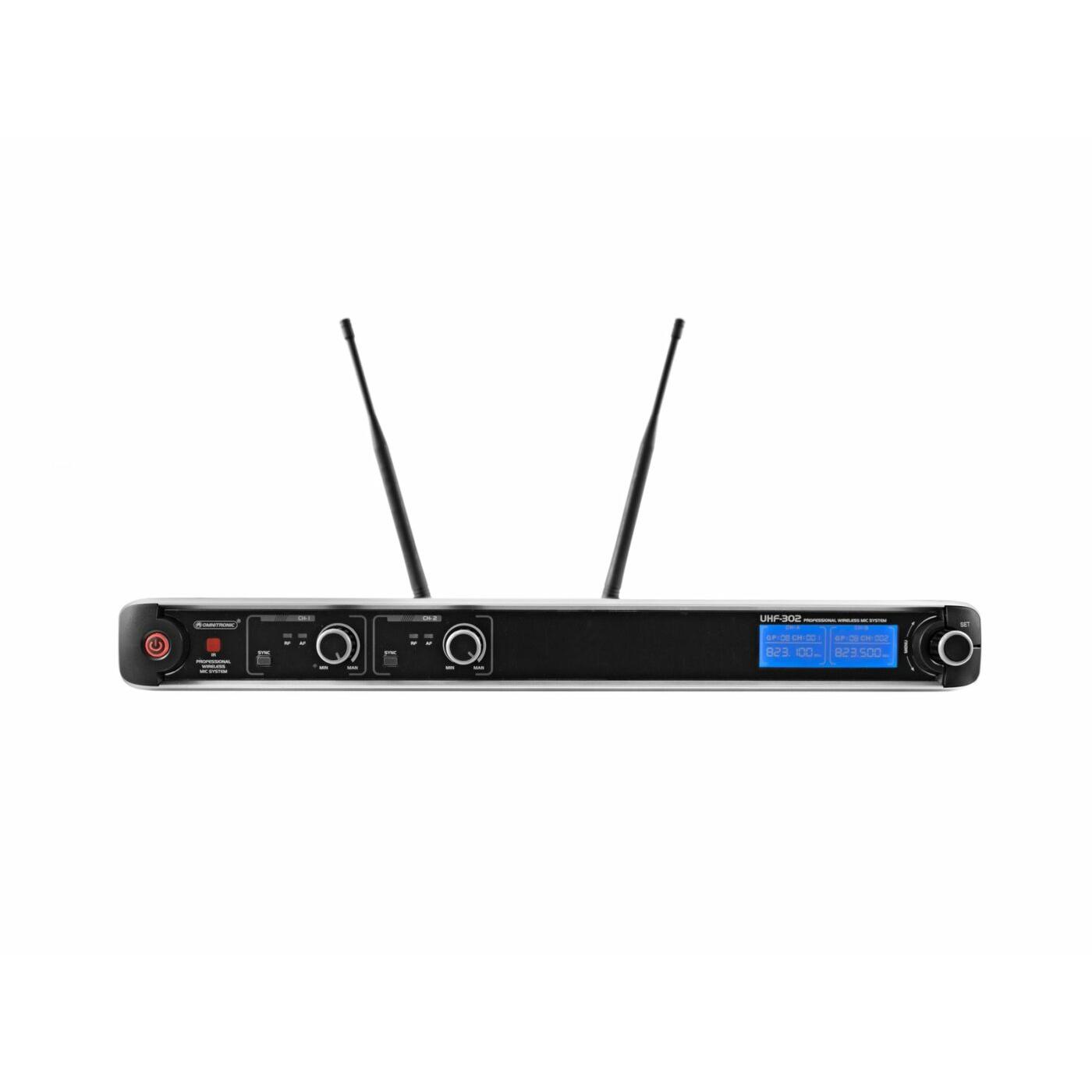

Receiver
- Height unit: 1 U
- Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
- Housing design: (19″) 48,3 cm rack installation possible
Microphone
- Battery: 2 x Mignon (AA) (not included)
- Mute function: No
- Polar pattern: Unidirectional
- Power connection: Battery/battery pack (not included)
| System: | Non-diversity, 2 channels |
| Carrier frequency: | 823-832 MHz and 863-865 MHz |
| Receiving frequencies: | 93 |
| Coverage: | 60 m (with line-of-sight) |
| RF power output: | 10 mW |
| Modulation method: | FM |
| Frequency stability: | 10 ppm |
| Sensitivity: | 6 dBµV |
| S/N ratio: | >80 dB |
| Frequency range: | 50-18000 Hz (±3 dB) |
| T.H.D.: | <0.5 % at 1 kHz |

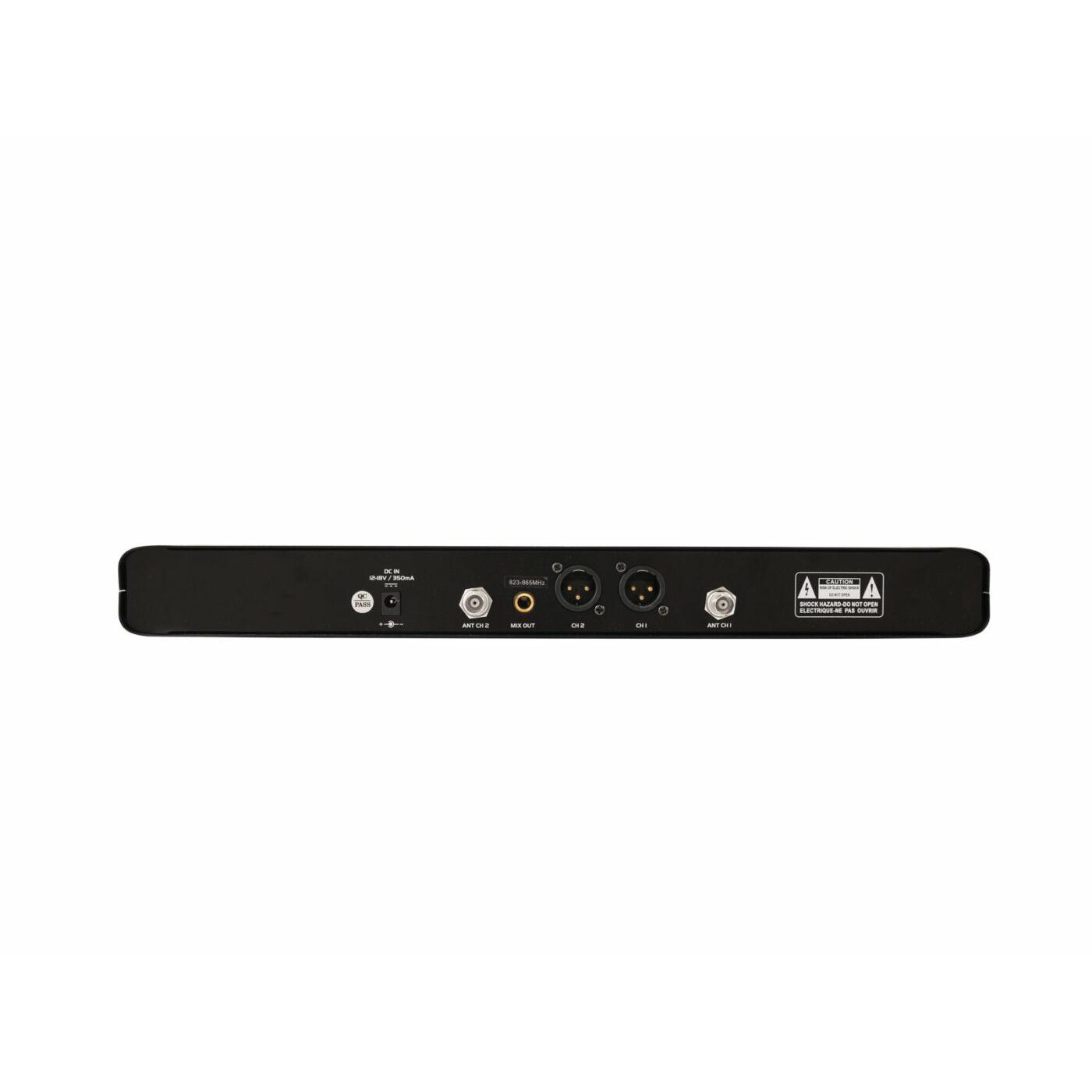

| Audio outputs: | |
| Mic: | 2 x XLR, bal. |
| Mix: | 6.3 mm jack, unbal. |
| Power supply: | |
| Receiver: | 100-240 V AC, 50/60 Hz via supplied power unit |
| Current consumption: | 130 mA |
| Frequency band: | UHF 823 – 832 MHz; UHF 863 – 865 MHz |
| Frequency range: | 50 – 18,000 Hz |
| Weight: | 2,30 kg |
| Receiver | |
| Width: | 41 cm |
| Depth: | 23,5 cm |
| Height: | 4,7 cm |
| Power consumption: | 4 W |
| Power connection: | Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) |
| Material: | Metal |
| Power supply: | 110-240 V AC, 50/60 Hz 14 V DC 350 mA |
| Microphone | |
| Length: | 25 cm |
| Diameter: | 5,1 cm |
| Battery: | 2 x Mignon (AA) |
| Polar pattern: | Unidirectional |
| Power connection: | Battery/battery pack |
| Material: | Plastic |
| Weight: | 0,23 kg |
