Sale!

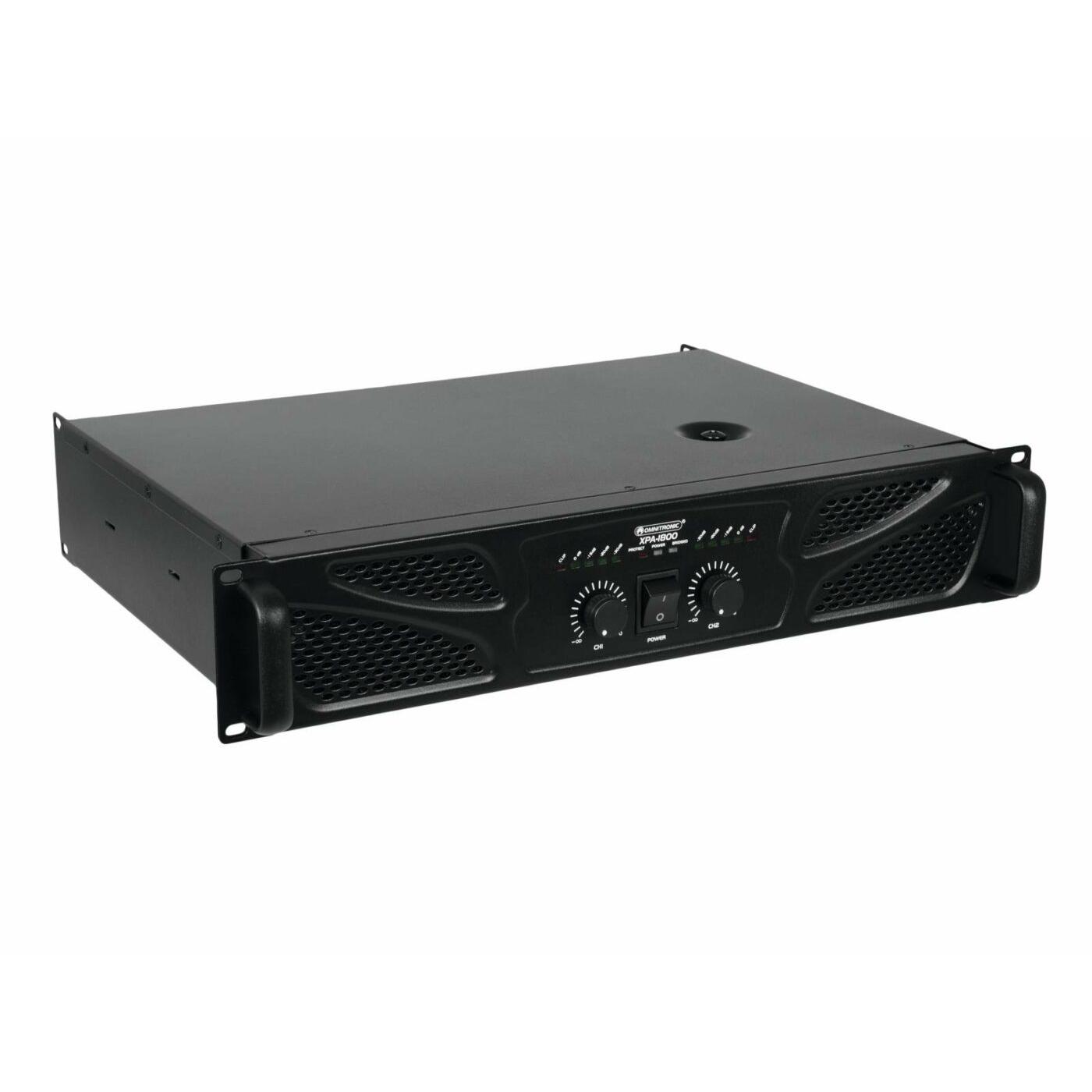

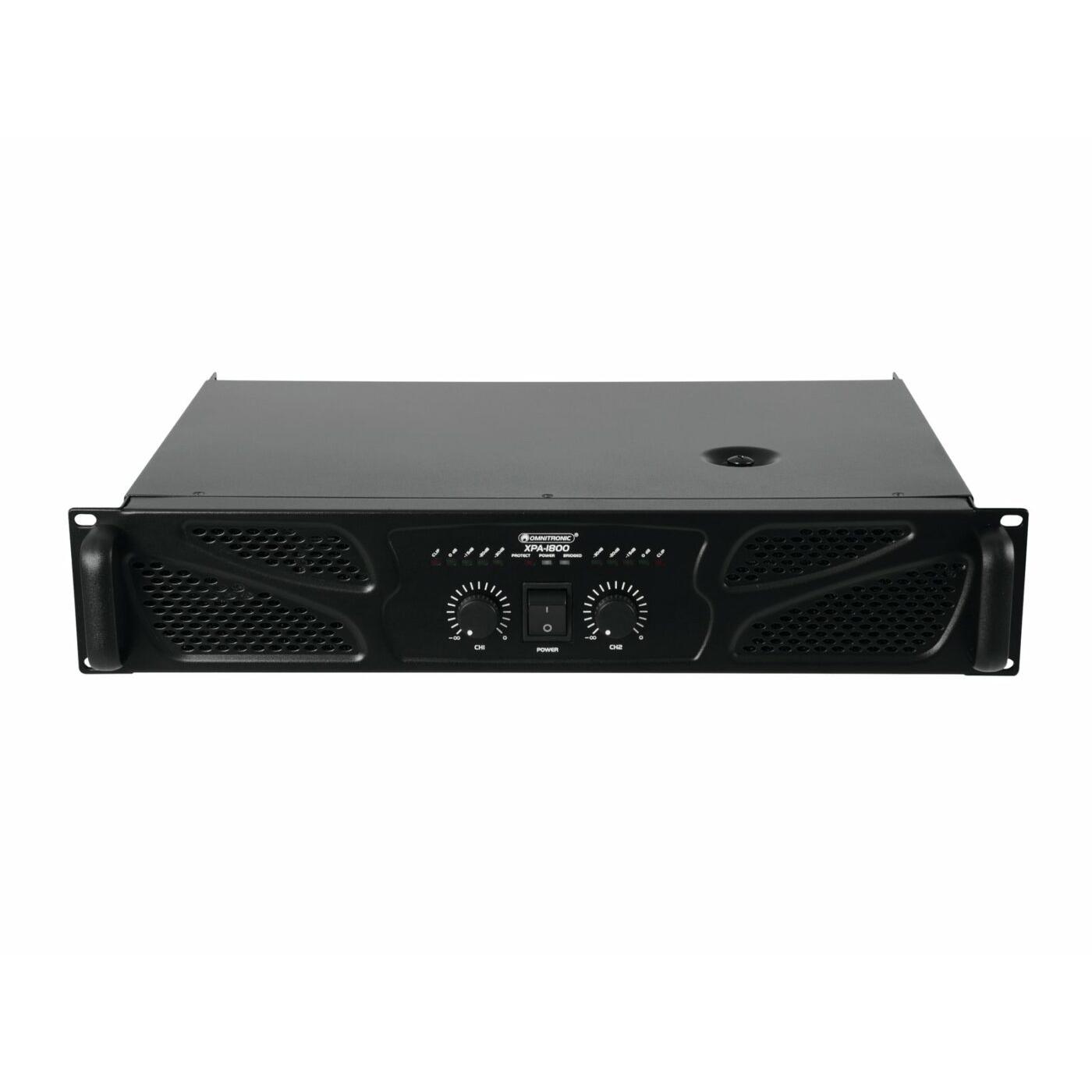

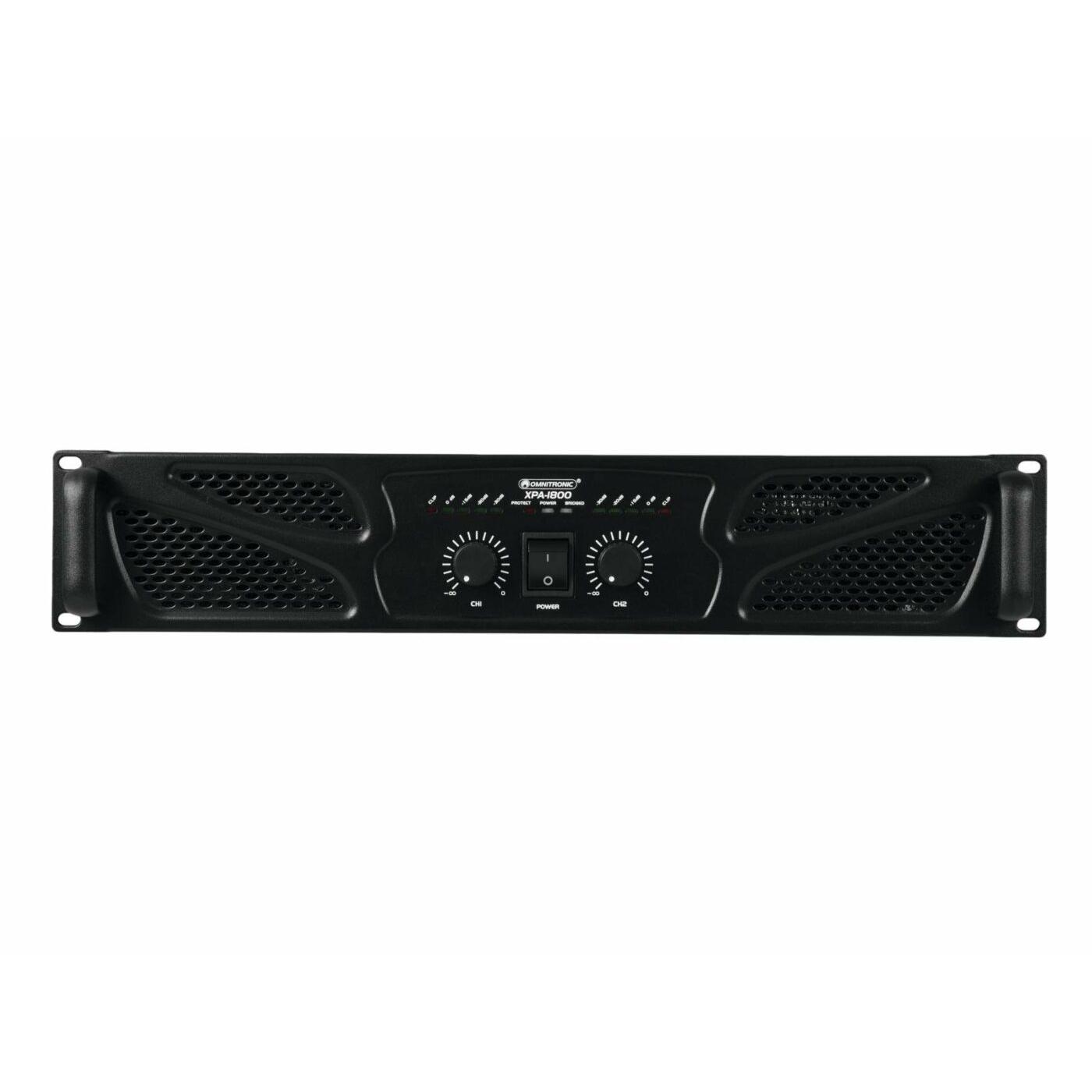

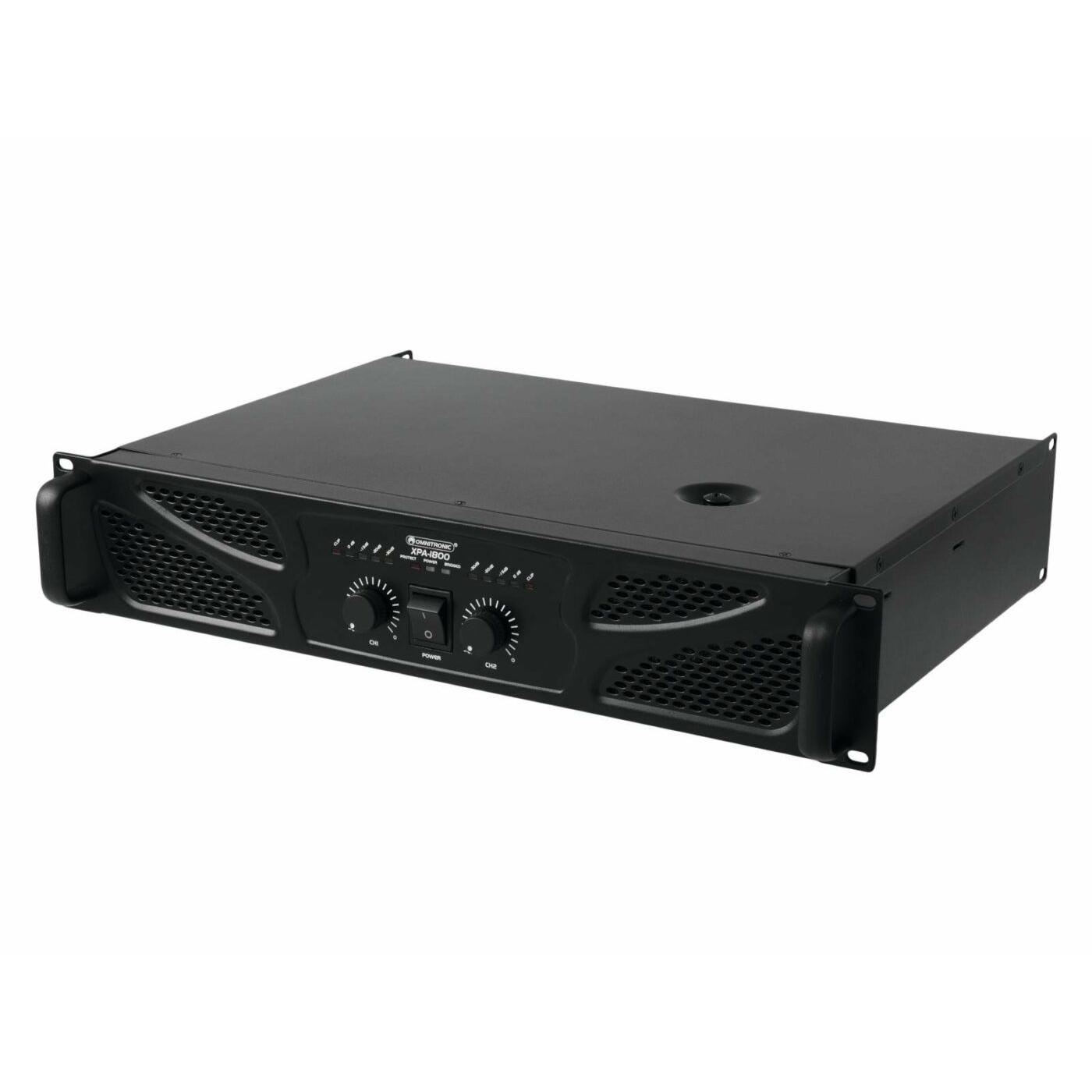

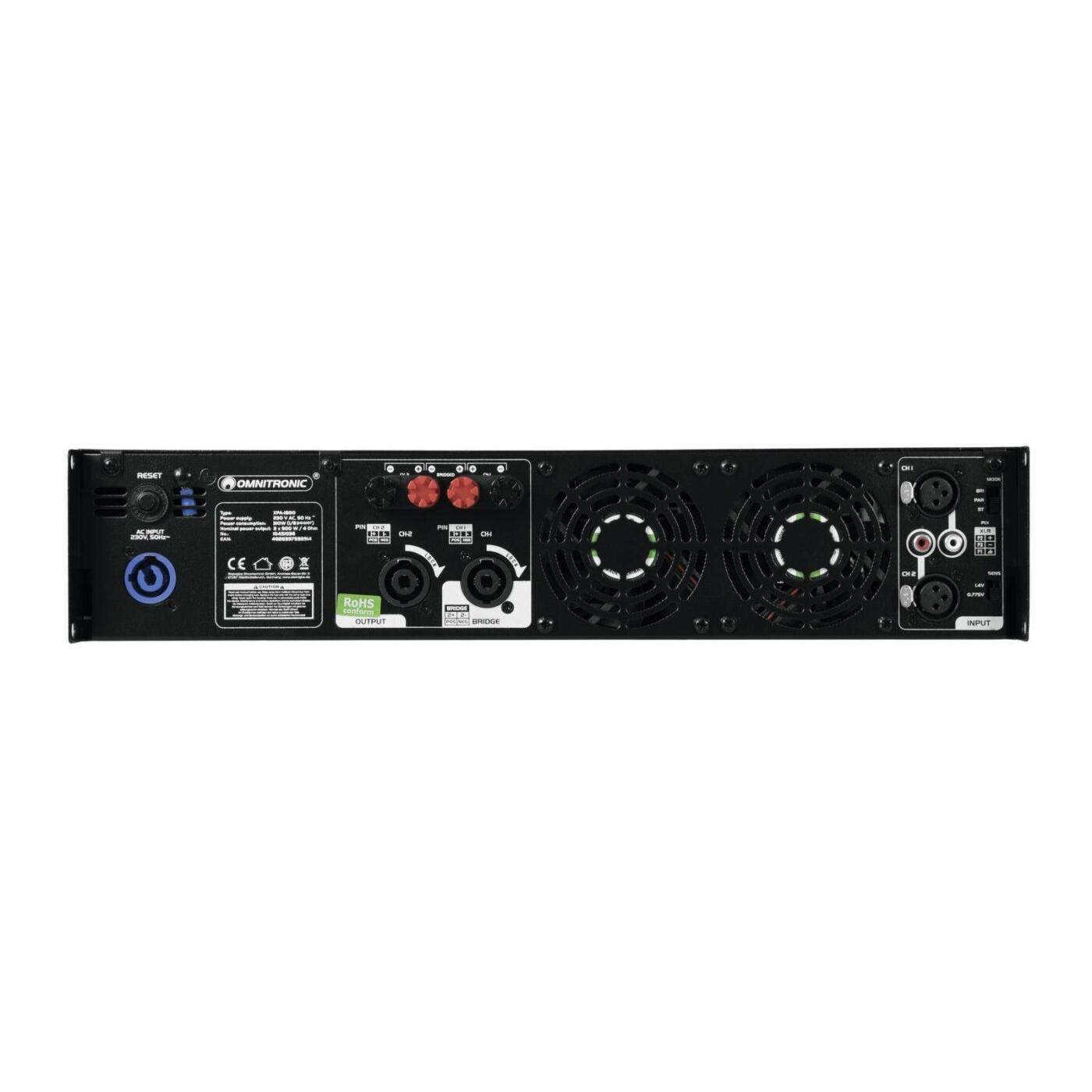

Omnitronic XPA-1800 Versterker
Original price was: €558,11.€404,79Current price is: €404,79.
Description
PA amplifier with integrated limiter, 2 x 900 W / 4 ohms, 2 x 650 W / 8 ohms
- 3 operating modes can be selected (stereo, parallel or bridged)
- Input sensitivity adjustable
- Speaker switch-on delay
- 2 level controls
- Each channel with LED for activated protective circuit (protect) and output meter with clip LED
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
- Fan cooling
- Signal inputs via XLR or RCA connectors
- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Additional Speaker plug for 8-ohm bridge operation
- Class H circuitry
- Rack installation with 2 units
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 765 W (1/8 power) |
| Power output sine: | |
| Stereo 4 ohms | 2 x 900 W |
| Stereo 8 ohms | 2 x 650 W |
| 8 ohms bridged | 1 x 1800 W |
| Frequency range: | 20-20000 Hz, ±1 dB |
| Damping factor: | >200 |
| Distortion factor: | 0.5 % |
| Slew rate: | >10 V/µsec |
| S/N ratio: | >100 dB |
| Input sensitivity: | 0.775 V / 1.4 V, switchable |
| Input impedance: | 20 kohms (balanced), 10 kohms (unbalanced) |
| Input connectors: | 2 x XLR, 2 x RCA |
| Output connectors: | 2 x speaker, 2 x pairs of screw terminals |
| Control elements: | power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector |
| LED indicators: | bridged, protect, and 5-fold output meter with clip LED (per channel) |
| Protection circuits: | short-circuit, overheat, DC voltage, power on/off transients, softstart |
| Construction: | steel chassis with steel front panel |
| Dimensions (DxWxH): | 354 x 483 x 103 mm (19″, 2 U) |
| Weight: | 13.6 kg |
Specifications
| Weight | 15 kg |
|---|---|
| Dimensions | 0,1450 × 0,5300 × 0,4200 m |
| Number of channels | 2 |
| Mode of operation | Class-H |
| Weight kg | 13,6 |
| Power supply | 230 V AC, 50 Hz |
| Power consumption W | 765 1/8 power |
| Power/channel (8 Ohm) | 650 |
| Power/channel (4 Ohm) | 900 |
