OMNITRONIC ZD-250 Zone Distributor
Original price was: €249,00.€213,14Current price is: €213,14.
Description
Practical distributor with 2 inputs and 5 outputs
- Extends every mixer with additional outputs
- 2 stereo XLR inputs

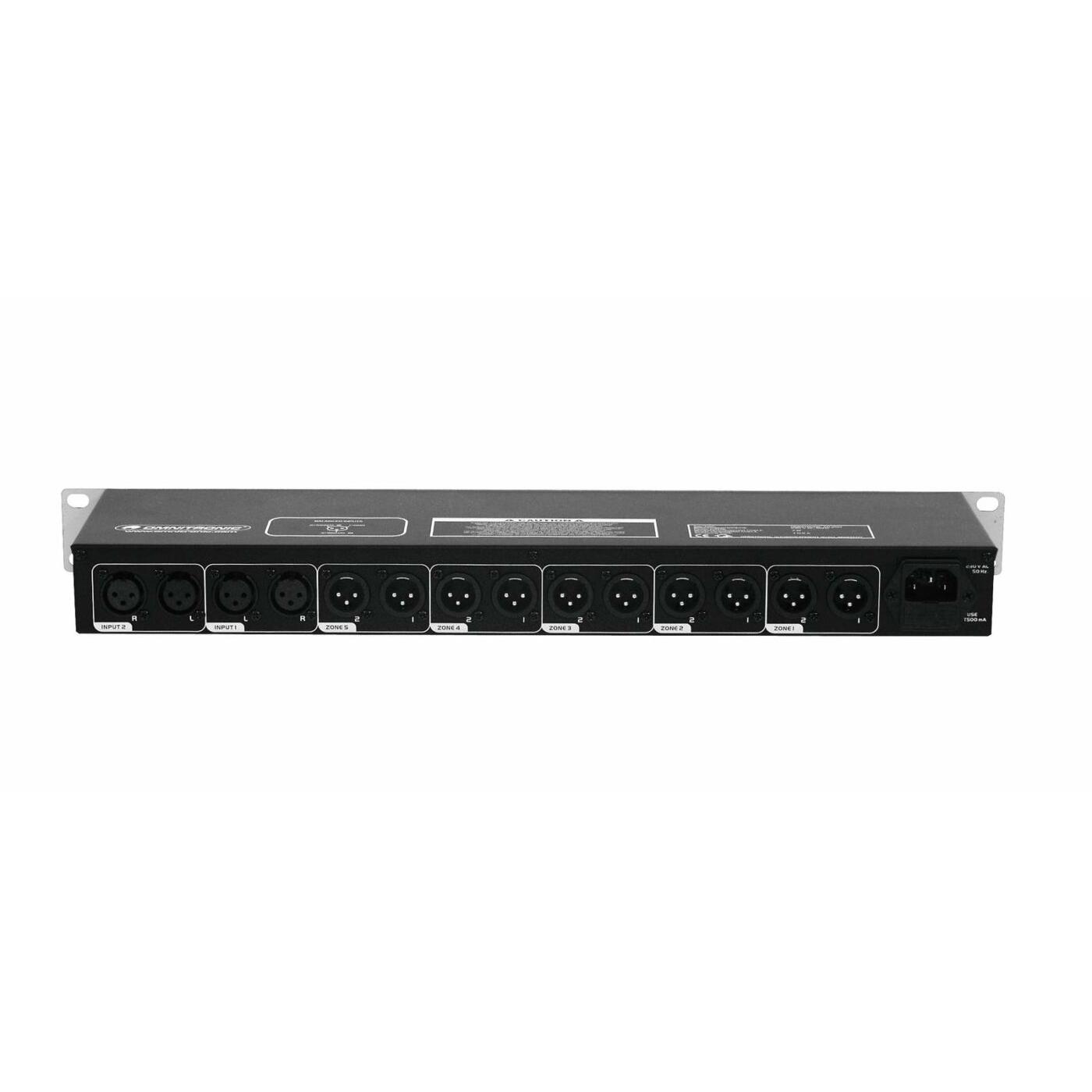

- 5 stereo zone XLR outputs

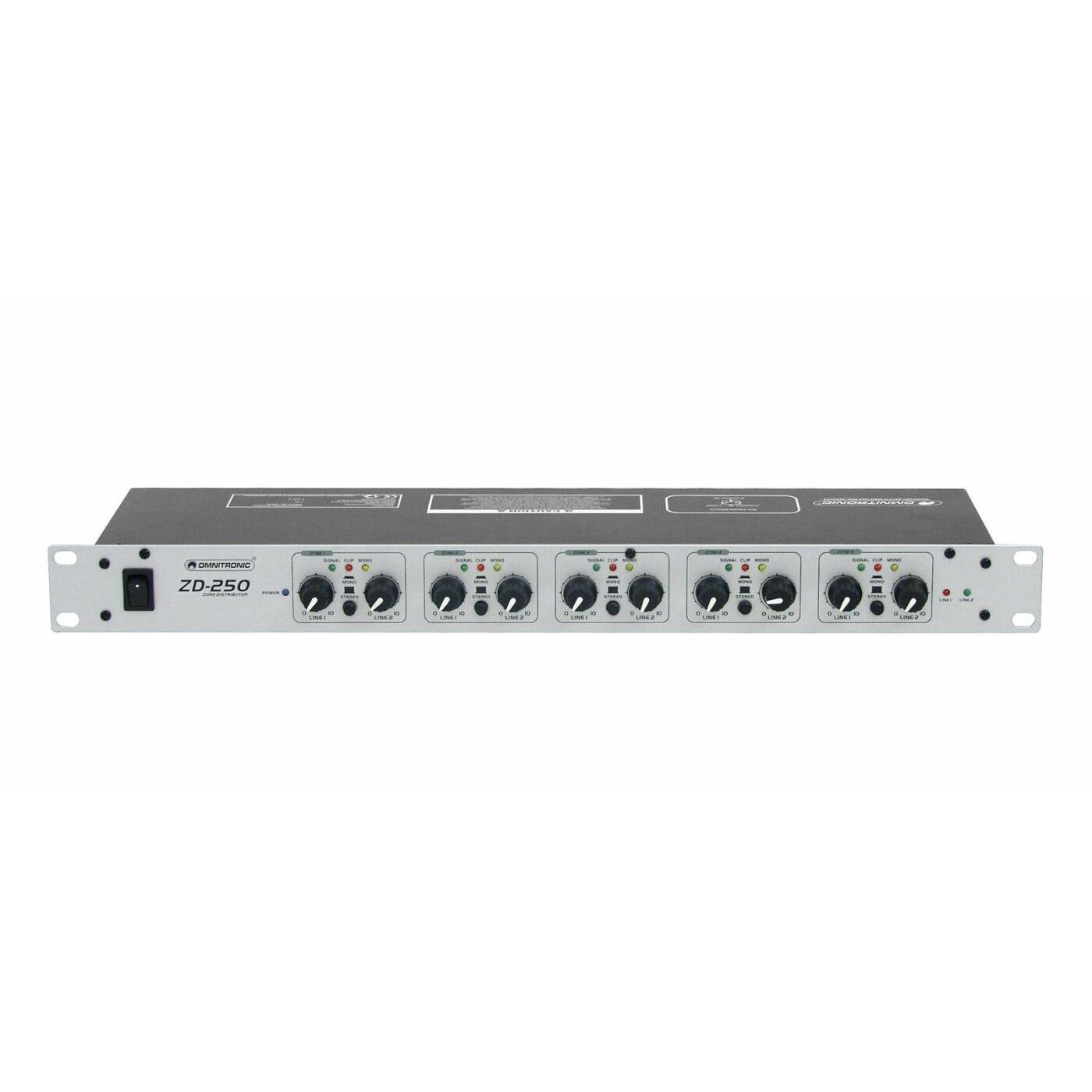

- Each zone with level controls for both inputs and mono switch
- LED display of signal input, distortion and mono/stereo mode
- Rack installation with 1 U
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 7 W |
| Input impedance: | 45.1 kohms |
| Max. input level: | 9 dB |
| Output level: | 22 dB |
| Output impedance: | 125 ohms |
| Max. gain: | 15 dB |
| Distortion: | 0.2 % |
| S/N ratio: | 69 dB |
| Dimensions (W x D x H): | 482 x 126 x 44 mm |
| Weight: | 2.4 kg |
Specifications
| Weight | 2,75 kg |
|---|---|
| Dimensions | 0,0900 × 0,5350 × 0,2650 m |
| Height cm | 4.4 |
| Weight kg | 3.3 |
| Depths cm | 12.6 |
| Power supply | 230 V AC, 50 Hz |
| Power consumption W | 7.00 |
