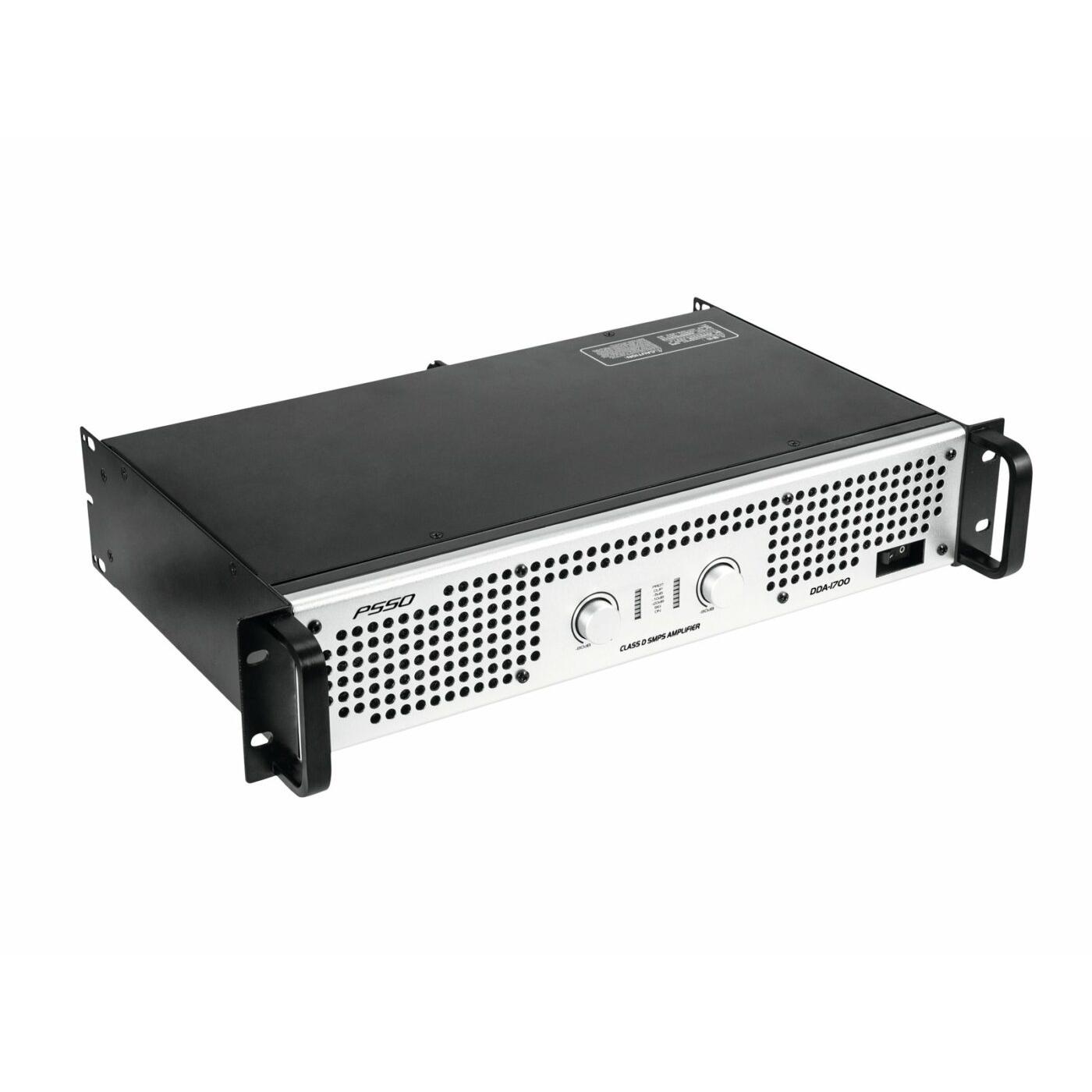

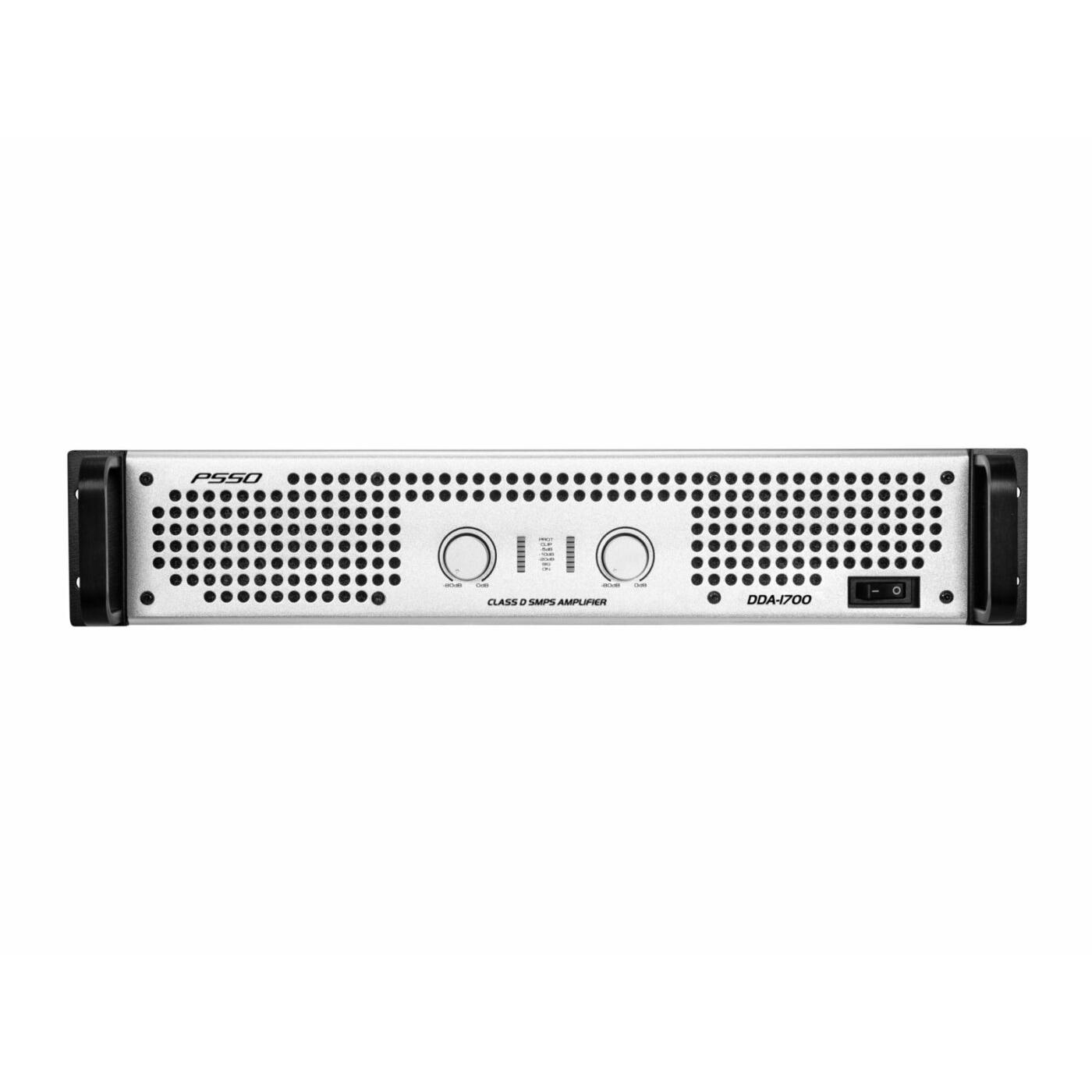

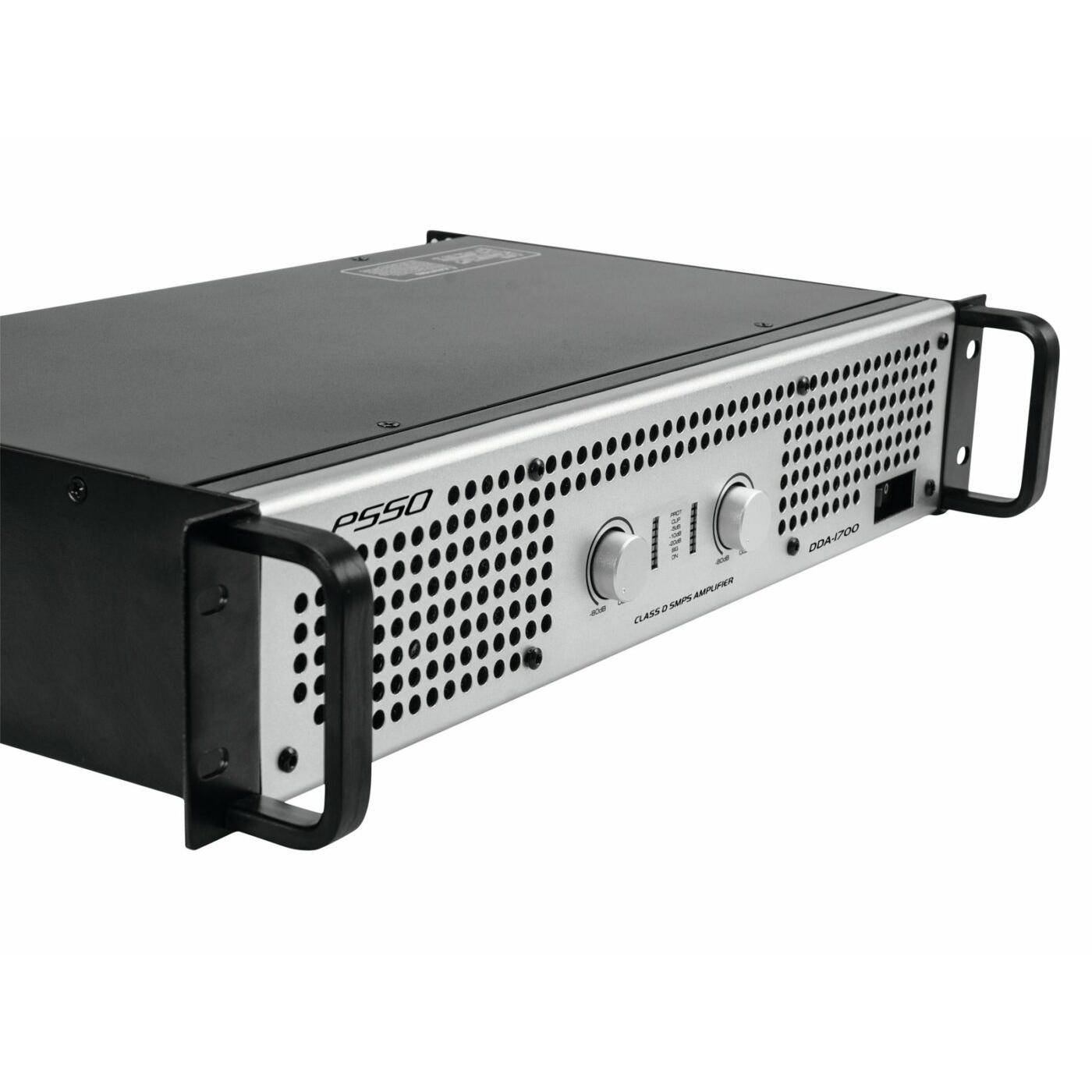

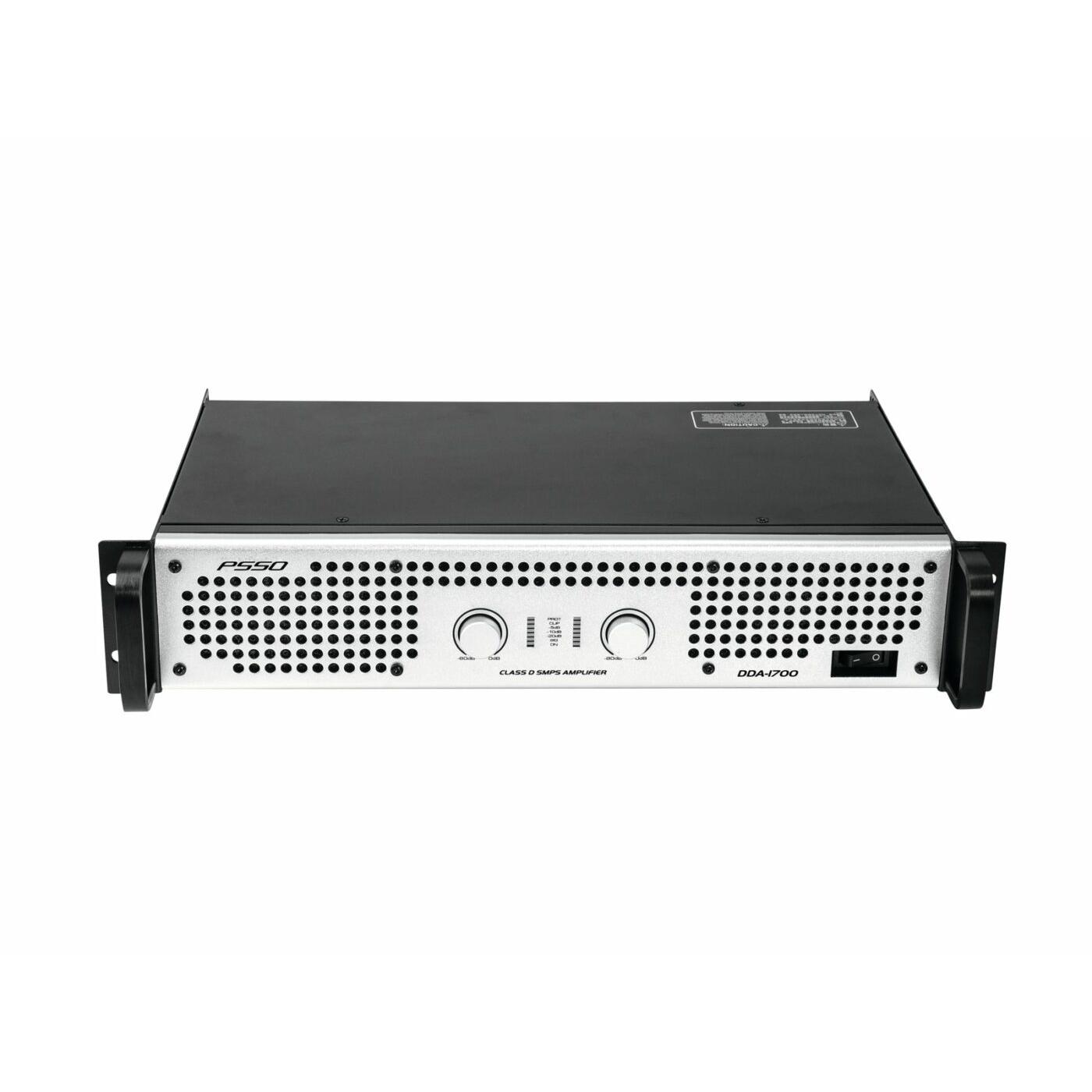

PSSO DDA-1700 Amplifier

Original price was: €593,81.Current price is: €419,34.

Shop & pay securely with iDEAL, Creditcard and Bancontact.
Need advice? Contact us — we’re happy to help!
International shipping across Europe.
In stock - order today, at your home by 12 December
SKU: 10451684 Category:

Description

Stereo PA amplifier with SMPS, 2 x 850 W / 4 ohms

  • Stereo PA amplifier with class D circuitry
  • Low weight and height due to integrated switch mode power supply
  • Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
  • Limiter and speaker switch-on delay
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • 2 calibrated level controls for precise level adjustment
  • Input sensitivity adjustable
  • LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
  • Highly efficient front-to-rear air routing
  • Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
  • Speaker outputs via lockable Speaker plugs and screw terminals
  • Rugged steel chassis with aluminum front panel
  • Rack installation with 2 units
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 150 W (1/8 power)
Power output (RMS):
Stereo, parallel at 4 ohms 2 x 850 W
Stereo, parallel at 8 ohms 2 x 500 W
8 ohms bridged 1 x 1700 W
Frequency range: 20-20000 Hz
Signal-to-Noise ratio: >100 dB
Total harmonic distortion: <0.15 %
Damping factor: >500
Voltage gain: 38.2 dB
Slew rate: >10 V/µsec
Input sensitivity: 0.775 V/1.0 V/1.81 V bzw. 39.3 dB/37 dB/32 dB, switchable
Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)

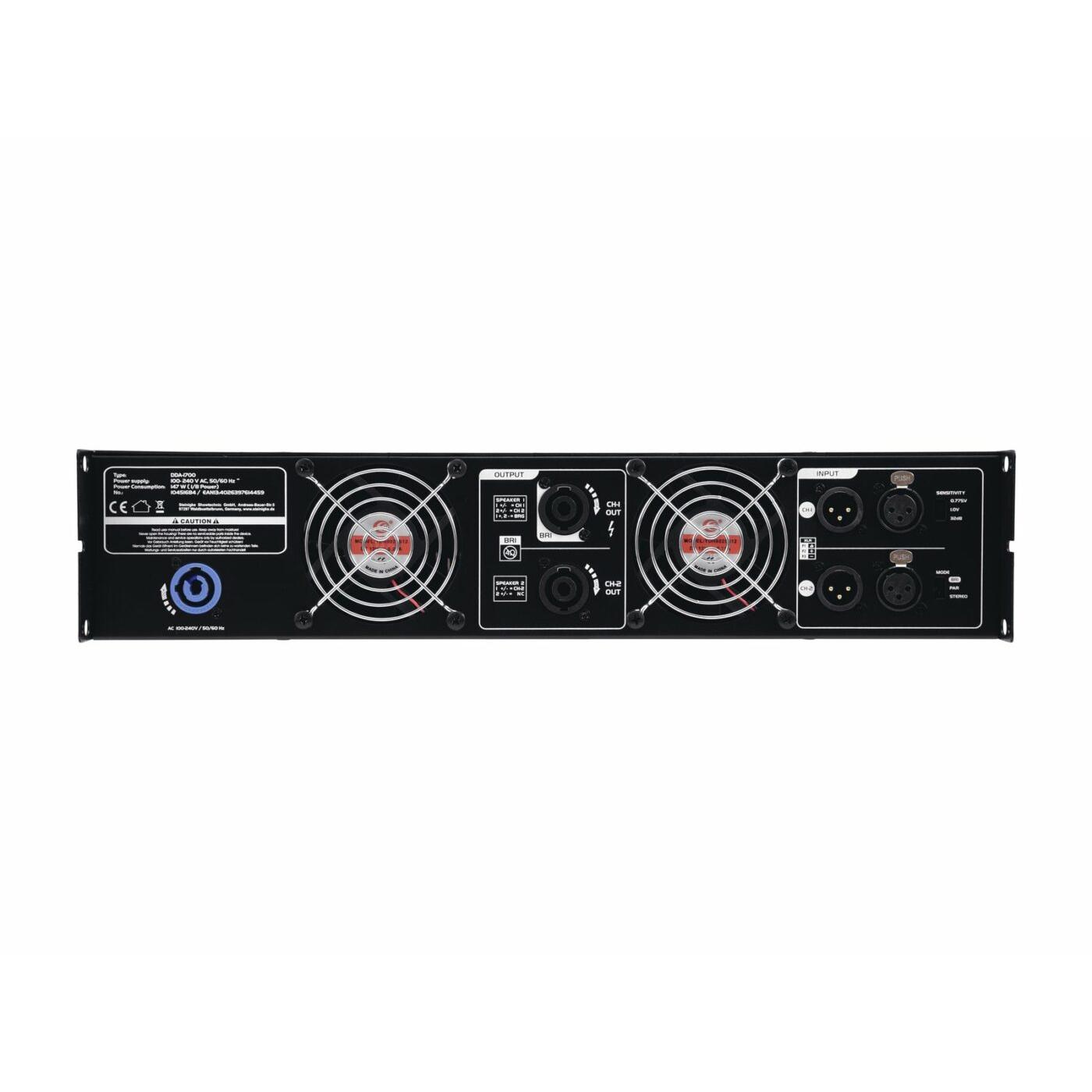

Input connectors: 4 x XLR
Output connectors: 4 x Speaker, 4 x XLR feed-through output
Circuitry: Class D
Protection: Softstart, short-circuit, overheat, overload, clip limit, RF and VHF signals
Cooling: 2 temperature-controlled fans, front-to-rear
Controls: Power switch, input attenuators, mode switch stereo/parallel/bridged, input sensitivity
LED indicators: protect, clip, -5 dB, -10 dB, -20 dB (per channel)
Construction: steel chassis, aluminum front
Dimensions: 483 x 461 x 89 mm
Rack installation with 2 U
Weight: 7 kg

Specifications

Weight 7,35 kg
Dimensions 0,1700 × 0,5500 × 0,4200 m
Height cm

8.9

Number of channels

2

Mode of operation

Class-D

Weight kg

6

Power supply

100-240 V AC, 50/60 Hz

Power consumption W

150 1/8 power

Frequency range Hz

20 – 20000
