Sale!
PSSO PXS ONE 1-channel True Diversity Receiver 640-690 MHz
Original price was: €332,01.€279,00Current price is: €279,00.
Uitverkocht - Neem contact met ons op voor meer informatie.
Description
License-free true diversity wireless receiver with auto scan, 3-band EQ, TFT color display & rack kit
- Professional multifrequency wireless receiver with true diversity reception for stage use
- High-grade components and intelligent features ensure best performance and high reliability
- Ideal for large multi-channel systems
- Automatic frequency setup
- Spectrum analysis to identify interference frequencies
- Multifunctional jogdial for menu settings
- 2 detachable BNC antennas allow for use with external antenna divider
- (19") 48.3 cm rack installation possible 1 U
- Operating range up to 200m
- Up to 28 transmitters can be operated in parallel without interference
- Multicolor TFT display
- Charge status indicator
Package contents

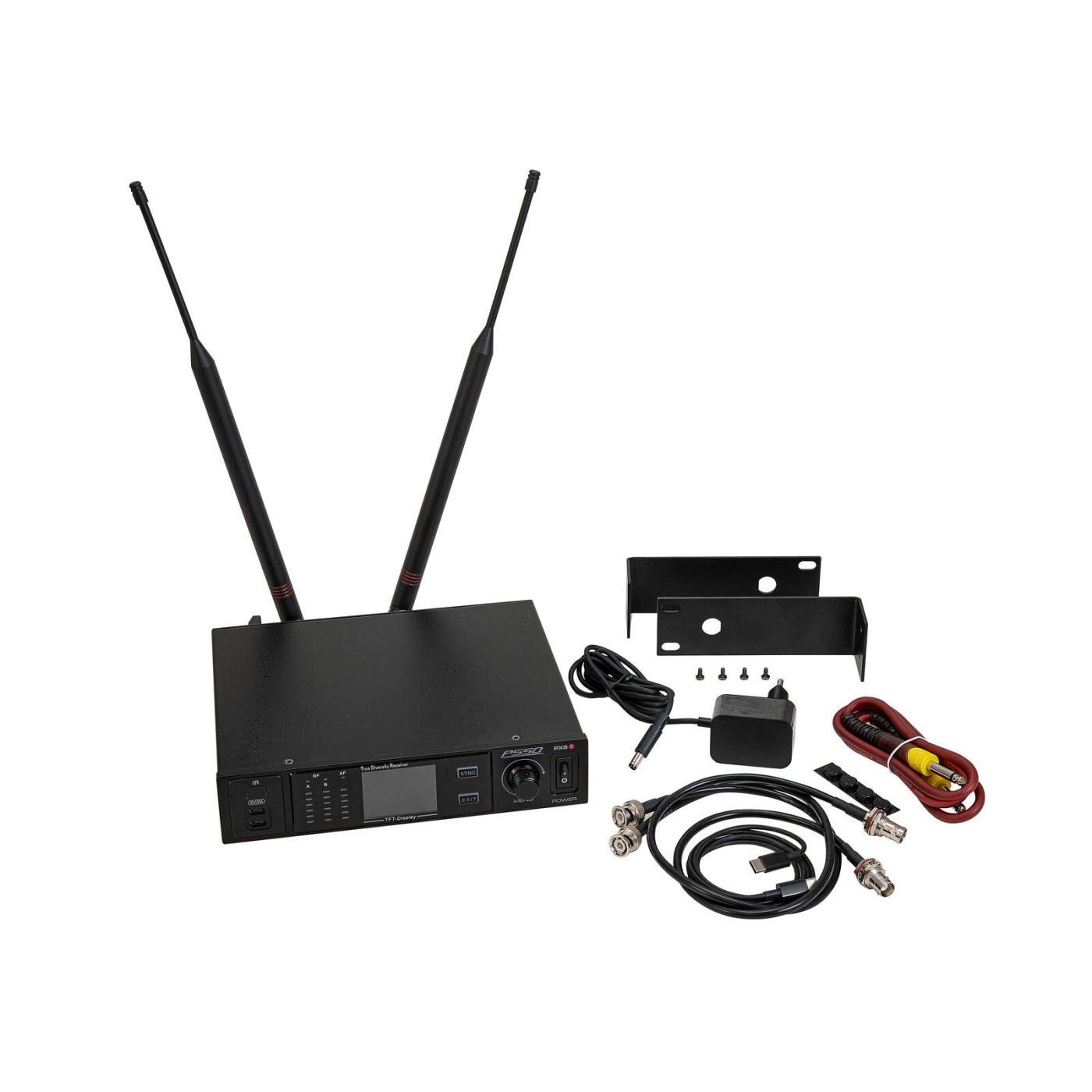

- 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x transmitter, 1 x USB cable, 1 x jack cable, 1 x mounting bracket, 6 x screw, 1 x battery pack
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA |
| Power consumption: | 3,6 W |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M) power supply cord with AC adapter (provided) |
| Number of channels: | 1 |
| Frequency range: | 30 – 19000 Hz |
| S/N ratio: | >112 dB |
| THD: | <0,5 % at 1 kHz |
| Range: | Range up to 200m |
| Frequency band: | UHF 640 – 690 MHz |
| Diversity: | True diversity |
| Switching bandwidth: | 50 MHz |
| Frequency stability: | ± 0,001 % |
| Parallel mode: | Max. 28 transmitter |
| Frequency selection: | Frequencies automatically scannable |
| Housing color: | Black |
| Display type: | Multicolor TFT display |
| Display: | Frequency , goup , channel , charge status indicator; RF signal level , AF audio level , antenna A/B , Mute |
| Control elements: | Power switch, encoder, exit, sync button |
| Status LED: | Power |
| Connections: | Input: antenna via 2 x BNC (F) 11,54 V Output: microphone via 1 x 6.3 mm plug (unbal.) Output: microphone via 1 x 3-pin XLR (M) mounting version |
| Equalizer: | 3-band tone control |
| USB port: | 2 x type C |
| Material: | Metal |
| Mounting dimensions: | 23 cm x |
| Housing design: | (19") 48.3 cm rack installation possible 1 U |
| Dimensions: | Width: 21,2 cm Depth: 24,4 cm Height: 4,5 cm |
| Weight: | 1,74 kg |
| Jack cable | |
| Dimensions: | Length: 100 cm |
Specifications
| Weight | 2,17 kg |
|---|---|
| Dimensions | 0,0750 × 0,4250 × 0,3150 m |
| EAN | 4026397743982 |
