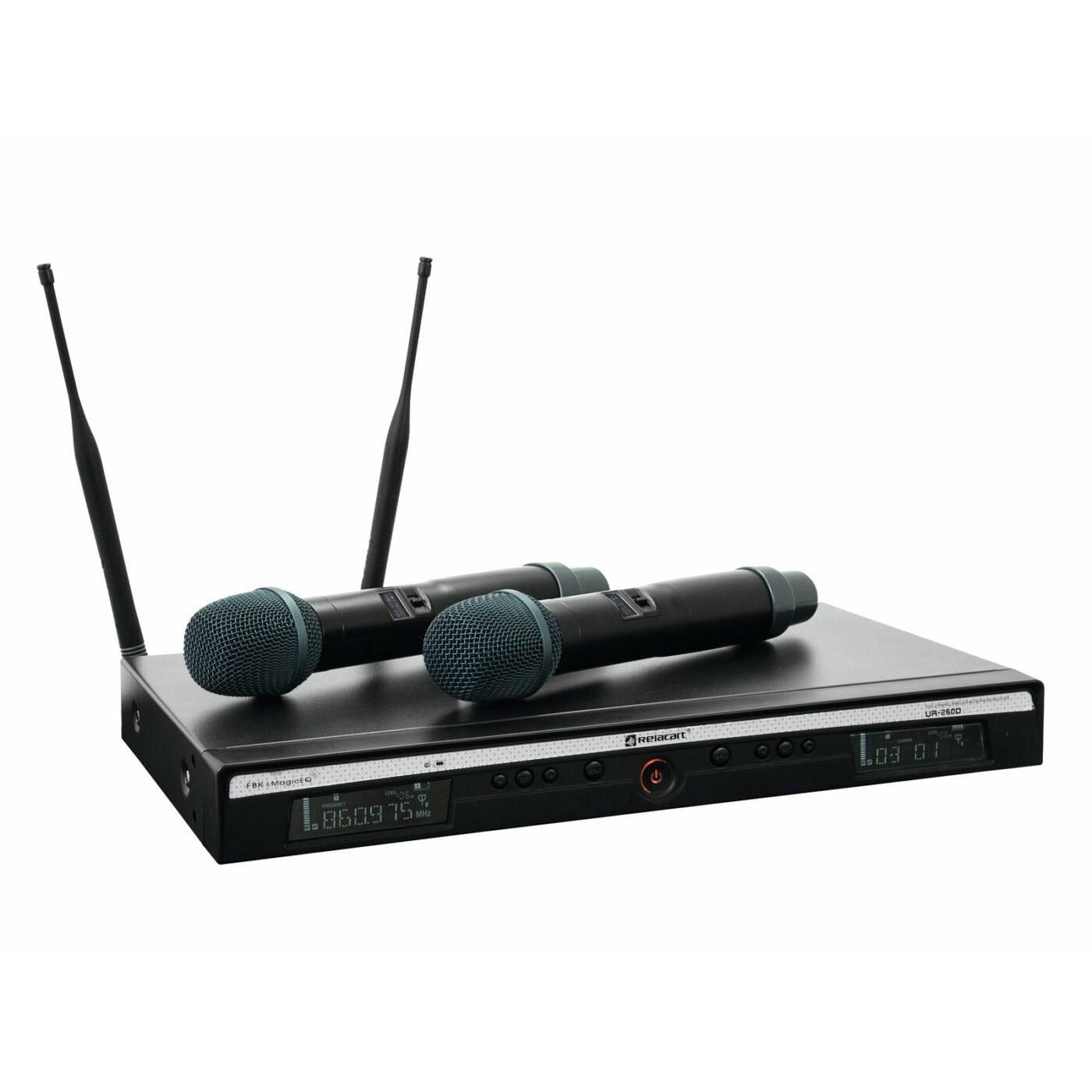

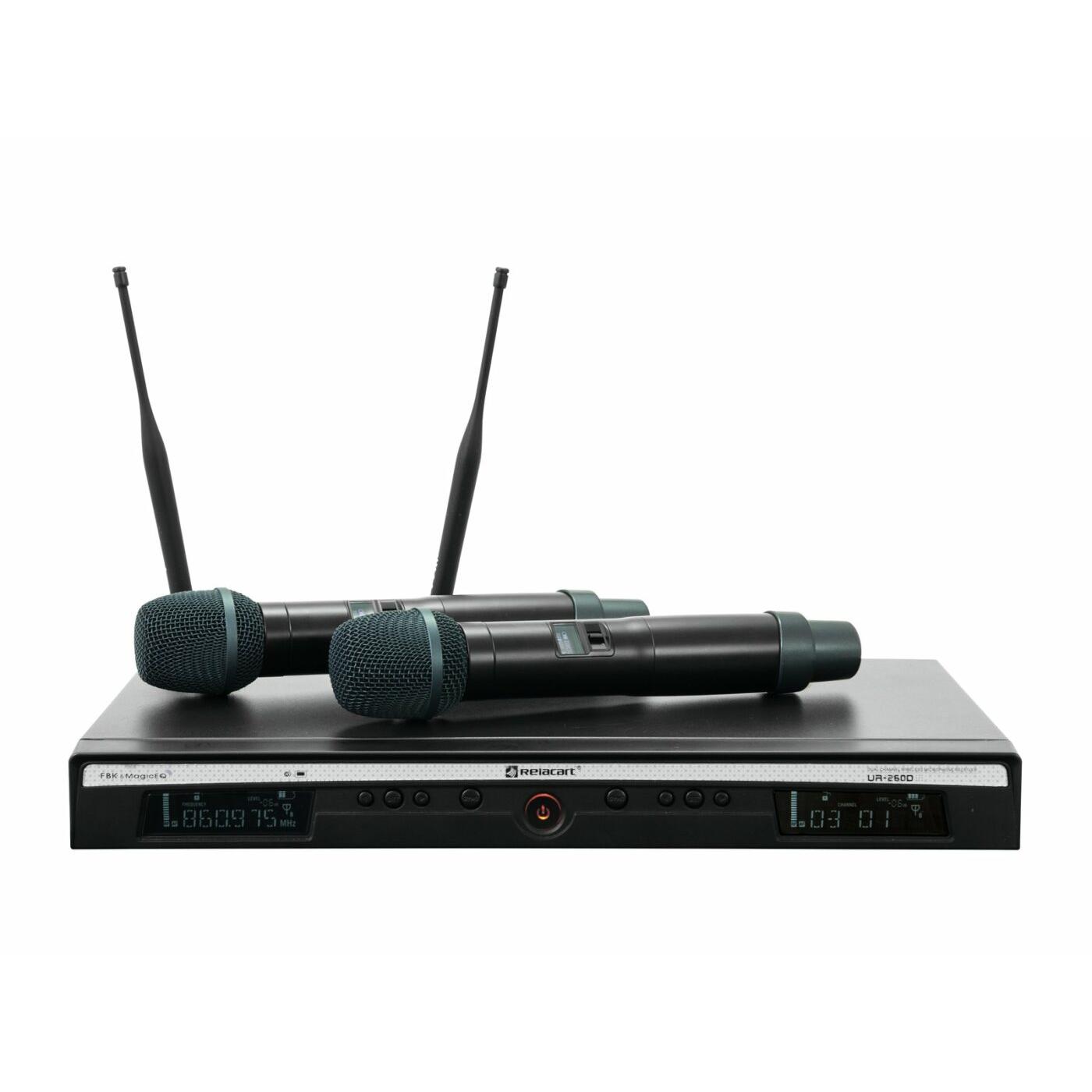

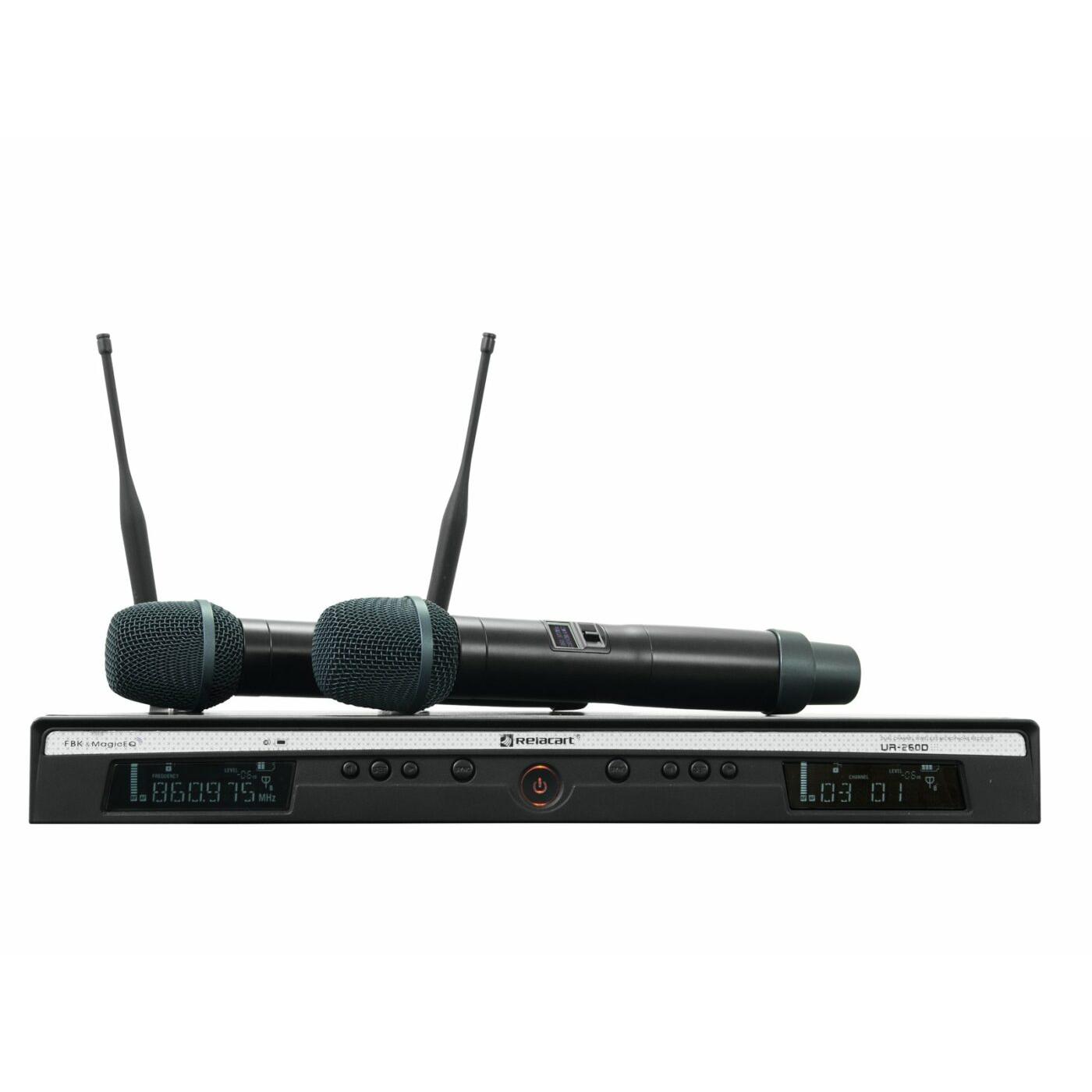

RELACART UR-260D 2-channel UHF System 823-832 + 863-865 MHz
Original price was: €617,61.€478,36Current price is: €478,36.
Description
system with DSP for microphone modeling and PC software, 823-832 + 863-865 MHz
- 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
- 2 condenser hand-held microphones with ergonomic aluminum alloy housing and OLED display, applicable for touring
- Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
- Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
- Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
- DSP programming and management via Ethernet port and intuitively operated PC software
- High-quality true diversity reception
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Pilot tone technology (PLL) and noise squelch for interference-free operation
- Operation range with line of sight approx. 80 meters
- Automatic frequency scan (AFS) finds interface-free channels
- Easy and error-free synchronization between receiver and transmitters via infrared signal
- LCDs for battery status of the transmitters, antenna A/B, RF reception level, AF audio level and frequency

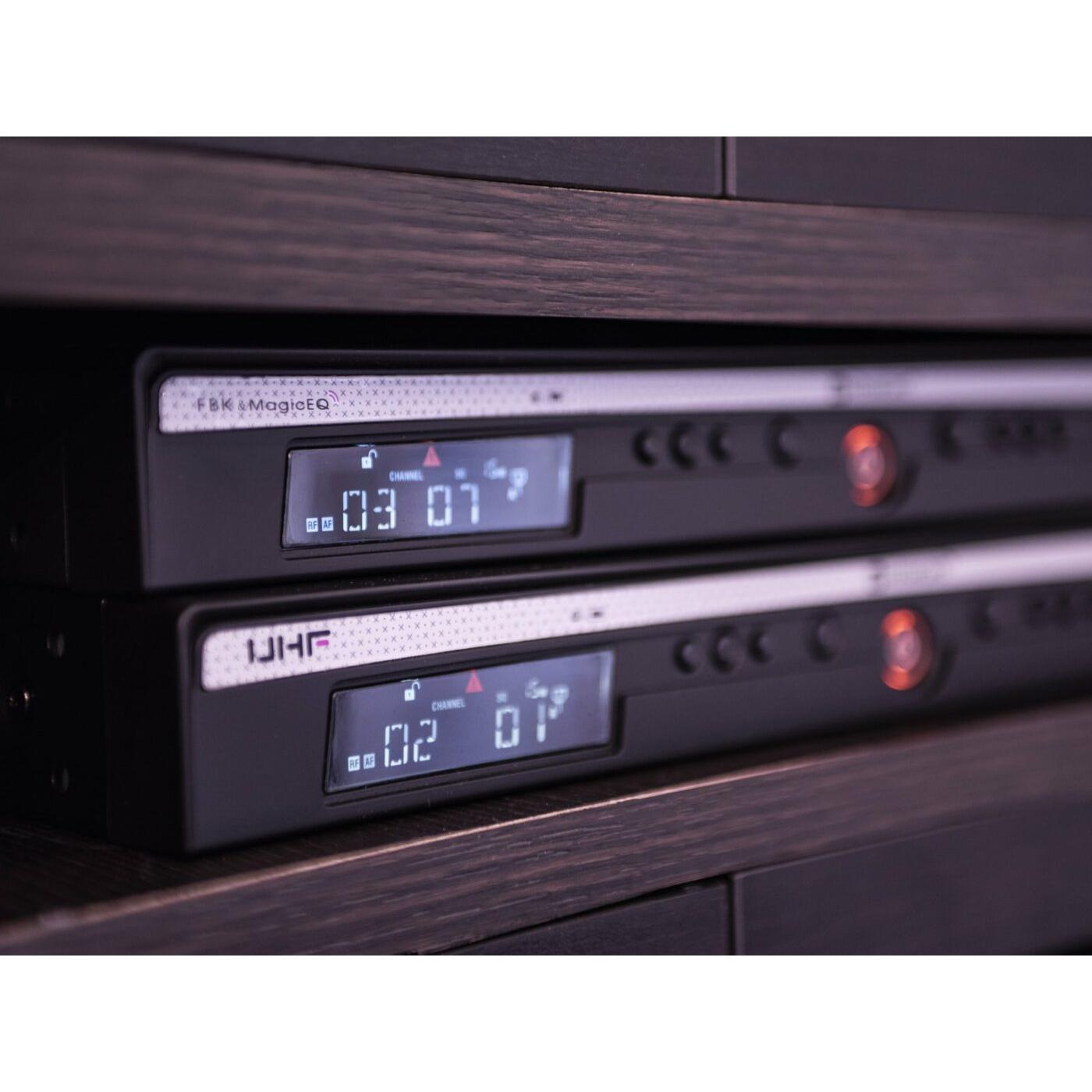

- Multiple units can be linked with network cables
- Lock function avoids accidental changing of settings

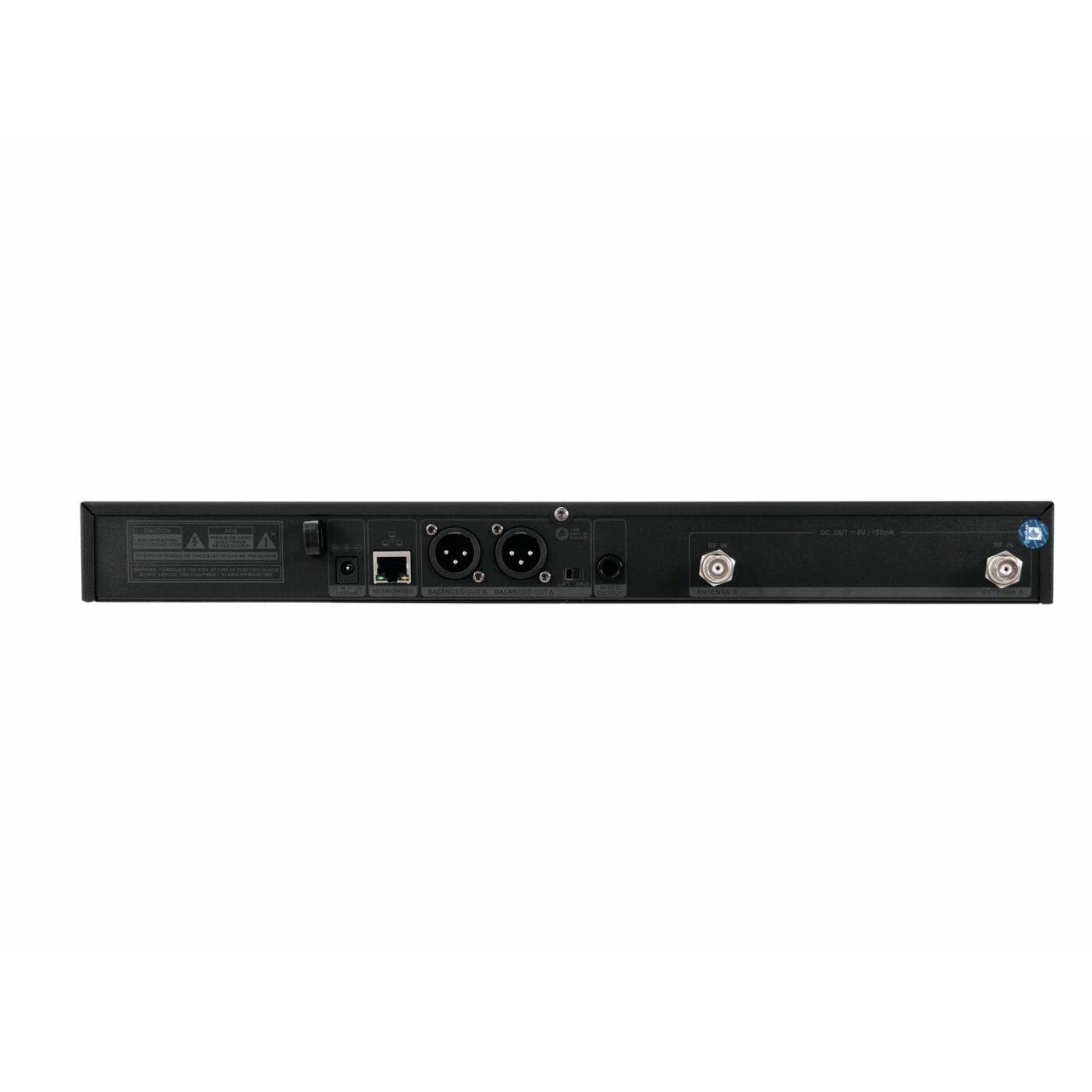

- XLR and 6.3 mm jack output
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Delivery includes jack cable and power unit
- Durable metal housing
- 483 mm rack installation possible with supplied mounting brackets
- Microphones directly compatible with Shures SM58 capsule
- Matching pocket transmitter UT-222 optionally available
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
| System: | True diversity, 2 channels |
| Carrier frequency: | UHF 823-832 MHz and 863-865 MHz |
| Receiving frequencies: | 90 |
| 10 frequency banks with up to 10 preset frequencies each | |
| Switching bandwidth: | 11 MHz |
| Deviation: | ±45 kHz |
| Frequency stability: | ±0.0005 % |
| T.H.D.: | <0.5 % at 1 kHz |
| S/N ratio: | >100 dB |
| Modulation method: | FM |
| Coverage: | 80 m (with line-of-sight) |
| Frequency range: | 45-18000 Hz (±3 dB) |
| Sensitivity: | 5 dBµV (S/N >60 dB at 25 deviation) |
| Audio output: | 2 x XLR, bal. |
| 6.3 mm jack, unbal. | |
| Antenna inputs: | 2 x BNC (supply 8 V/150 mA) |
| Communication: | LAN (TCP/IP) |
| for DSP programming via Ethernet | |
| Signal processor: | 96 kHz, 24 bits |
| Power supply: | 12 V DC, 1 A |
| via supplied power unit connected to 100-240 V AC, 50/60 Hz | |
| Power consumption: | 12 W |
| Dimensions: | 410 x 43 x 225 mm |
| Rack installation with 1 U | |
| with supplied mounting brackets | |
| Weight: | 2 kg |
| Mircrophones: | |
| Type: | Condenser |
| Directivity pattern: | Cardioid |
| Power supply: | 2 x 1.5 V battery (type AA) |
| Current consumption: | approx. 120 mA |
| Battery life: | approx. 8 hours |
| Dimensions: | 52 x 255 mm |
| Weight: | 235 g |
Specifications
| Weight | 3,8 kg |
|---|---|
| Dimensions | 0,0900 × 0,5900 × 0,4300 m |
| Frequency band | UHF 823 – 832 MHz, UHF 863 – 865 MHz |
| Microphone-Type | Condenser |
| On/off/mute-switch | Yes |
| Weight kg | 29 |
| Power consumption W | 12 |
| Material | Metal |
| Frequency selection | Switchable frequency |
| Polar pattern | Unidirectional |
